You'll be asked to run a camera calibration when you use the machine for the first time.
The process ensures the camera is aligned after shipment, and improves the previewing accuracy.
Preparation Items
A4 (Letter size) white paper (self-preparation)
1. Select Your Machine
Select the name of the machine in use.
2. Place a White Paper
Place a clean A4 (Letter size) white paper in the upper left corner of the working area.
3. Focus on the Paper

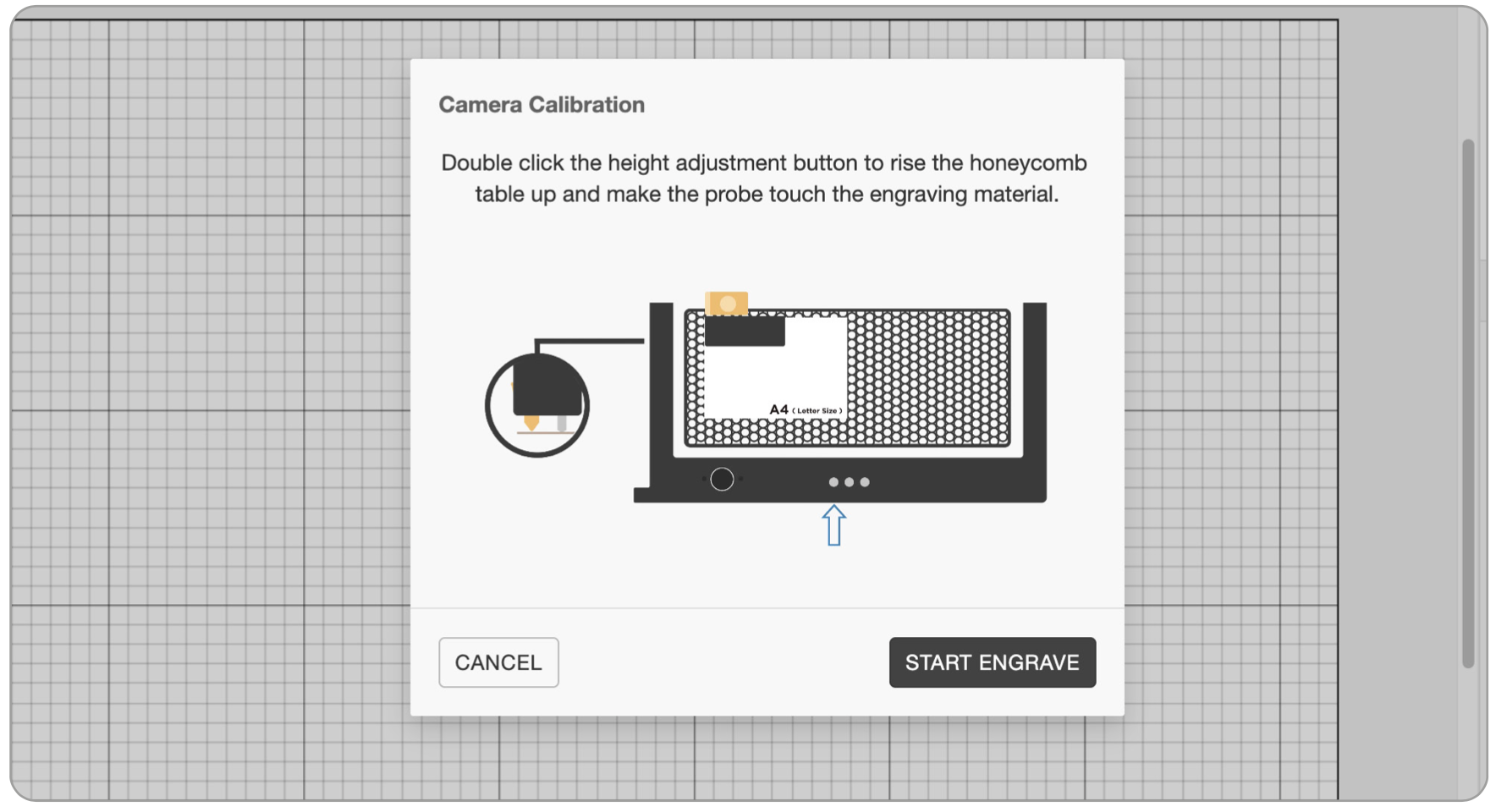

Double-click the height adjustment button to raise the honeycomb table until the probe touches the paper.
4. Engrave the calibration image
The machine will cut out grid lines on the paper.
Click anywhere to skip the drawing process and jump to the next step.
5. Align the Red Square
Move the grid lines to the center, and align the outside of the red square with the center square of the grid lines by adjusting the directional keys, horizontal and vertical translation, rotation angle, and size ratio (keyboard up and down keys can adjust the value).
Check the Tutorial Video here.
5. The Finishing Position of the Red Square
This is an example of the aligned position of the red square.
Make sure the red square and the grid lines are in the middle of the screen.
After reaching the position, click NEXT.
6. Good to Go!
After finishing the camera calibration, you can start the first engraving project.
