Beambox II - Water Pump Replacement

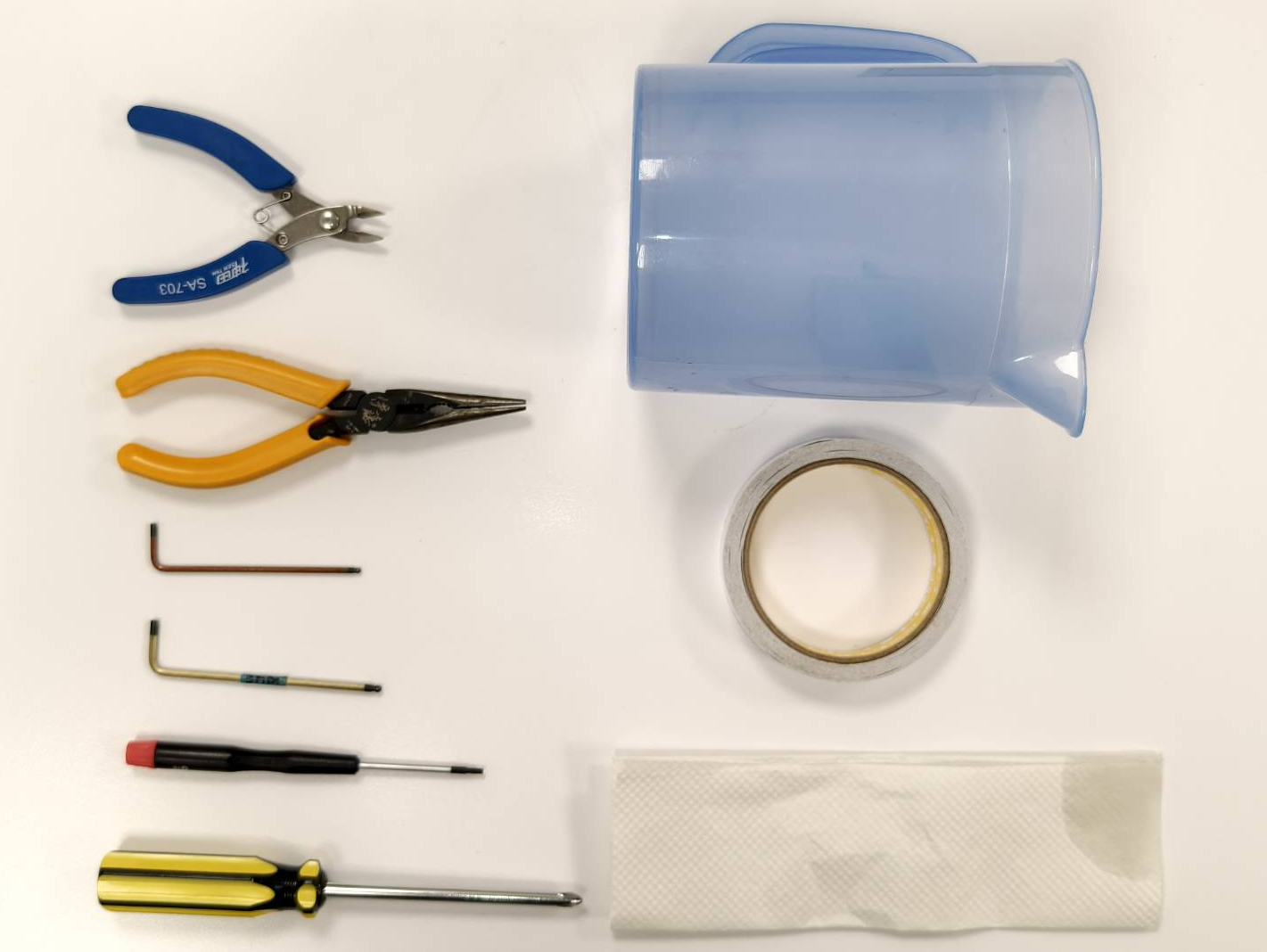

Tools

Step 1

Turn off the machine, and remove the power cord.

Step 2

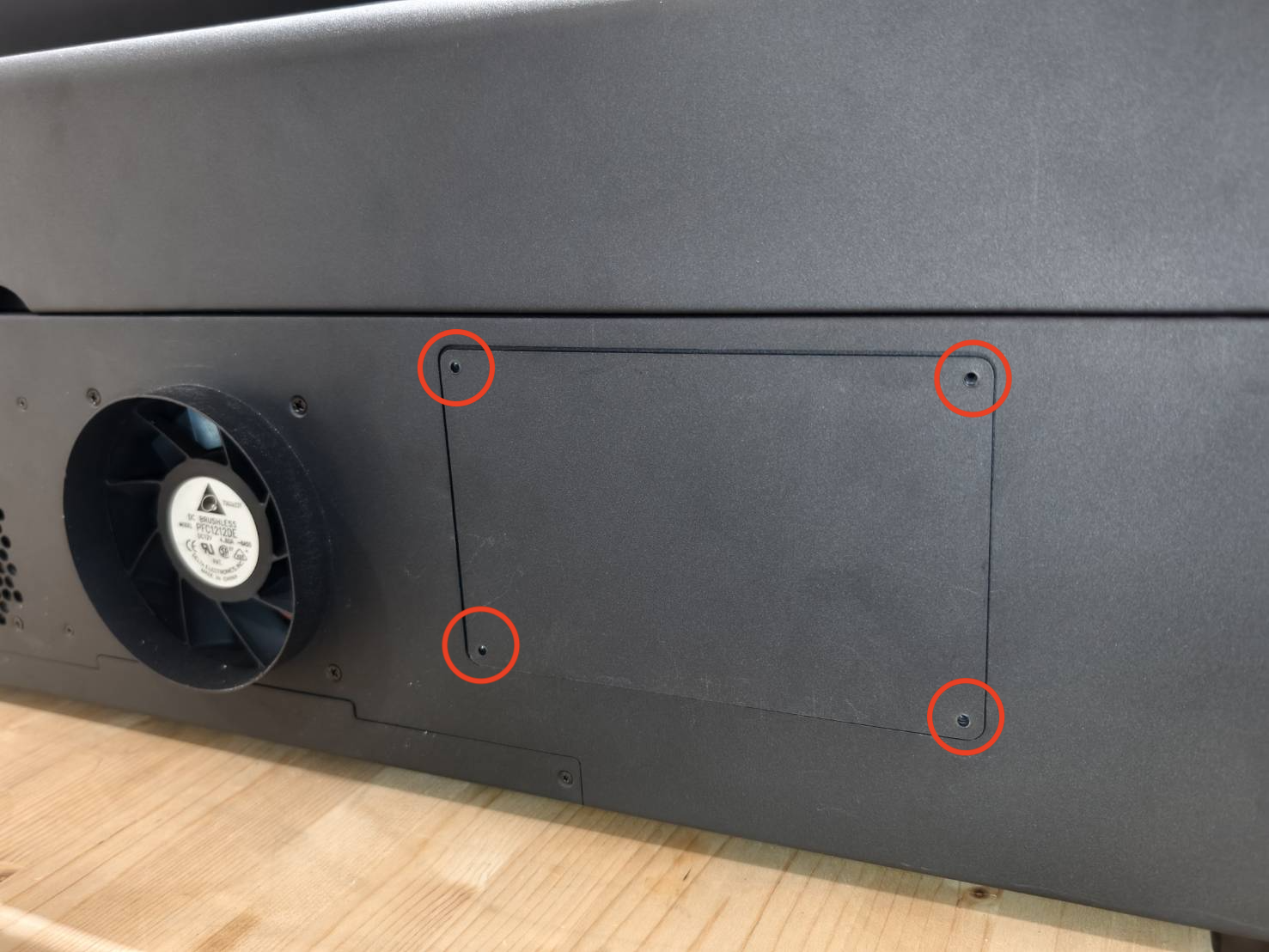

Open the water pump cover with the Torx screwdriver.

Step 2.1

This is an optional step.

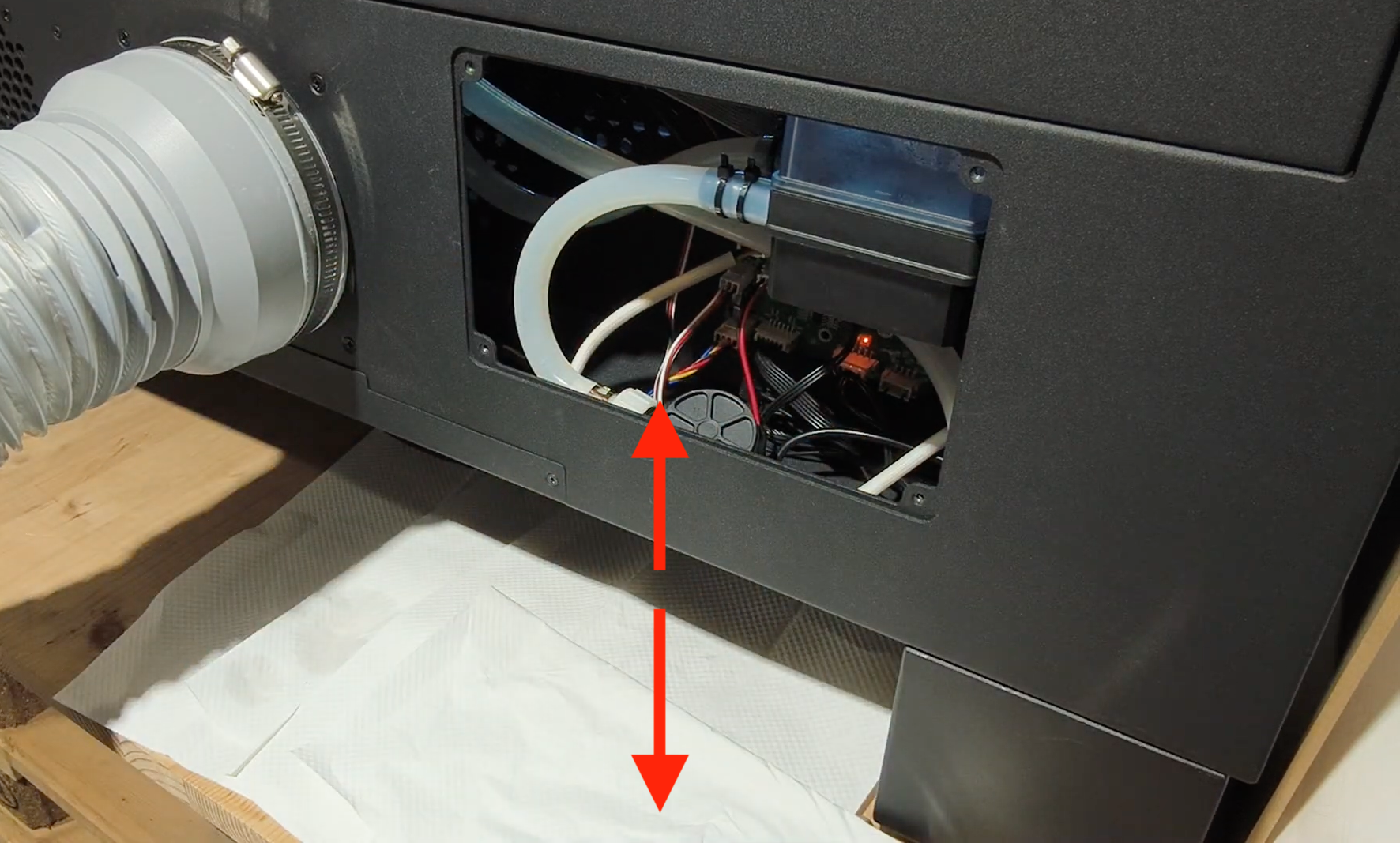

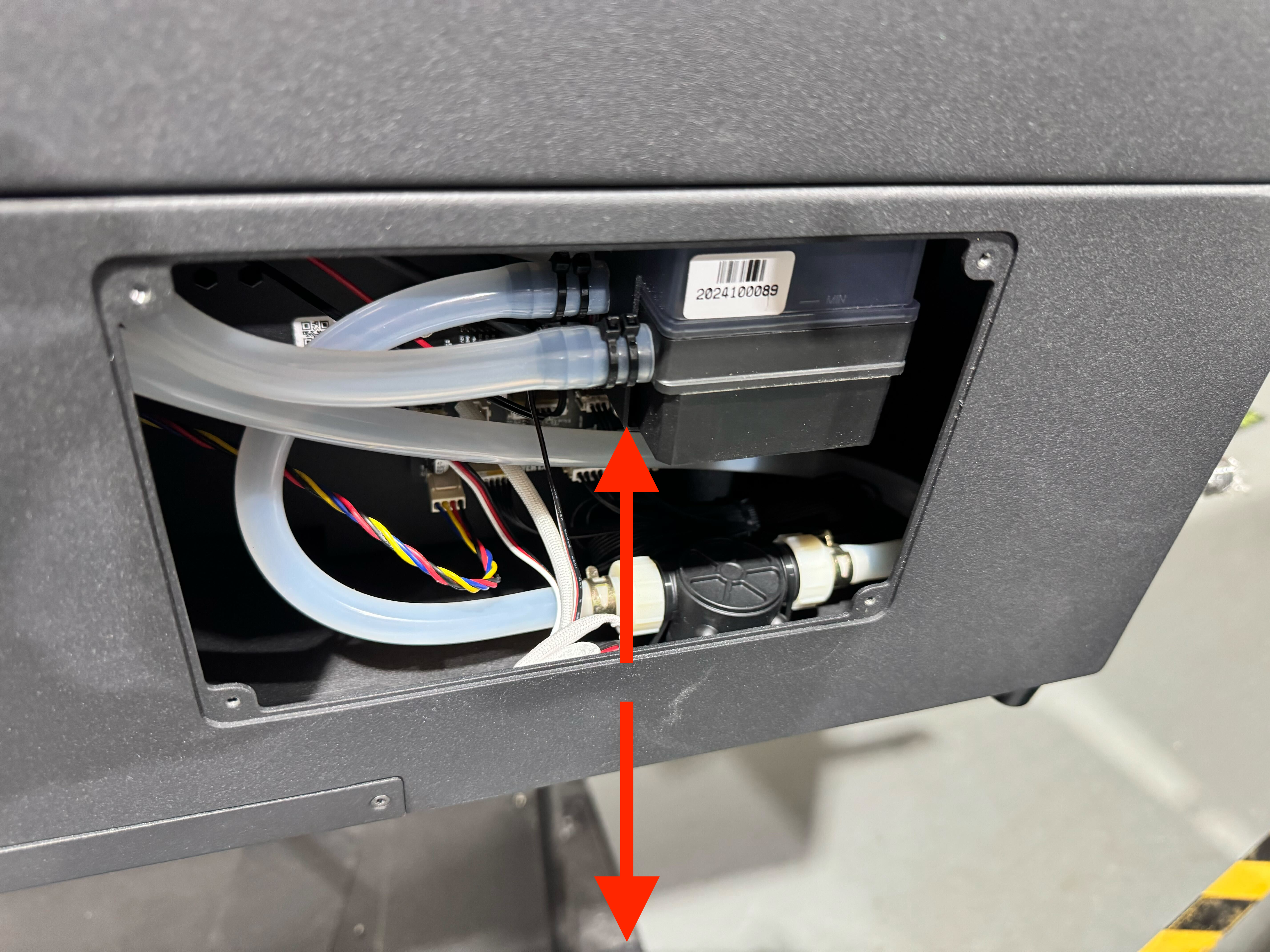

Raise the machine to create more space above and below, or move the machine to the edge of the table.

Step 3

Use a screwdriver to unscrew the screws at the back of the machine, and the back cover can be opened afterward.

Step 4

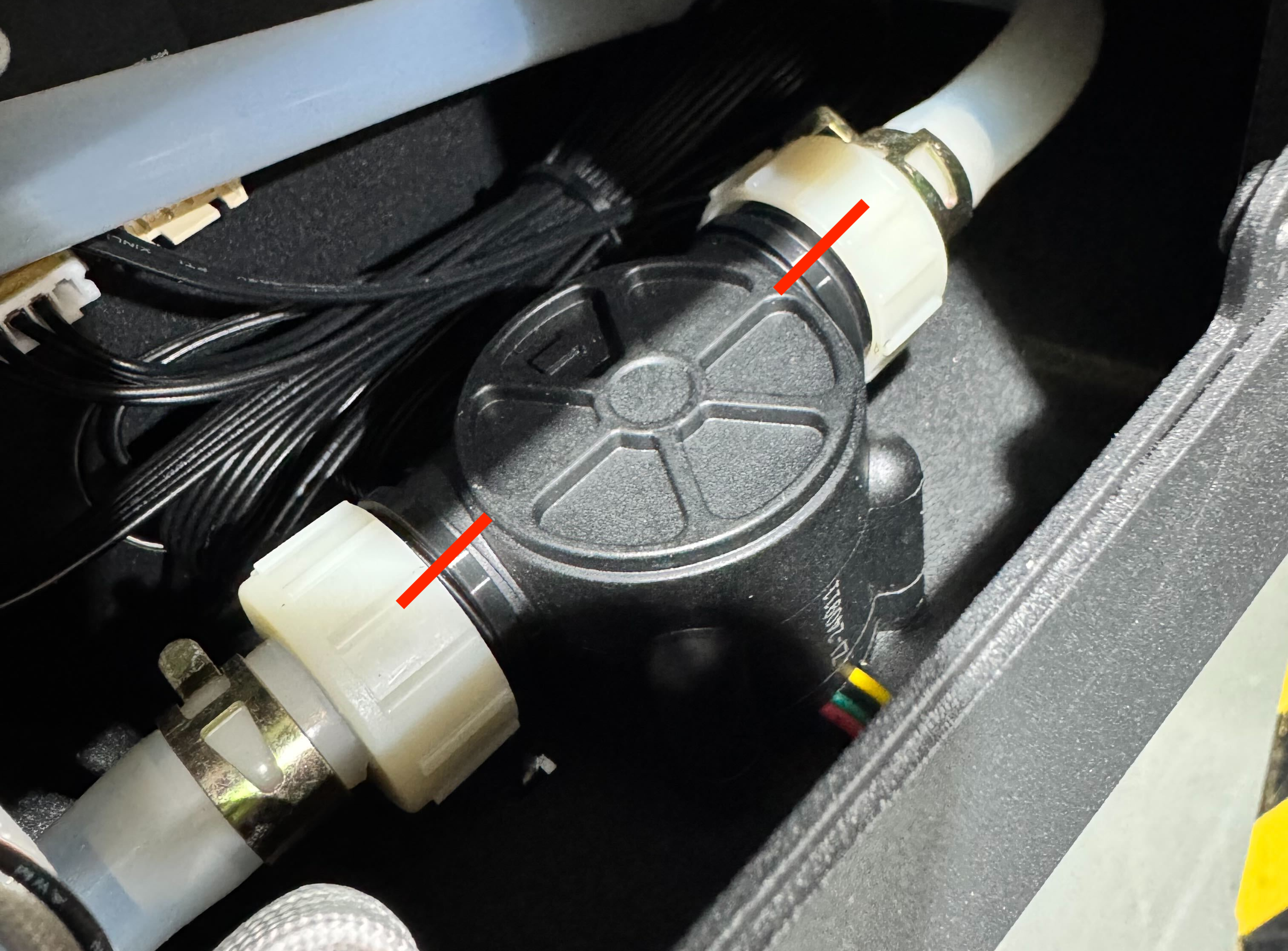

Snip off the two cable ties, and the flow sensor can then be moved around.
If your flow sensor is not tied, skip this step.

Step 5

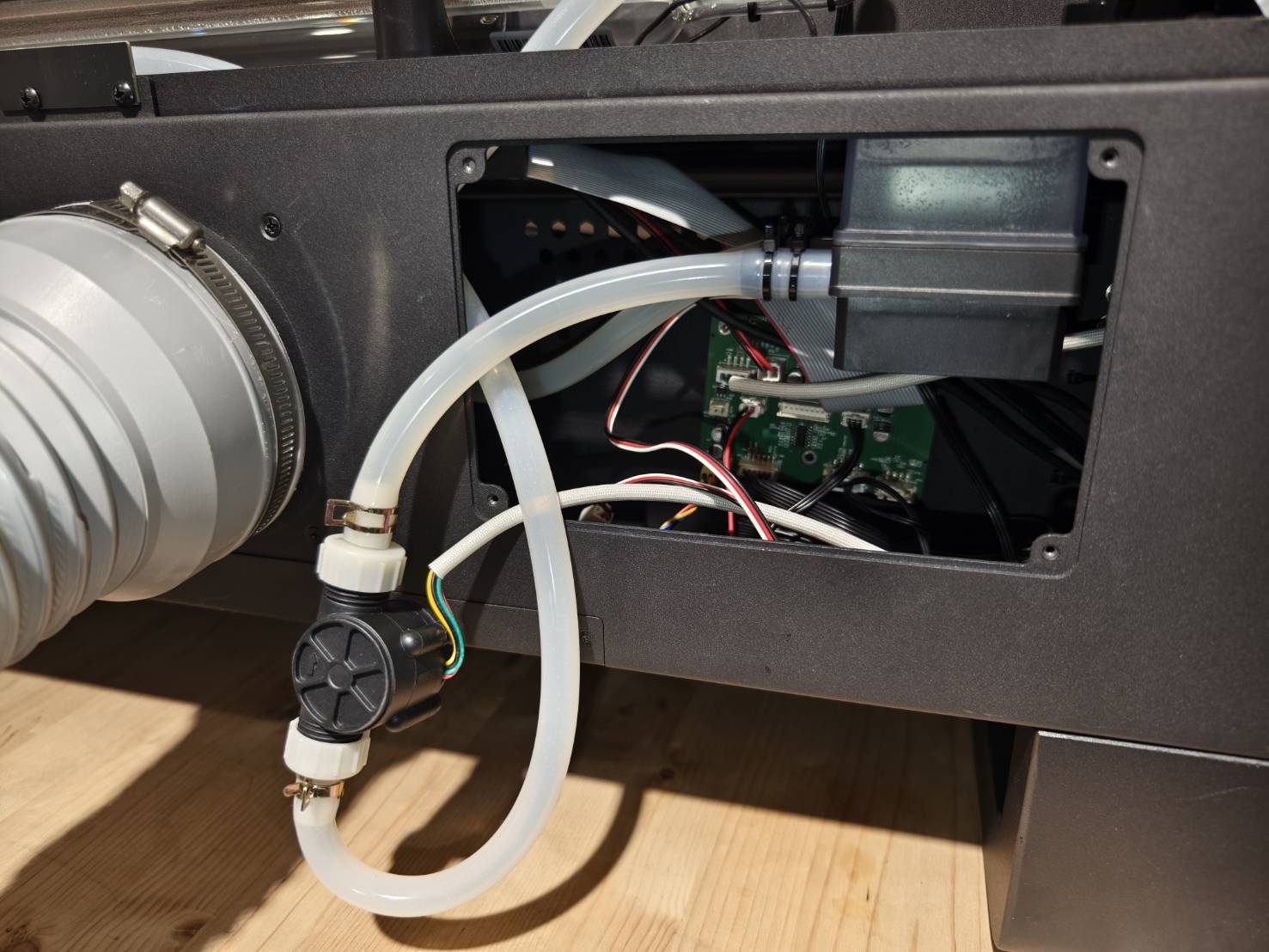

Take the flow sensor out to have more space.

Step 6

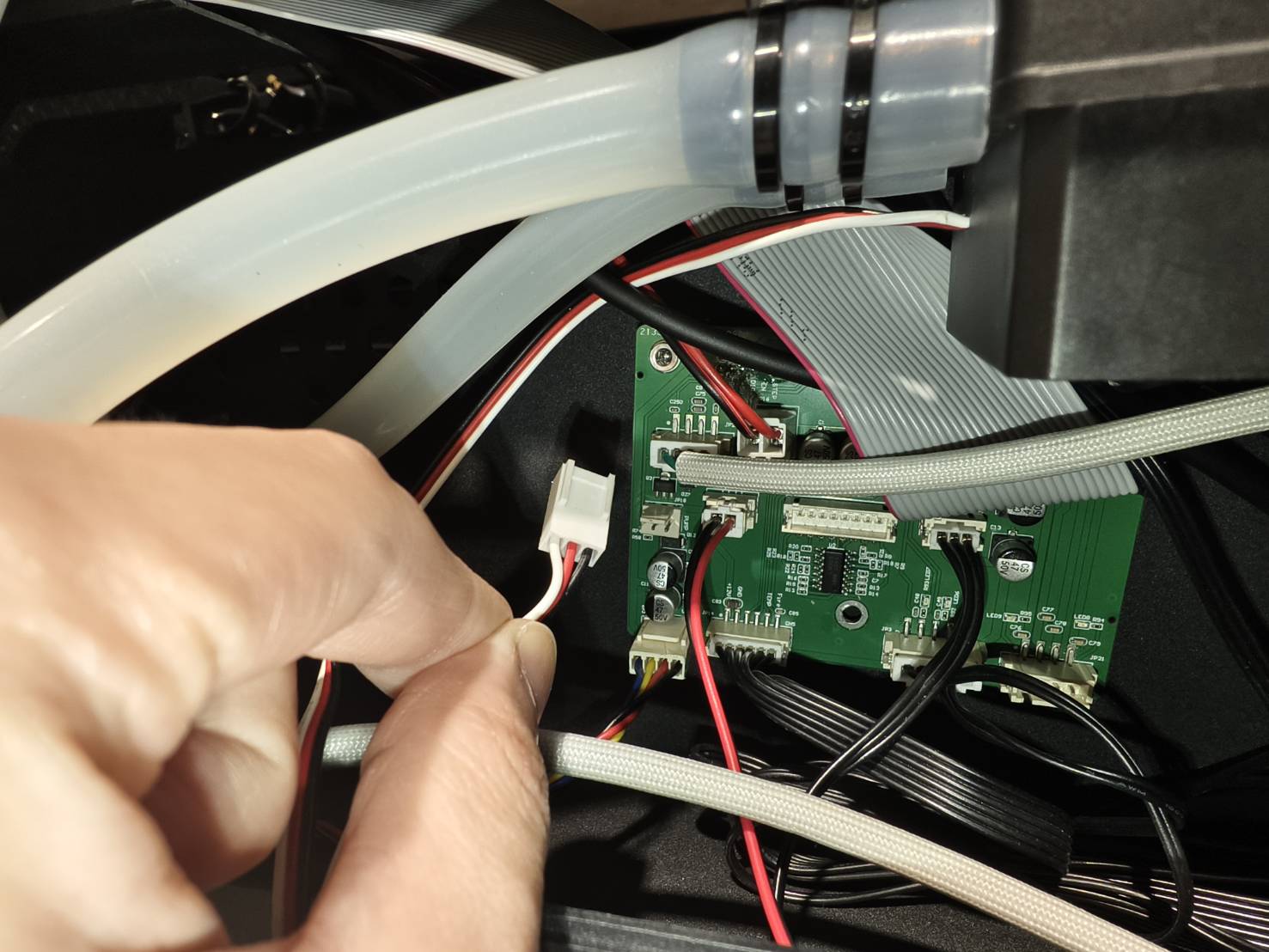

Unplug the water pump's cable.
(If your board differs from the photos below, please refer to the diagram for the latest setup.)

Step 7

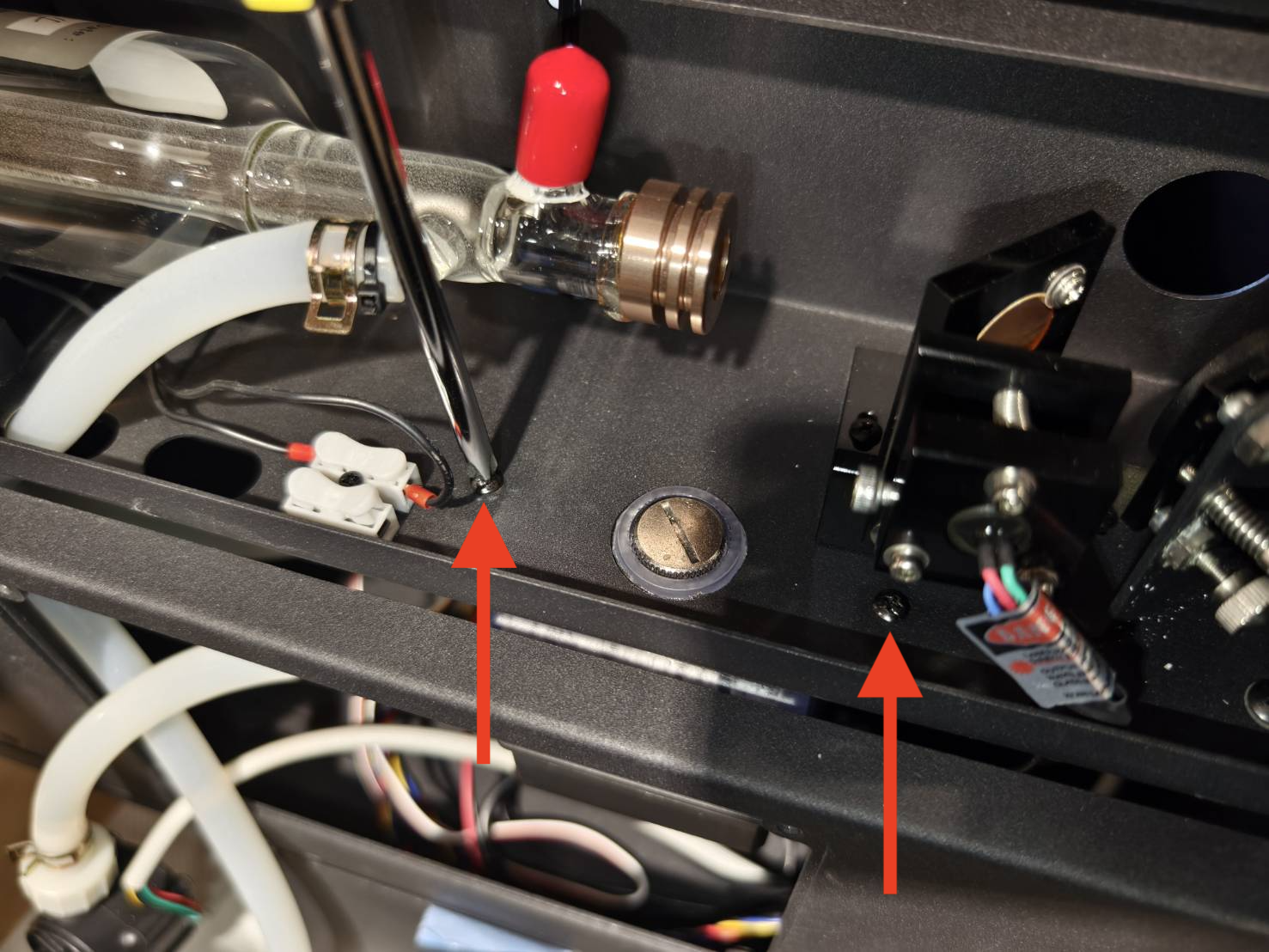

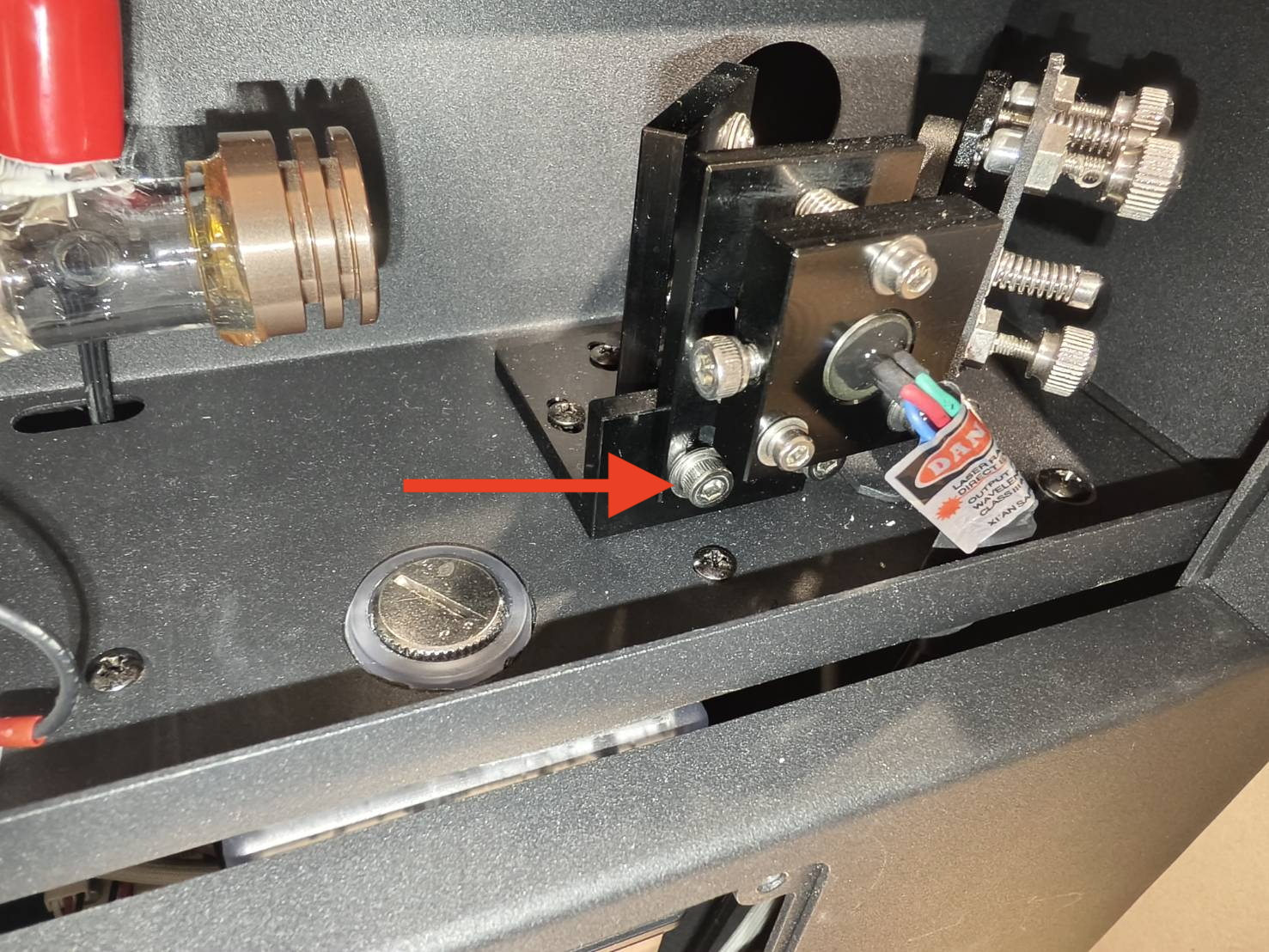

Remove the screw on the left of the red laser pointer holder.

Step 8

Unscrew the two screws, and the water pump bracket can then be removed.

Step 9

• The water pump might be adhered to the machine.
  Try to remove it with your hand.
  (If your water pump is removed with the bracket, you can skip this step.)

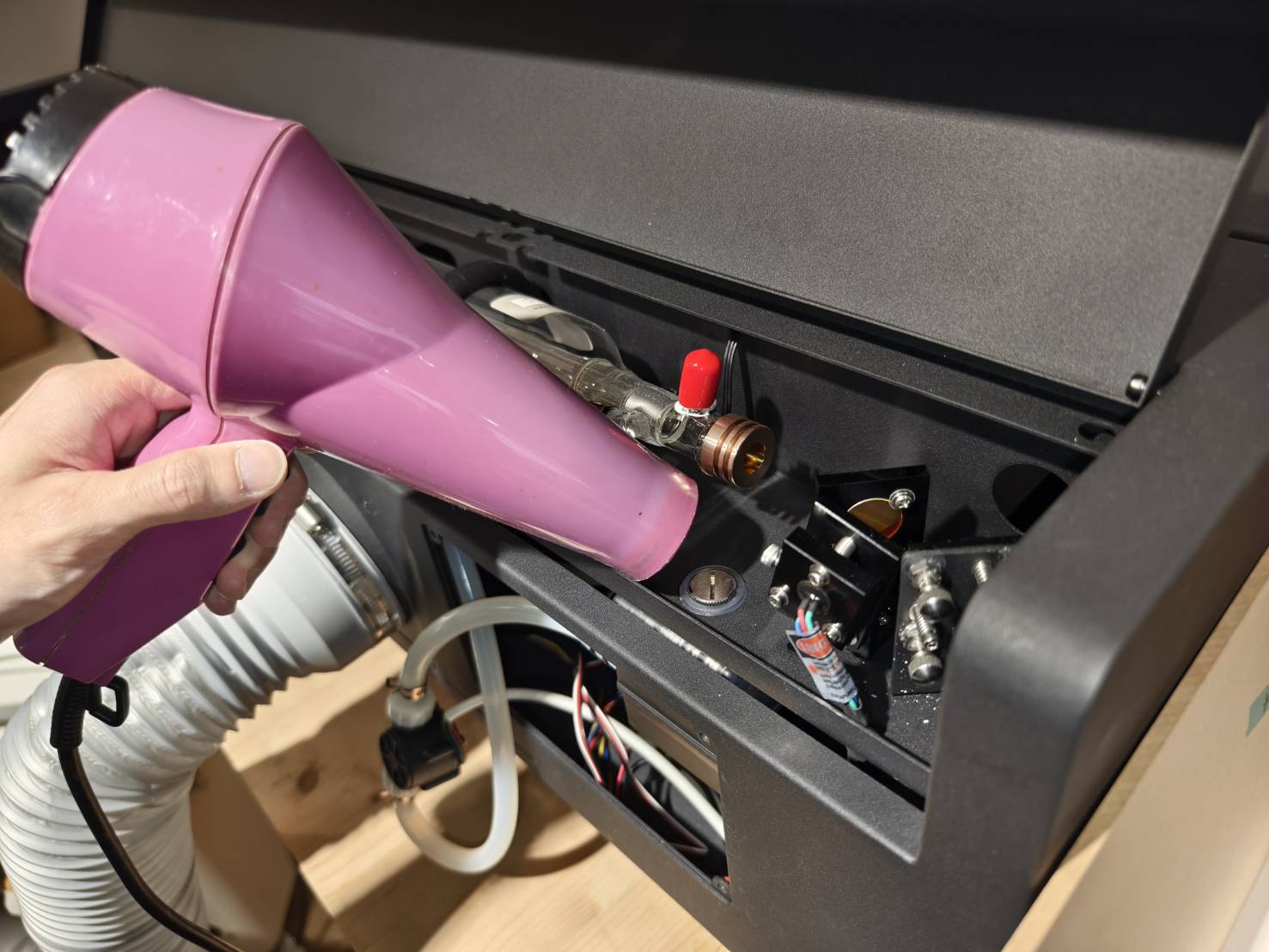

• If the tape is too strong, the pump can't be removed; you can use a hair dryer to heat it a bit to make it easier.


Step 10

Clean the residual tape on the machine.

Step 11

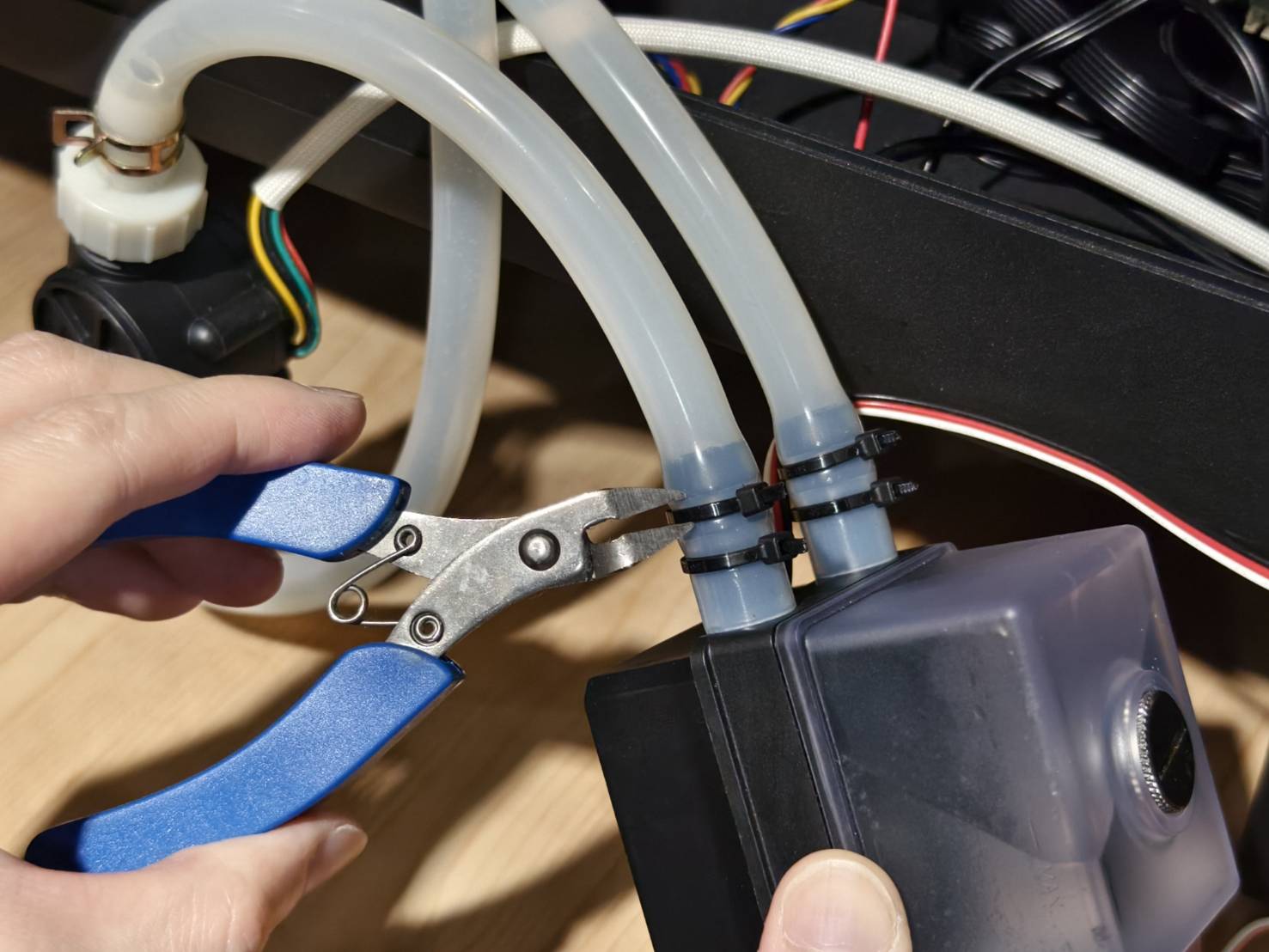

Take the water pump out and snip off the cable ties or move the hose clips if there are any.

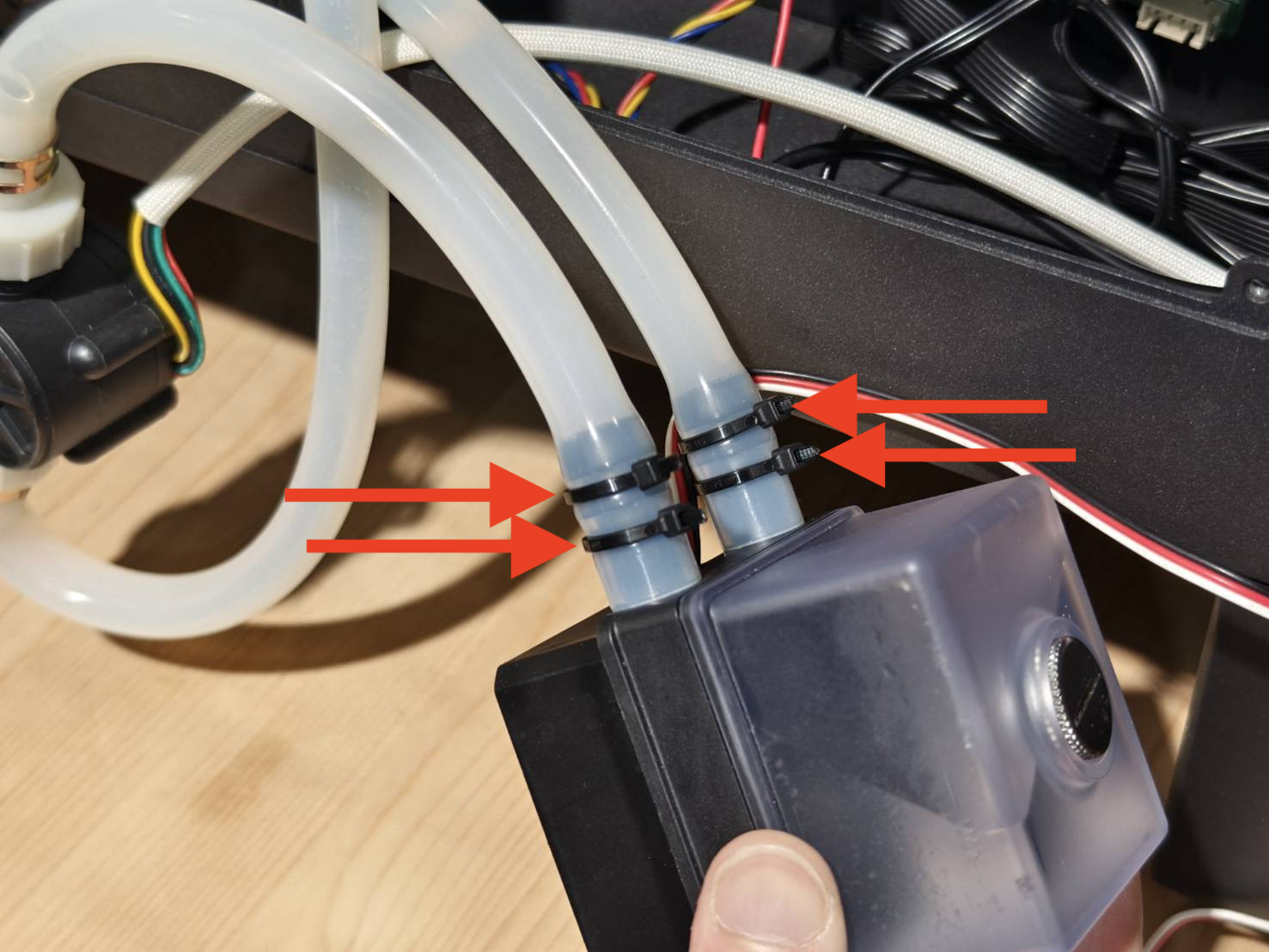

Cable ties

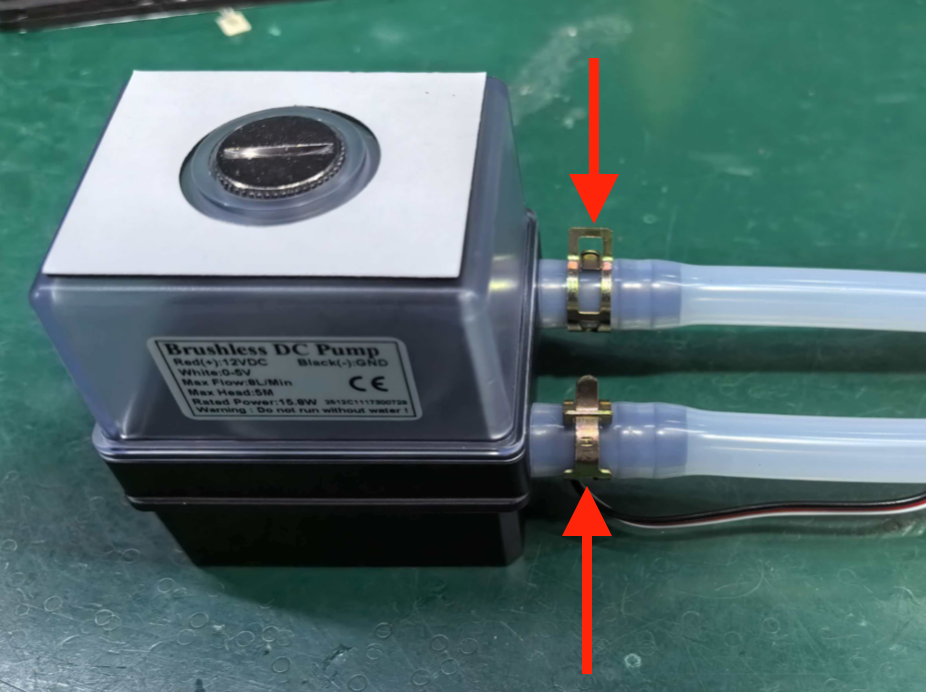

Hose clips

Step 12

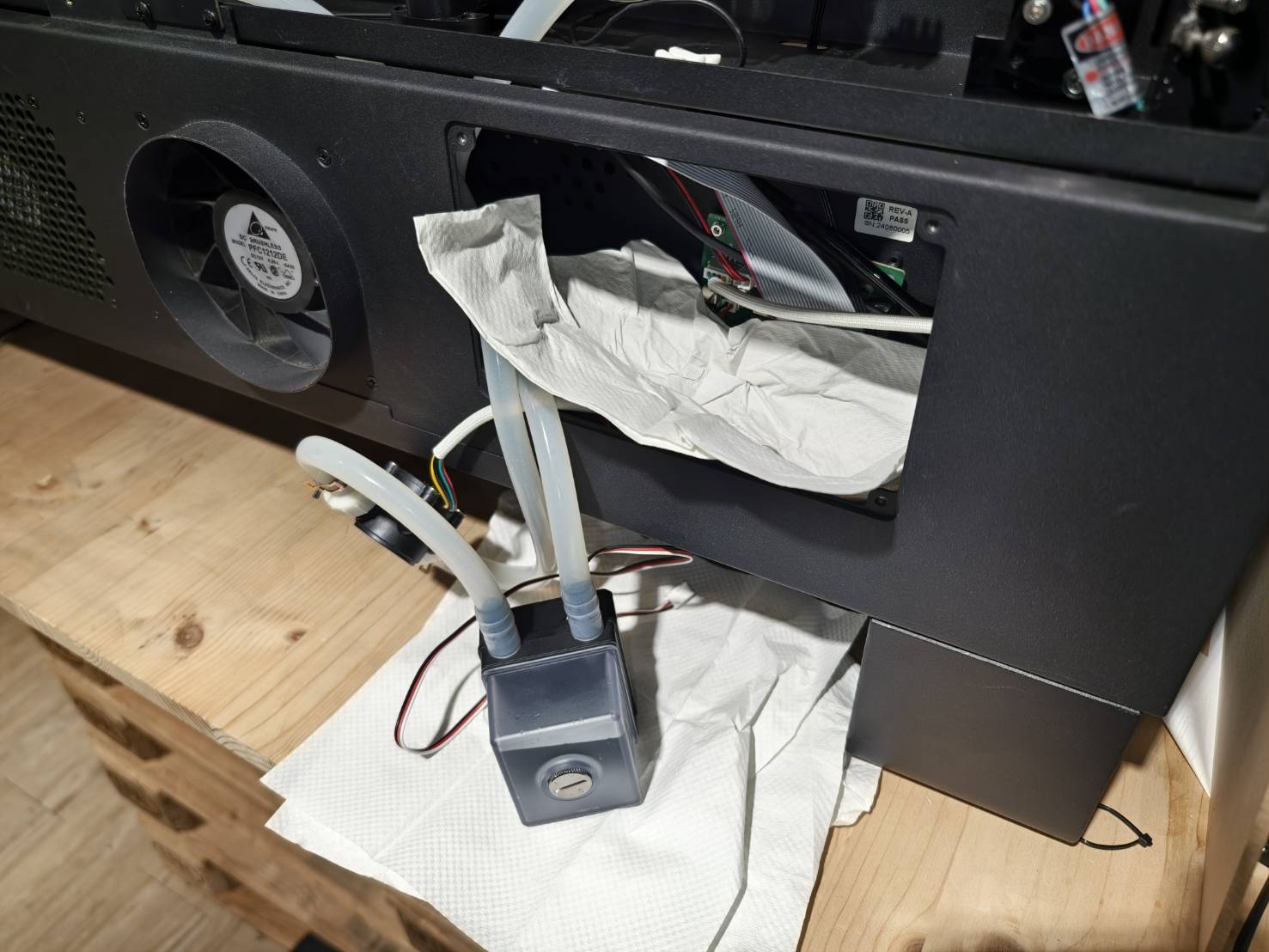

Place some rags or paper towels in the machine and some on the table.

Step 13

Detach the water hoses from the water pump with a piece of napkin and a pliers.
The purpose of using napkins is to prevent the water hose from breaking or being damaged.
(Please take this action in a container, as when a water hose is detached, the water will leak at once.)

Step 14

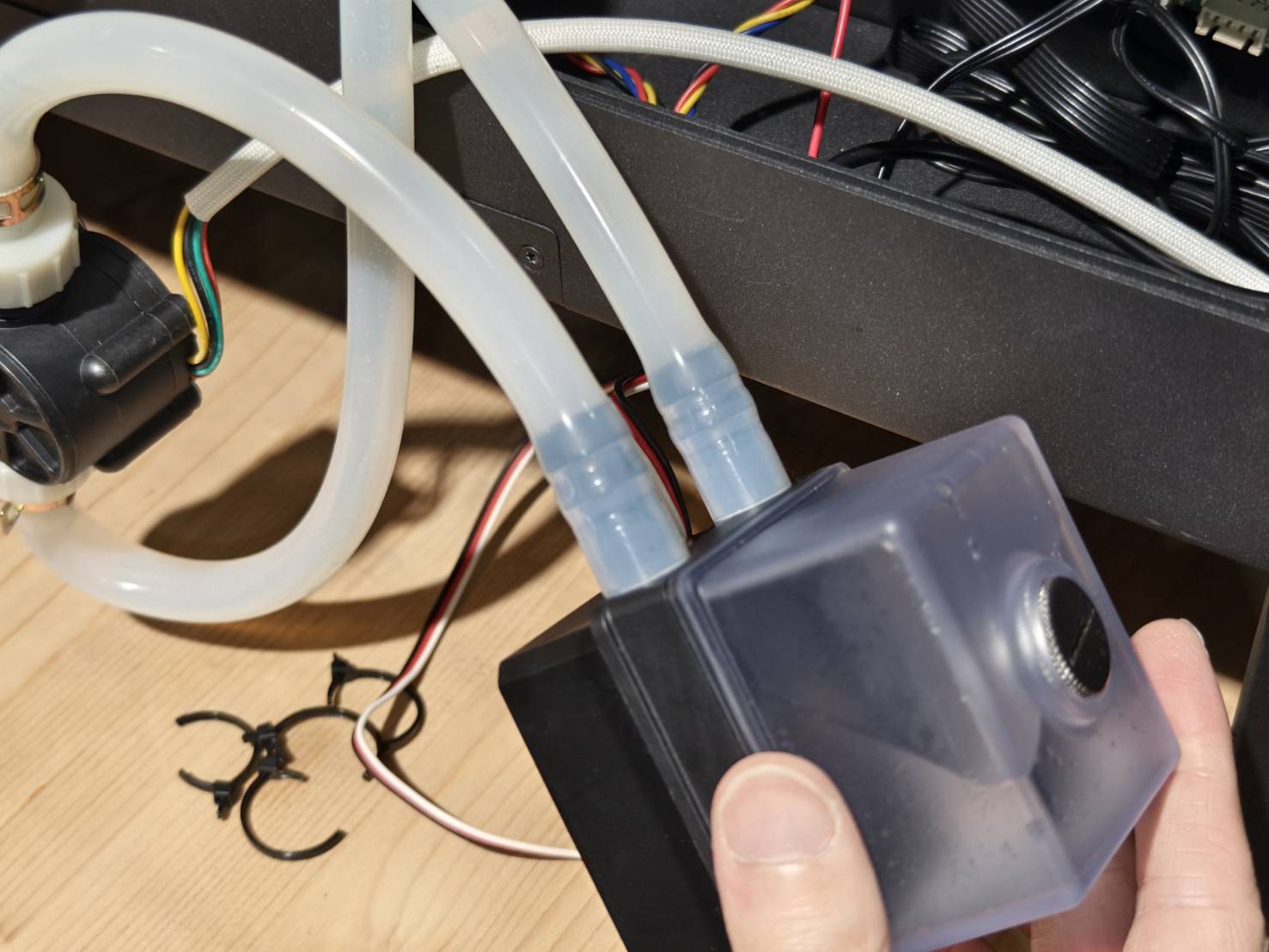

Attach the water hoses to the new water pump.

If your machine has the hose clips, please move them to the water inlet and outlet of the water pump.
If you don't, please go to Step 14.1.

Step 14.1 (Optional Step)

If cable ties are available, tie up the water hoses as in the video.
If not available, skip this step.

Step 15

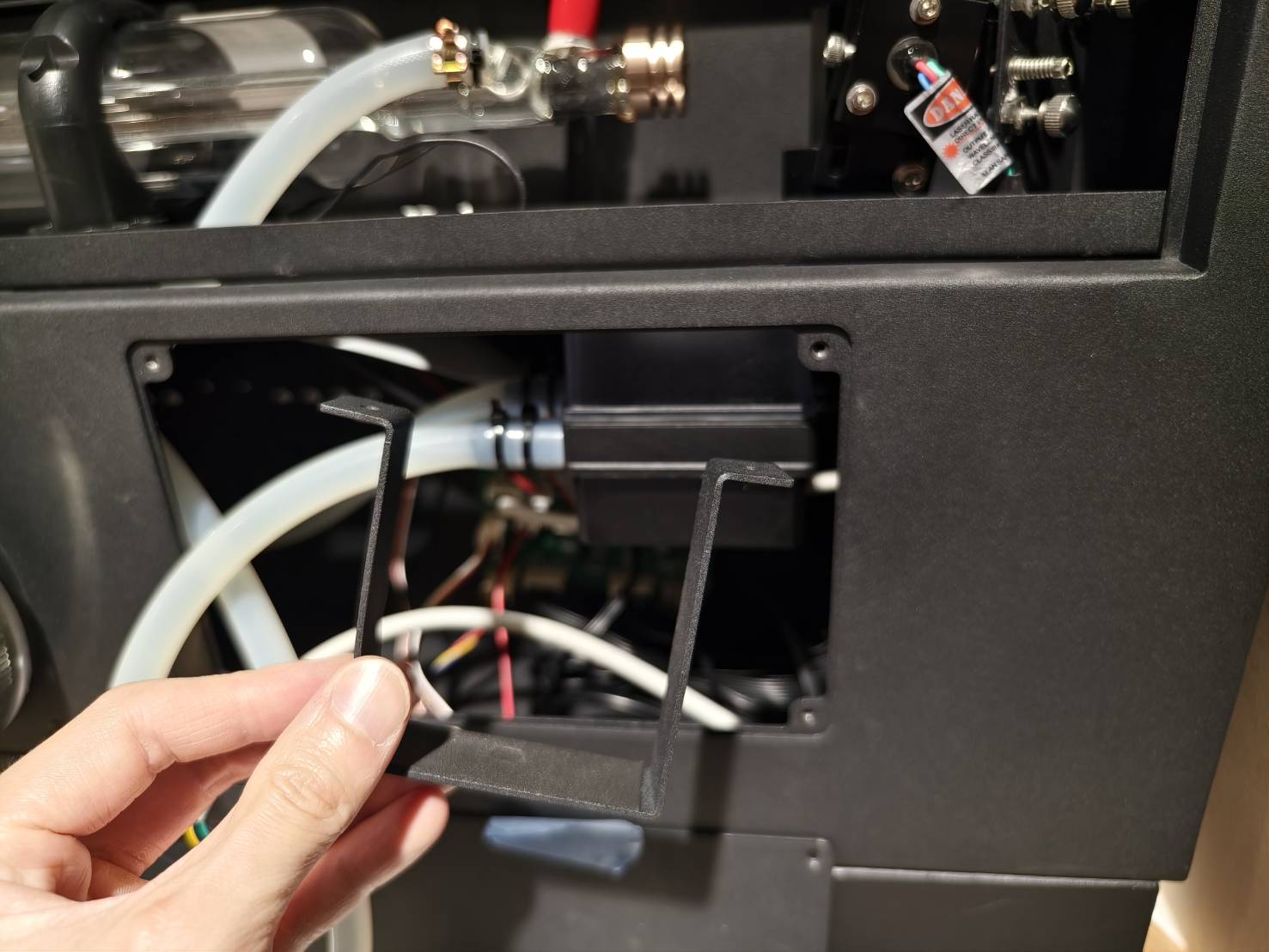

Install the new water pump along with the bracket.
The bracket is directional. Please refer to the video below.

Step 16

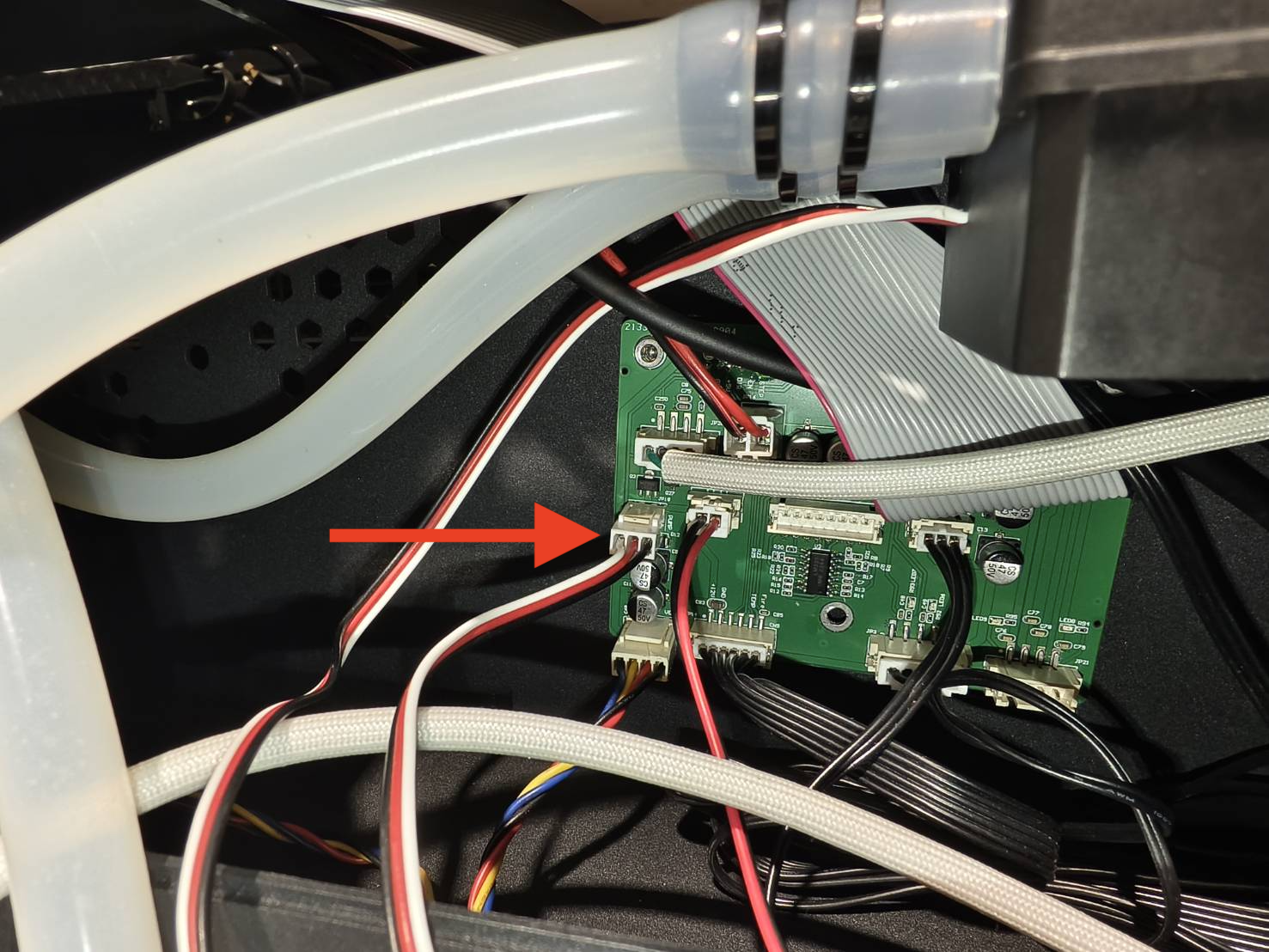

Place the flow sensor back into the machine and plug the water pump's cable into the board.

Step 17

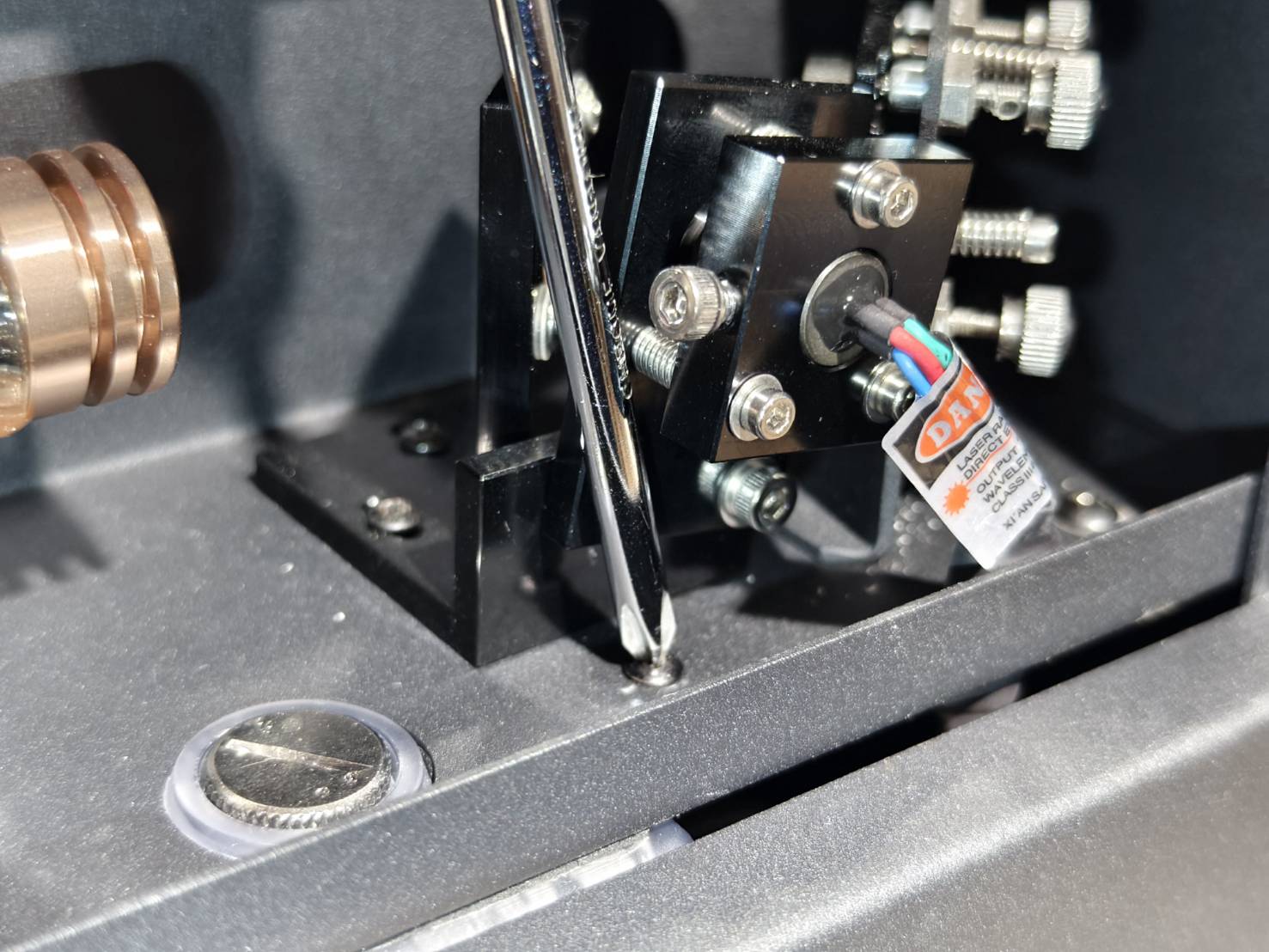

Rescrew the screw of the red laser pointer holder.

Step 18

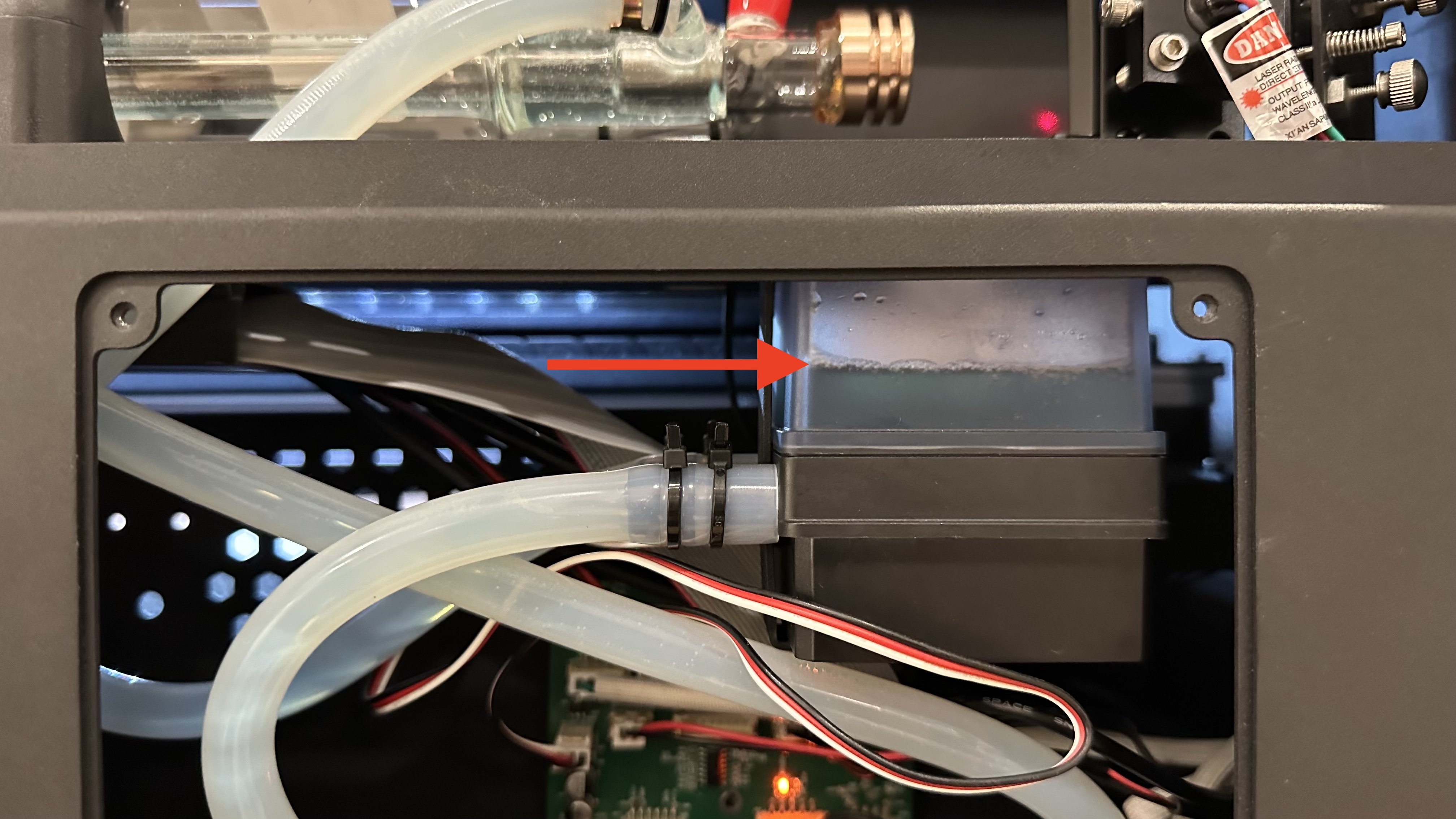

Please refer to the guide below to fill in the water.
Cooling Water Replacement

Step 19

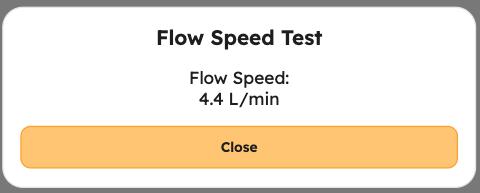

• Please perform a flow speed test to see if the value is normal, which indicates 3L/min or above.

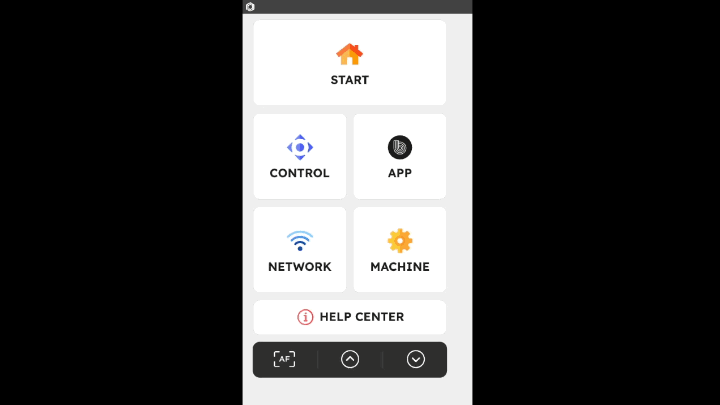

  (Machine Panel > Machine > Hardware Settings > Flow Speed Test )



• If your value is below 3L/min, please refer to the guide below to troubleshoot.
  #900 Cooler Off/Cooling system failure

Step 20

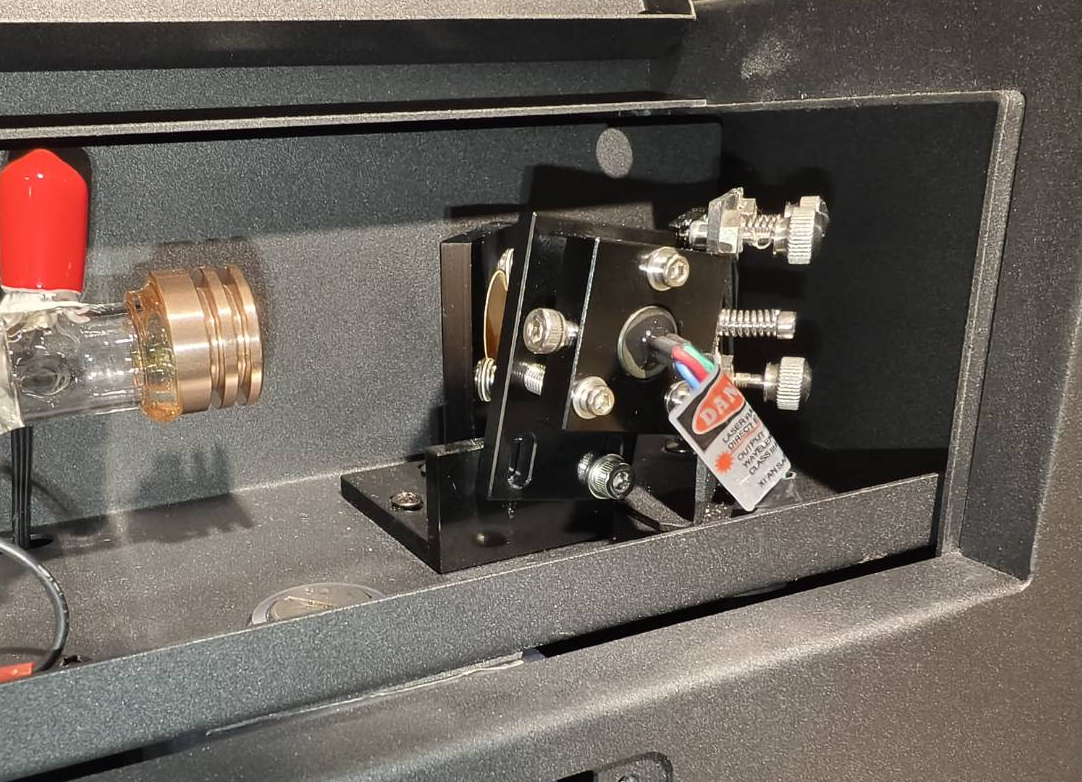

As the red laser pointer holder was moved, please check if the red laser dot and the burnt mark overlap.
This step checks if the paths of the red laser and the actual CO2 laser match and are aligned.

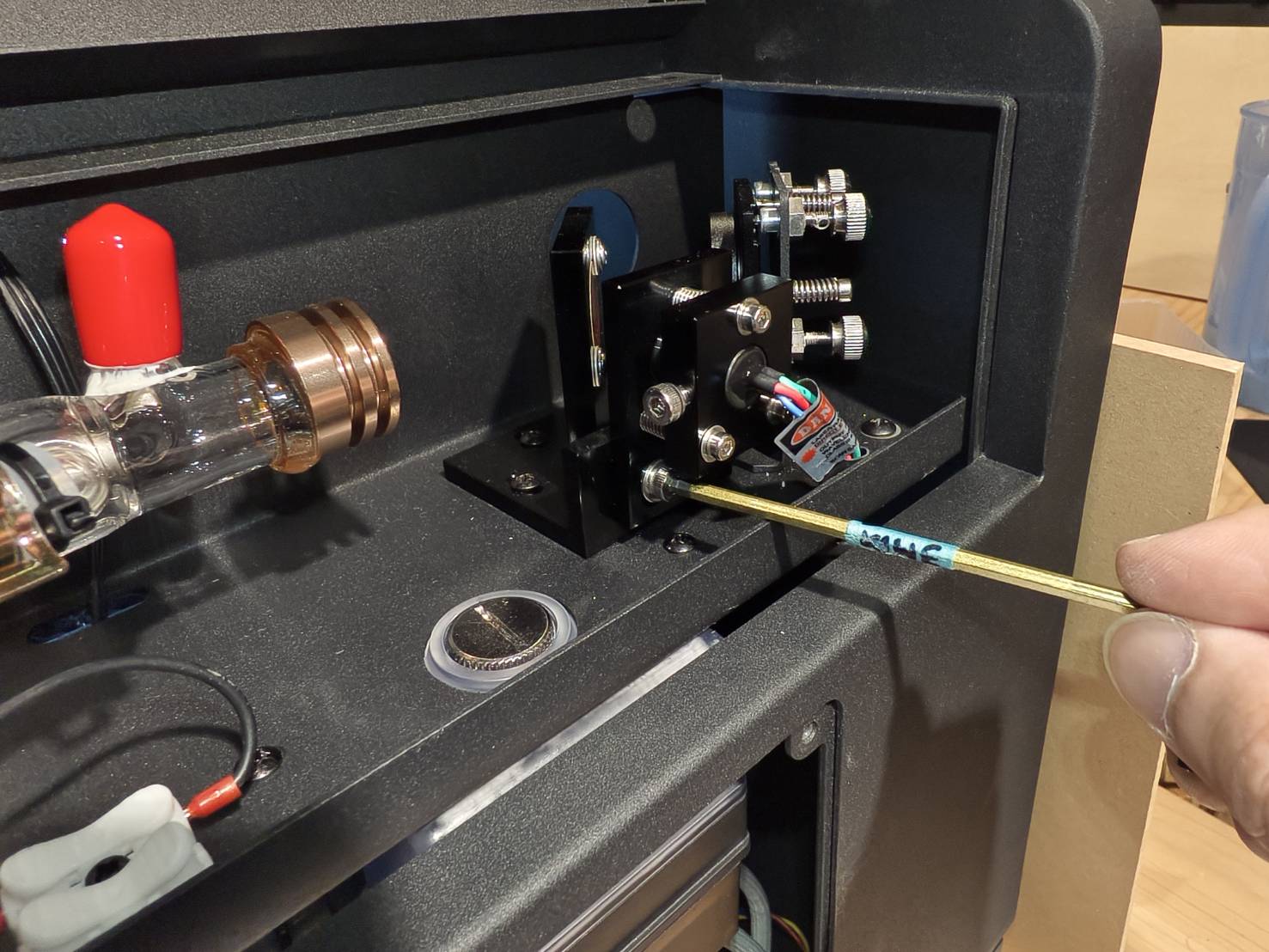

If they are not aligned, adjust the red light emitter with a 2.5mm Allen key.

Open the door. Place a two-layer, double-sided tape on the third mirror entrance. Enter the control mode and loosen the motor. Move the laser head to the bottom-right corner. Make sure the red laser is turned on. Close the door. Make 3 pulses. Check if the red laser dot and the burnt mark overlap. Adjust the red laser if necessary.

Good Example - Overlapped Bad Example - Not Overlapped     Screws and Beam Path of The Red Light Emitter     Demonstration

Step 21

Close the back cover and screw it.

Step 22

Re-install the plate.
