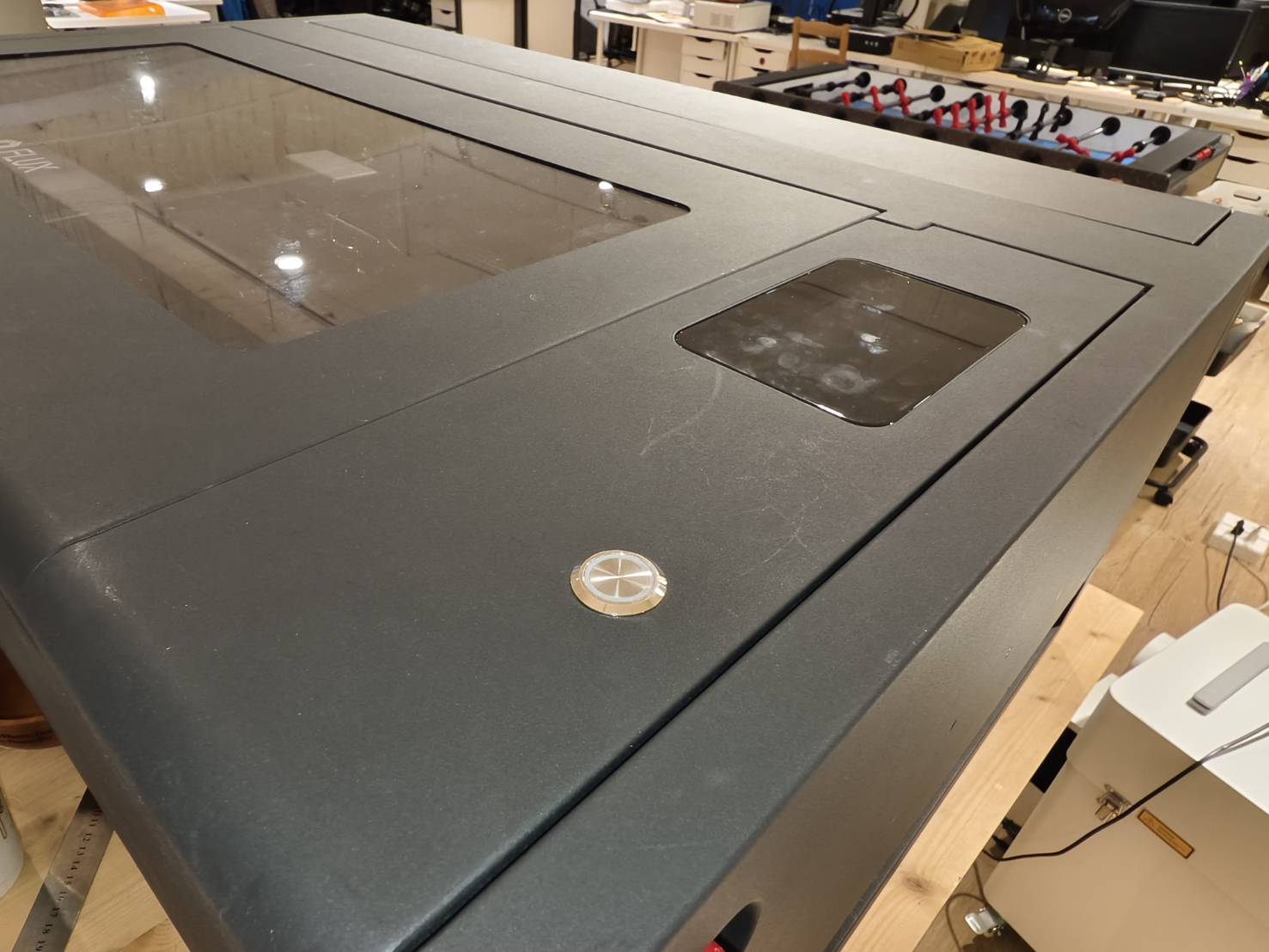

Beambox II - Emergnecy Button Replacement

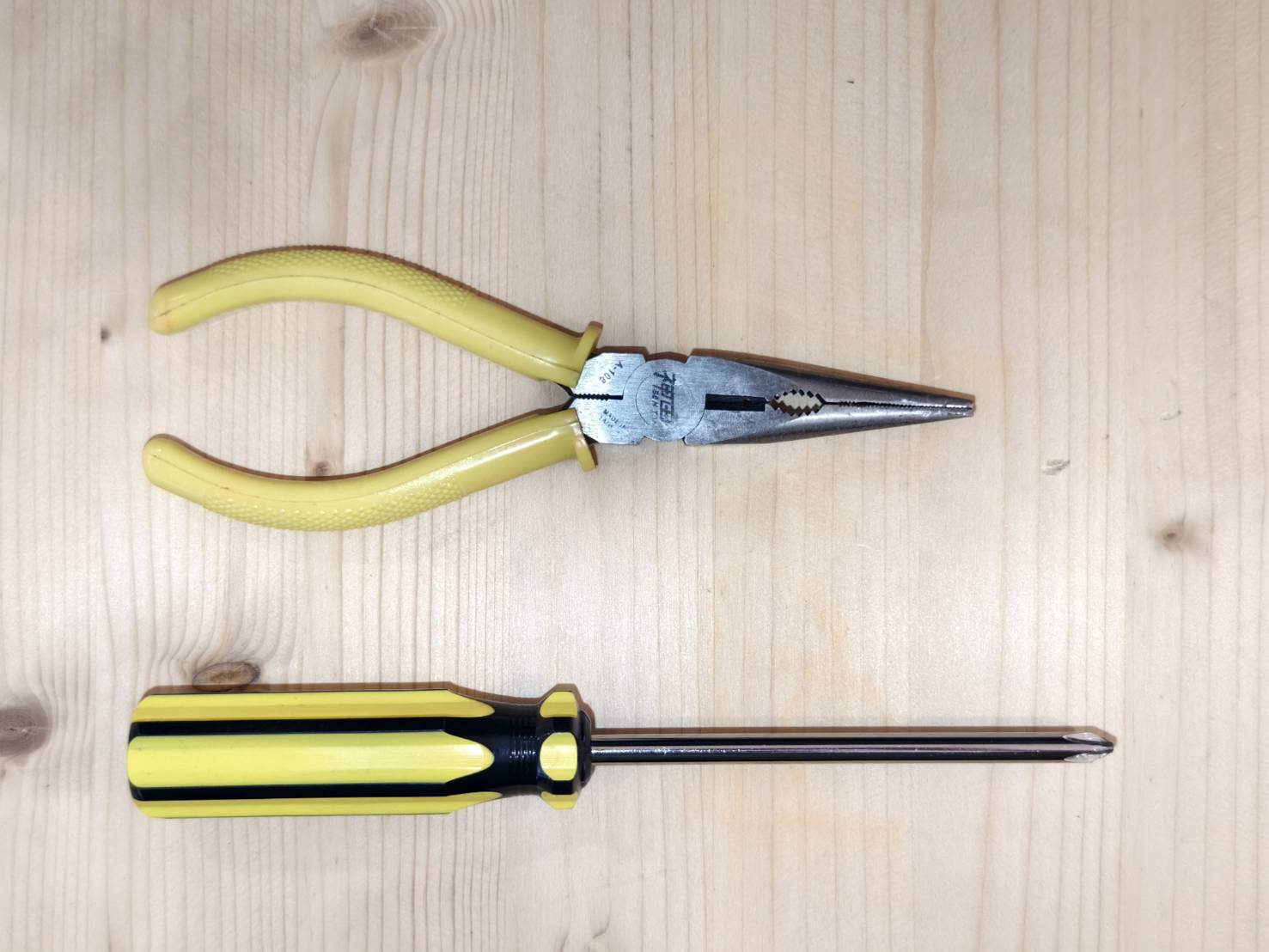

Tools

Step 1

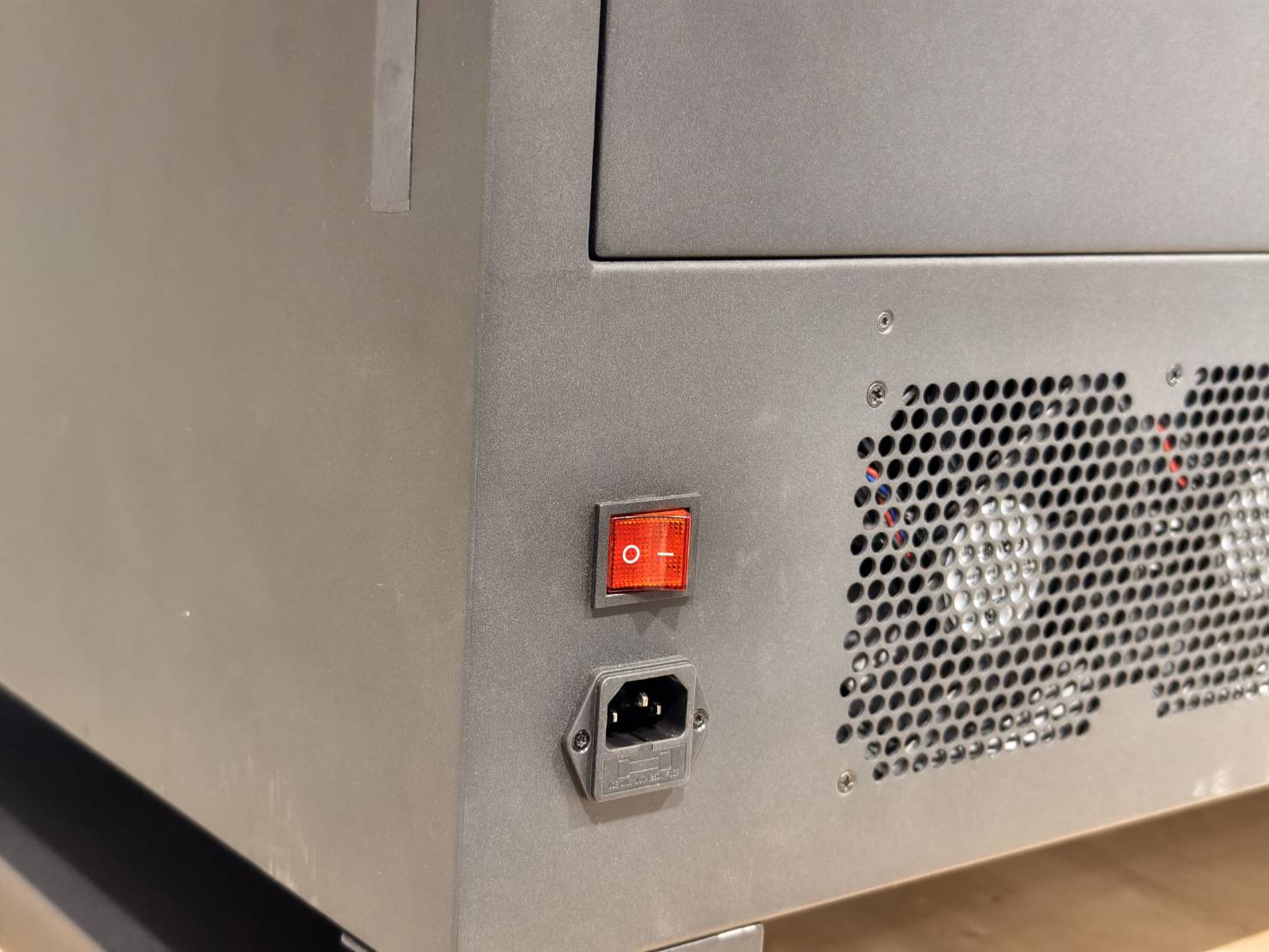

Turn off the machine, and remove the power cord.

Step 2

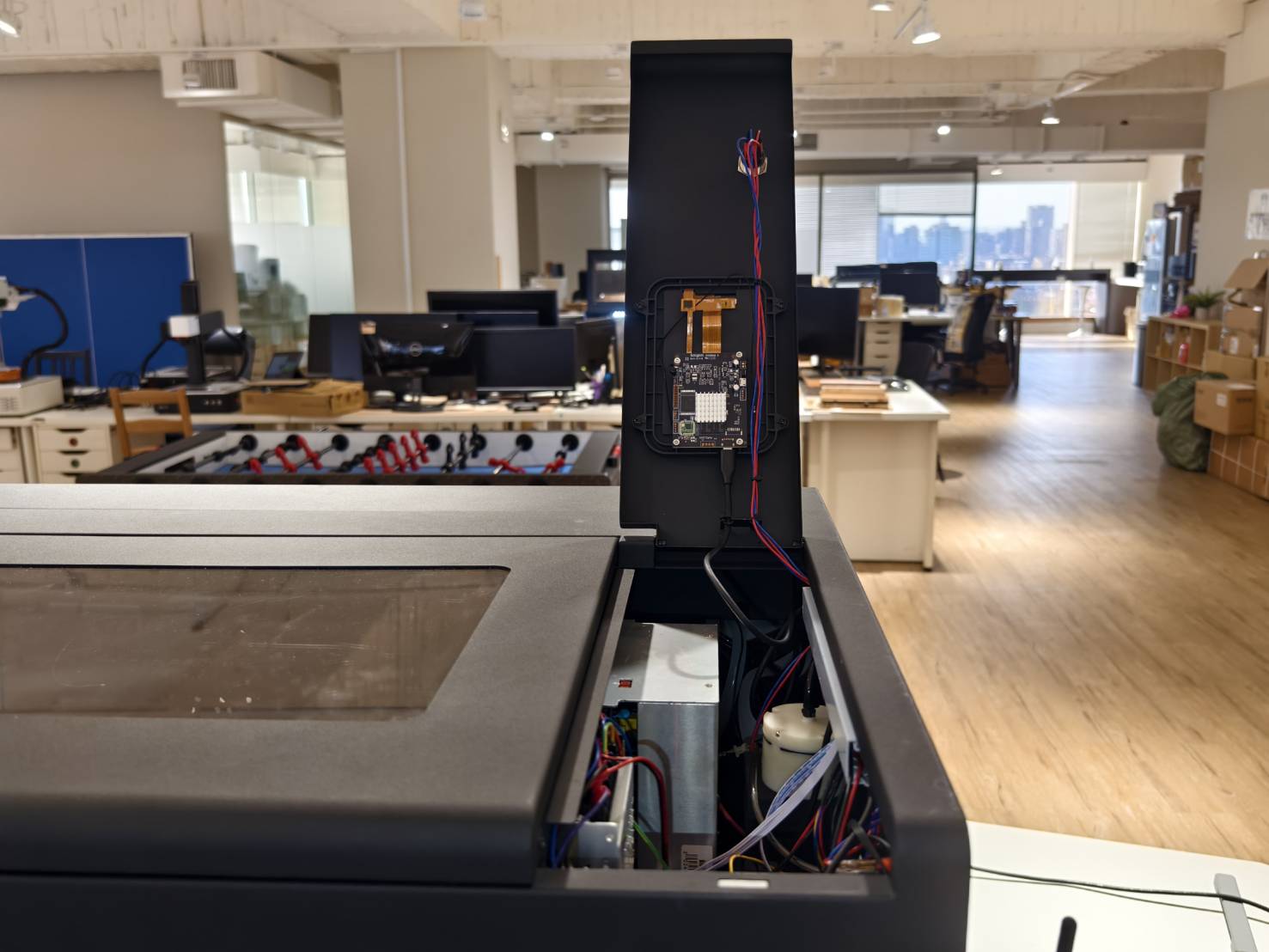

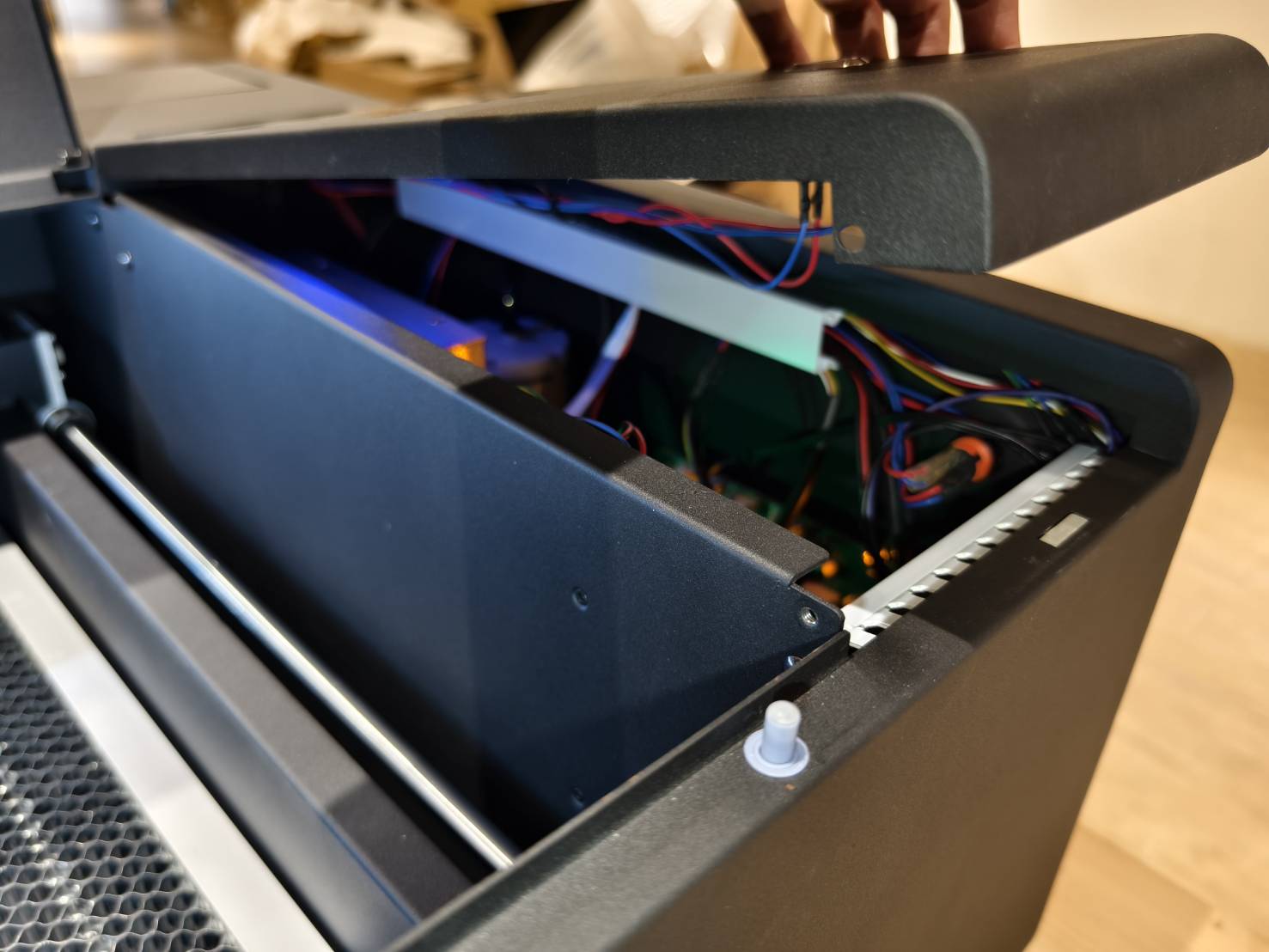

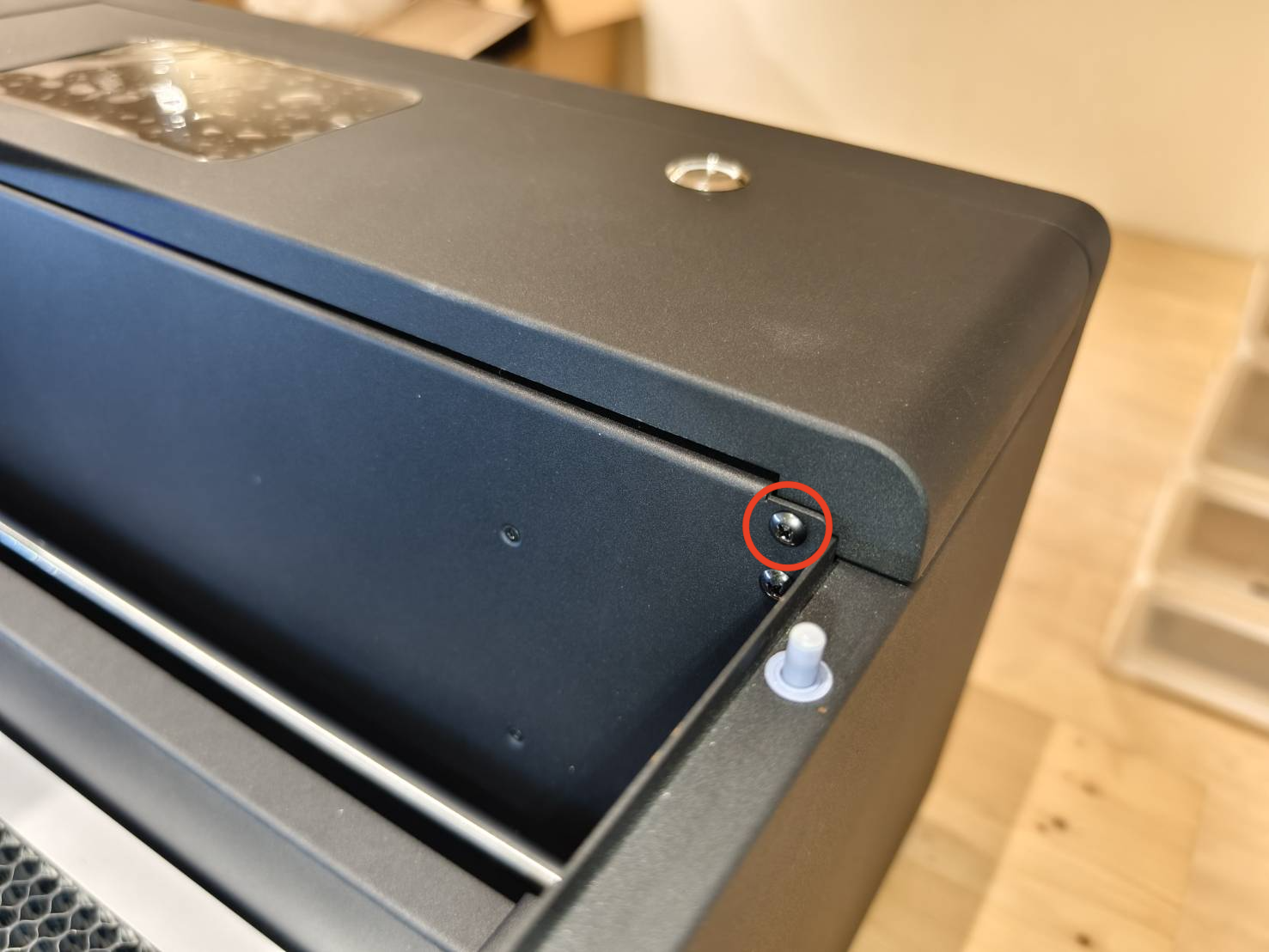

Open the side cover to see the machine inside.

• Use a Philips screwdriver to open the cover.



Step 3

Remove the threaded ring of the emergency button.

Step 4

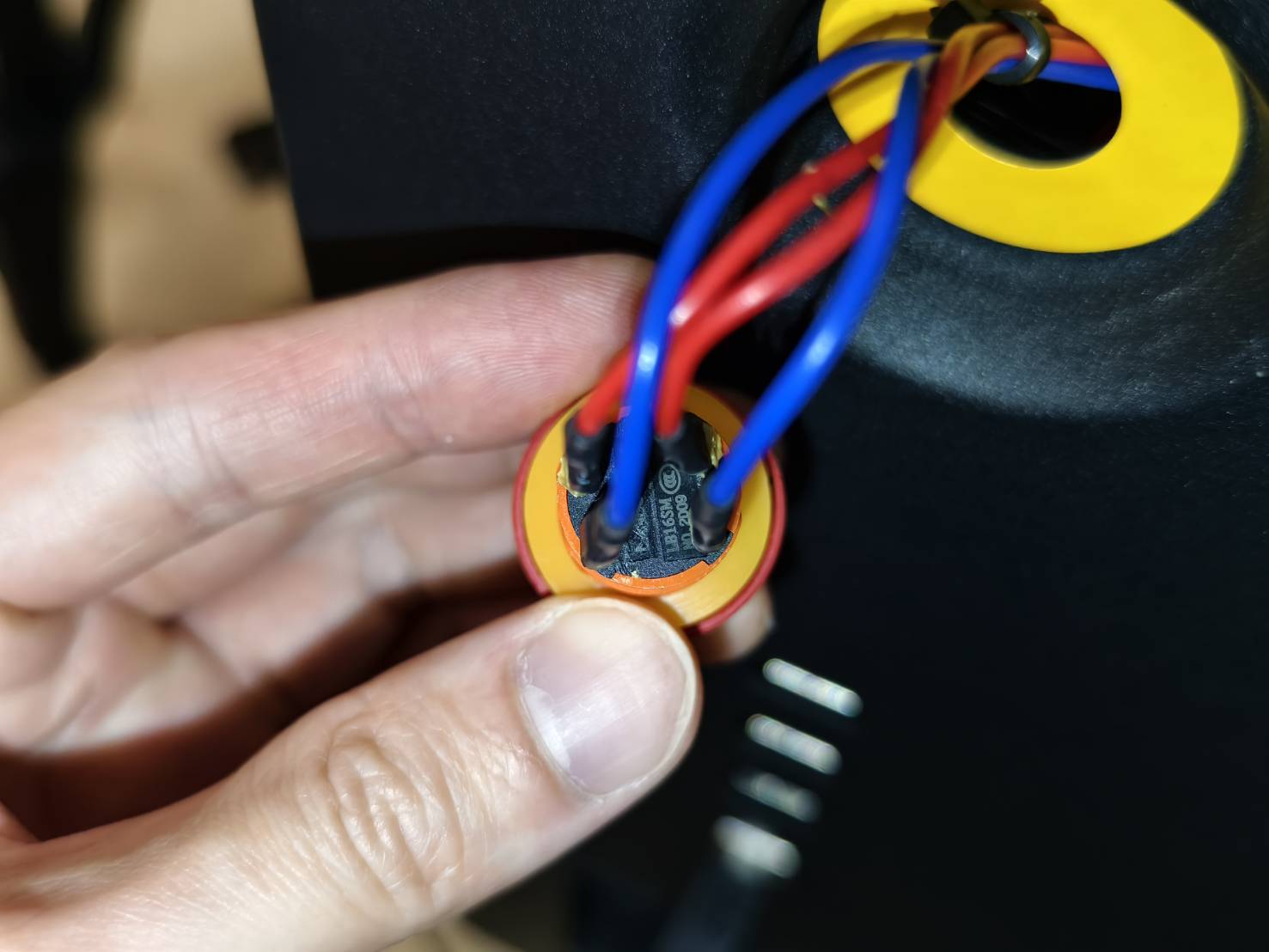

Take photos to ensure the correct positions of the wires when rewiring.

Step 5

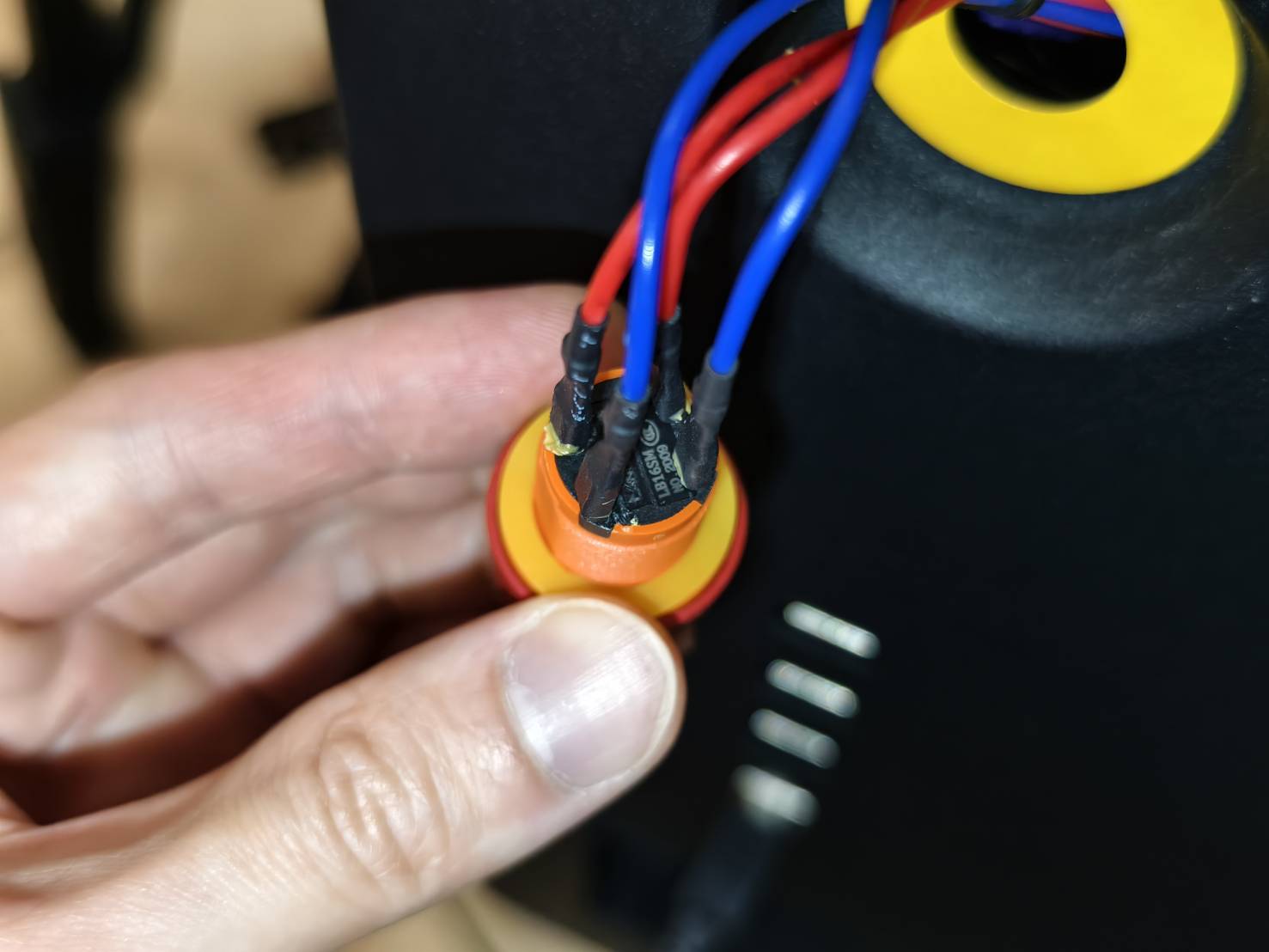

Remove the wires from the button.

Step 6

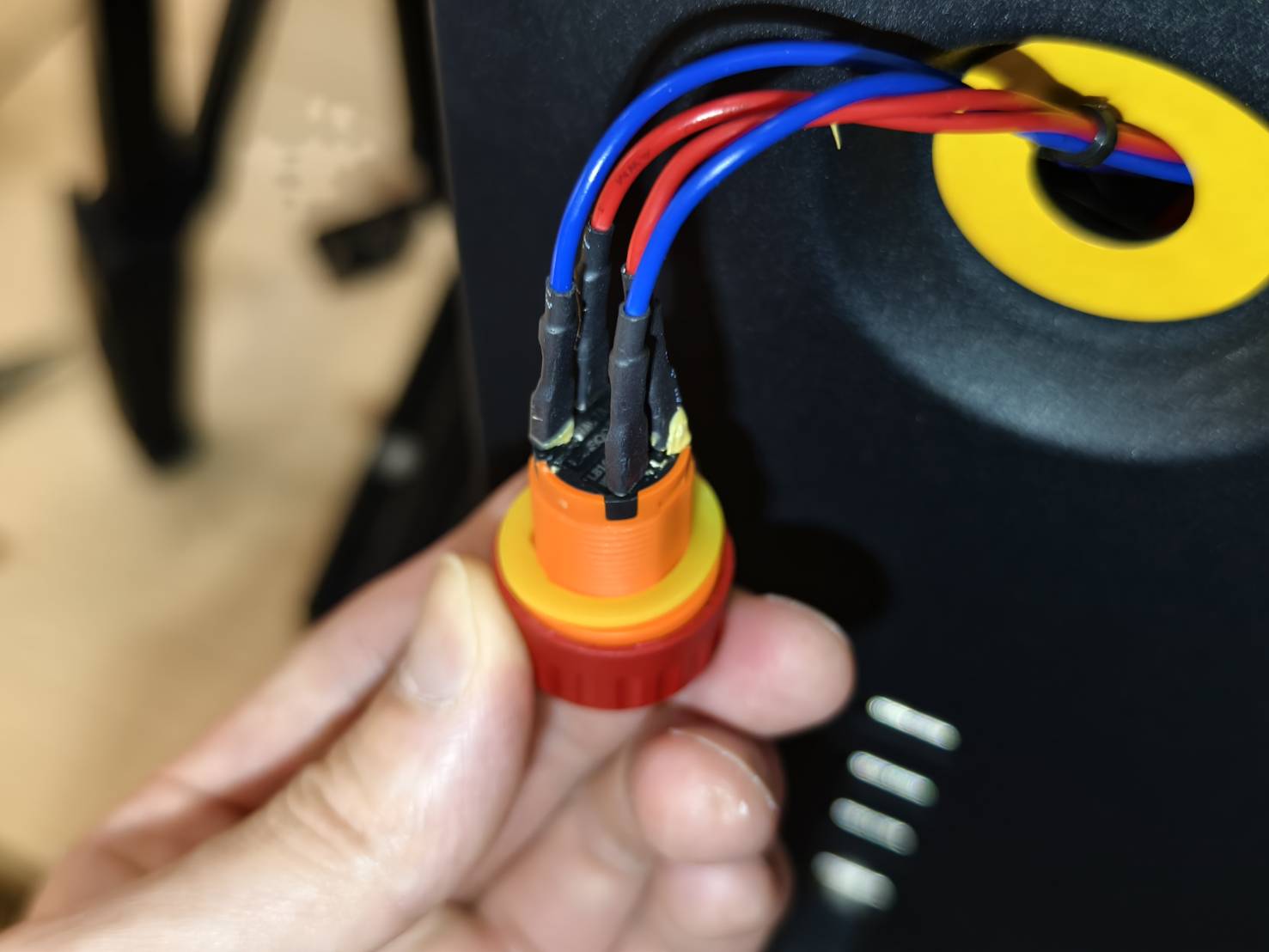

Rewire the wires to the new button. Please make sure the positions of the wires are correct.

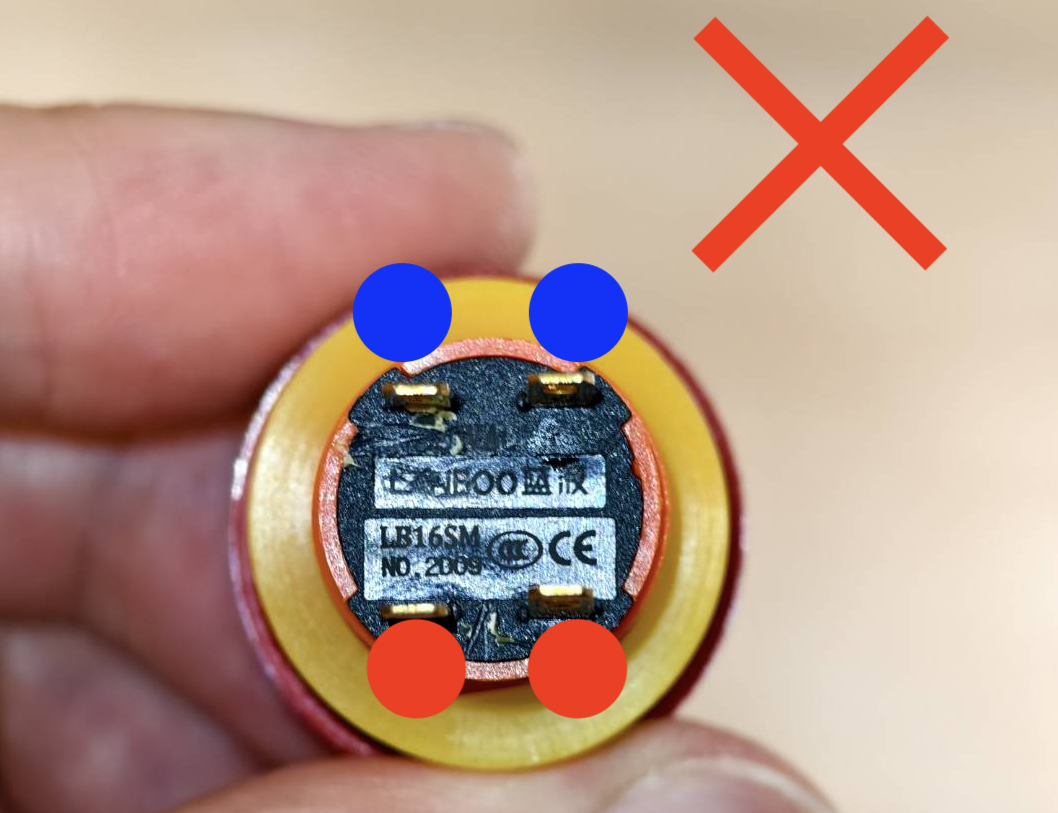

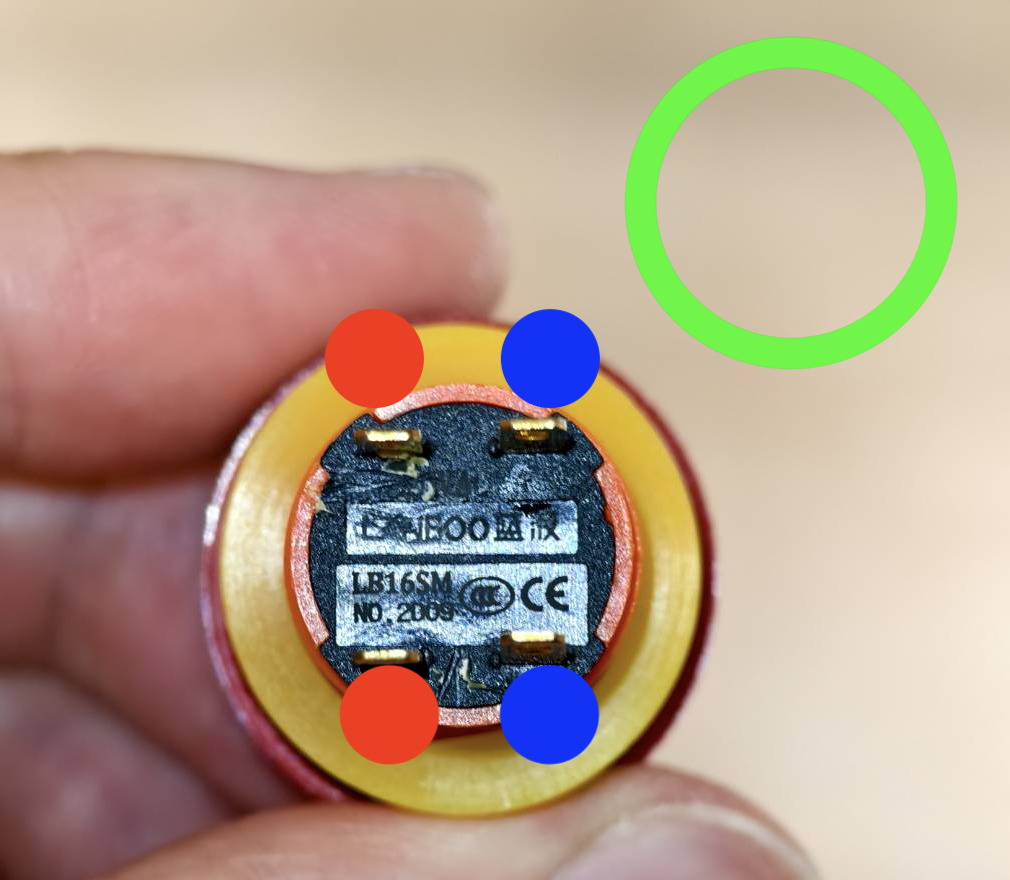

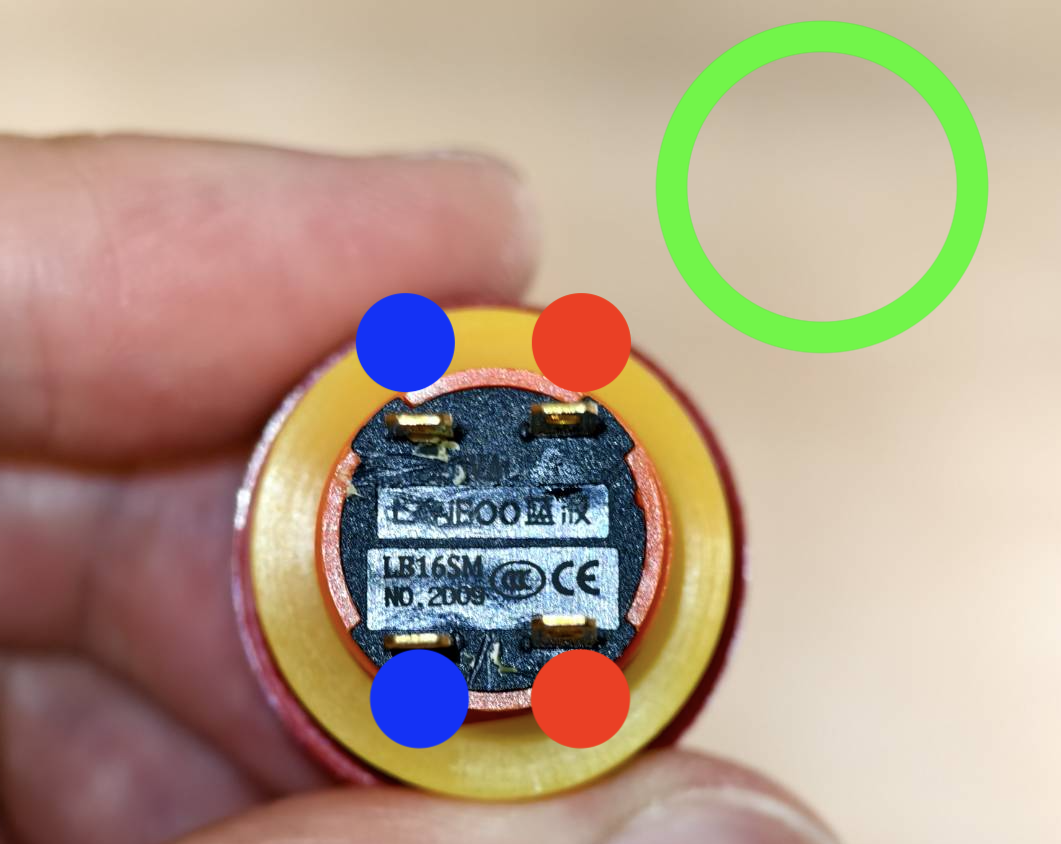

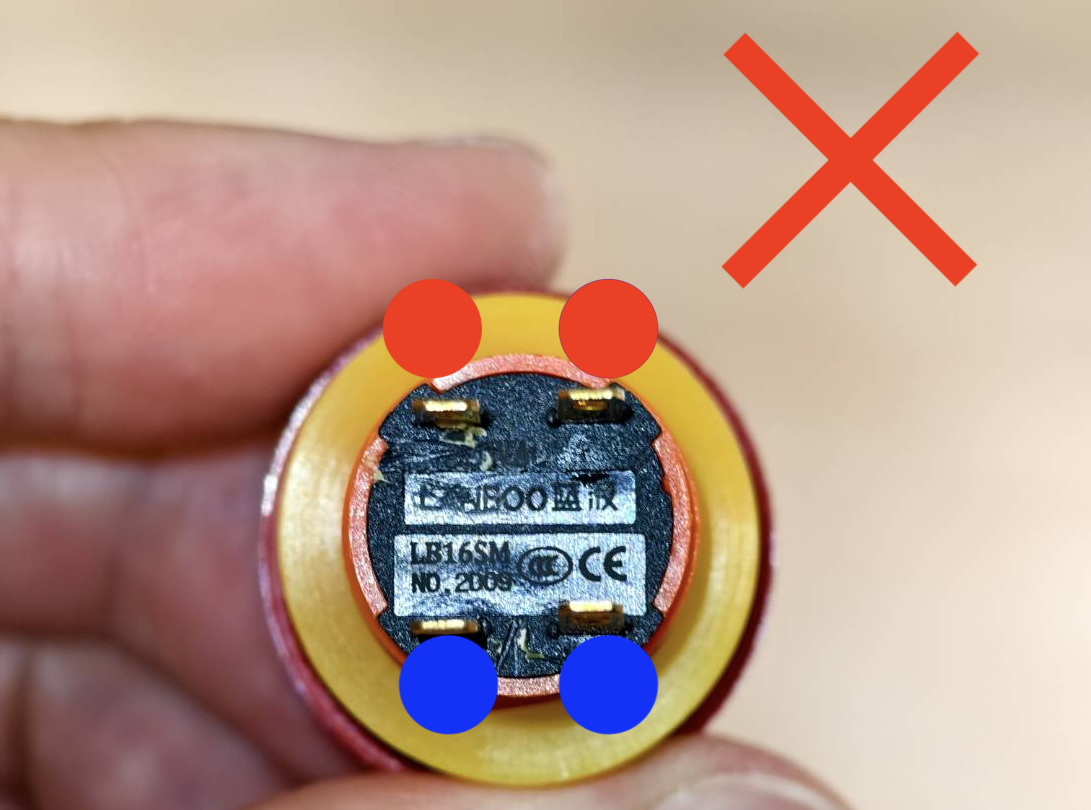

Good Examples	Bad Examples

Step 7

Fix the button with the threaded ring.

Step 8

Close the side cover and tighten the screw.

#END
