Beambox II - Touch Screen Replacement

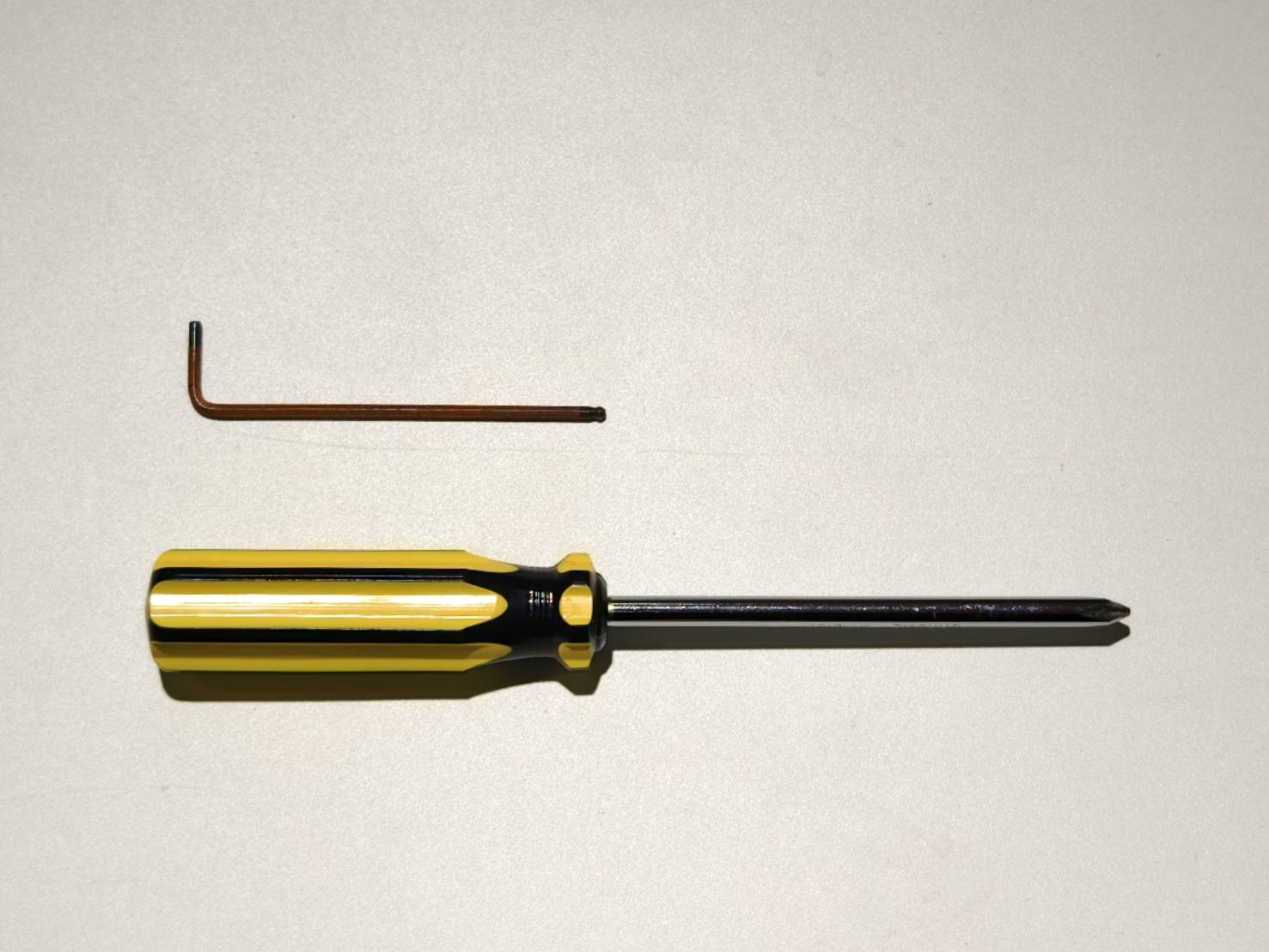

Tools

Step 1

Turn off the machine, and remove the power cord.

Step 2

Open the side cover to see the machine inside.

• Use a Philips screwdriver to open the cover.



Step 3

Unplug the Type-C cable.

Step 4

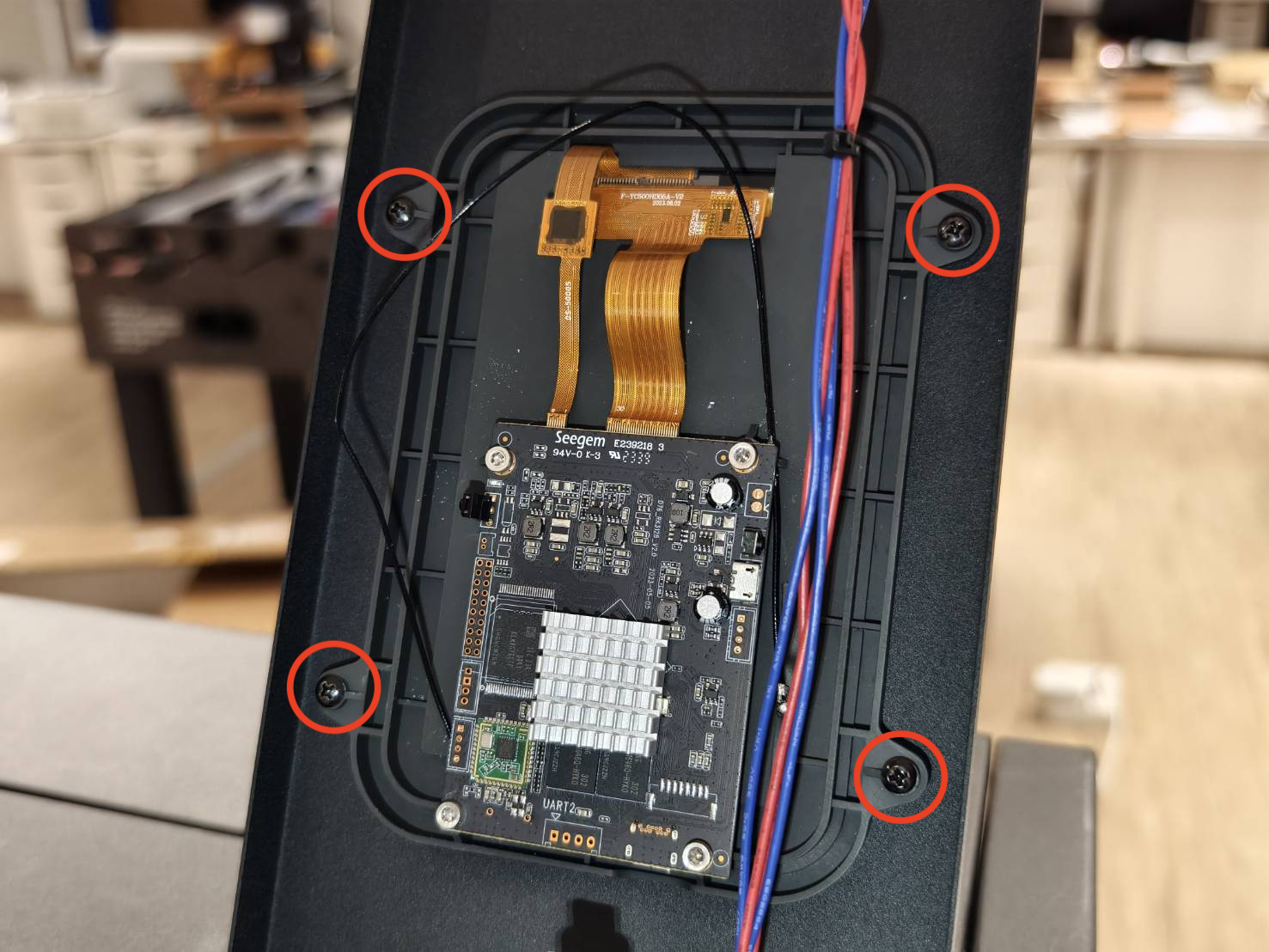

Unscrew the screws to remove the screen with the bracket.

Step 5

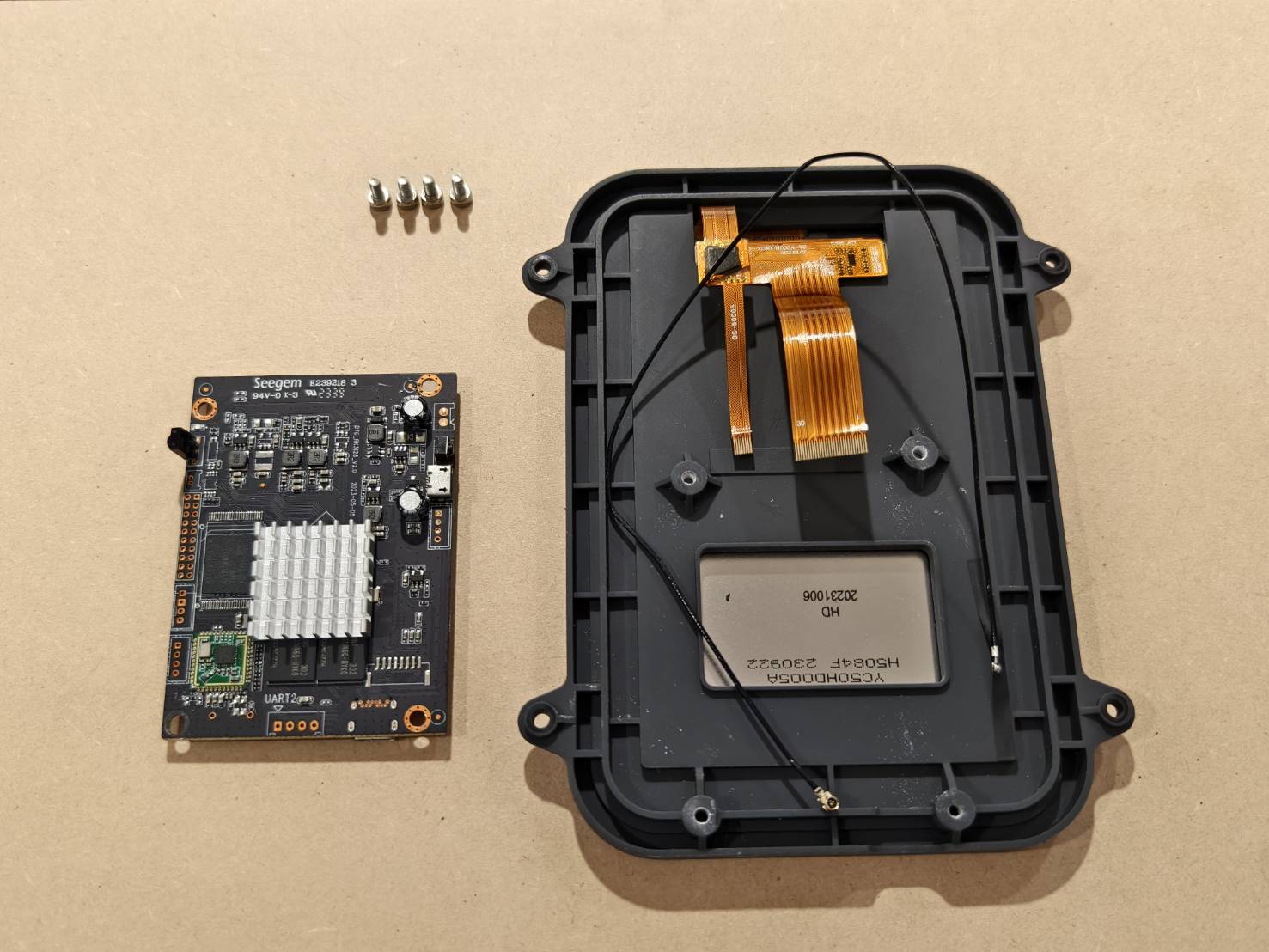

Remove the RK board from the bracket.
(If your machine does not have the black WIFI wire, you can skip the wire part.)

Step 6

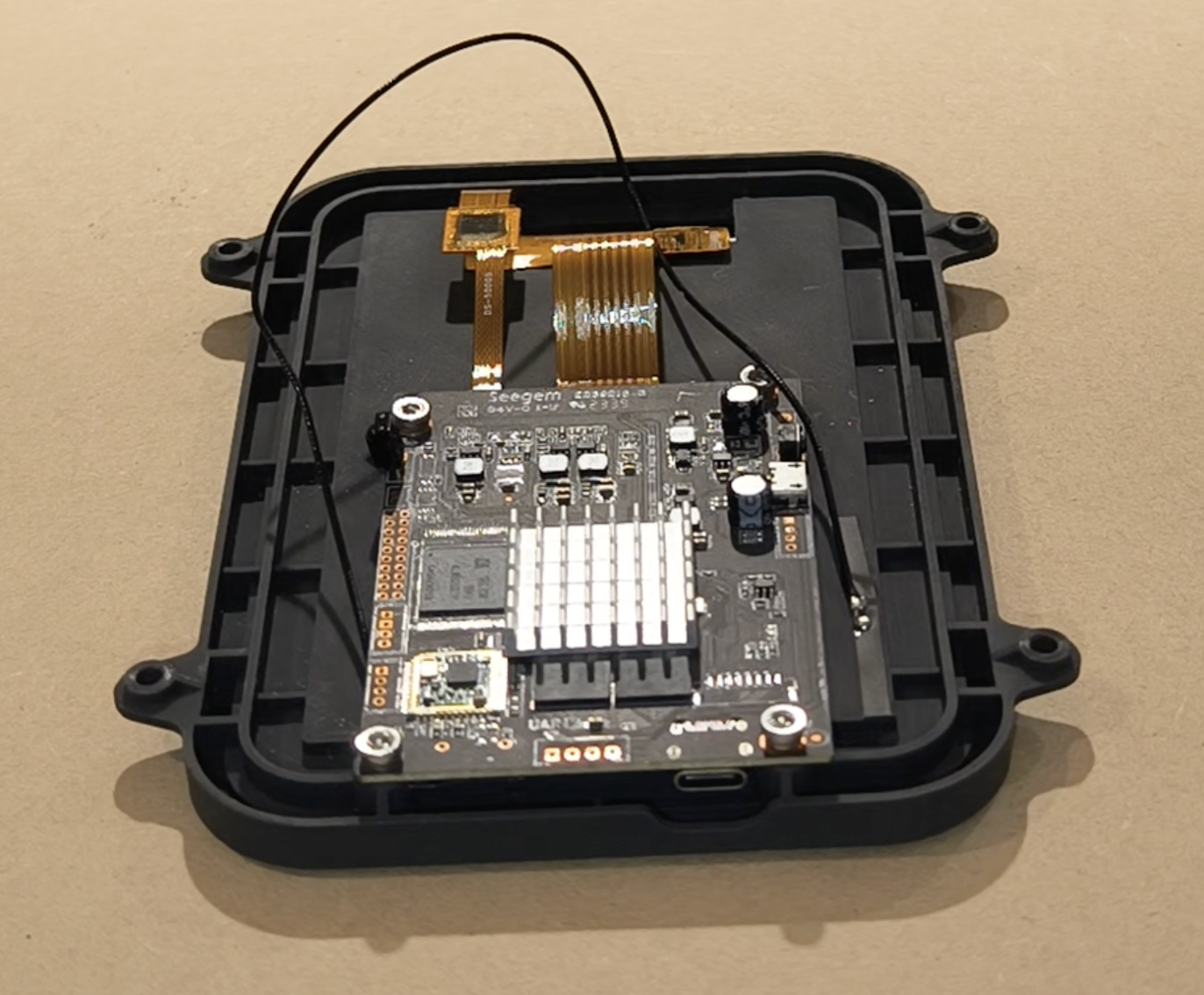

Install the RK board on the new screen bracket.
(If your machine does not have the black WIFI wire, you can skip the wire part.)

Step 7

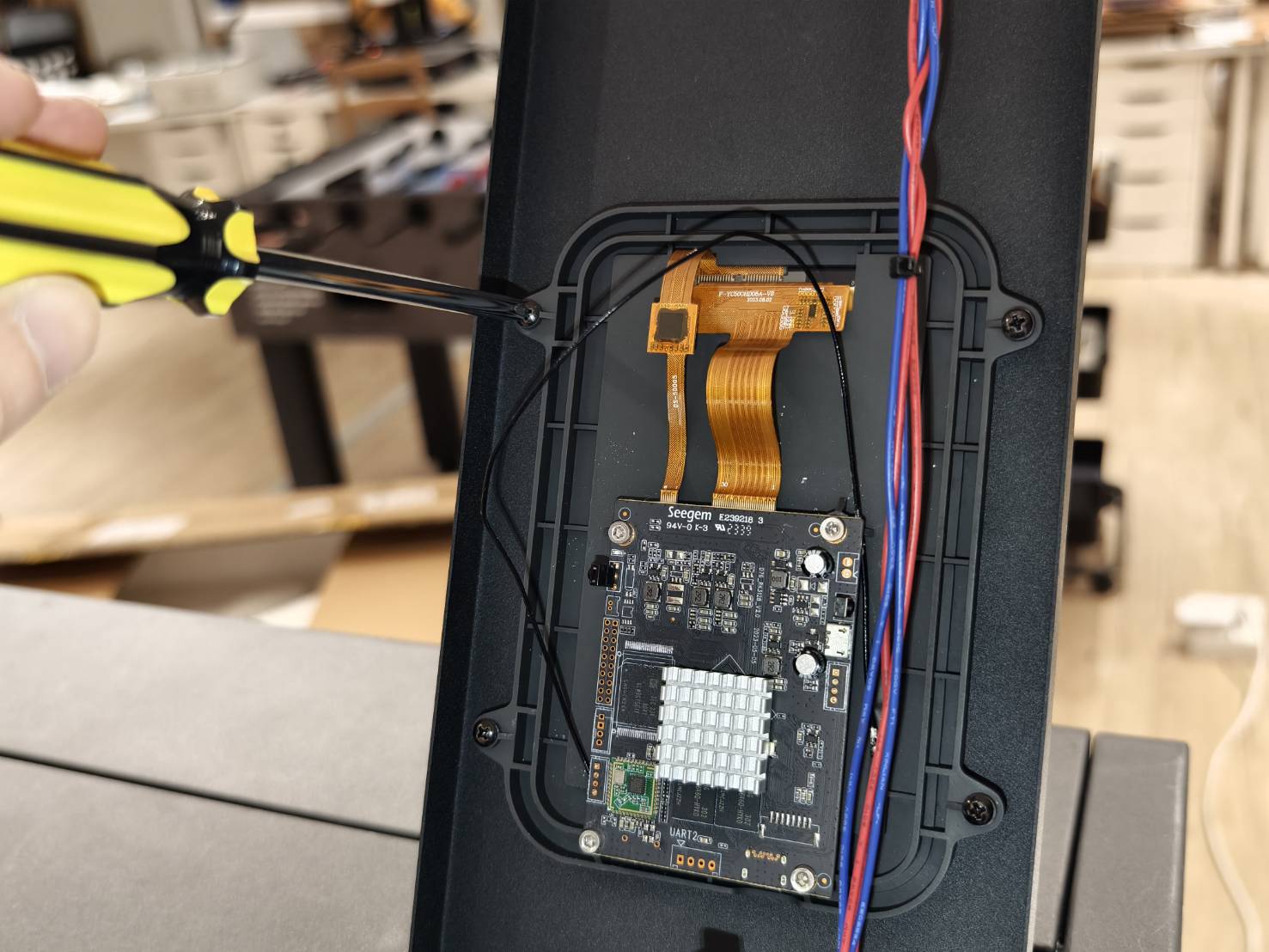

Install the screen bracket on the machine.

Step 8

Be sure to plug the USB-C cable into the RK board.

Step 9

Close the side cover and tighten the screw.

#END
