HEXA RF - Laser Control Cable (RJ45 to RJ45 / Rj45 to DB9)

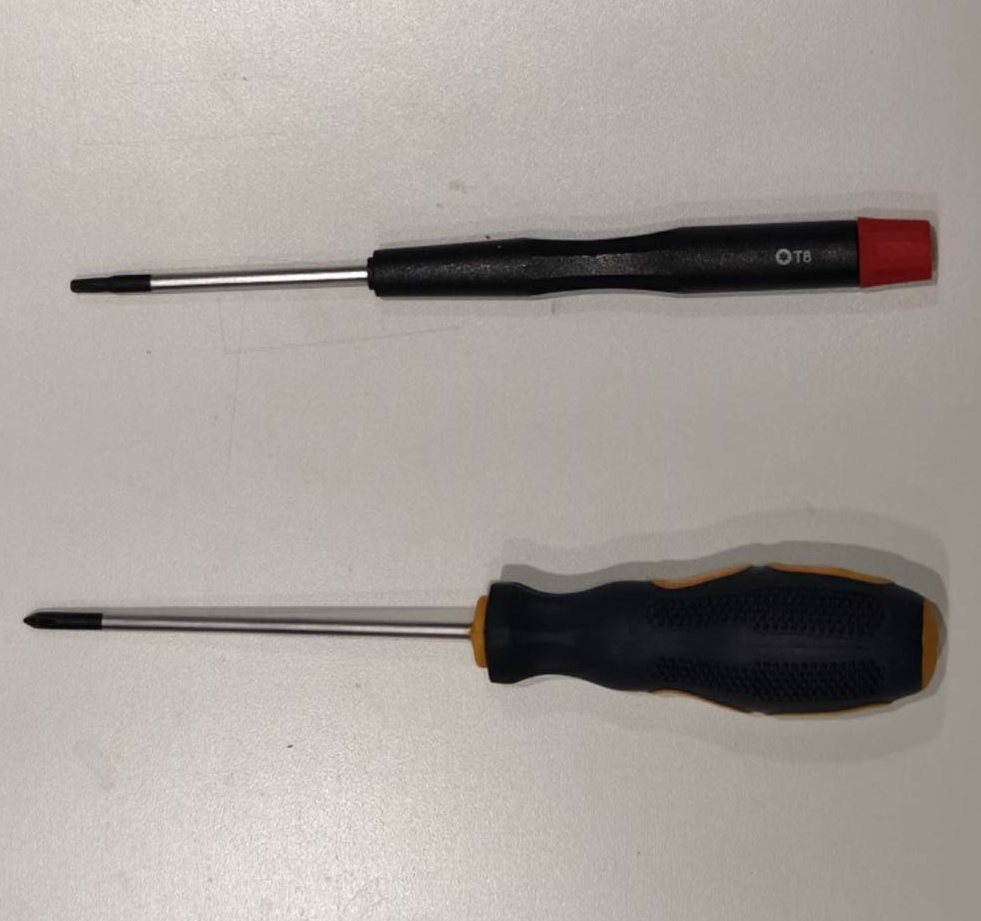

Tool

Step 1

Turn off the machine and remove the side cover.

Step 2

Open the back cover.

Step 3

Remove the laser control cable from the laser tube.

Step 4

Install the new cable.

Step 5

Close the back cover. Make sure the screw is tightened.

Step 6

Reinstall the side cover.

#END
