HEXA RF - Driver Box Replacement Guide

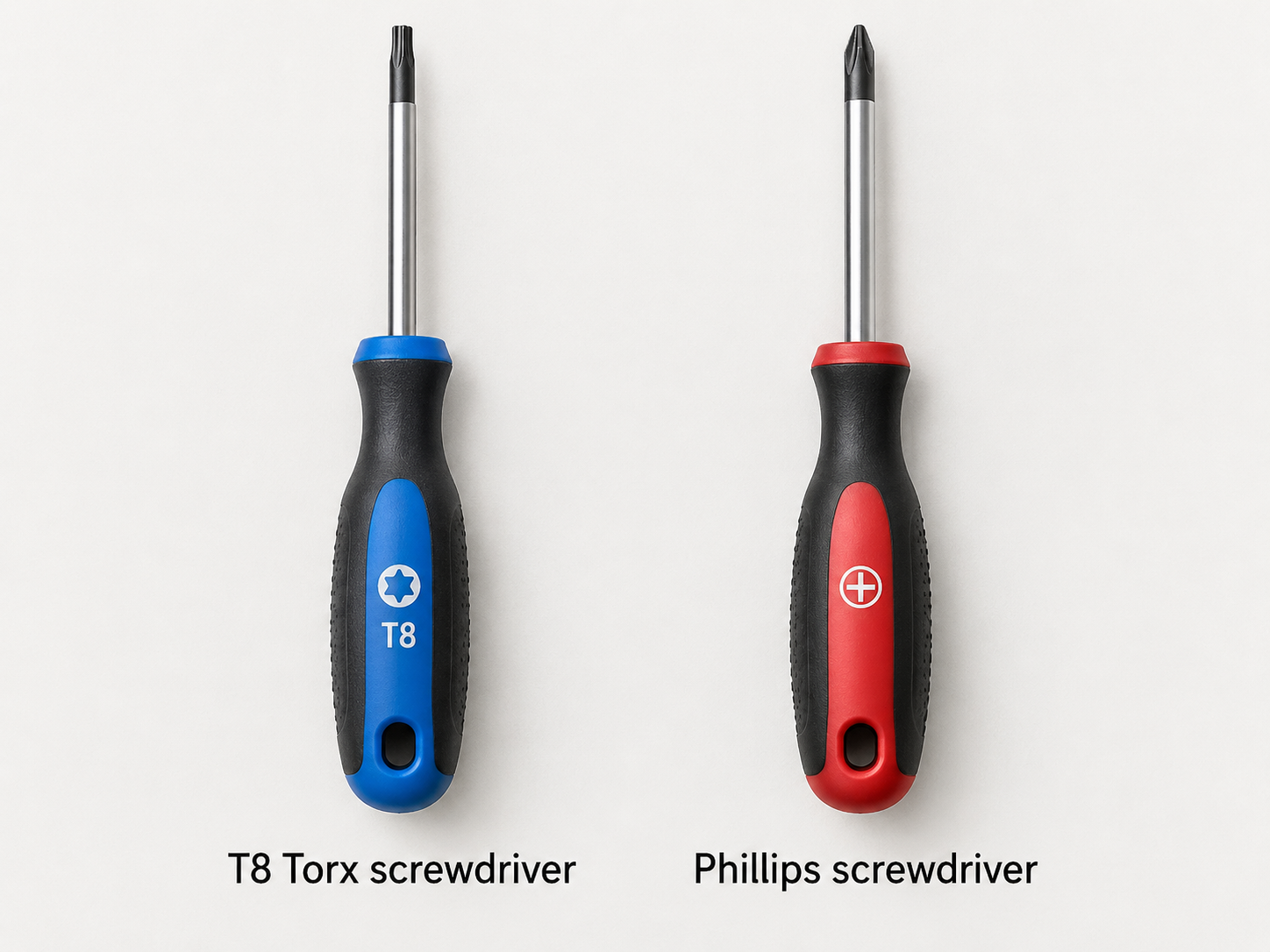

Tools

Step 1

Turn off the machine and remove the power cord.

Step 2

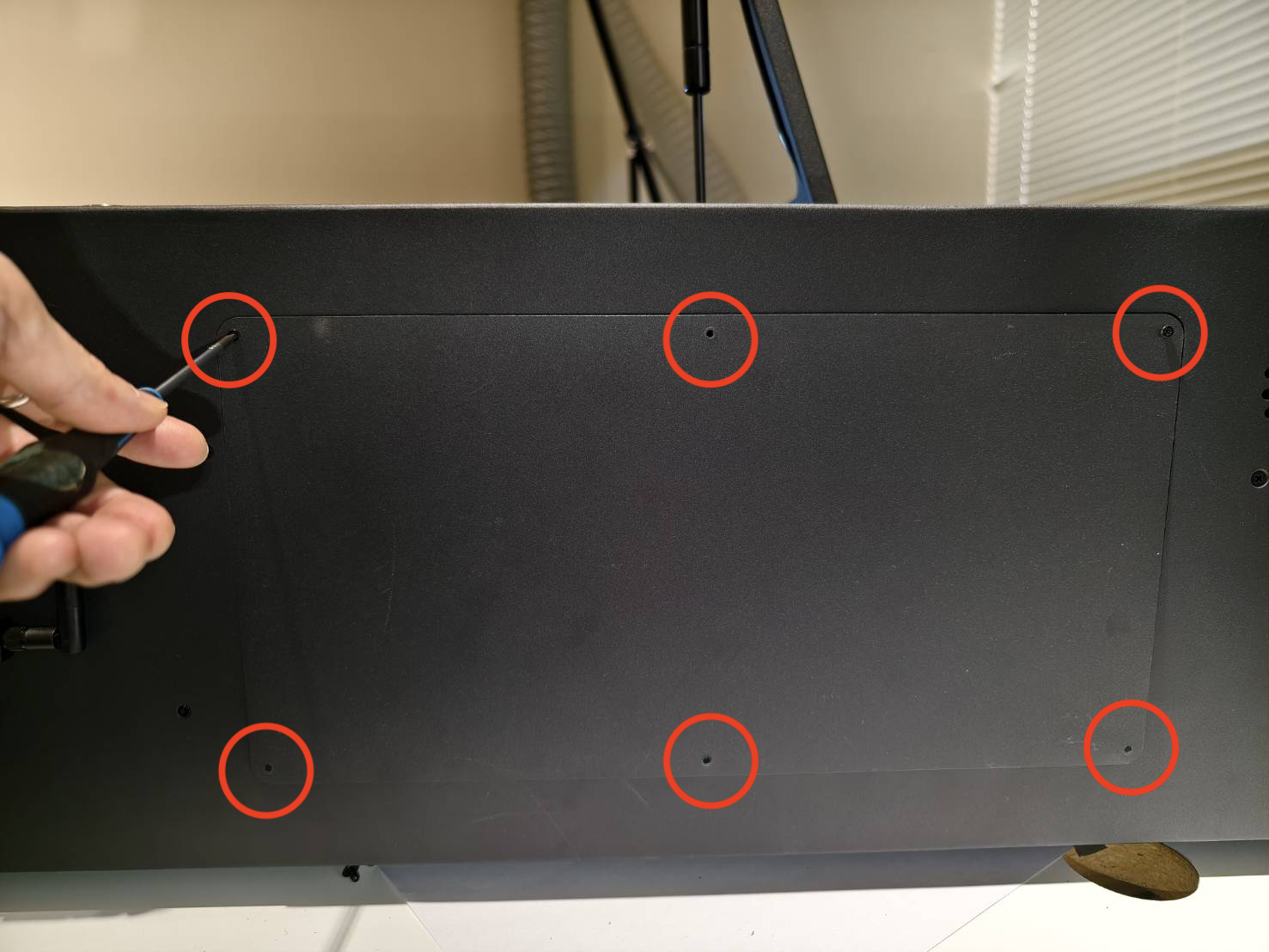

Use a T8 Torx screwdriver to open the side cover.

Step 3

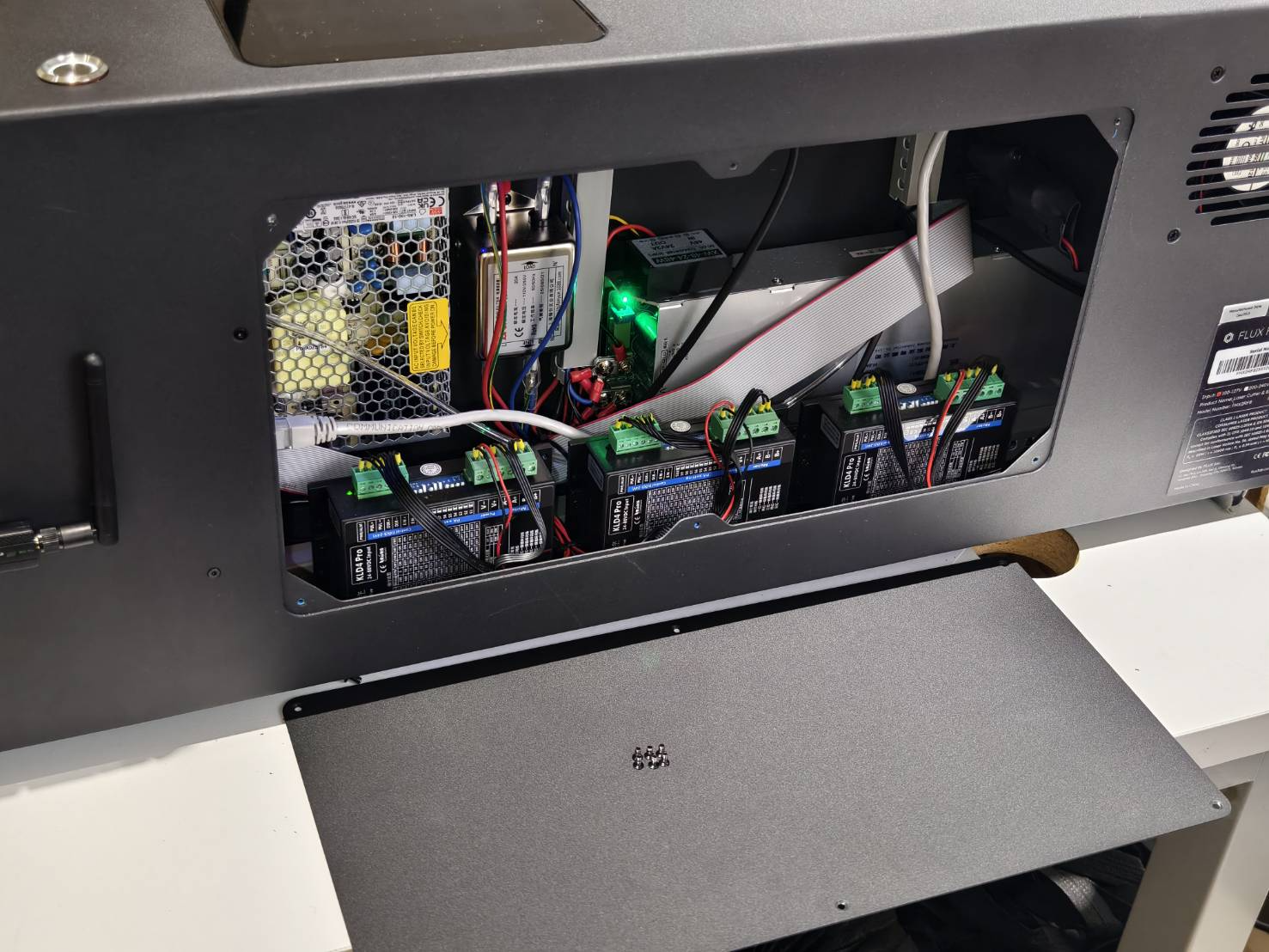

Unplug the RJ45 cable, transparent air hose, and the ribbon cable for more space.

Step 4

Mark the cables for the corresponding driver boxes.
(Usually, the left box is for the Z-axis motor; the middle box is for the X-axis motor; the right box is for the Y-axis motor.)

Step 5

Demonstration of removing the driver box.
(There are two screws for each box. Removing only one of them will be enough.)

Step 6

Demonstration of reinstalling the driver boxes.

Step 7

Reconnect the ribbon cable and the RJ45 cable.

Step 8

Reinstall the side cover.
