HEXA RF - 30W Laser Tube Replacement Guide

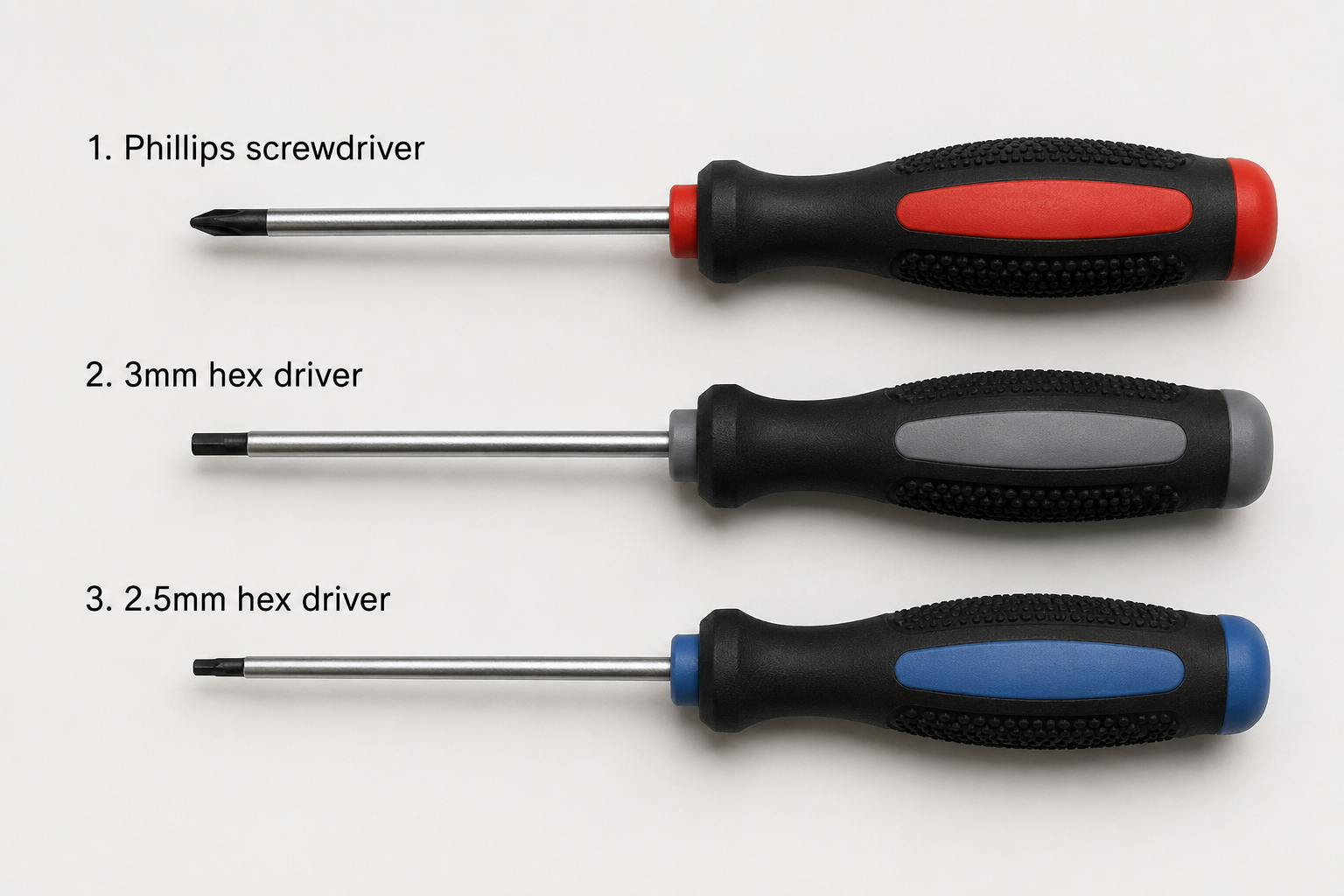

Tools

Step 1

Turn off the machine, and remove the power cord.

Step 2

Open the back cover.

Step 3

Please refer to the video below for the laser tube uninstallation demonstration.

(Ensure to enable the subtitle in the video. The audio of the video will be in Mandarin, and the original subtitle will be in English, so using the YouTube auto-translate function will be recommended for other languages.)

Step 4

Please refer to the video below for the laser tube installation demonstration.

(Ensure to enable the subtitle in the video. The audio of the video will be in Mandarin, and the original subtitle will be in English, so using the YouTube auto-translate function will be recommended for other languages.)

Step 5

Please perform optical path adjustment, referring to the link below.
4-9 Optical Path Adjustment

Step 6

Close the back cover. Make sure the screw is tightened.

#END
