This article will briefly describe the uses of each accessory.

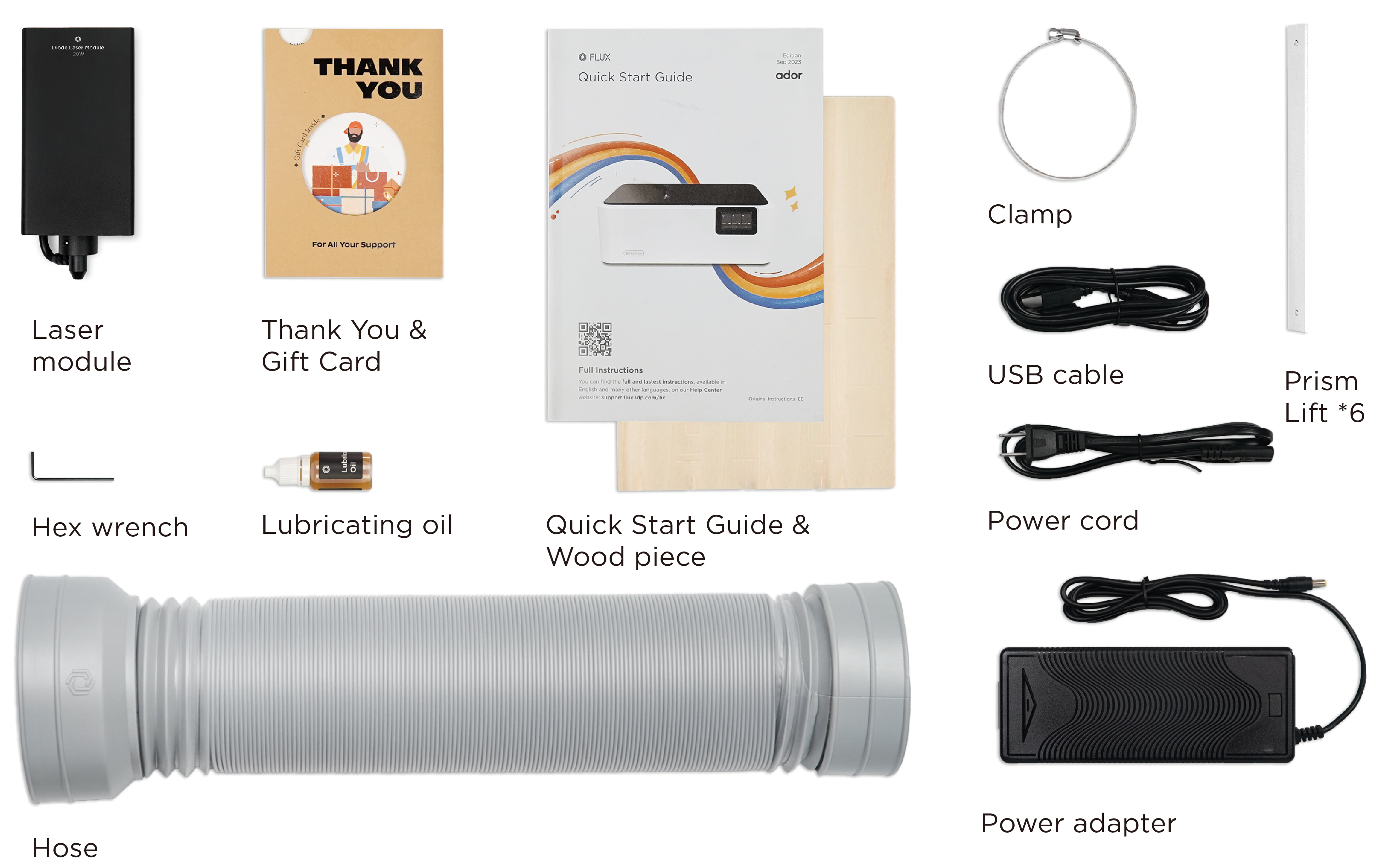

- Laser Module
- Thank You & Gift Card
- Quick Start Guide or Early User Guide
- Wood Piece
- Prism Lift*6
- USB Cable
- Power Cord
- Power Adapter
- Hex Wrench (1.5mm)
- Lubricating Oil
1. Laser Module

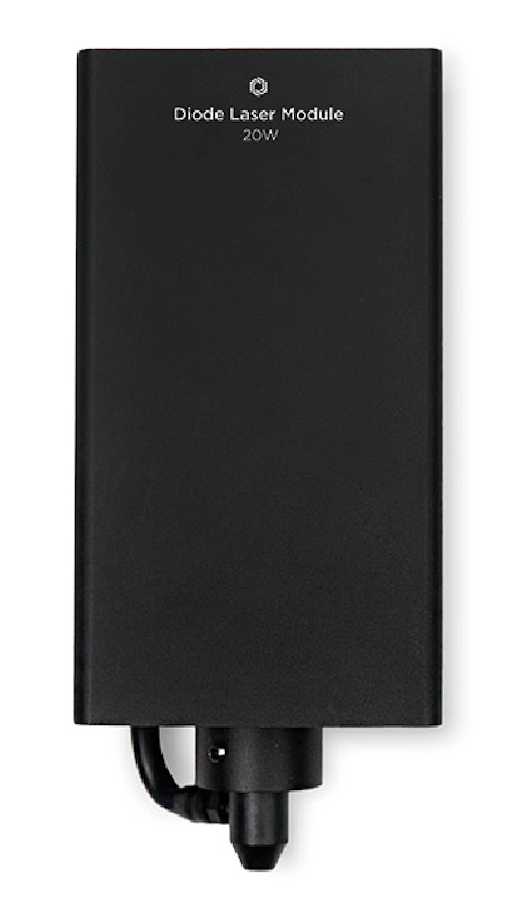

The laser module is the main part of the machine that produces the laser and the users will be guided to install the module in the start-up test.
2. Thank You & Gift card
This card has a QR Code printed on it. After scanning, you can get shopping credits on the FLUX Design Market website.
(Please refer to the instructions on the back of the gift card for how to get the reward.)

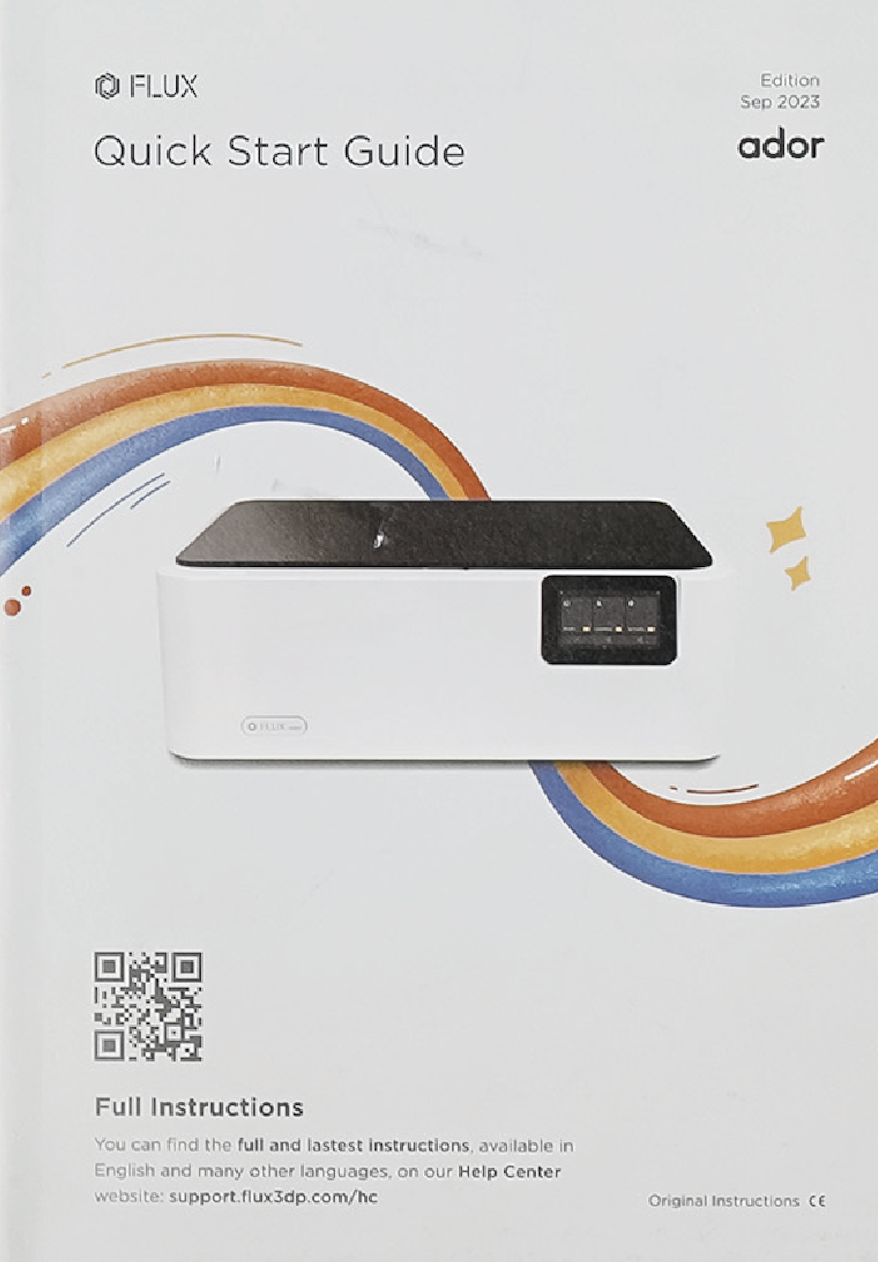

3. Quick Start Guide or Early User Guide
- The Quick Start Guide includes basic installation, safety instructions, machine interface, warranty terms, and other information.
- The Early User Guide will provide a QR code that gives access to the Ador Guide Book for early users.
In the Ador Guide Book, basic installation, machine interface, basic operation of the machine, and other information will be covered.

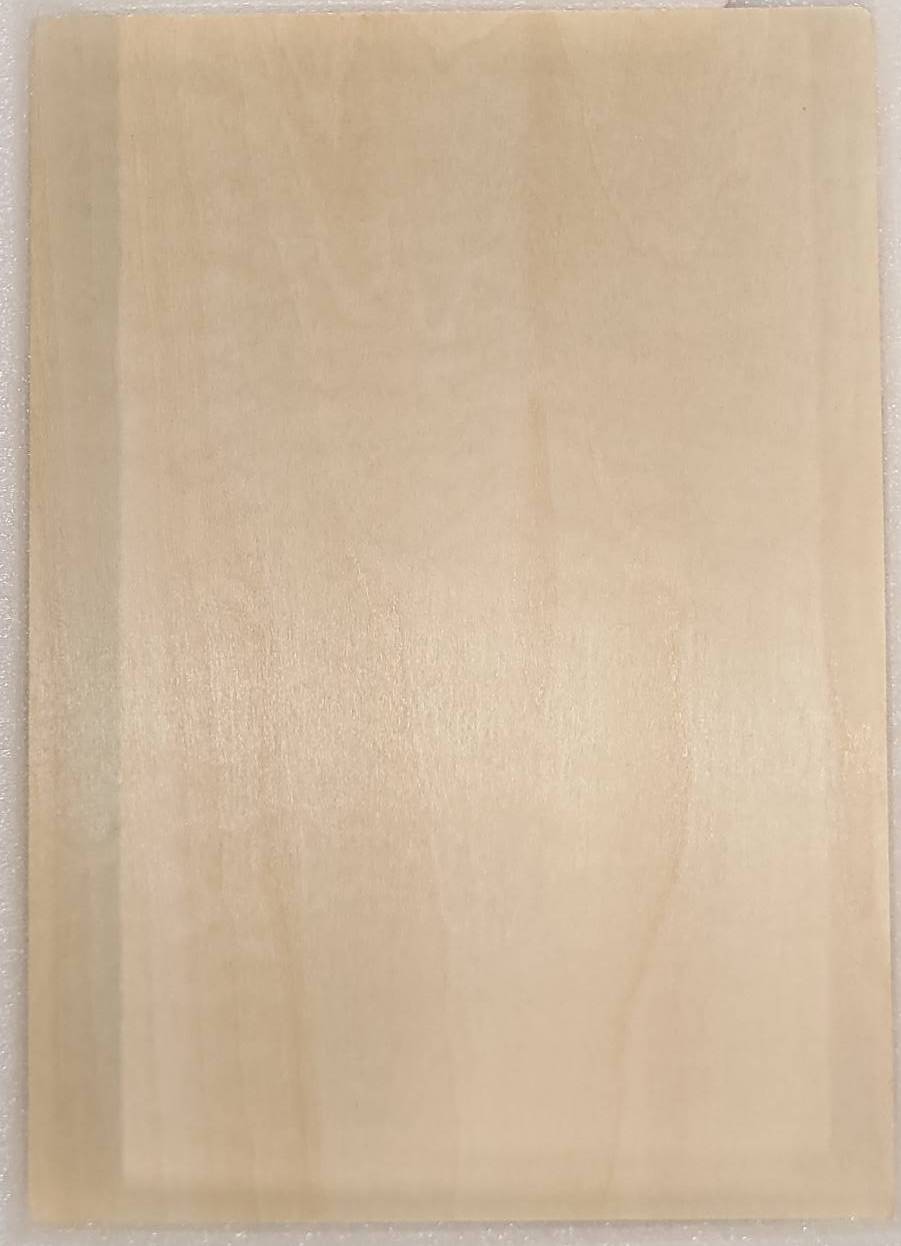

4. Wood Piece
The wood piece is a material used for testing, and users will be instructed on how to use it during the start-up test.
(After the Start-up test is completed, you can use the wood piece freely.)
The clamp is used to fix the vent hose and users will be instructed on how to install it during the Start-up test.

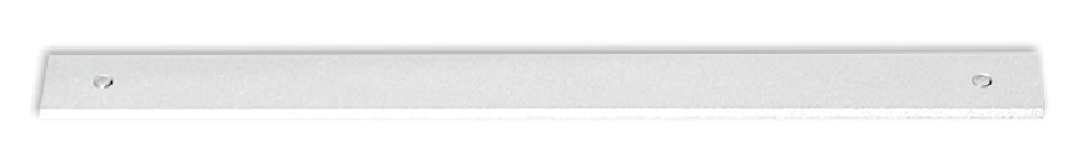

6. Prism Lift*6
The triangular prisms are an accessory that comes with the machine. They have two main uses.
- Prevent Materials from Charring
- Measure the Focus Distance
For more information, please refer to this page:：Ador - Triangular Prism Instructions
7. USB Cable

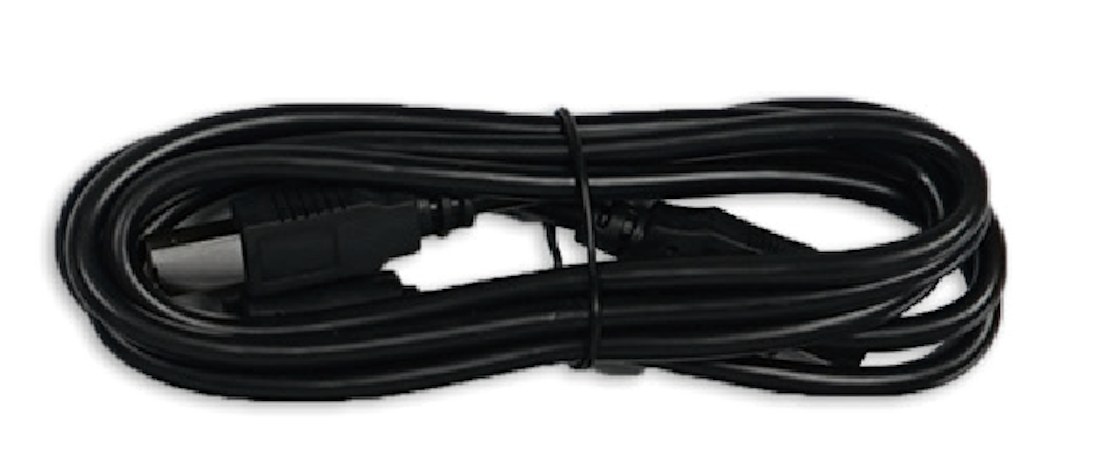

The specification of the USB cable is USB-A to USB-B. It is mainly used for direct connection between the machine and the computer. The use scenario is usually when there is no network.
For detailed connection methods, please refer to this page: 2-2 Connection Settings

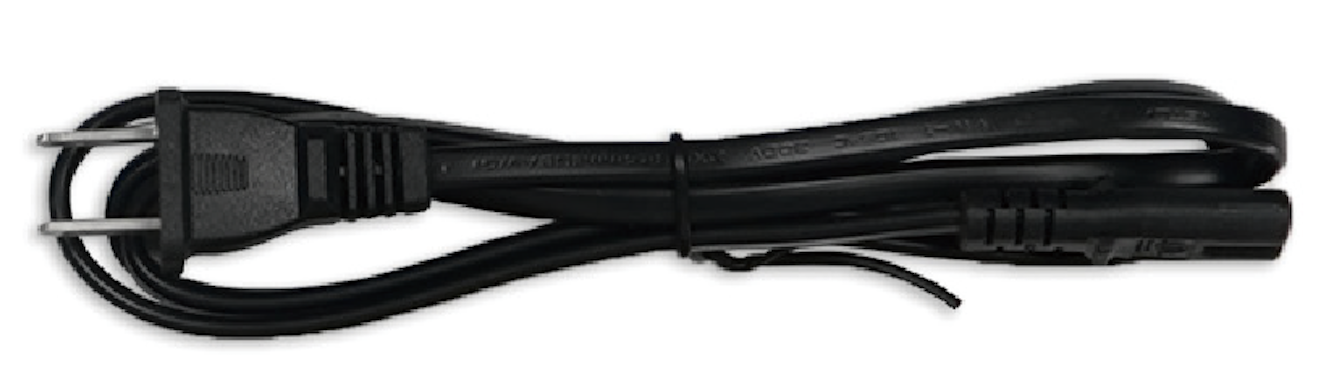

8. Power Cord
The power cord will be installed in the socket of the power adapter, and the other end will be plugged into a common household AC socket.

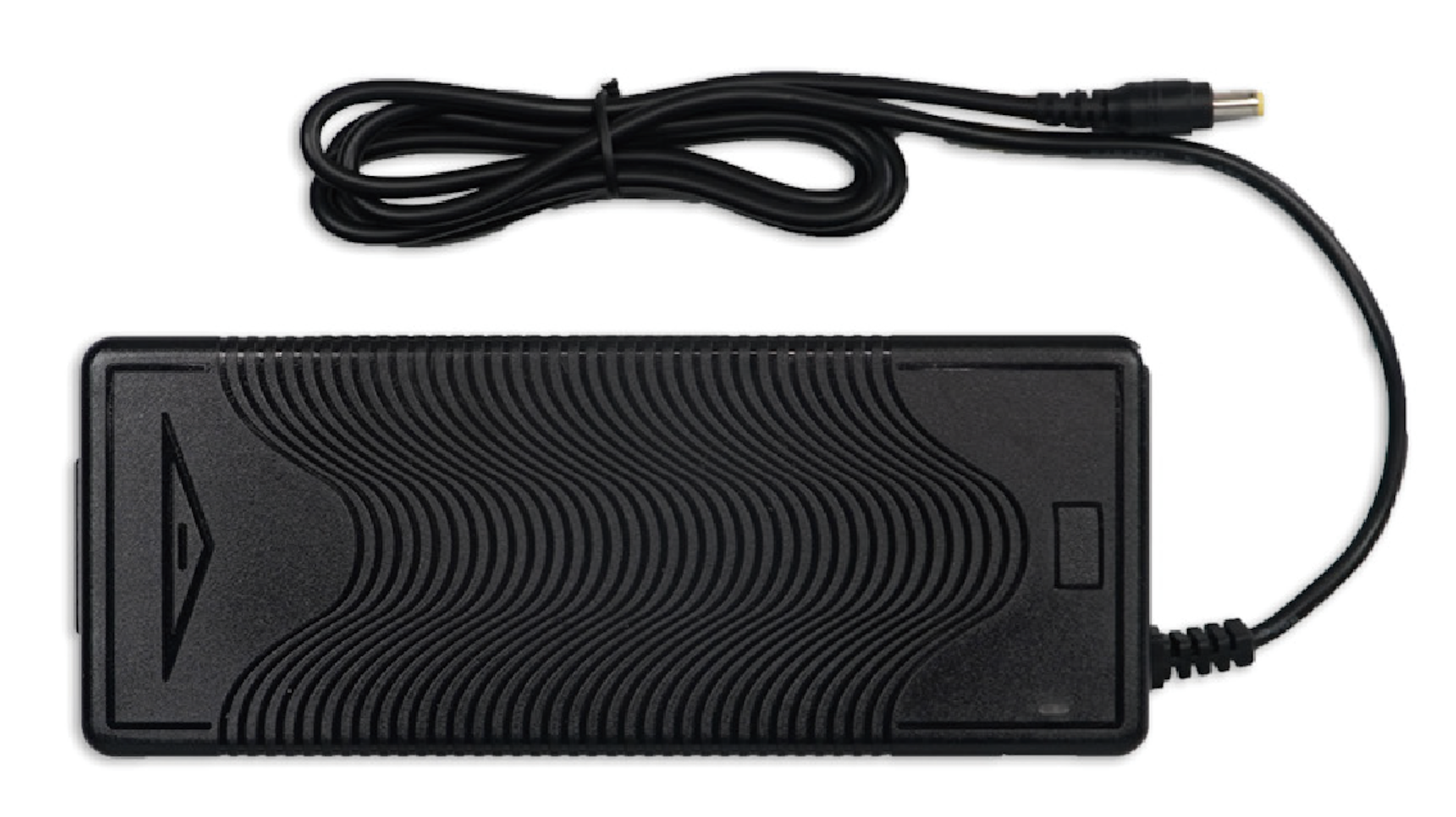

9. Power Adapter
The adapter's socket will be plugged by the power cord, and the other end of the adapter will plug into the machine's main power socket.

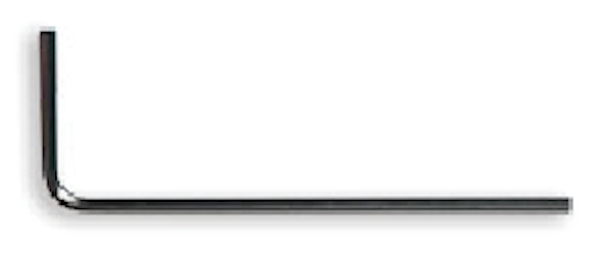

10. Hex Wrench (1.5mm)
The hex wrench (1.5mm) is used to clean and maintain the laser module.
For articles related to cleaning, please refer to:
Laser Module Cleaning (10W/20W Diode Laser Module)

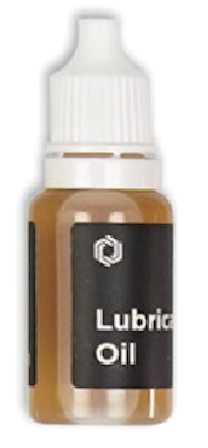

11. Lubricating Oil
The lubricating oil is used in the maintenance of the machine, mainly on the internal parts of rails, such as X, Y, Z-axis slide rails, door covers and door shafts, etc.
For articles related to lubrication, please refer to 4-3 Lubricating、Lubricating Door Cover.

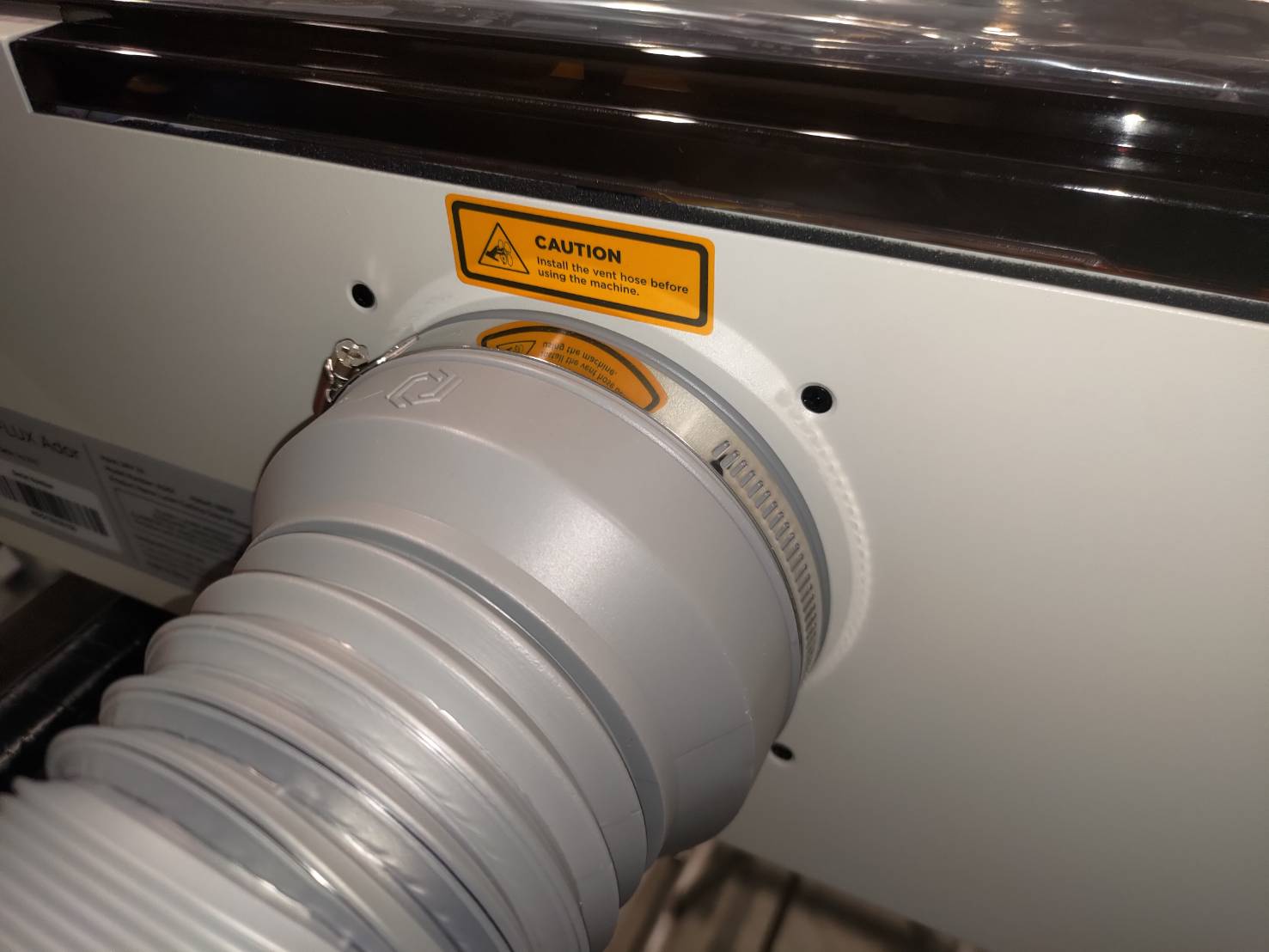

The vent hose is used to remove the exhaust smoke during laser work. It will be installed on the back side of the machine together with the clamp, and the other end will be placed outside the window or other third-party air extraction equipment. Users will be instructed on how to use it during the Start-up test.
