2-5 Start Engraving – FLUX Help Center

Instruction for installing different modules

1. Focusing

Place the material inside the machine and move the laser head above the material. Then, click the focus button on the left side of the machine twice or long-press the "AF" button on the machine panel until the laser head starts moving. When the laser head touches the material and moves upward, the focusing is complete. Ensure that the focus distance is correct before each engraving.

⚠️ During machine cutting, the laser beam may burn through the workpiece and come into contact with the tin foil at the bottom of the machine. It is recommended to refer to this article and utilize a triangular prism to elevate the materials to prevent scorching incidents. The primary function of the tin foil is to protect the underlying casing from laser damage; if damaged, it will not affect normal usage.

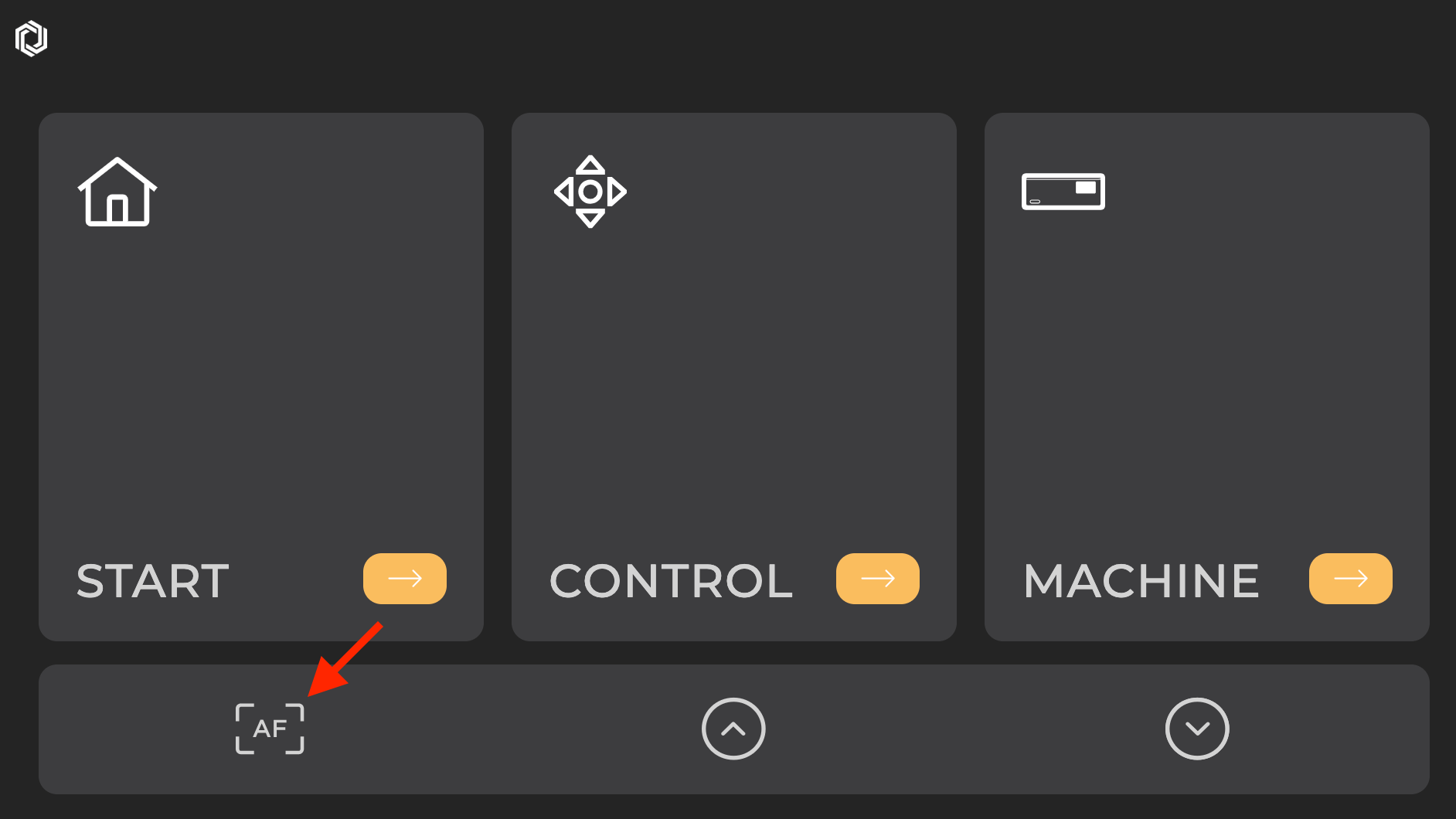

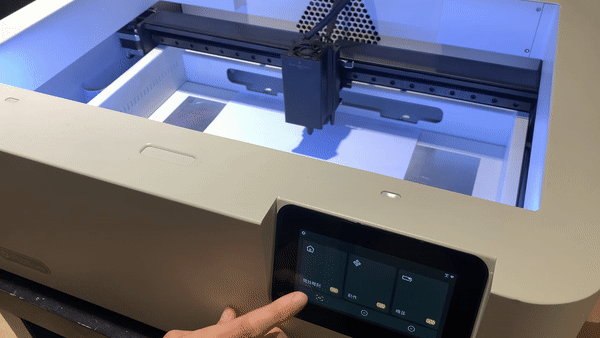

a. Long-press the "AF" button on the machine panel:

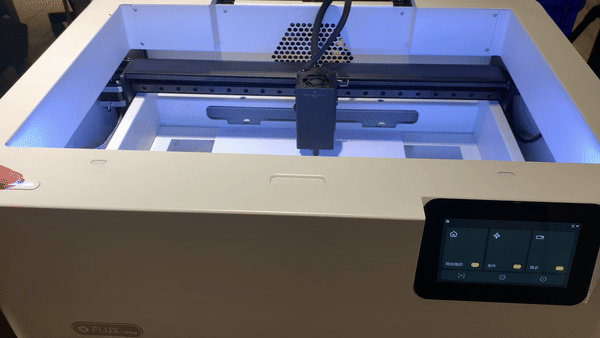

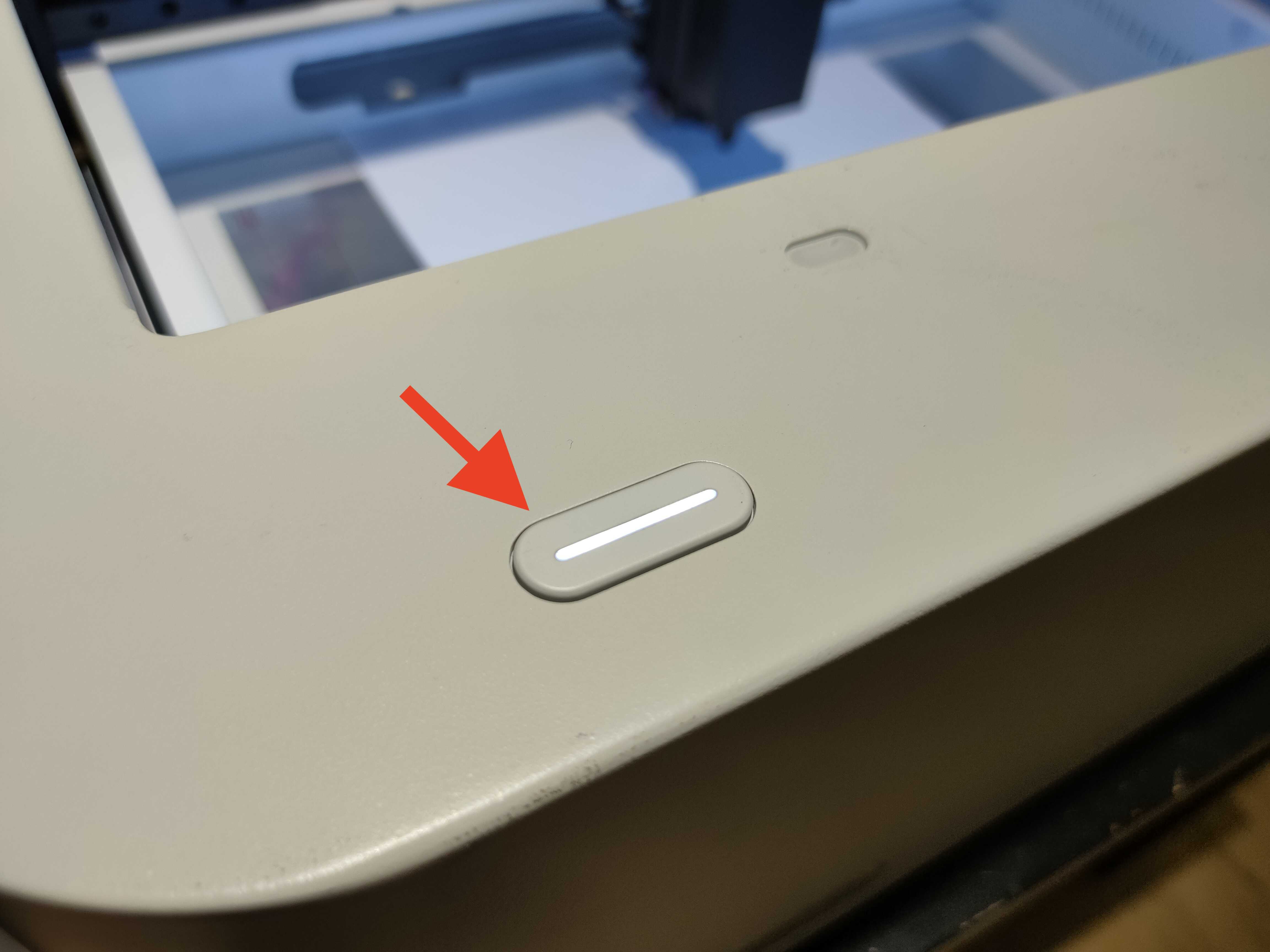

b. Double-click the focus button on the left side of the machine:

截圖 2023-10-05 下午5.56.05.png


2. Import the engraving test file

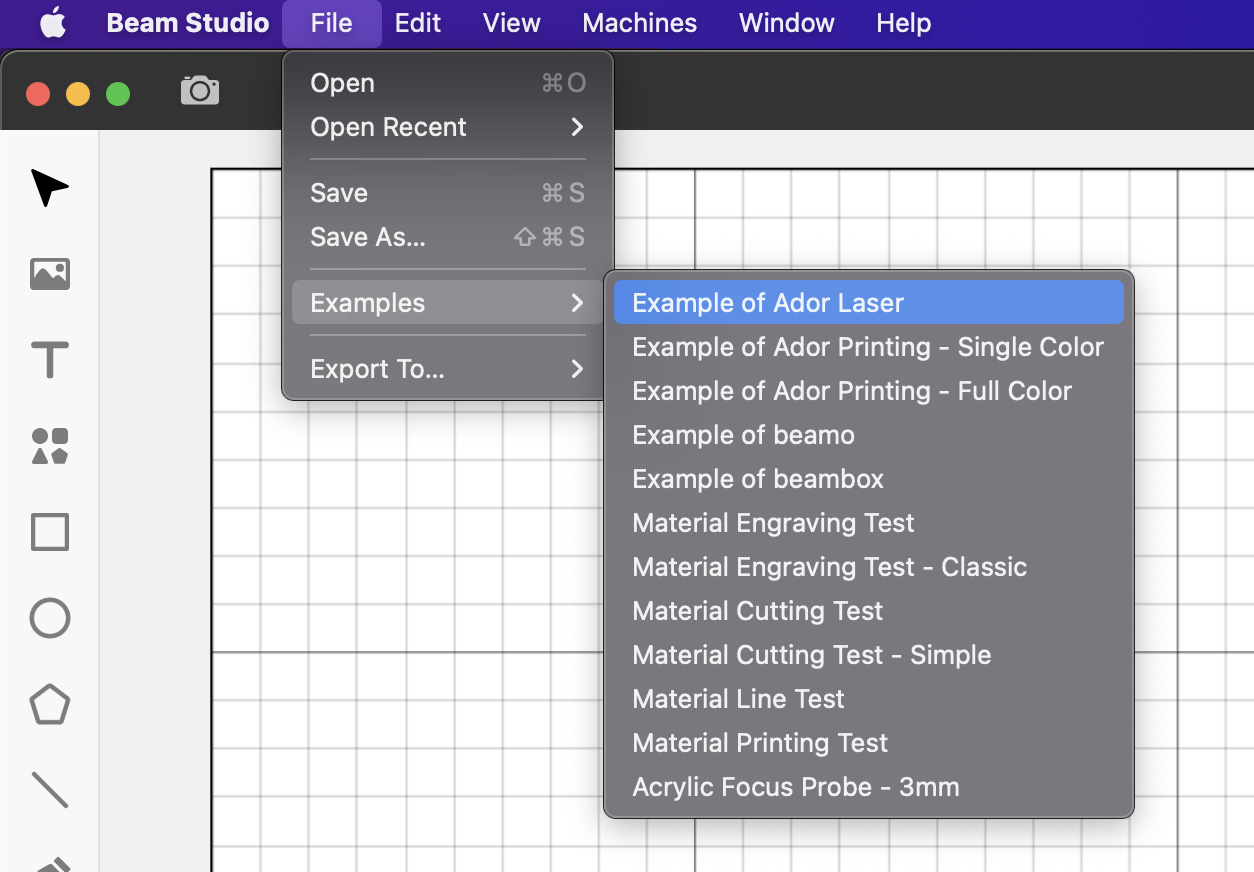

Click on "Menu"> "File"> "Examples"> "Example of Ador Laser."

3. Select the current module

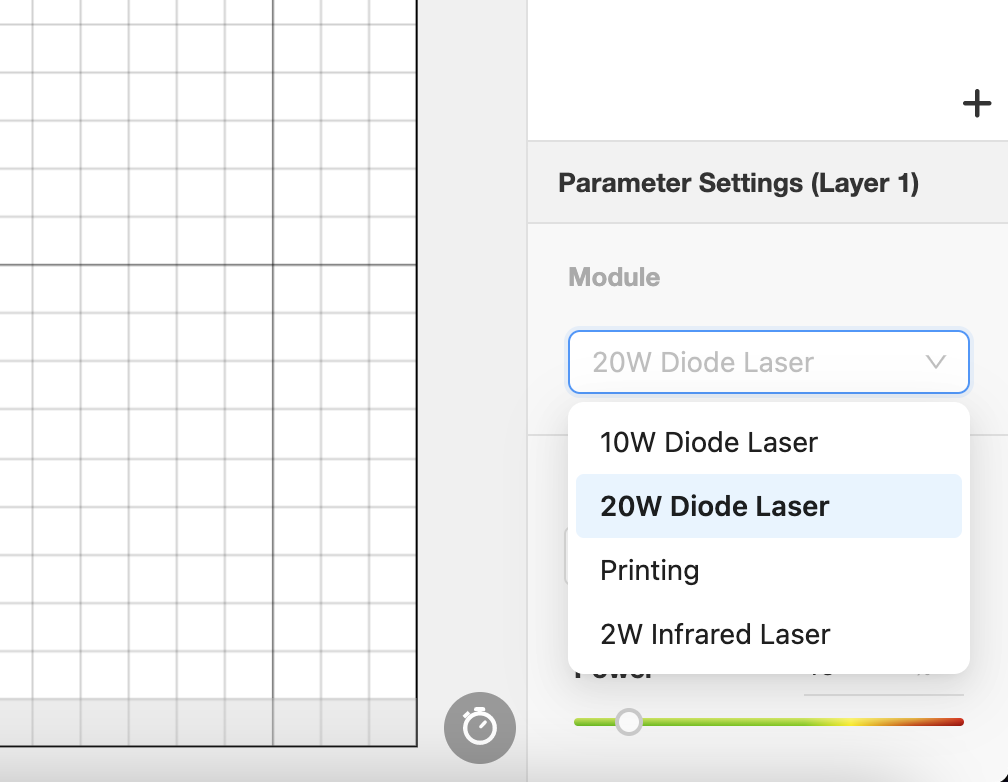

Select 20W Diode Laser or 10W Diode Laser.

4. Preview the engraving position

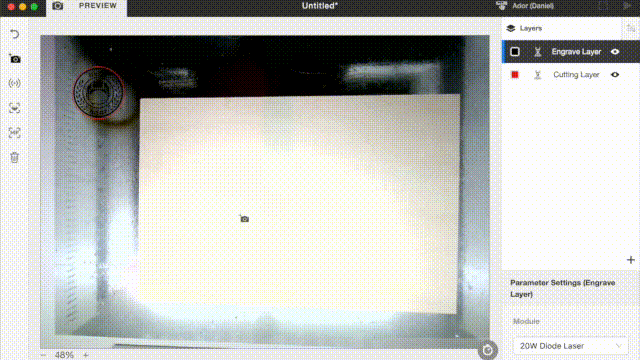

Click on the camera symbol in the top left corner.

⚠︎ Before starting the preview, please ensure that the camera calibration (10W/20W Diode Laser Module) has been performed.

If using the printing module, refer to Ador - Printing Module Calibration.
If using the 2W Infrared Laser Module, refer to Ador - 2W Red Laser Module Calibration.

Screen Recording 2023-11-10 at 12.28.44 AM.gif

5. Send the job

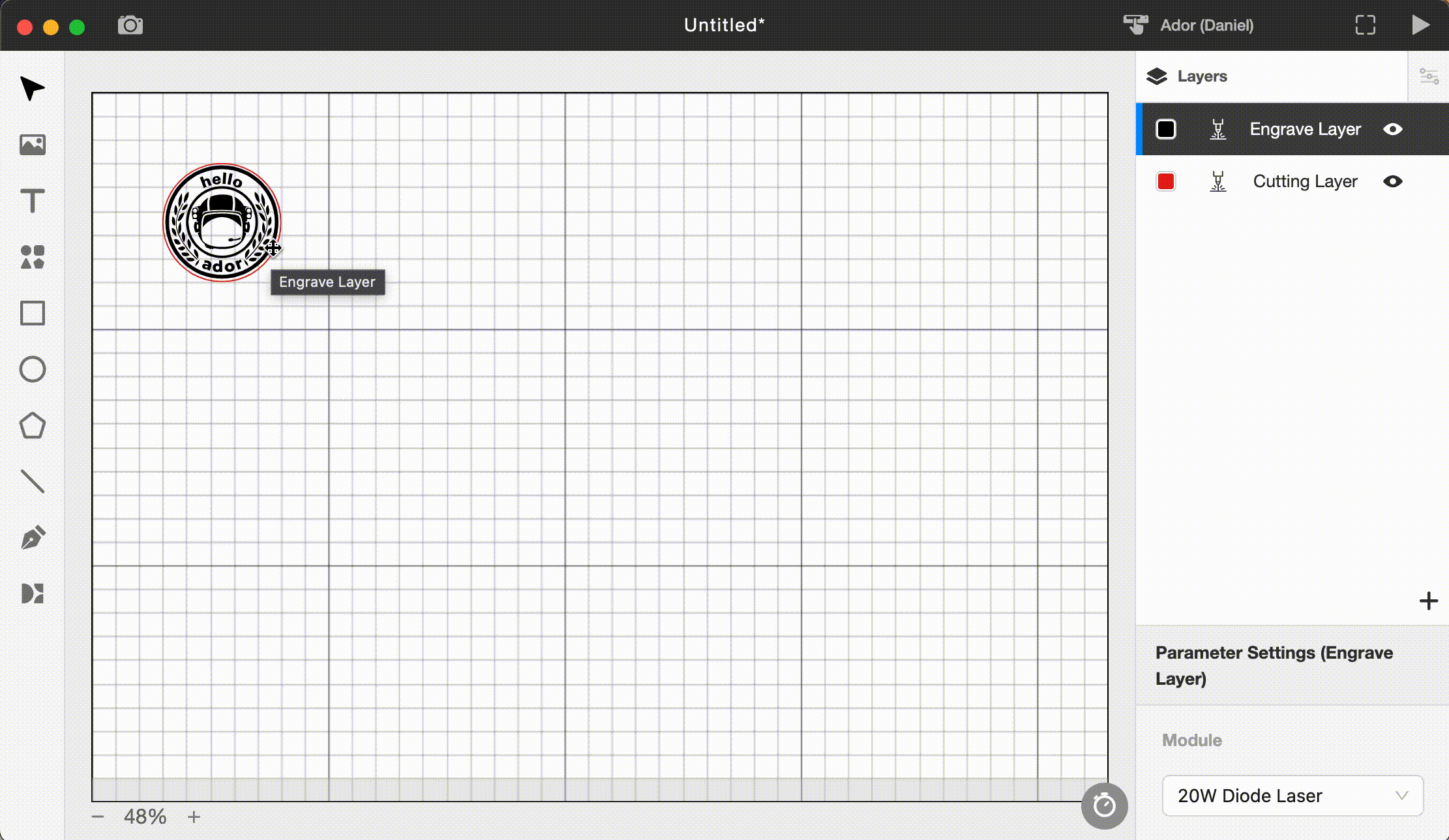

Exit the camera preview mode, drag and drop the image to the desired engraving location, and press the arrow button to send the file.

Untitled Project 4.gif

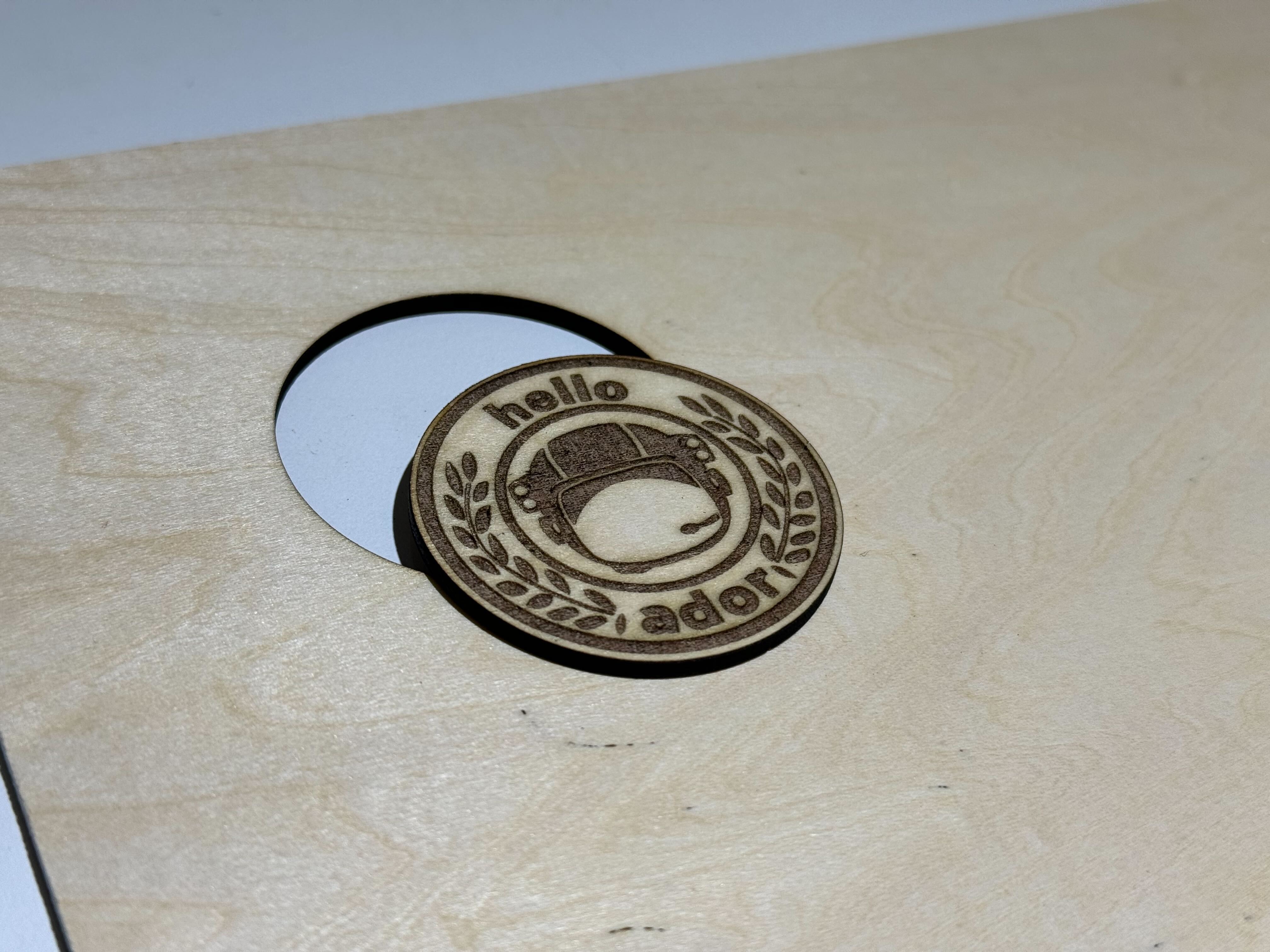

6. Engraving result

⚠︎ If the engraving result is blurry, unclear, or light in color, please check if the laser head is focused accurately.
If the laser head is correctly installed, please check the material suitability/parameters / Cleaning the laser head, and find the troubleshooting here- Bad Engraving or Cutting Result (10W/20W Diode Laser Module)
