2-8 Machine Interface

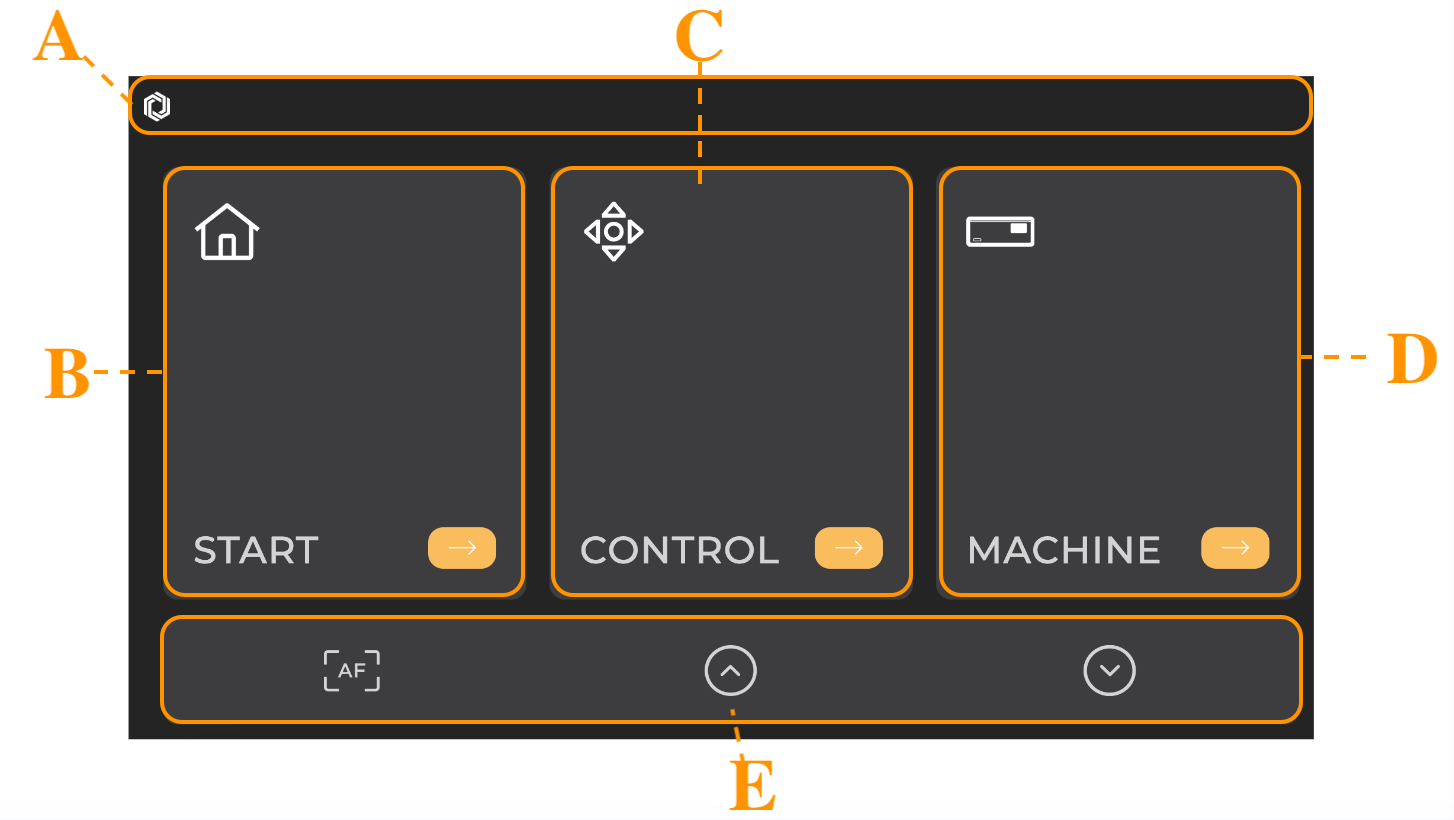

B： Start —— Job File Management

There are two methods for transmitting your work: you can send it through the Beam Studio software or via a USB flash drive. After the transfer is complete, you can locate and utilize the files from the 'Start' option.

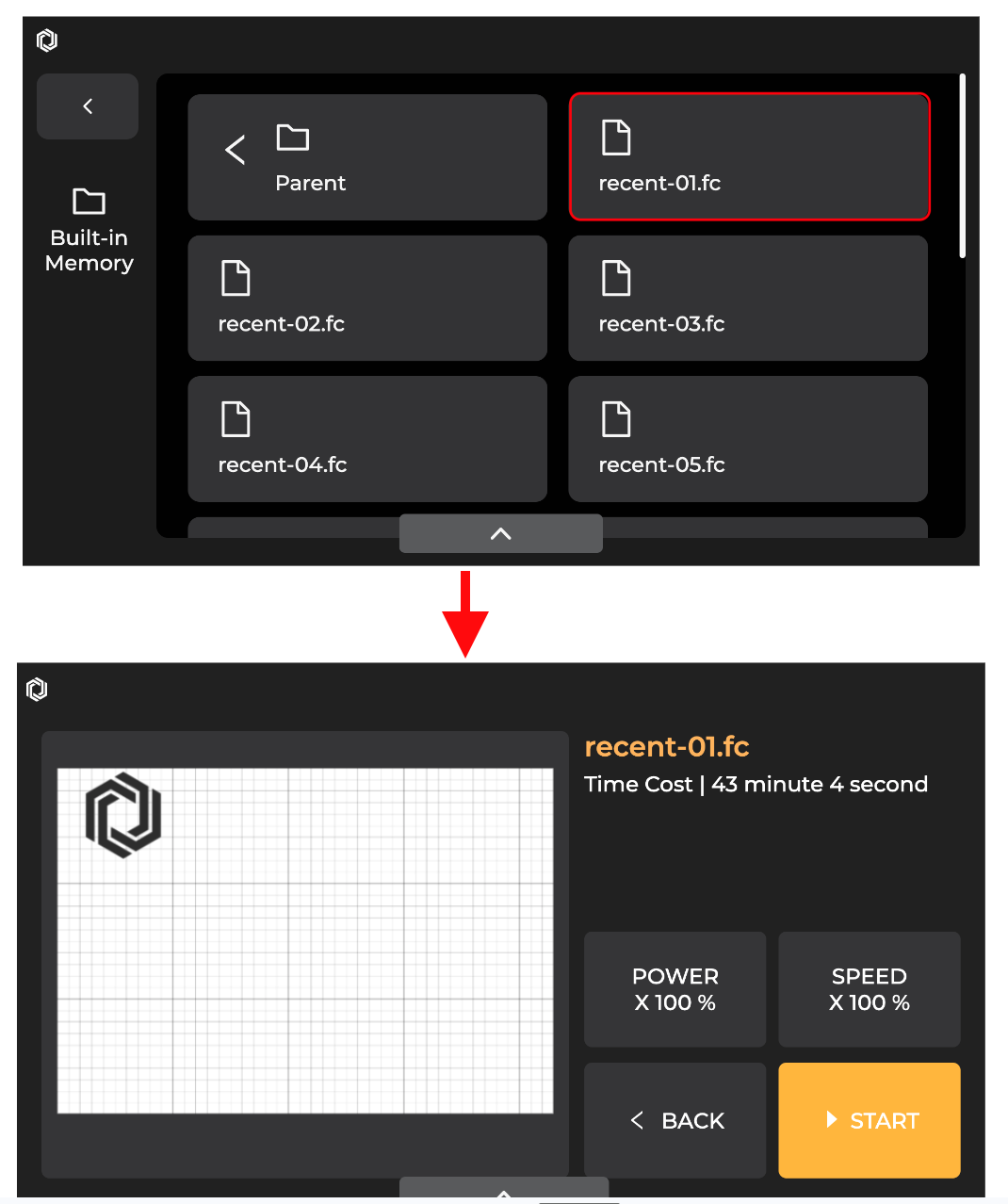

1. Tasks sent to the machine from Beam Studio: "Built-in Memory"> "Recent"> specific tasks.
The machine can record up to 15 tasks sent by the software Beam Studio, and recent-01.fc will be the latest task sent.

2. Files read from USB flash drives: USB flash drives > specific tasks.
There is no limit to the number of files that can be viewed on a USB flash drive.

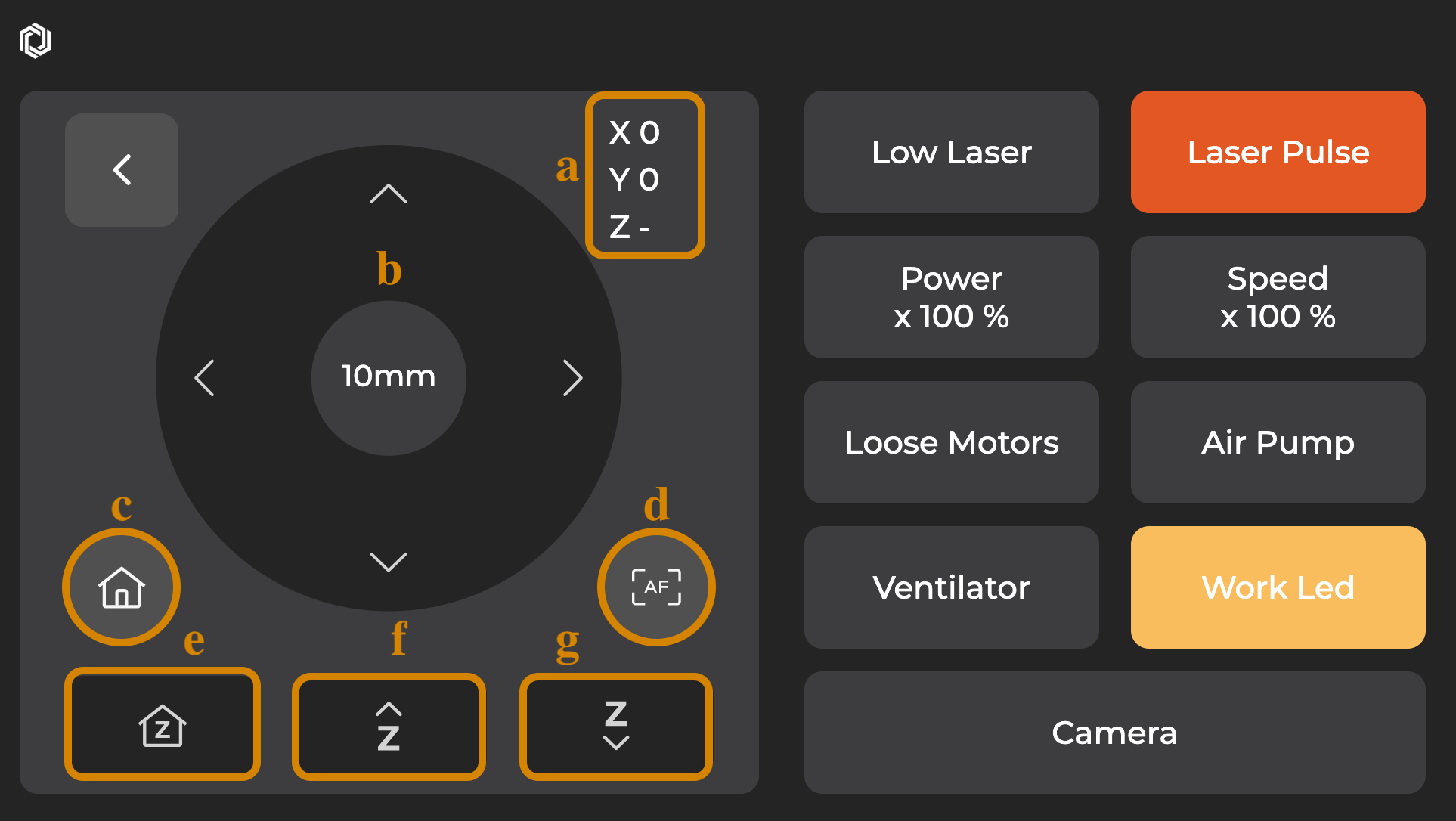

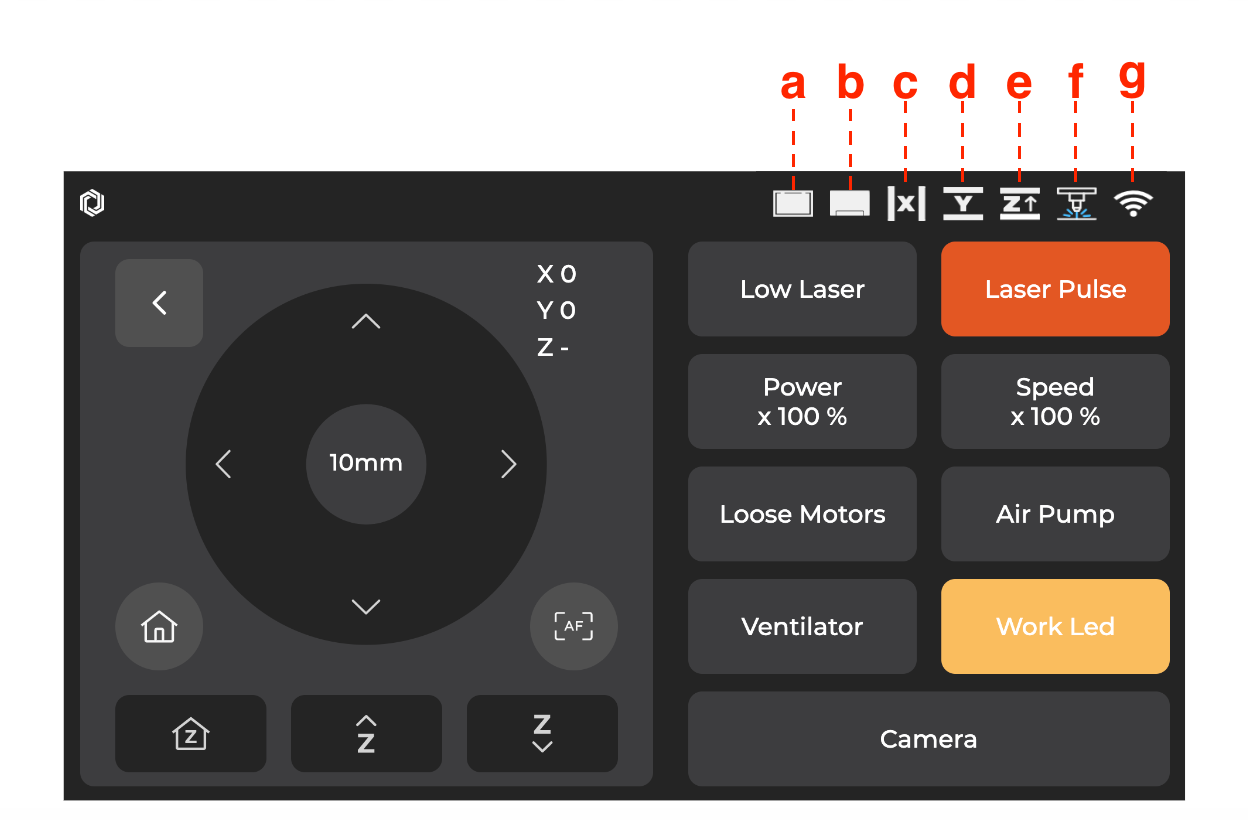

• a: Display the current position of the XYZ axis.
• b: Direction control area.
• c: Homing button.
• d: Auto-focus button.
• e: Return the Z-axis to its original position.

• f: Control the Z-axis to move upwards.

• g: Control the Z-axis to move downwards.

• Low Laser: Test the installation of the laser module for proper functioning. (Under normal conditions, the fan on the module will rotate, and the output port will emit blue light).

• Laser Pulse: Verify if the laser output is functioning correctly.

• Power: Adjust the power output ratio of the laser head.

• Speed: Adjust the movement speed ratio of the laser head.
  Loose Motors: Click to move the laser head to any position freely.

• Air Pump: Click to activate the air-blowing function of the laser head. (Requires a certain air volume to ensure safety during use).

• Ventilator: Click to activate the exhaust fan.

• Work Led: The default is to turn on the indoor light.

• Camera: Click to display the currently captured image.

D： Machine —— Machine's name Inquiry, Language, and Hardware-Related Settings, Pairing with Mobile Devices, Network Status View, Network Settings.

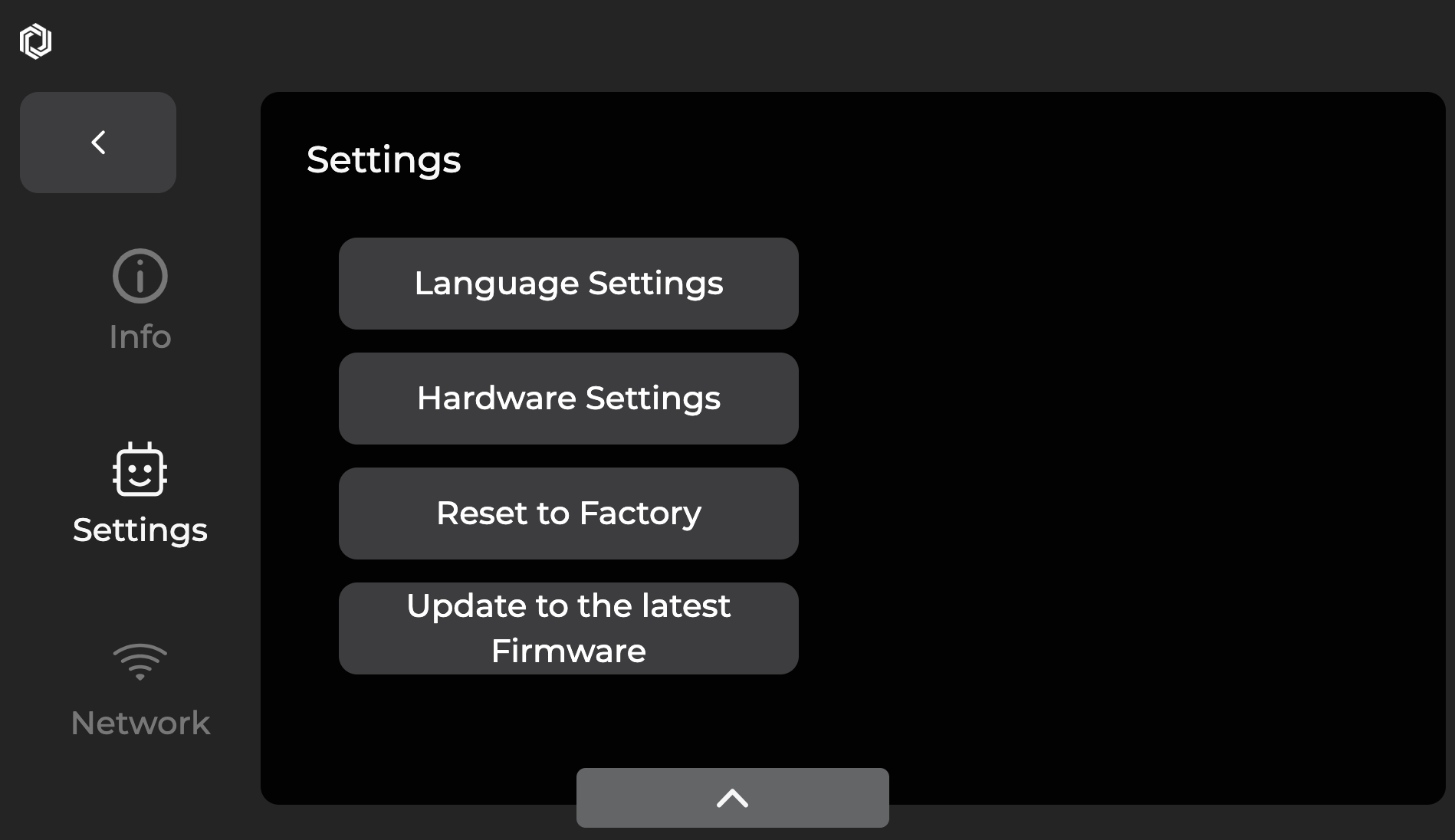

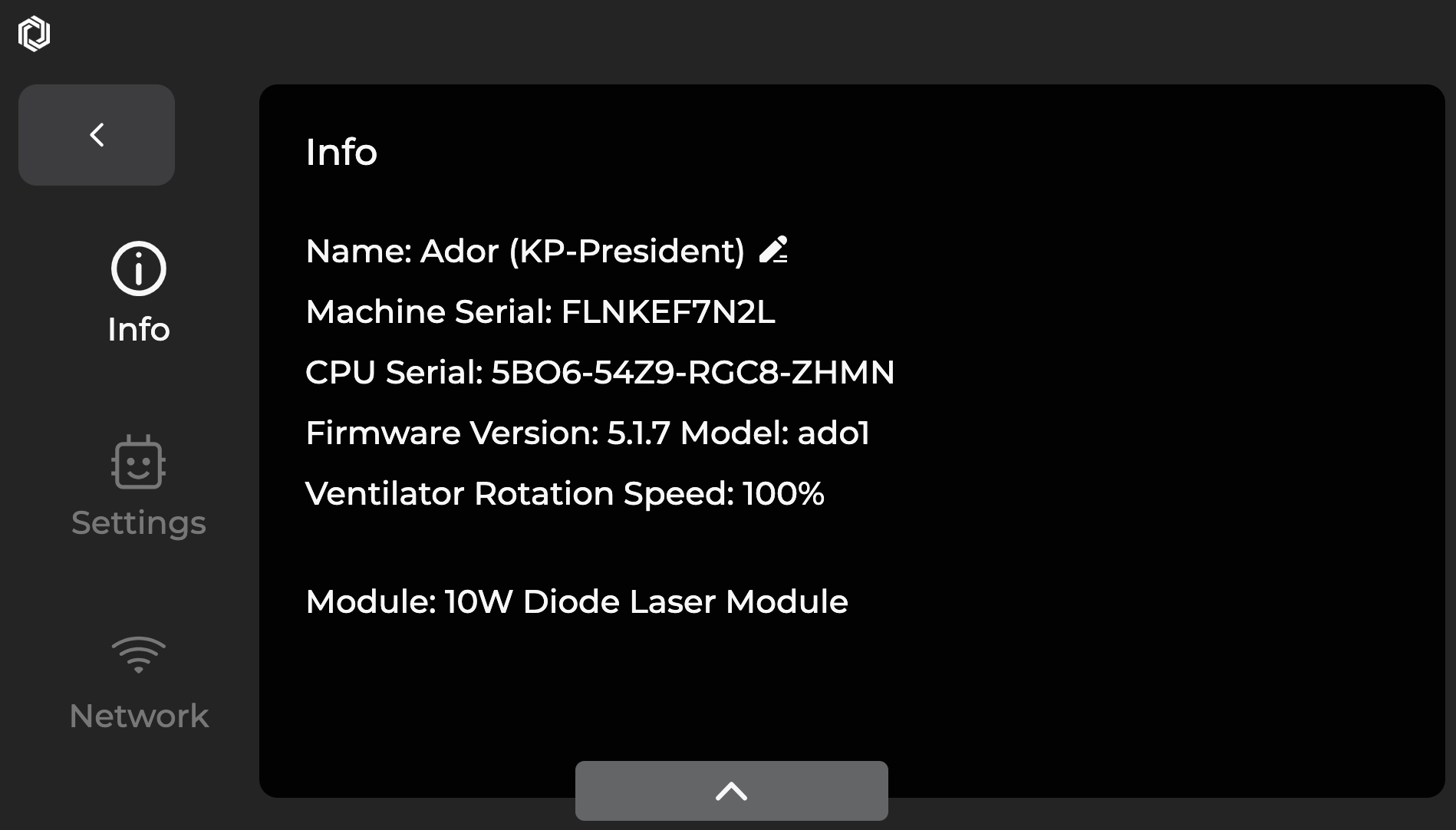

Settings： Configure language, machine name, and fan speed, reset to factory settings, update firmware, and enable the whole-machine testing function.

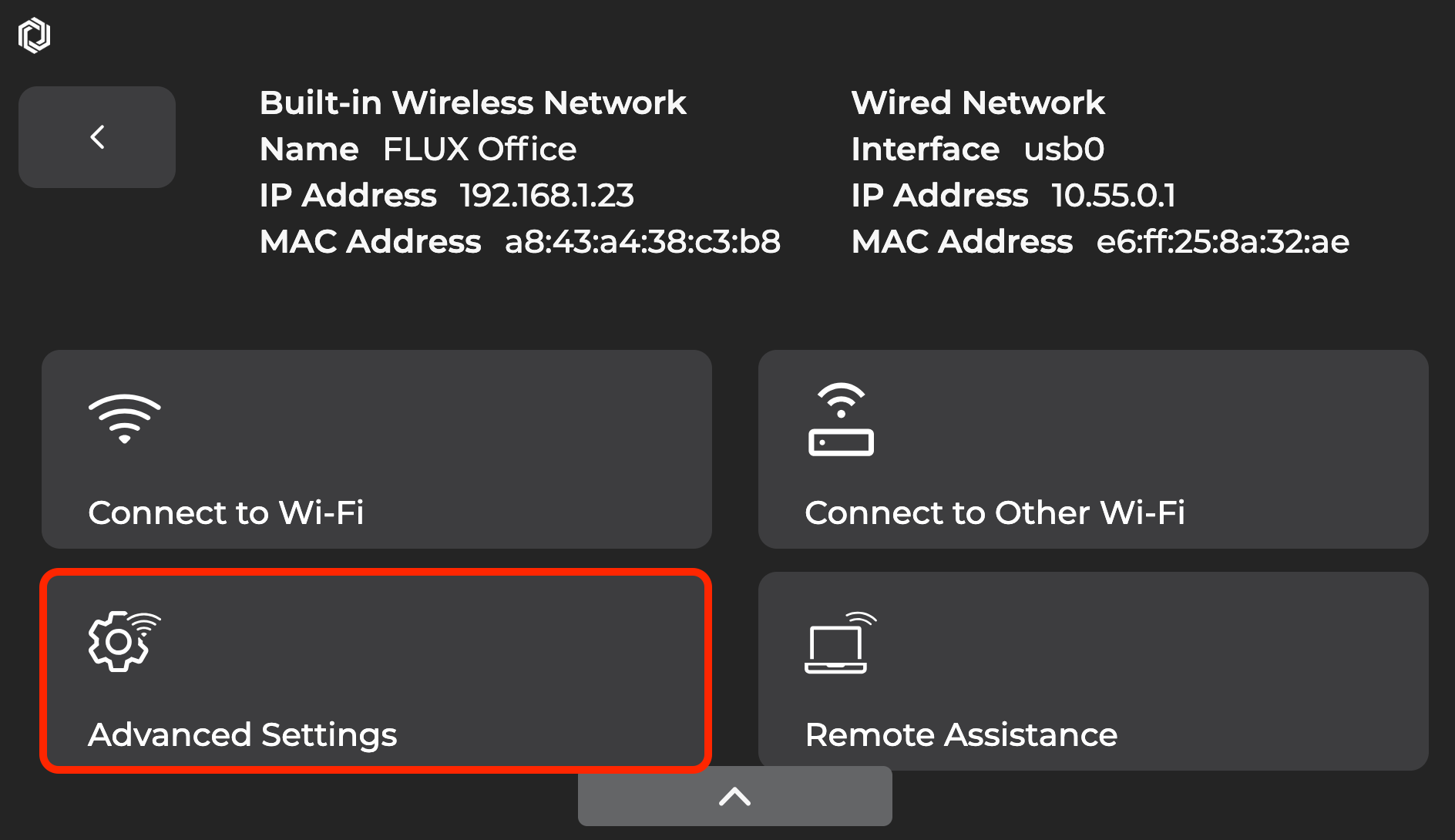

Network： Verify the network IP address, check hardware status (Mac address should have a value when normal), and enable remote assistance guided by customer service.

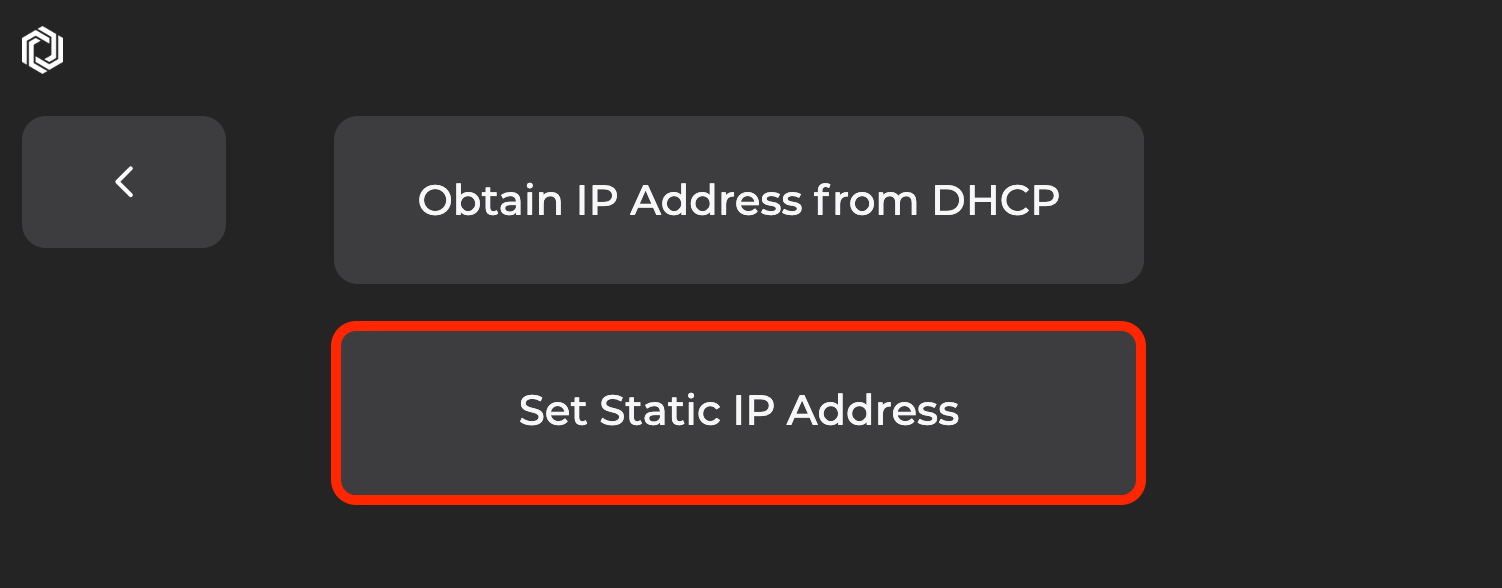

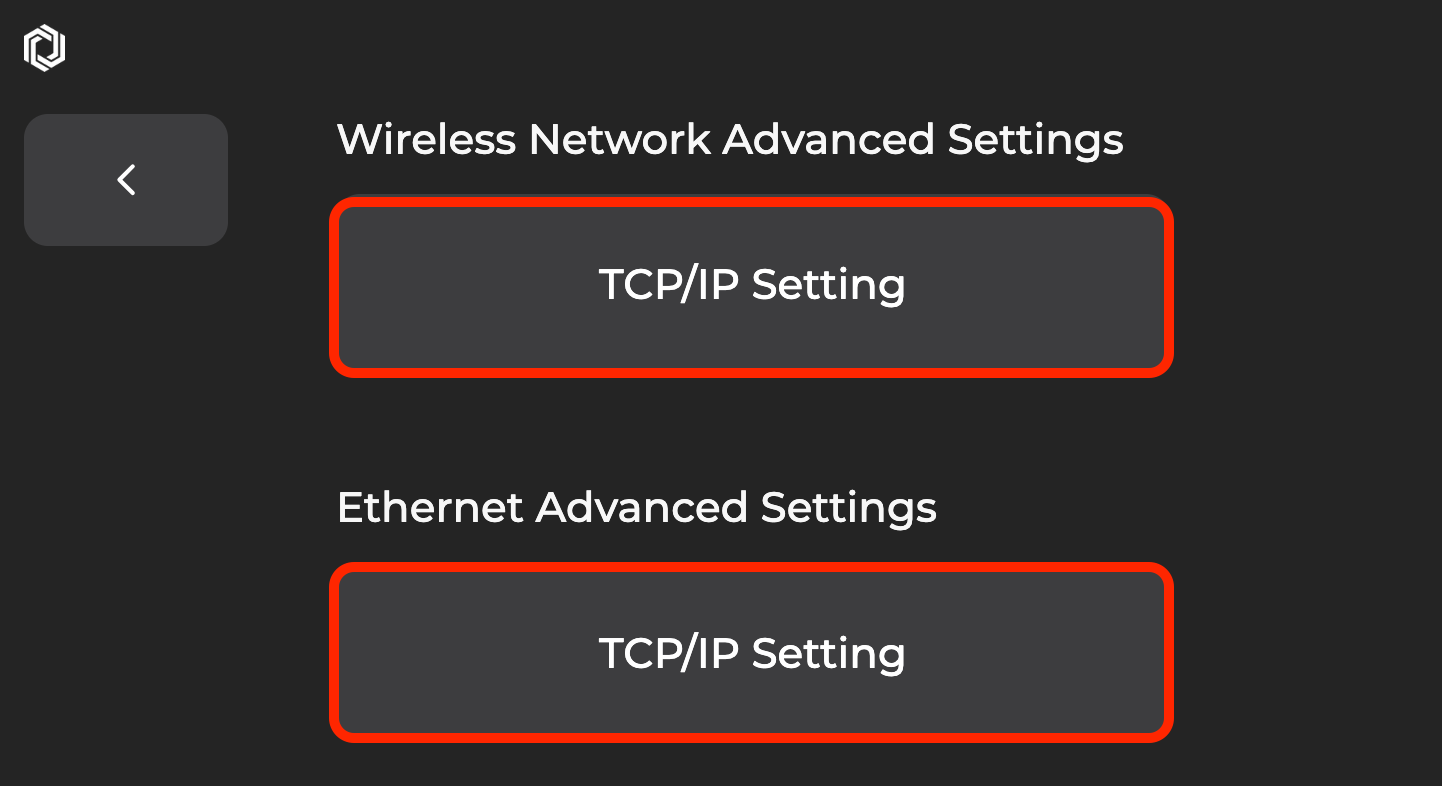

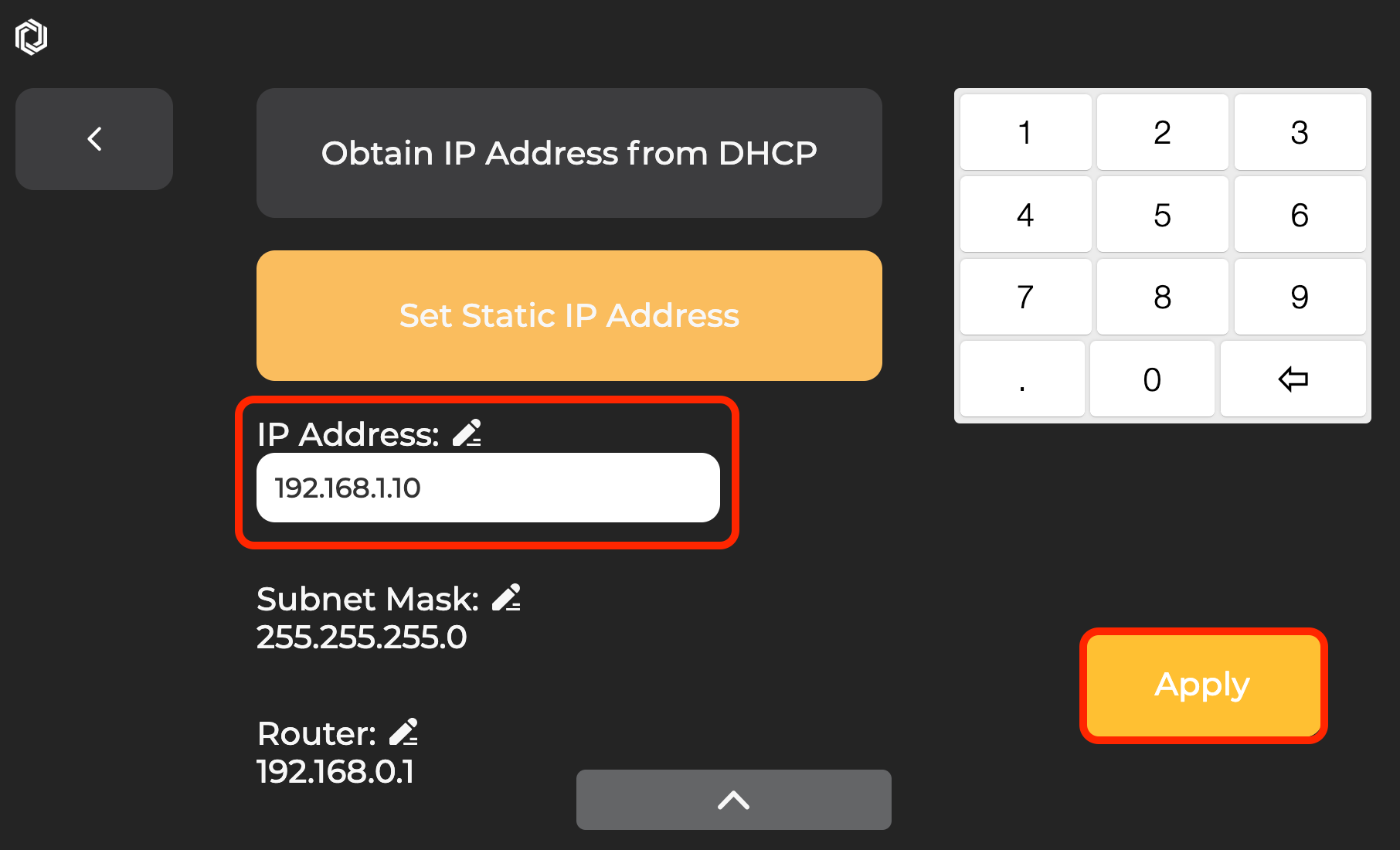

Advanced Settings: You can set the Static IP manually for the machine, which requires filling in the IP address, subnet mask, and router.
Note： When using a wireless (WiFi) or wired Network (except for Direct connection), the machine can automatically obtain an IP address through DHCP (for general users) or be manually set to a Static IP.

1.

2.

3.

E： Auto-Focus Control —— Control Laser Head Elevation, Auto-Focus Button.

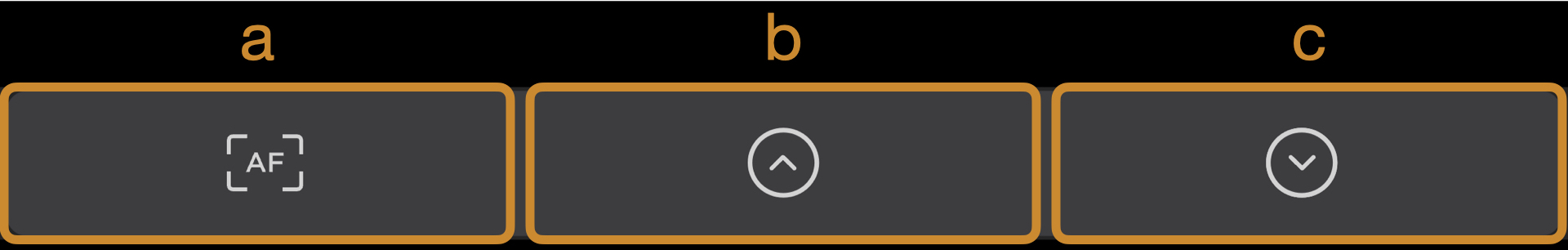

• a : Auto-Focus Button. Pressing three seconds to focus.
• b : Control the laser head to move upwards.
• c : Control the laser head to move downwards.
