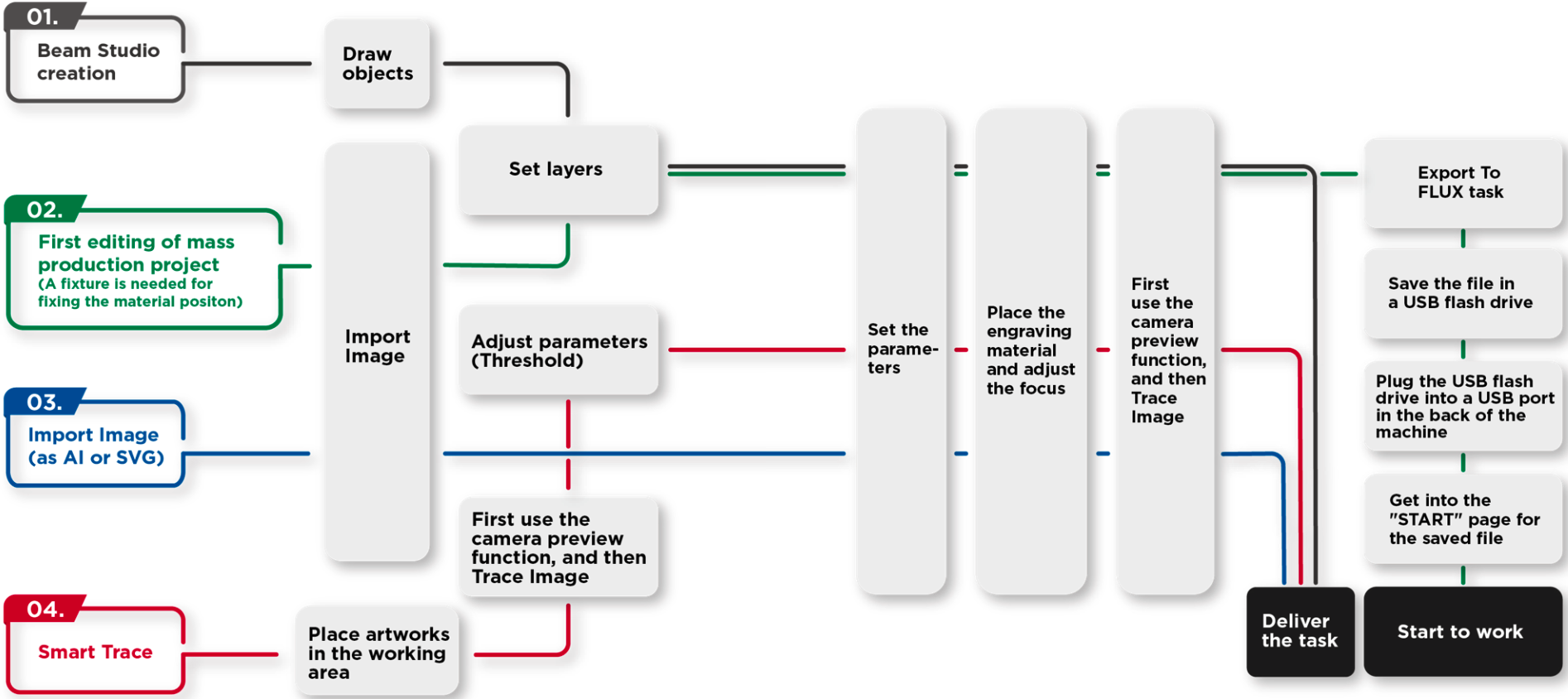

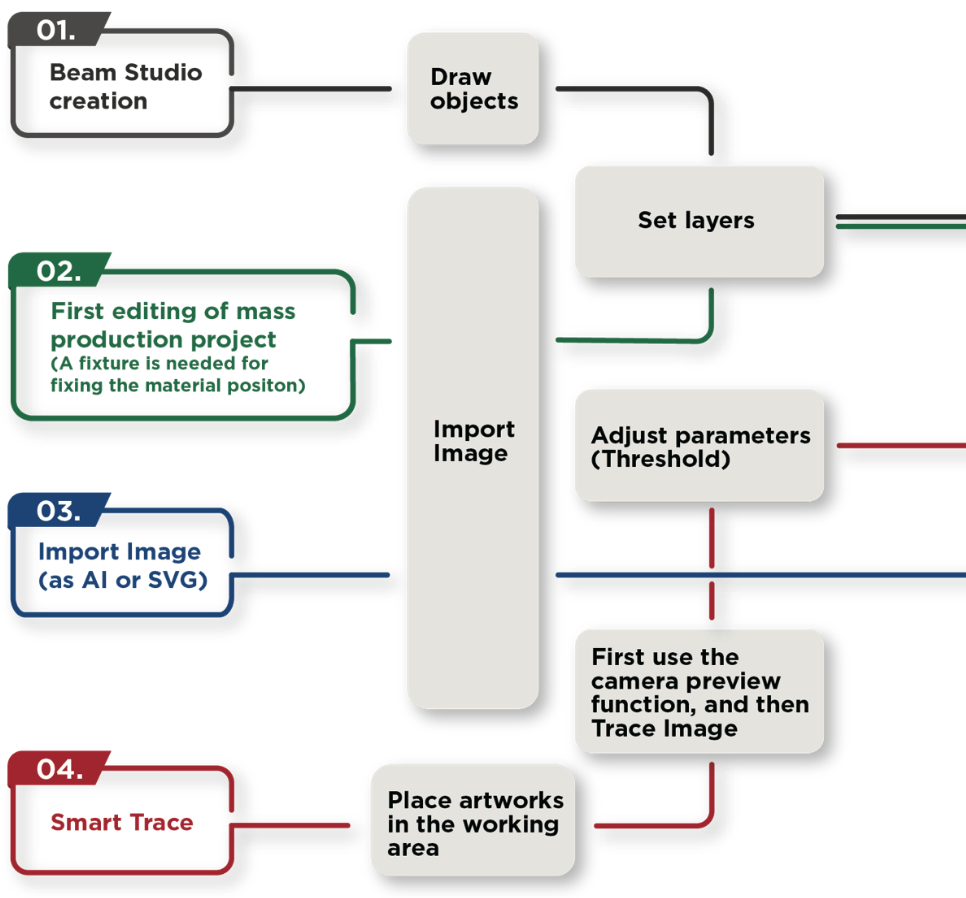

This section contains steps for Beam Studio creation, Import Image, Smart Trace, and mass production operation.
Beam Studio is designed for FLUX laser engraving machines, which can effectively interface with other professional design software for laser engraving.
If there are complex objects and shapes to be engraved, it is recommended to use the method of Import Image, and after importing the drawings, the final layout and parameter settings are made in Beam Studio.
When previewing the Smart Trace image, ensure the least amount of preview is done to avoid the misalignment of the image caused by stitching. If the tracing image is small, you can click the center of the image to place it on one camera preview screen when previewing.

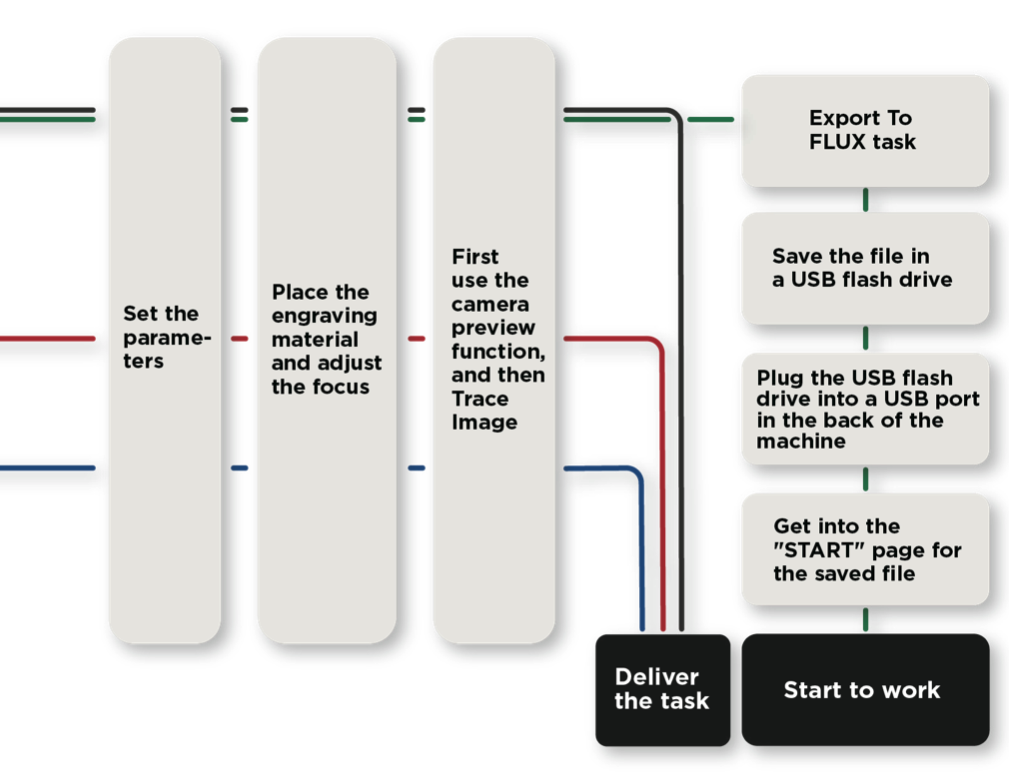

After confirming the position of the fixture and objects in the first editing of the mass production project, the FLUX task can be exported to the USB flash drive. In the future, you only need to insert the USB flash drive into the machine, focus on the engraving material on the fixture, and then click the "START" page to select the file and directly start the engraving job.
