1-1 Beam Studio Interface

FLUX Support Team
  • Updated

This chapter introduces the software features and demonstrates the 4 creation techniques, including Beam Studio creation, importing work files, tracing images, and mass production, and concludes with formatting instructions.

Available for Beam Studio 2.2+.

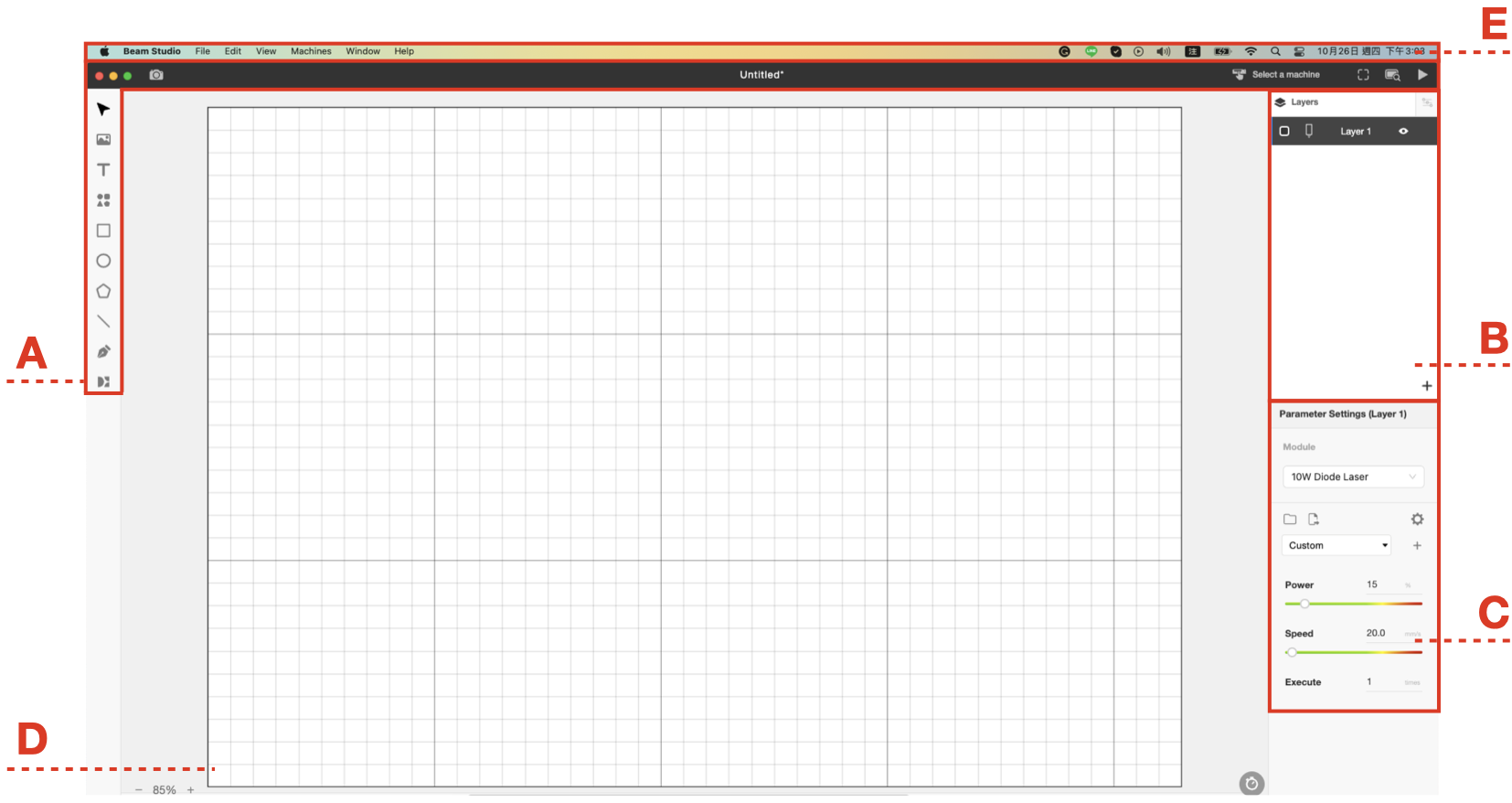

The software interface can be divided into 5 sections

A. Toolbar
B. Layer and Object Panels
C. Parameter Settings
D. Working Interface
E. Menu


A. Toolbar

Left

Icon Name Keyboard Shortcut Description
cursor.svg Select V

Select specific objects.
photo.svg Image I

Import JPG / PNG / SVG / DXF / AI / PDF files. Drag and drop them directly into the software or paste them directly from the browser after "Copy image".
text.svg Text T

Add new text objects. When the Infill is not on, there is only a text stroke, once it is on, the text will be solid.
element.svg Elements

Curated cliparts.
rect.svg Rectangle M

Draw rectangles. Able to adjust rounded corners radius.

polygon.svg

 Polygons

Draw polygons. The number of polygon vertices can be increased or decreased by using the "+" and "-" keys while drawing.
oval.svg Oval L

Draw ellipses.
line.svg Line \

Draw line paths.
draw.svg Pen P
  • Outline the lines and curves of the vector and adjust the shape with the anchor point after you finish drawing.
  • Press and hold the left mouse button while drawing to draw curves.
  • Double-click the endpoint or use the keyboard "esc" to end the pen path. Double-click the pen drawing path to edit the path.
qr-code.svg QR Code   Generate QR Code
boxgen.svg Box Generator   Generate laser cutting box
dm.svg Design Market   Open the Design Market (https://dmkt.io)
camera.svg Camera Preview   Enter the camera preview mode.



Top

select machine icon.001.jpeg

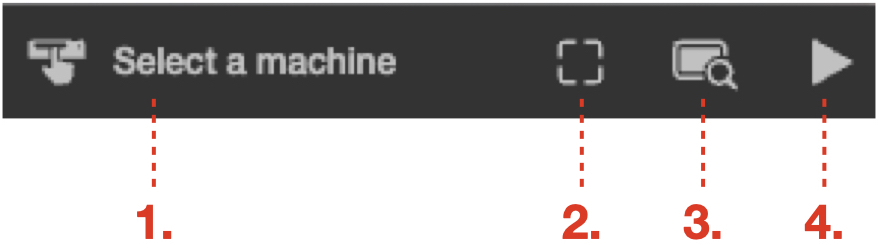

  1. Machine Selector: Choose the machine you want to connect to.
  2. Run Preview Frame: Preview the task's work scope (specific to Ador).
  3. Path Preview: View a simulation of the work path before sending the task.
  4. Start Task: Send the task to the selected machine.



Camera Preview Mode

Icon Name Description
shoot.svg Preview

Select a range to preview the area of the work materials to be cut or engraved.
trace.svg Trace Image

Scan and create a path object from the images of the camera preview.
delete.svg Clear

Delete the images previewed by the camera, but the objects of the Trace Image will not be deleted.



B. Layer and Object Panels

Layer Panel

  • Overview: The layer panel shows a list of all layers in your project.
  • Add New Layers: Click the "+" button to add a new layer.
  • Layer Options: Right-click on any layer to access additional options.

Check the details here: Layer Control.

Object Panel

截圖 2024-06-14 下午1.54.01.png

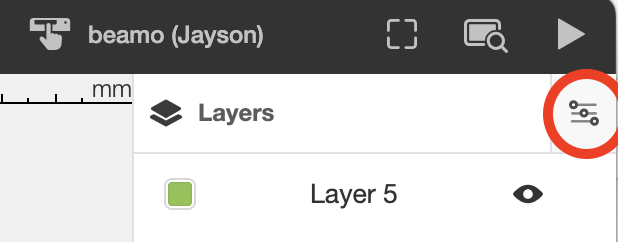

Click the icon here to open the object panel.

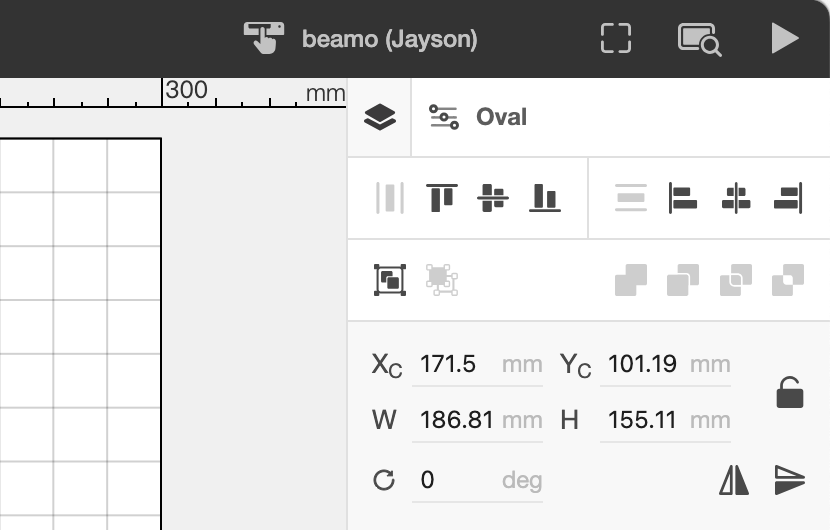

截圖 2024-06-14 下午1.50.52.png



There are five primary types of objects you can work with:

  1. Image Object
  2. Text Object or Text On Path Object
  3. Path Object
  4. Geometry Object: Includes rectangles, ovals, polygons, and lines
  5. SVG Object: Imported SVG files

Each object type has specific options and actions. Detailed information for each can be found in the next chapter.

C. Parameter Settings

Layer Parameters

Power (%)

The percentage of laser output power.

Speed (mm/s):
The speed at which the laser head moves, measured in millimeters per second.

Execute (times)
The number of times a single layer is executed for the same job.

Z Step (mm) (Available for FLUX ador, beamo, and HEXA.)
When performing multiple cuts on the same path for a single layer (when "EXECUTE" is greater than 1), you can set the descending amount of the laser head for each cut to handle thicker materials.



Parameter Options

Icon Name Description
截圖 2024-06-13 凌晨12.35.31.png Import

Import all engraving parameters stored in a .json file into the parameter list.
截圖 2024-06-13 凌晨12.35.38.png Export

Export all parameters as a single .json file.
截圖 2024-06-13 凌晨12.35.42.png Manage Parameters

Browse, edit, or delete customized parameters.
截圖 2024-06-13 凌晨12.35.52.png Add Current Parameters

Name and save the current parameter to the parameter list.
截圖 2024-06-13 凌晨12.35.59.png Custom Parameters

Select parameters from the drop-down list. Suggested parameters for common materials are available.



Tips for Using Parameters

  • Since materials vary, start by using the built-in parameters to observe engraving results. Fine-tune them as needed to achieve the desired effect.
  • It is recommended to set the power below 70% in Beamo, Beambox, and Beambox Pro to extend the lifespan of the laser tube. However, for Ador and HEXA, using full power has less impact on laser consumption.
  • Adjust parameters periodically to account for the normal decline in laser tube performance due to usage and time.



D. Working Interface

The center of the window is the area for importing images or drawing objects. Note that objects should be placed in the area to proceed with the task.



E. Menu

Frequently used functions in each tab are introduced here.

Beam Studio

  • About Beam Studio: Display the version of Beam Studio.
  • Preferences: Modify default settings such as language, machine IP address, and add-ons.

File

  • Open, Save, Save As: Open or save the files.
  • Examples: Use various examples, including different files and material engraving tests (different power and speed combinations) to determine the best parameters for new materials.
  • Export: Export files to multiple formats, including BVG, SVG, PNG, JPG, and FLUX task. Detailed information on file formats is explained in this chapter.

Edit

  • Optimize: Optimize the object arrangement to make the most effective use of the engraving material.
  • Document Settings: Adjust settings such as engraving resolution, working area (select the model), and add-ons.
  • Clear Scene: Remove all objects from the scene

View

  • Show Grids: Display grids in the working interface.
  • Use Layer Color: Display the layer colors on objects in that layer.

Machines

  • Test Network Settings: Check the network connection quality between the computer and the target machine.
  • Calibrate Camera: Run the camera calibration process for the machines, for different addons.
  • Update Firmware: Download the firmware from the official website, save it on your computer, and update the machine firmware by selecting the firmware file on your computer. Note: The firmware upgrade takes a few minutes. Do not turn off the machine during the process.

Window

  • This is the default menu for Mac systems. Windows and Linux Ubuntu do not have this option.

Help

  • Show Start Tutorials: Restart the software beginning tutorial.
  • Bug Report: Export a bug report after encountering an error. Ensure the software is not reorganized or shut down before exporting the bug report. Customer Service will guide you through exporting the bug report files to troubleshoot Beam Studio errors.
  • Debug Tool: An interface for developers to debug software issues.
