1-7 Loading Example Files

Steps:

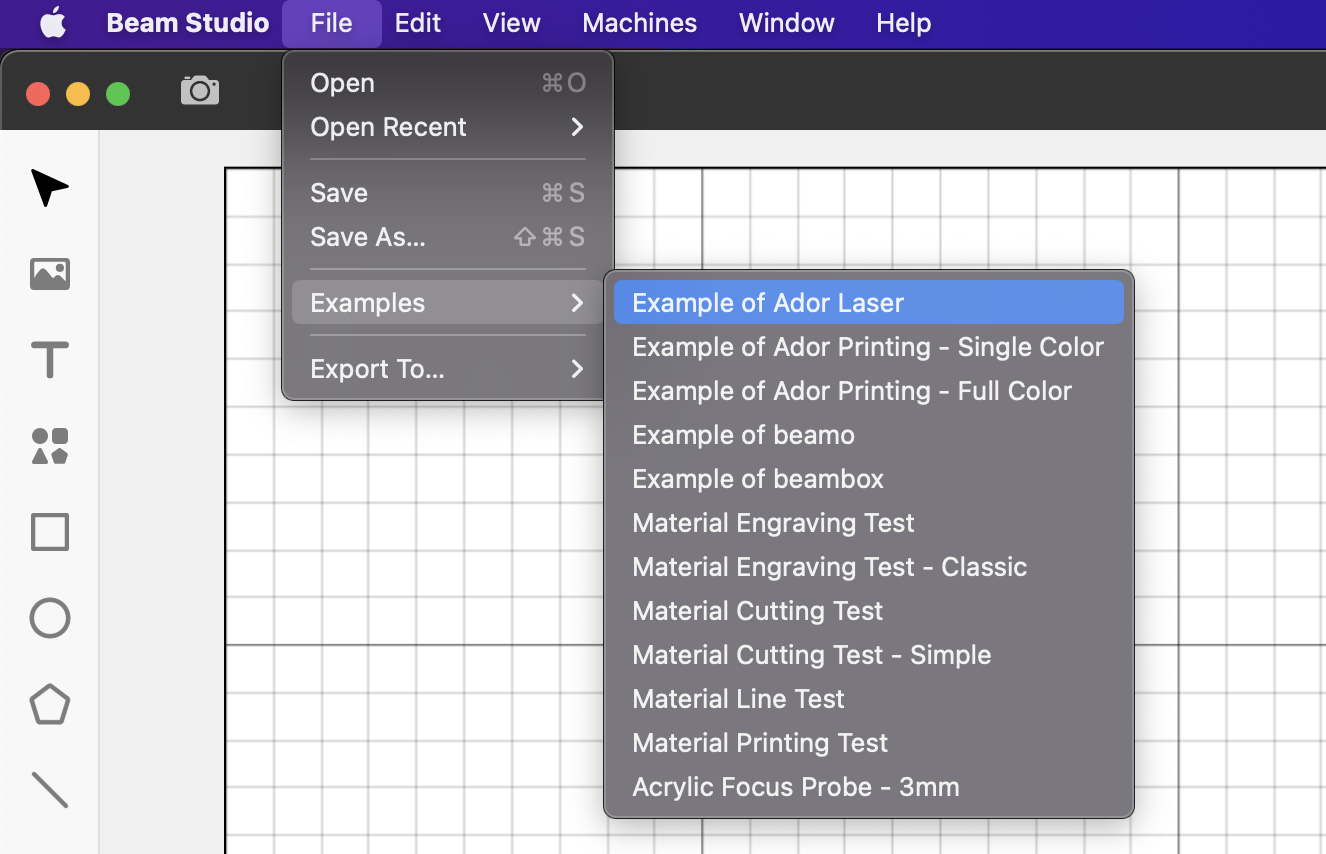

Click on menu > File > Samples > Example of Ador.

Click on "Go," select your machine and click "Start" to run the task.

Import the Test File.

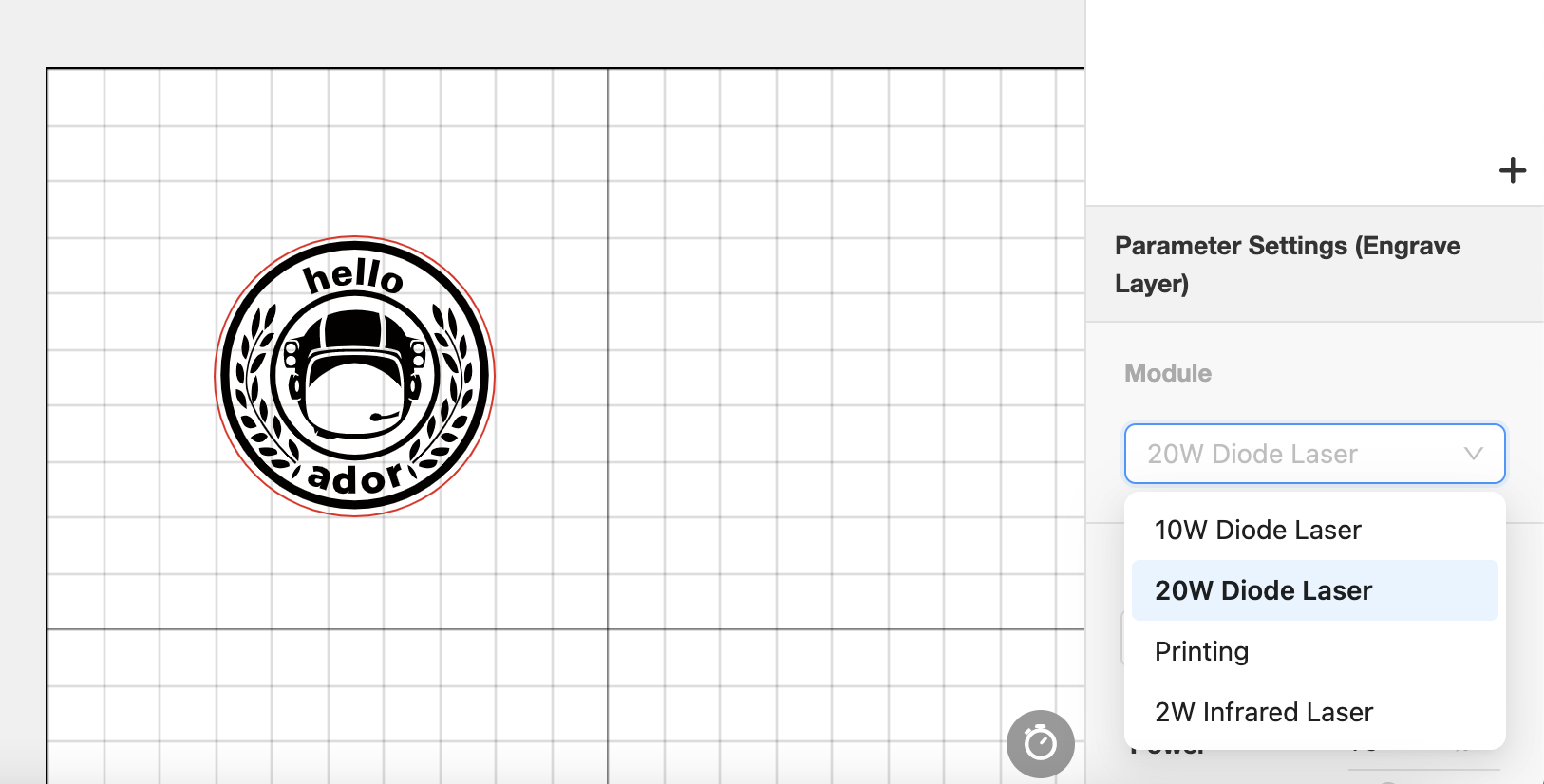

Select the module you are using (10W or 20W Diode Laser Module)

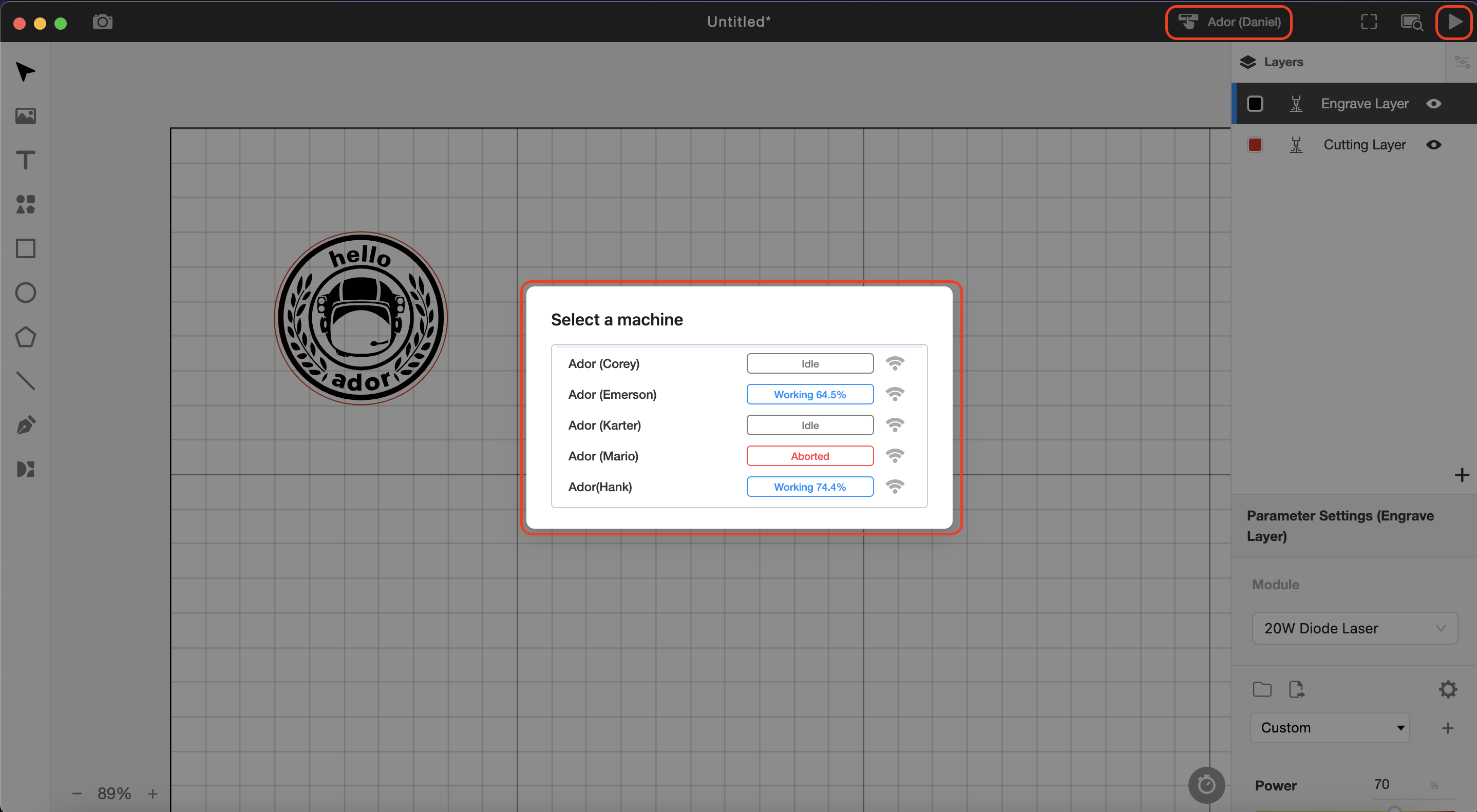

Choose your machine and press 「Start Work」.

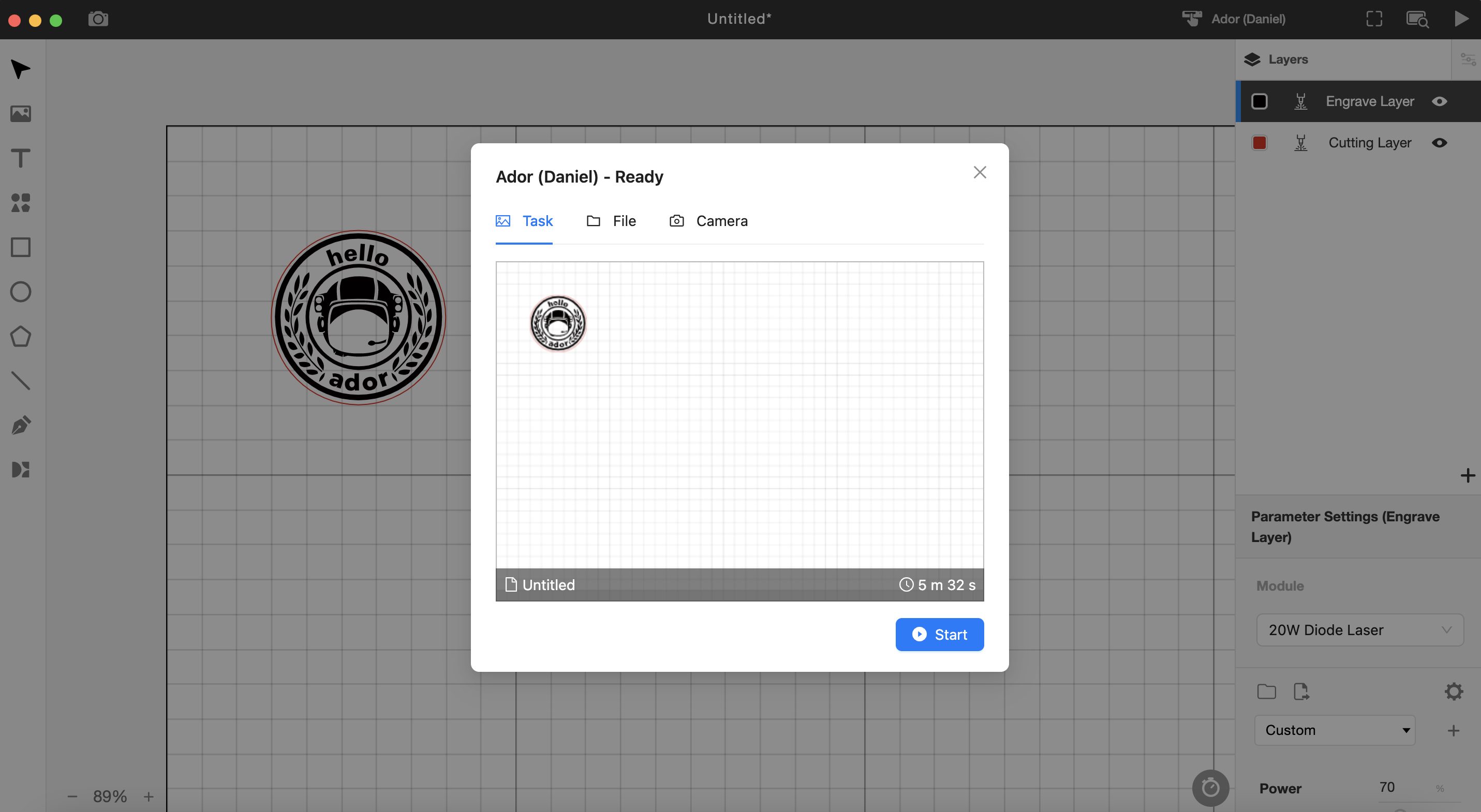

Press 「Start」to run the test.

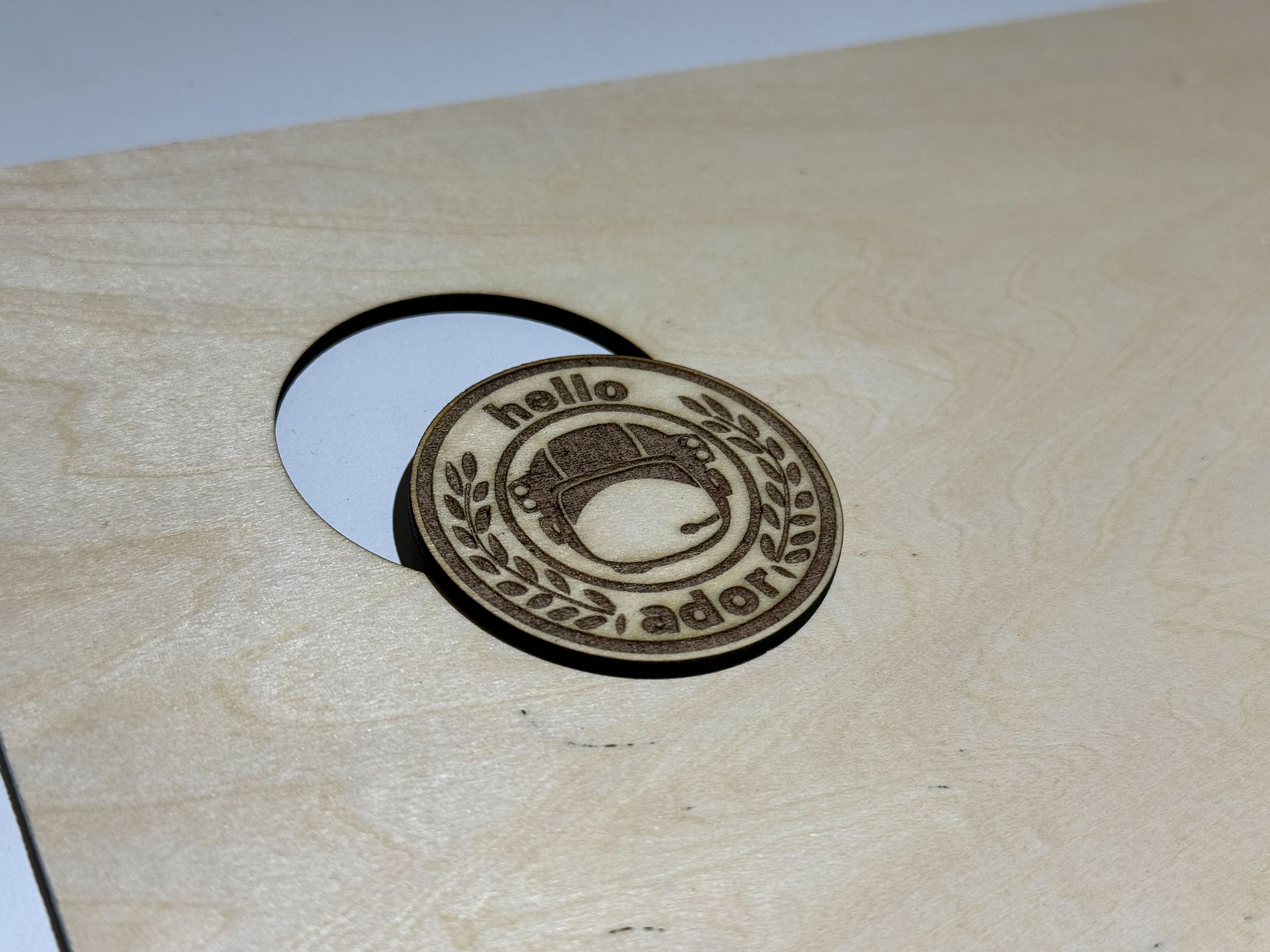

Engraving Result:

1. If the engraving result is blurry, unclear, or light in color:
Please check whether the focal length is correct.

2. If there is a serious deviation between the actual engraving position and the camera preview position on the software:
Please check whether the focal length is correct. If the focal length is correct and there is still an error, please refer to Troubleshooting: Camera Calibration
