1-3 Bitmap and Vector Formats

There are two main types of digital image files - the bitmap files, and the vector files.

Characteristic	Bitmap Graphics	Vector Graphics

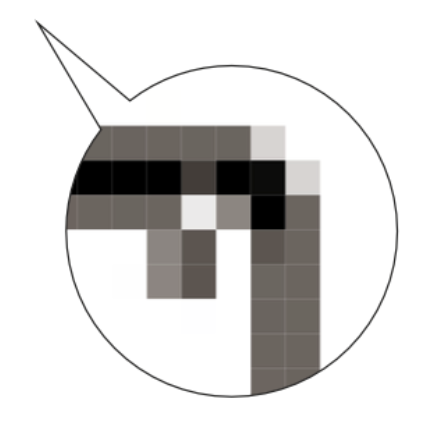

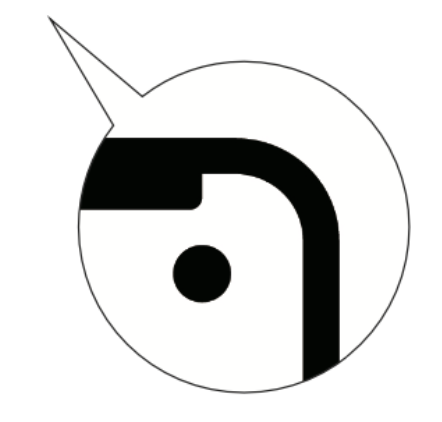

Description	Bitmap is an image type that consists of numerous square pixels. Bitmap files are rich in details which are mostly suitable for photography or digital applications. However, the quality is related to the resolution so the image can get jagged or blurry when resized.	Vector images are composed of paths defined by multiple points and are especially suitable for logos and font layouts. Each path, curve, or shape has its formula, and can therefore be resized without affecting the graphic quality.
Image type	Numerous square pixels	Paths defined by multiple points
File format	JPG / PNG are commonly used	SVG / DXF / PDF / AI are commonly used
Suitable for	Infill engraving, Grayscale images, Photos	Outline cutting and engraving
Working time	Long	Short
Image quality	Complete	Clear contour

*It is essential to use the vector format when cutting.

The next page will contain a table explaining the file type of import image and the file type of saving, etc. There is also an overview of the layering method and the engraving resolution.
