Beambox II - Camera Module & Flame Sensor & Camera LED Board Replacement Guide

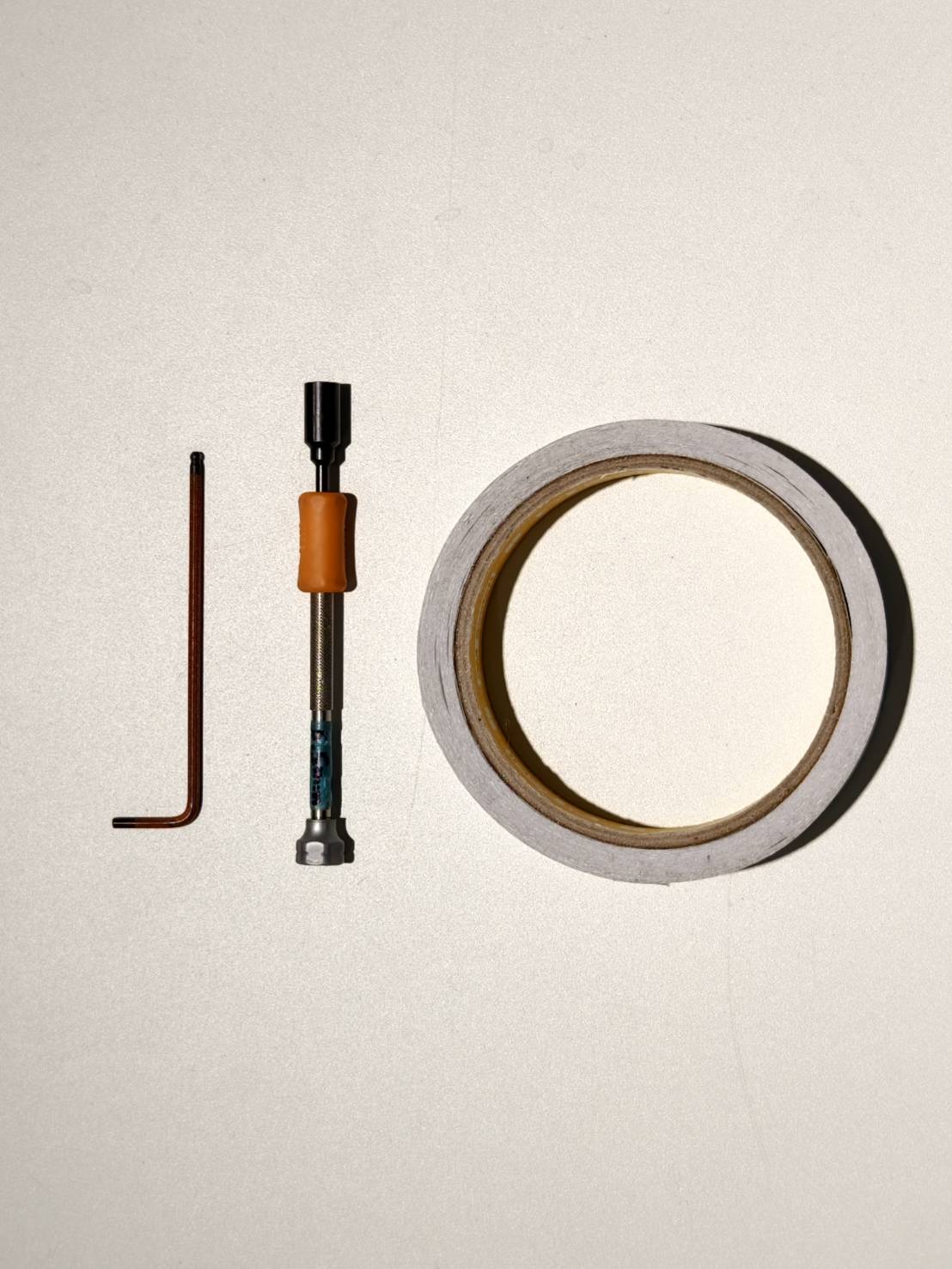

Tools

Step 1

Turn off the machine, and remove the power cord.

Step 2

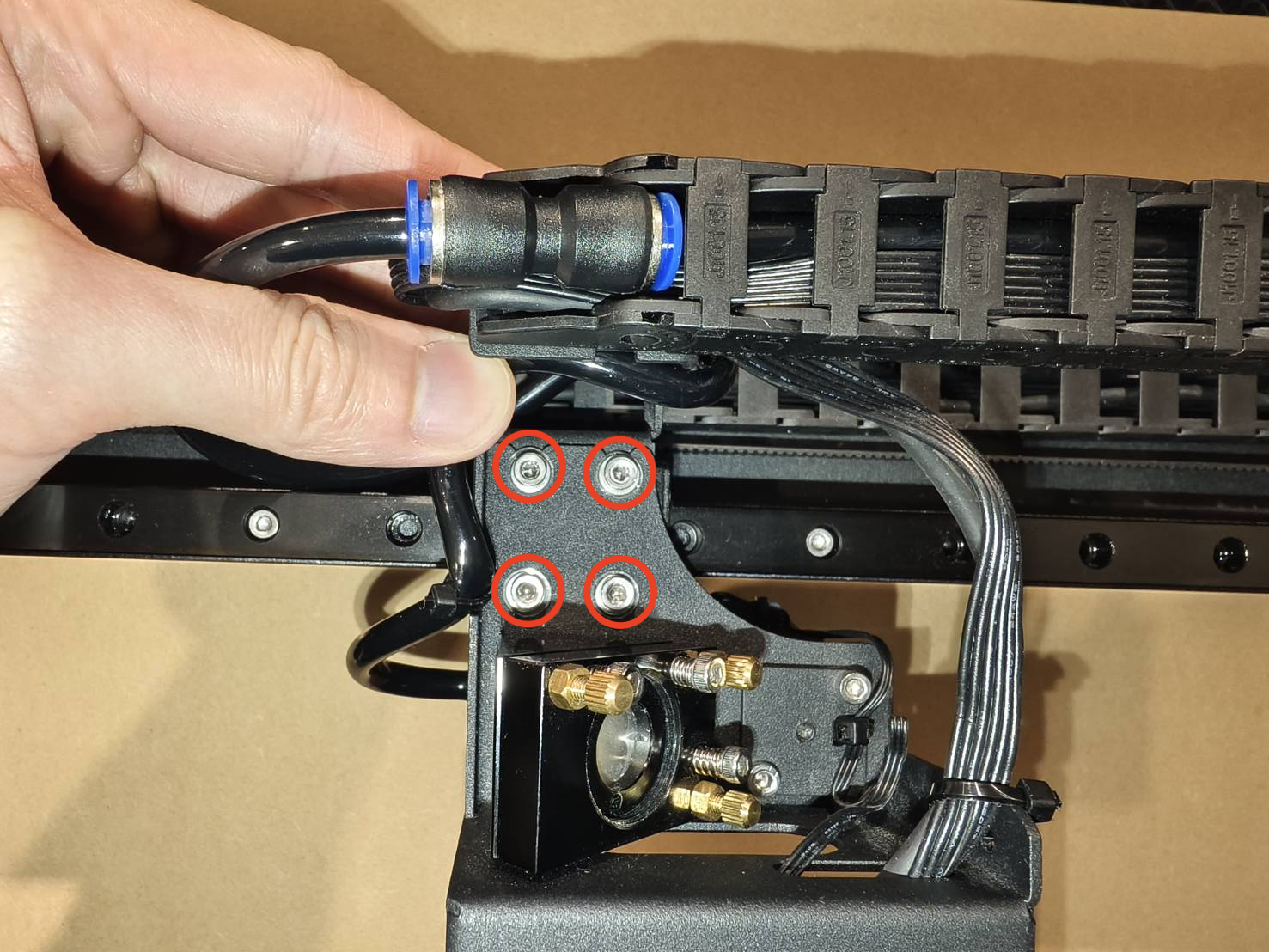

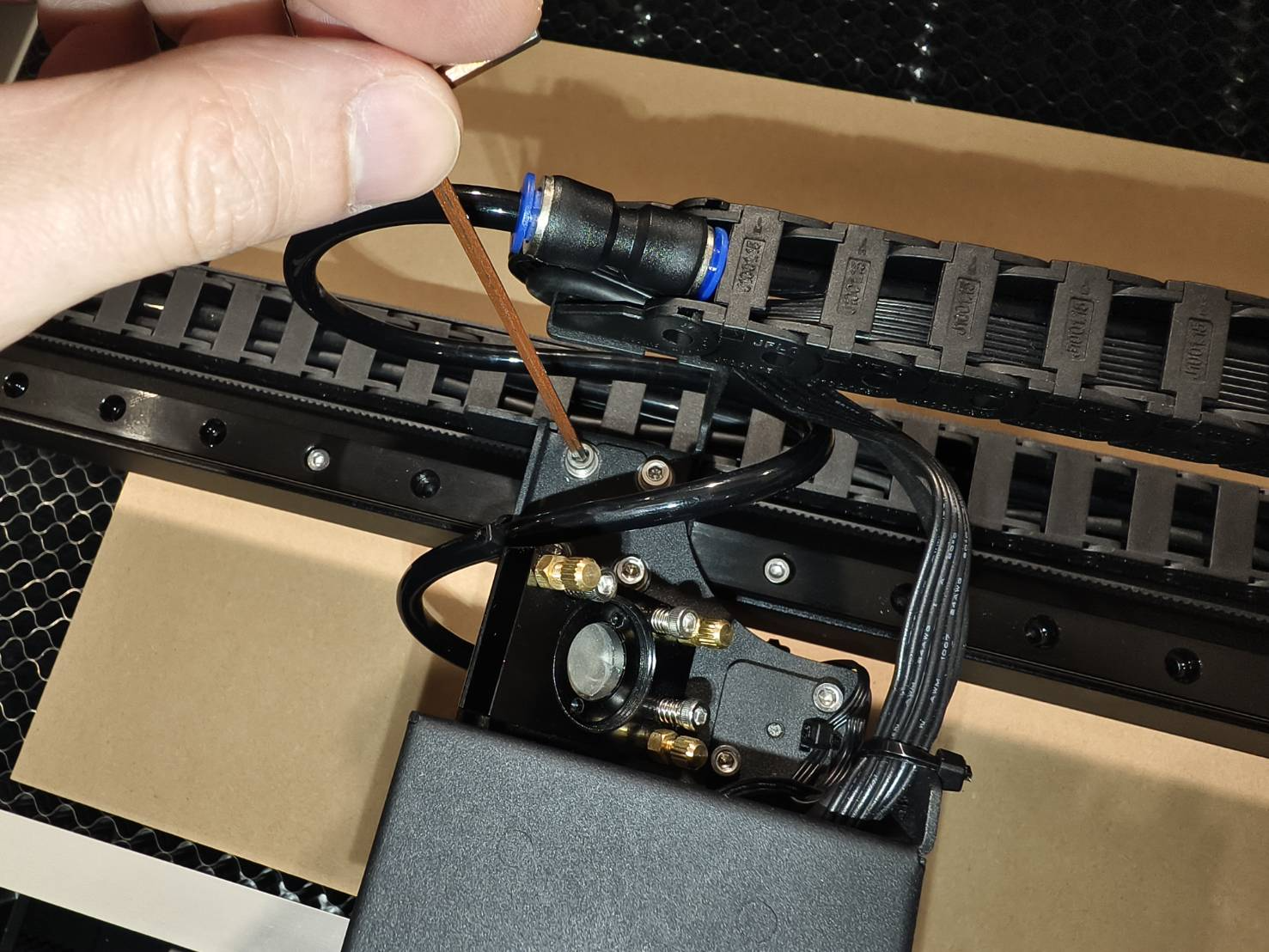

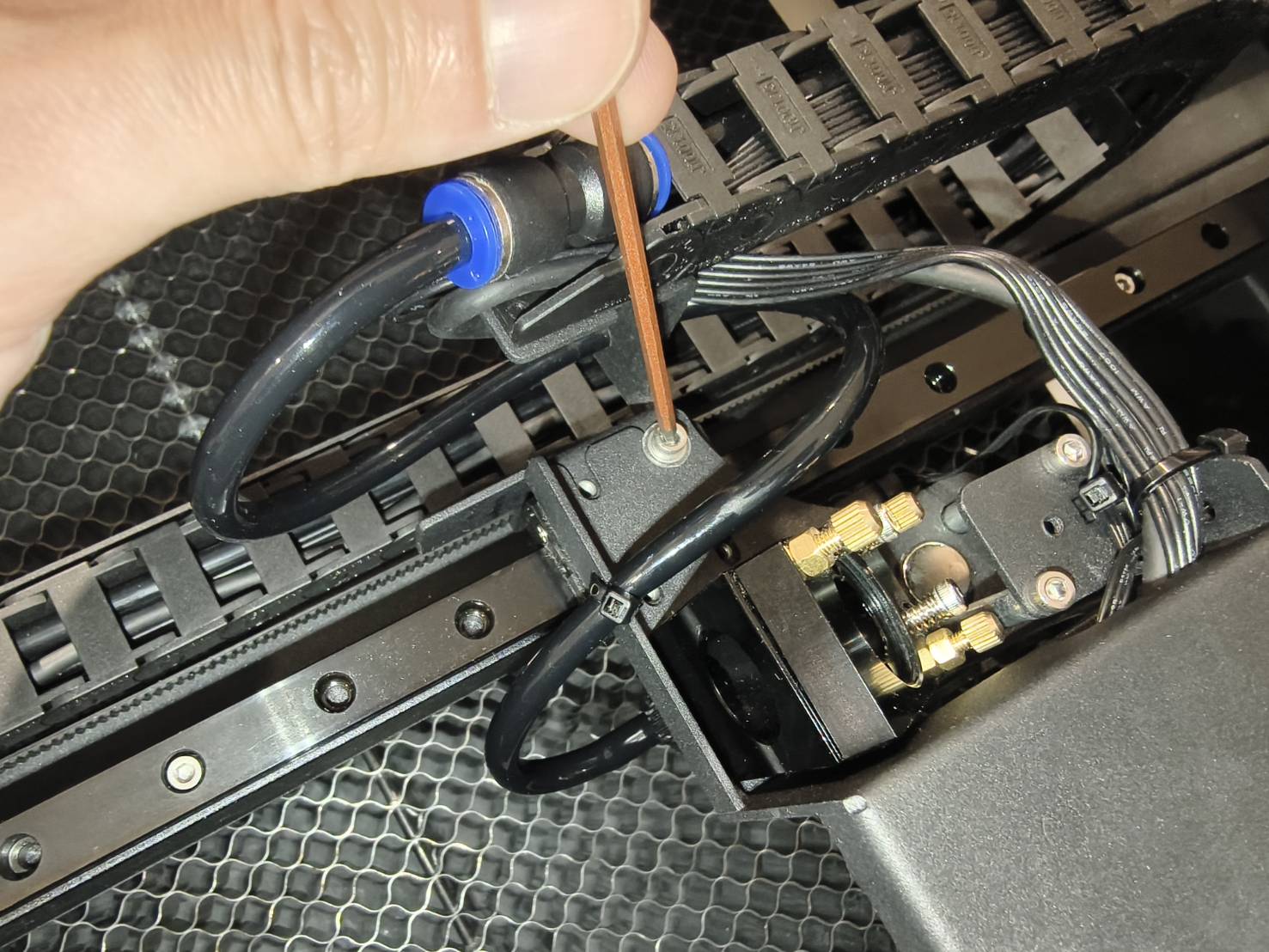

• Open the door cover to unscrew these secrets. (2.5mm hex x 4pcs)

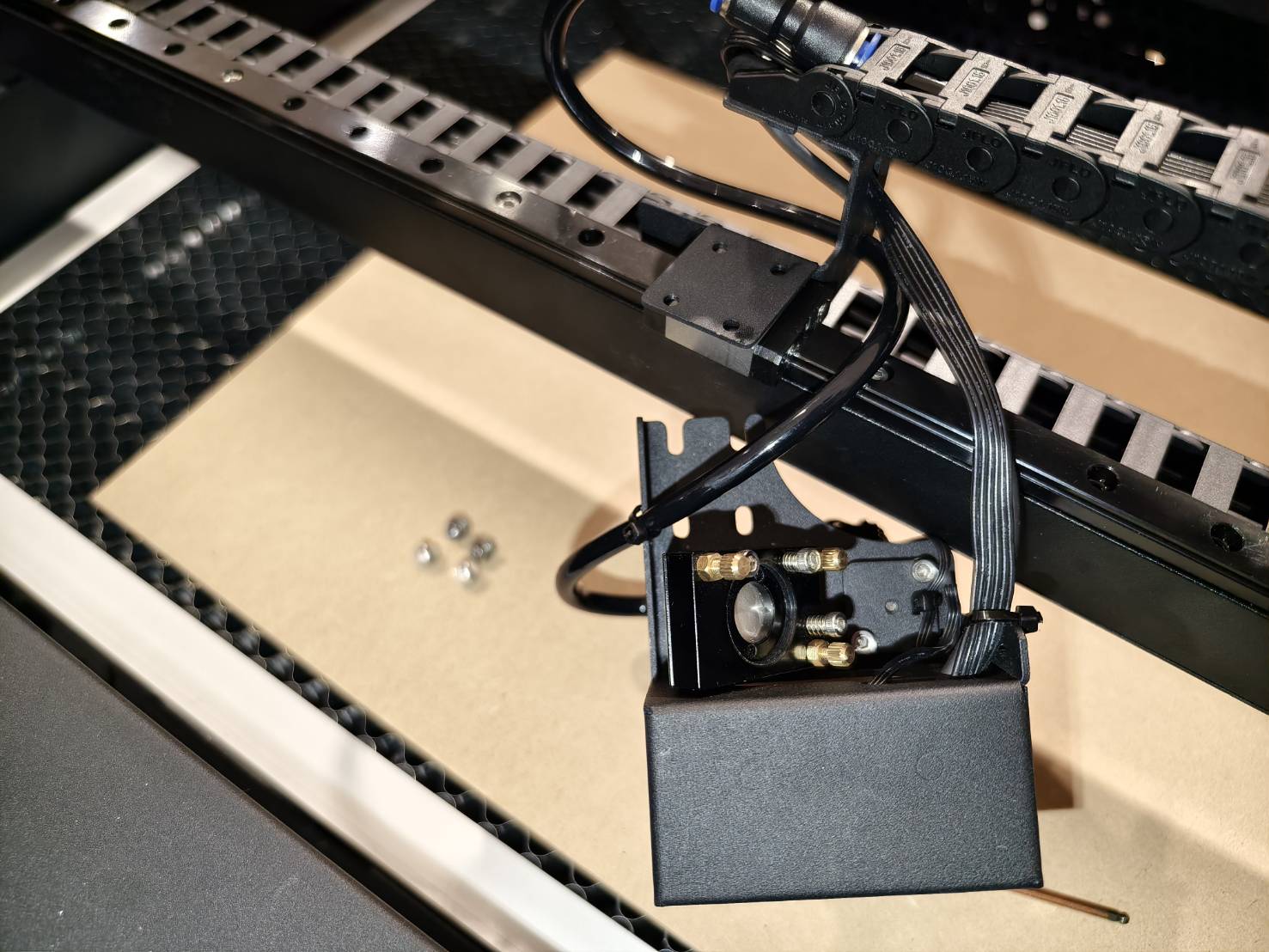

• The laser head assembly can then be unmounted from the system.

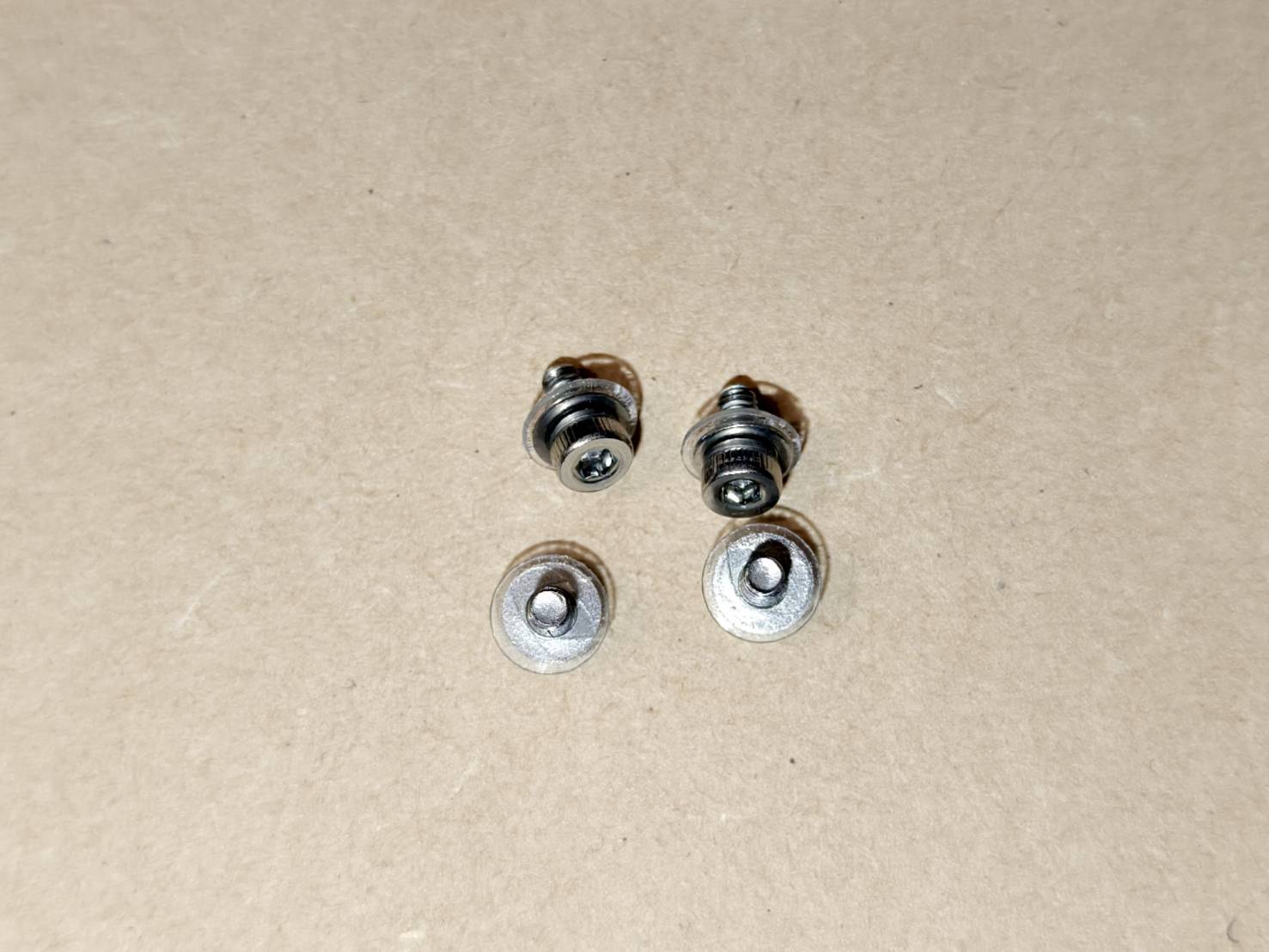

  Please keep the screws and washers securely for later use.



Step 3

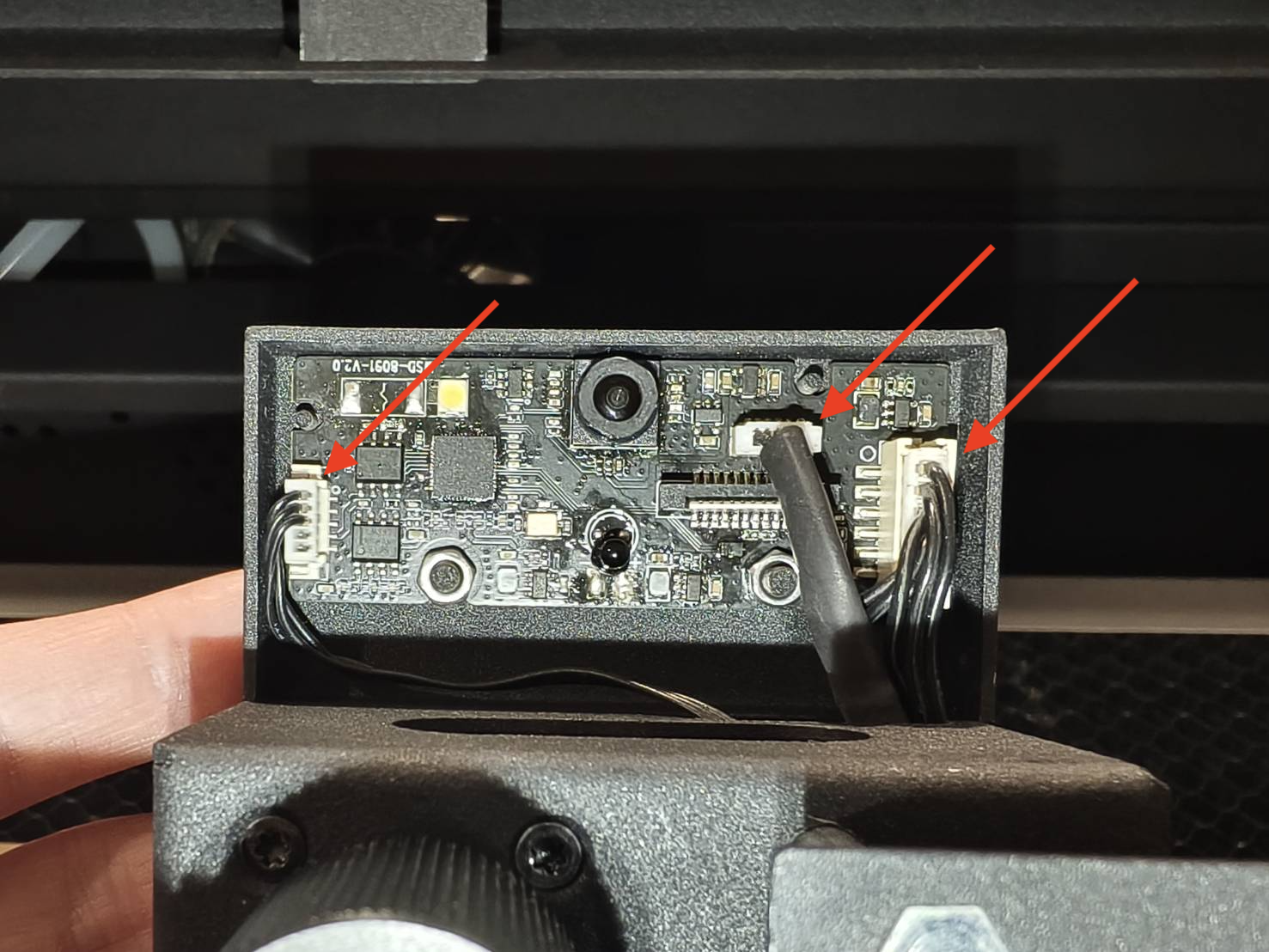

Unplug the cables on the board.

Step 4

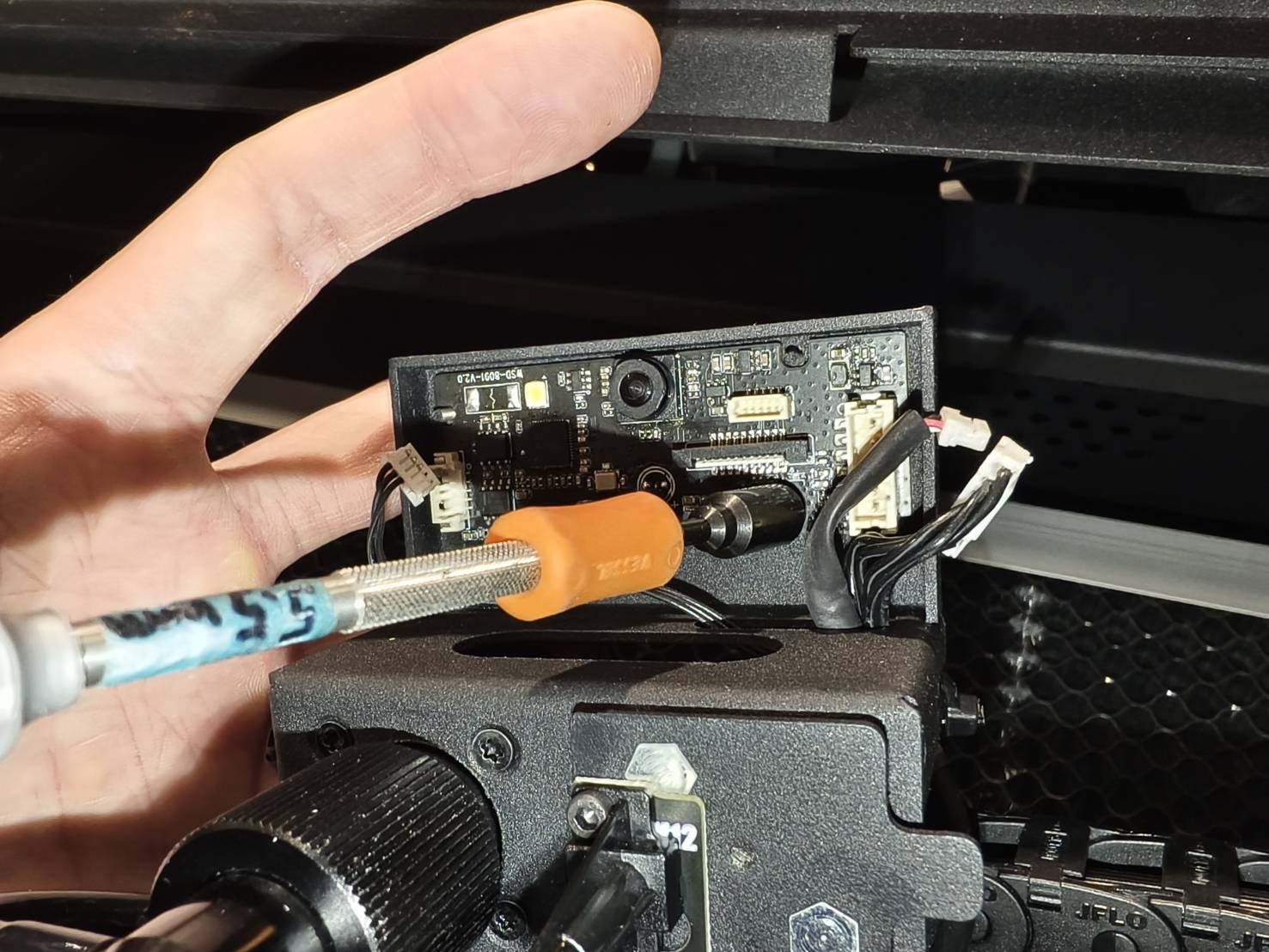

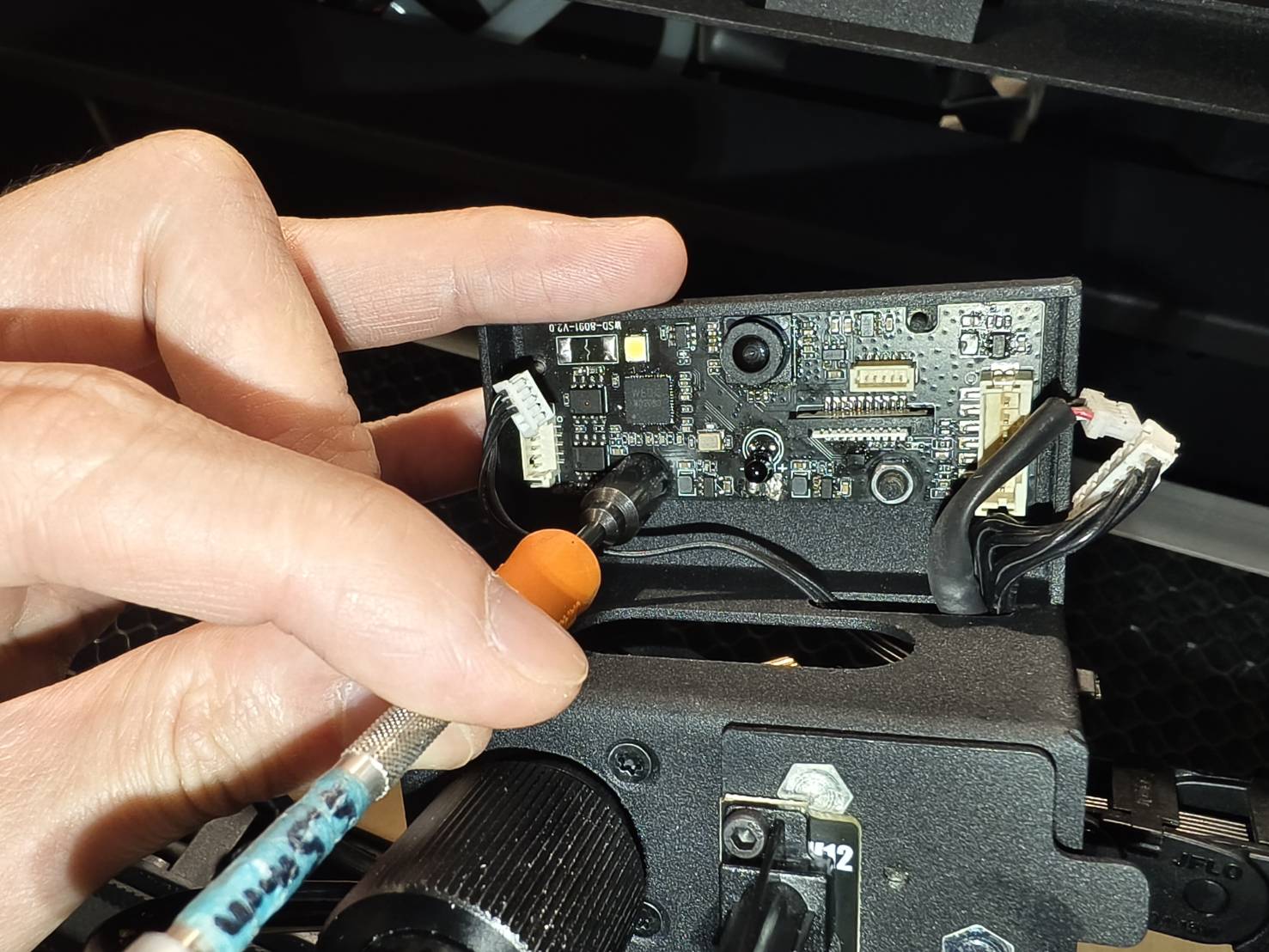

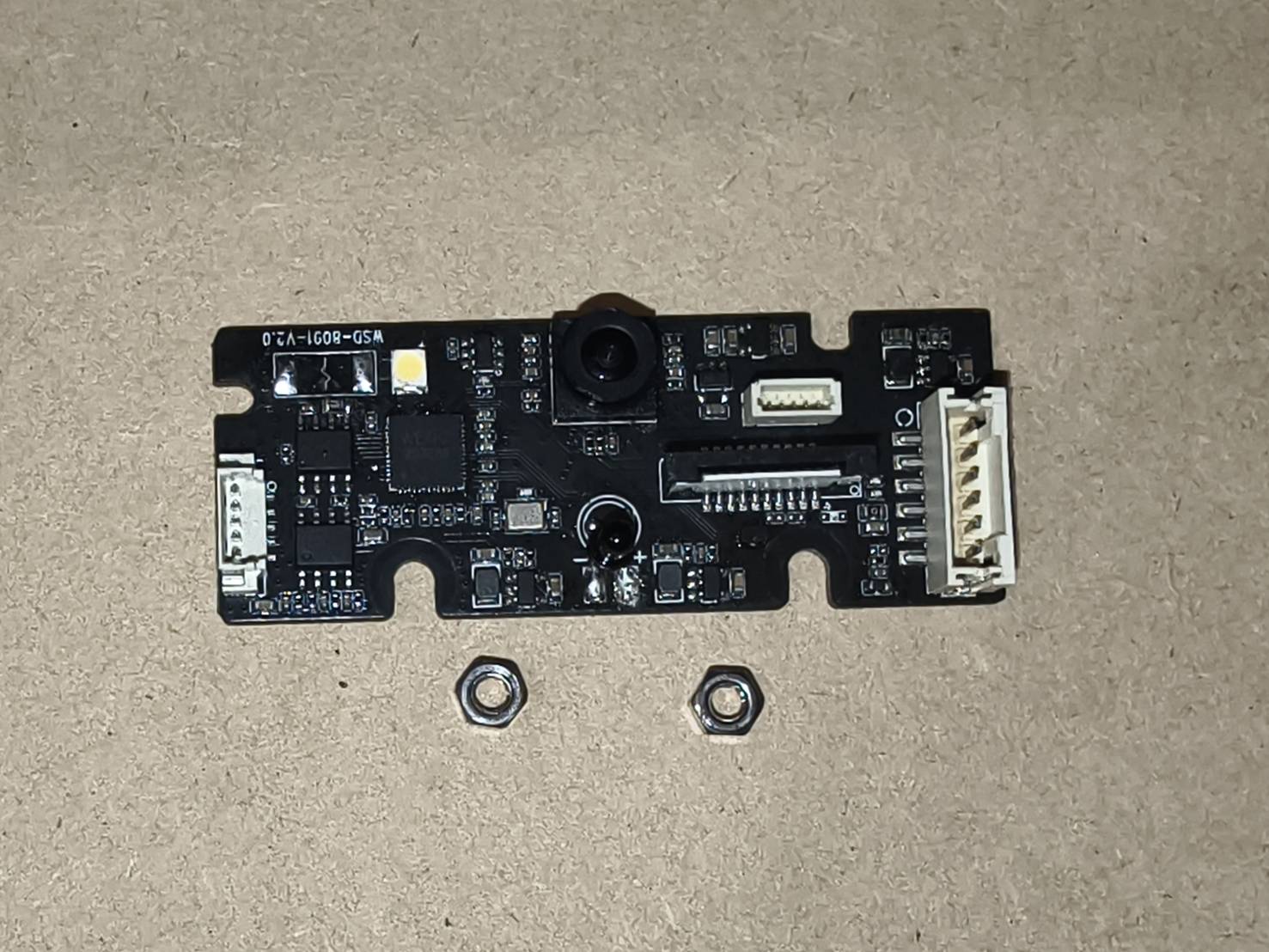

• Remove the nuts of the board on the laser head assembly.

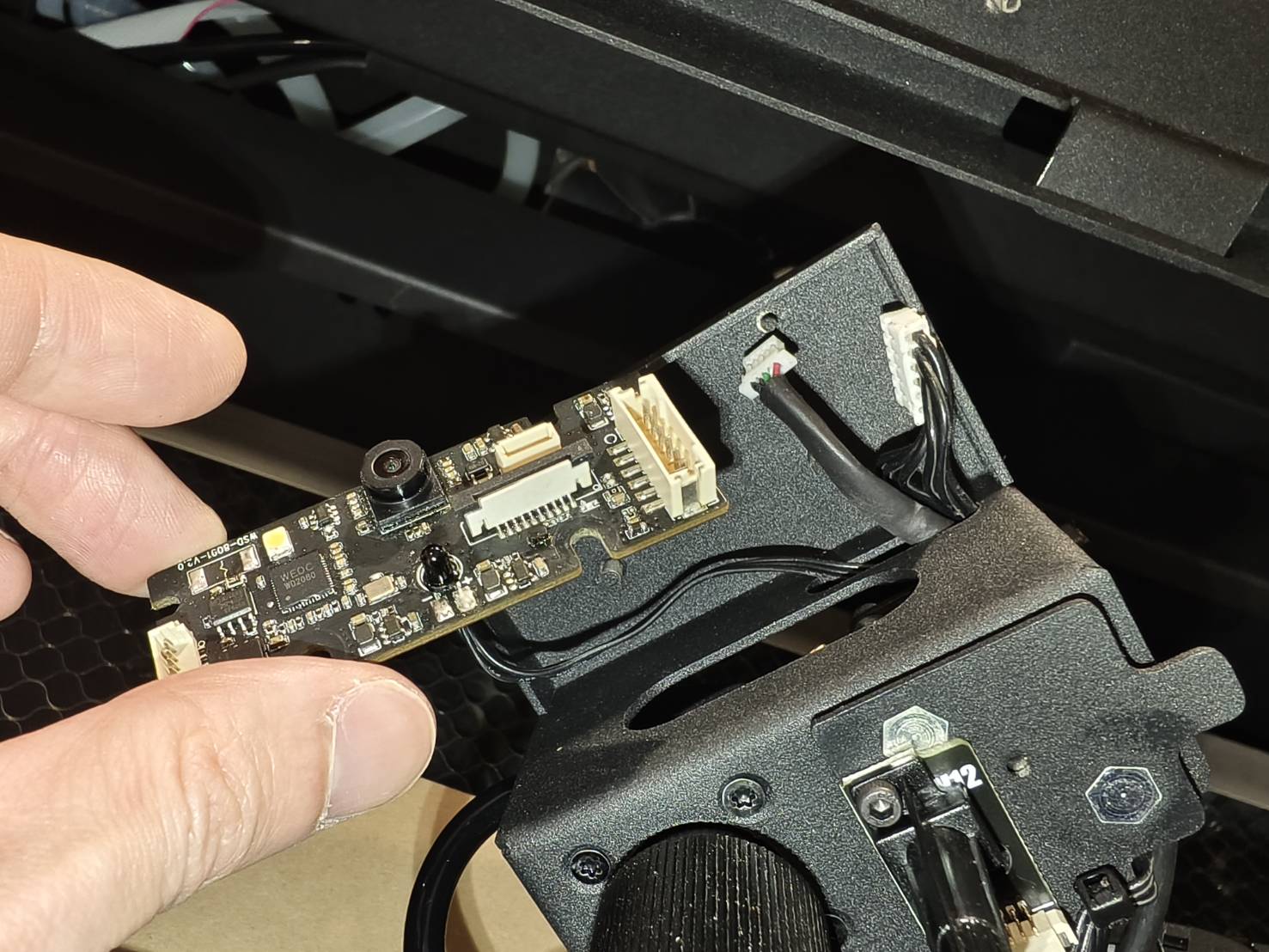

• The board can then be removed from the system completely.


Step 5

Install the new board.

Step 6

Replug the cables.

Step 7

Re-assemble the laser head assembly.
(The laser head assembly will be on top when screwing)

Step 8

Turn on the machine to check the optical path and align it if necessary.
Please use the link below to perform an optical path inspection.
Optical Path Adjustment

Step 9

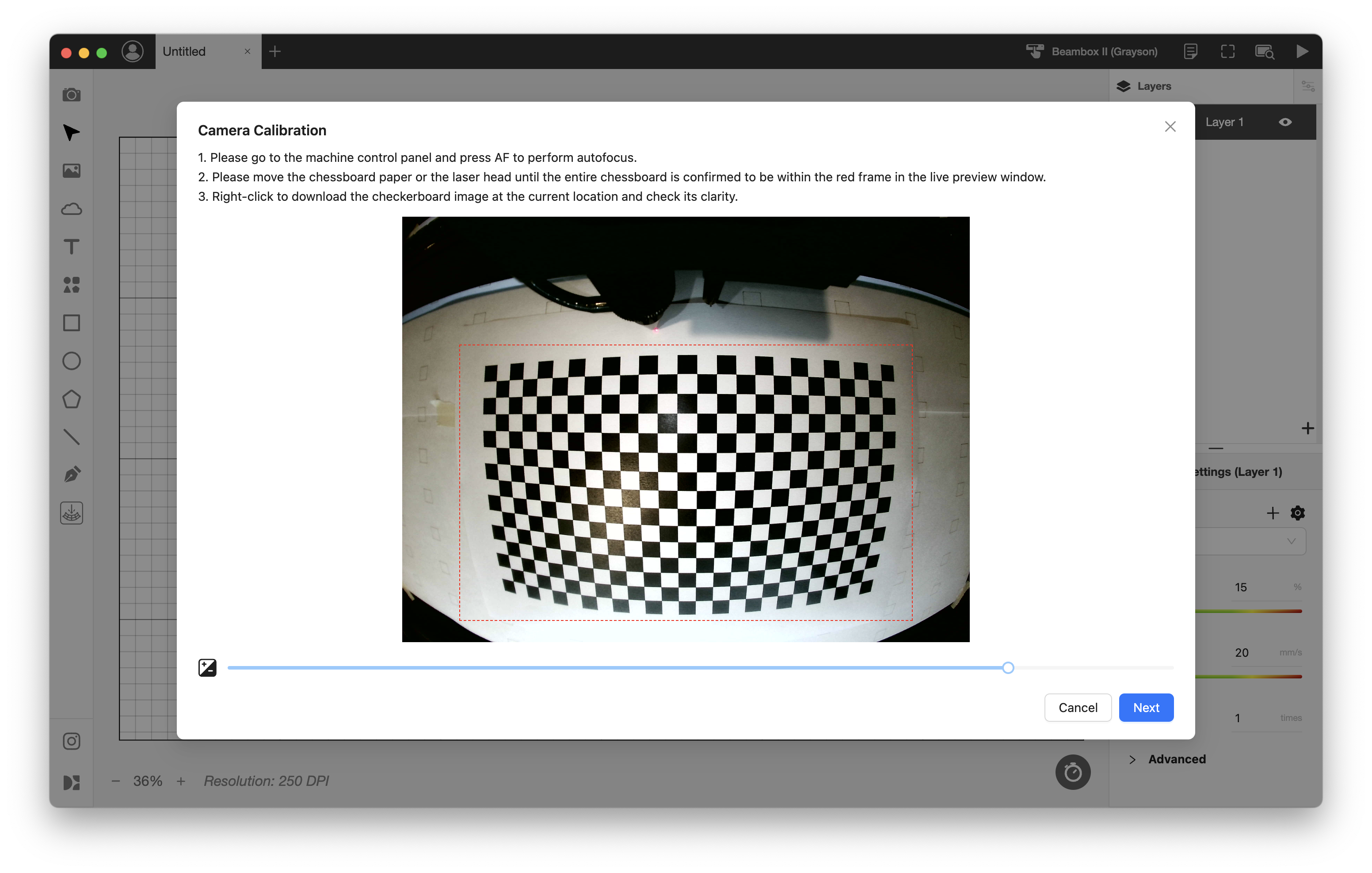

Please refer to this link to process the Advanced Camera Calibration.

#END
