Supported Software Version
Beam Studio v2.7.0 beta or later (Download)
Feature Overview
The Texturize feature varies the engraving power across filled areas to reduce uneven physical patterns that can occur when the entire fill is engraved at one constant power, such as interference patterns.

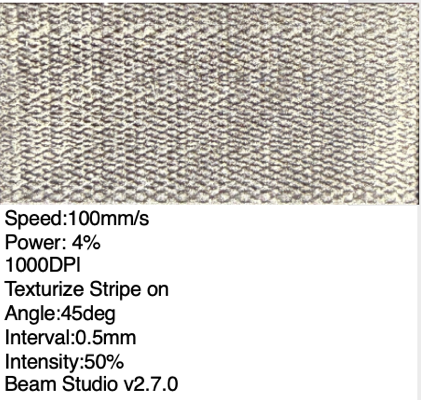

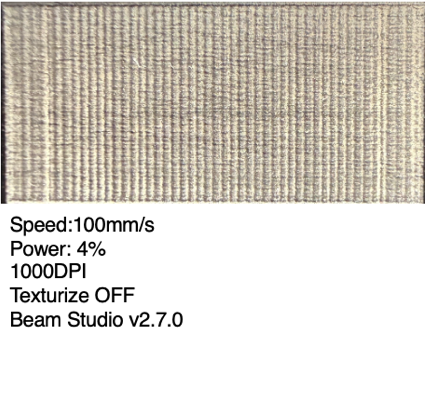

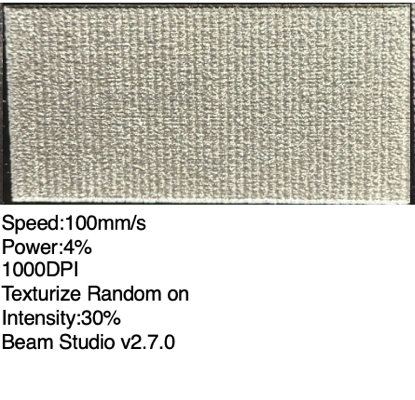

| Disabled | Enabled (automatic texture values) | Enabled (custom texture values) |
| Pronounced line pattern | Reduced line pattern | Other effects |
How to Use Texturize
1. Select the engraving layer you want to edit > Advanced Settings (at the bottom of the right-side panel) > Texture.

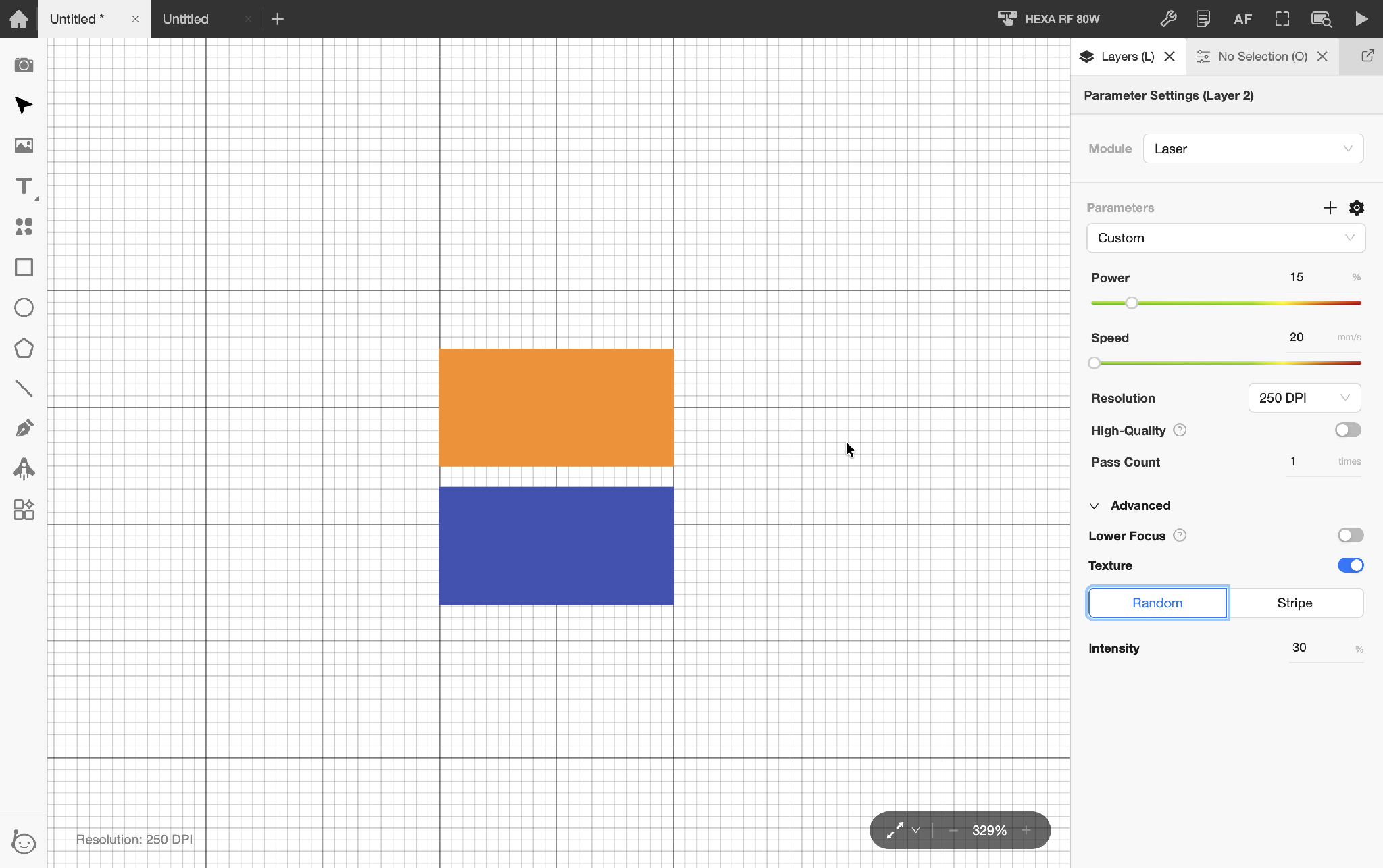

2. Adjust the intensity of the random texture.

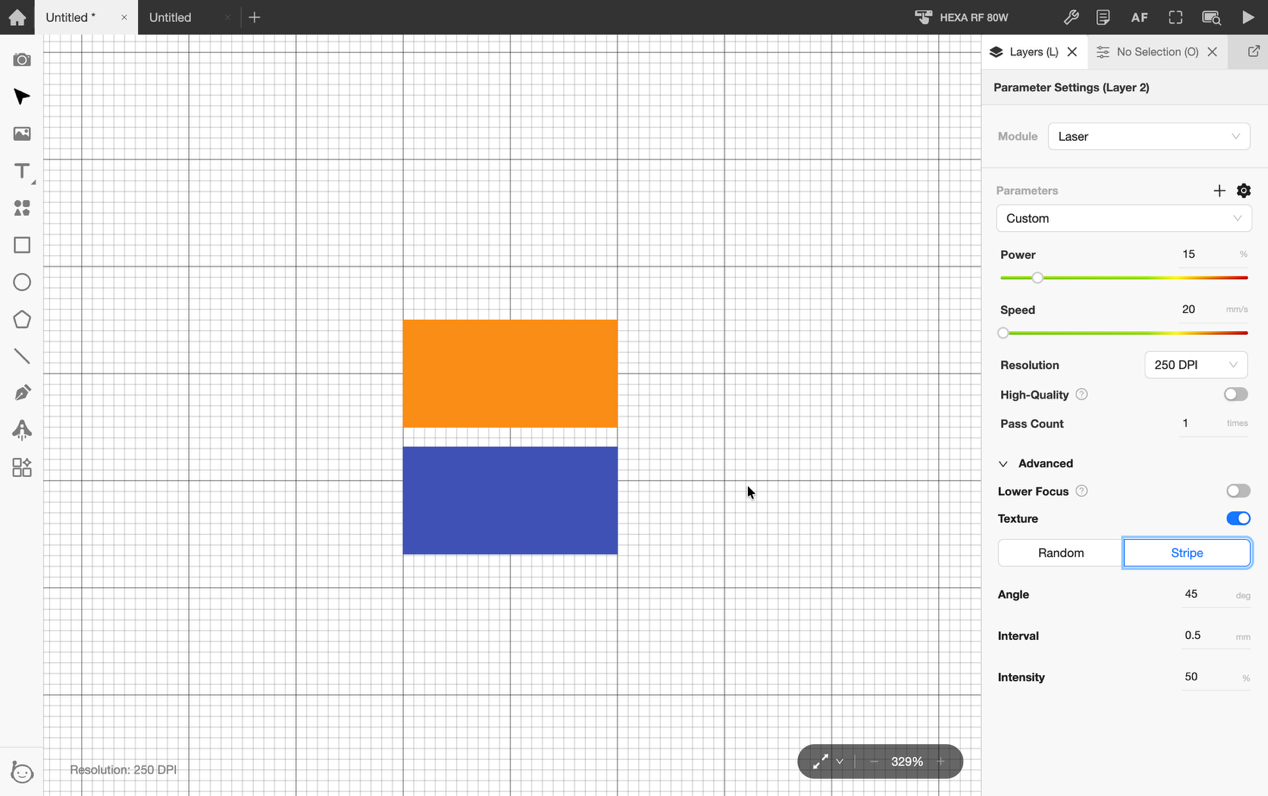

3. You can also customize the texture angle, spacing, and intensity.
#END
