Ador - 2W Infrared Laser Module Calibration – FLUX Help Center

Before start

Step 1 - Updated to the latest version of Beam Studio and Ador Firmware

Download the latest version of Beam Studio and Ador Firmware from the official FLUX website > "Support"> "Downloads."
Update the firmware by following the "Firmware Update" tutorial in the Ador Help Center.

Step 2 - Launch the latest version of Beam Studio on your computer.

Click on "Machine" in the top left corner, select the machine name, and click on "Calibrate Infrared Module" to start.
*Note: Ensure you have done the Camera Calibration before starting the "Calibrate Infrared Module."
截圖 2023-11-29 下午3.54.24.png

Infrared Module Calibration

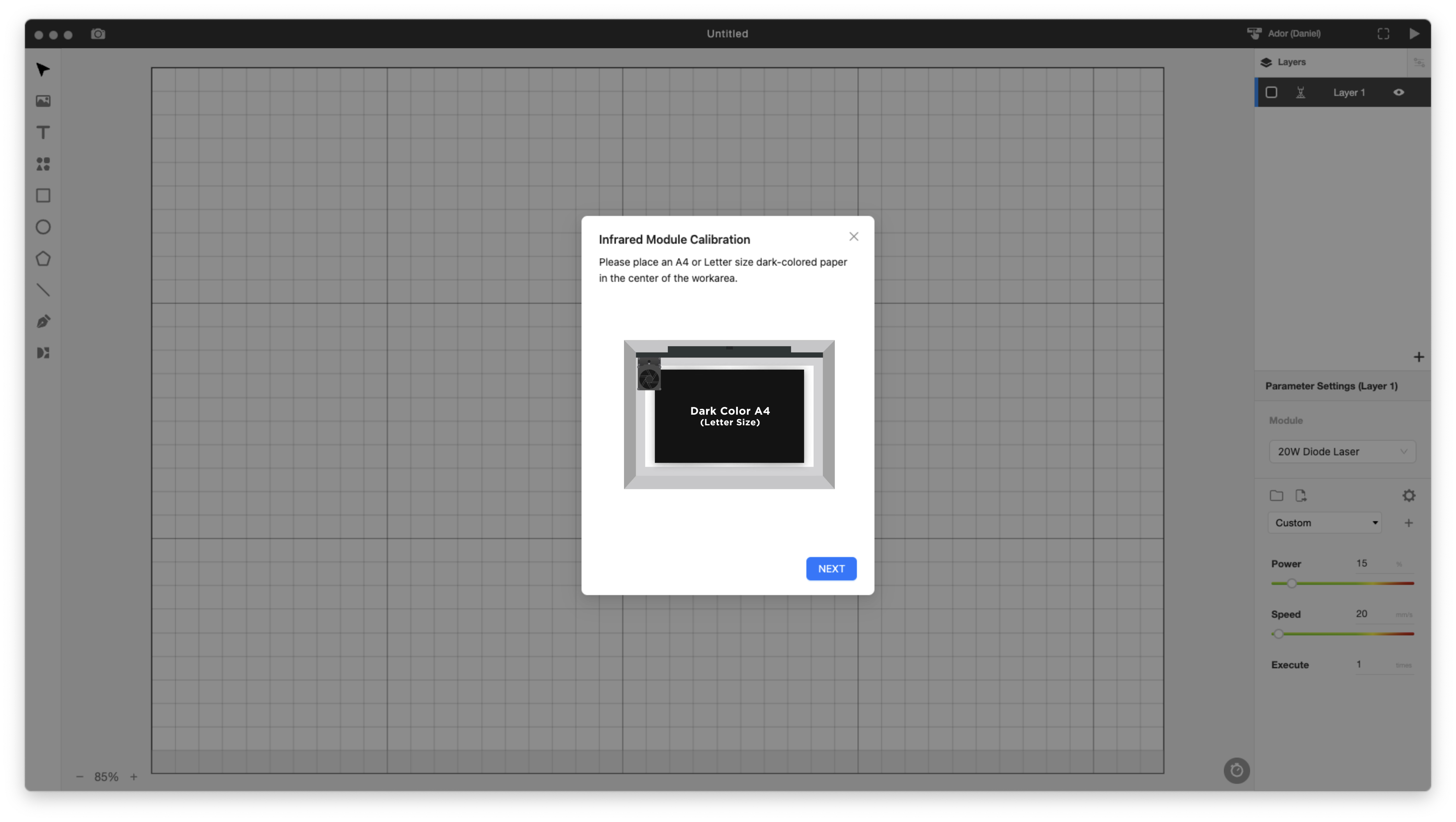

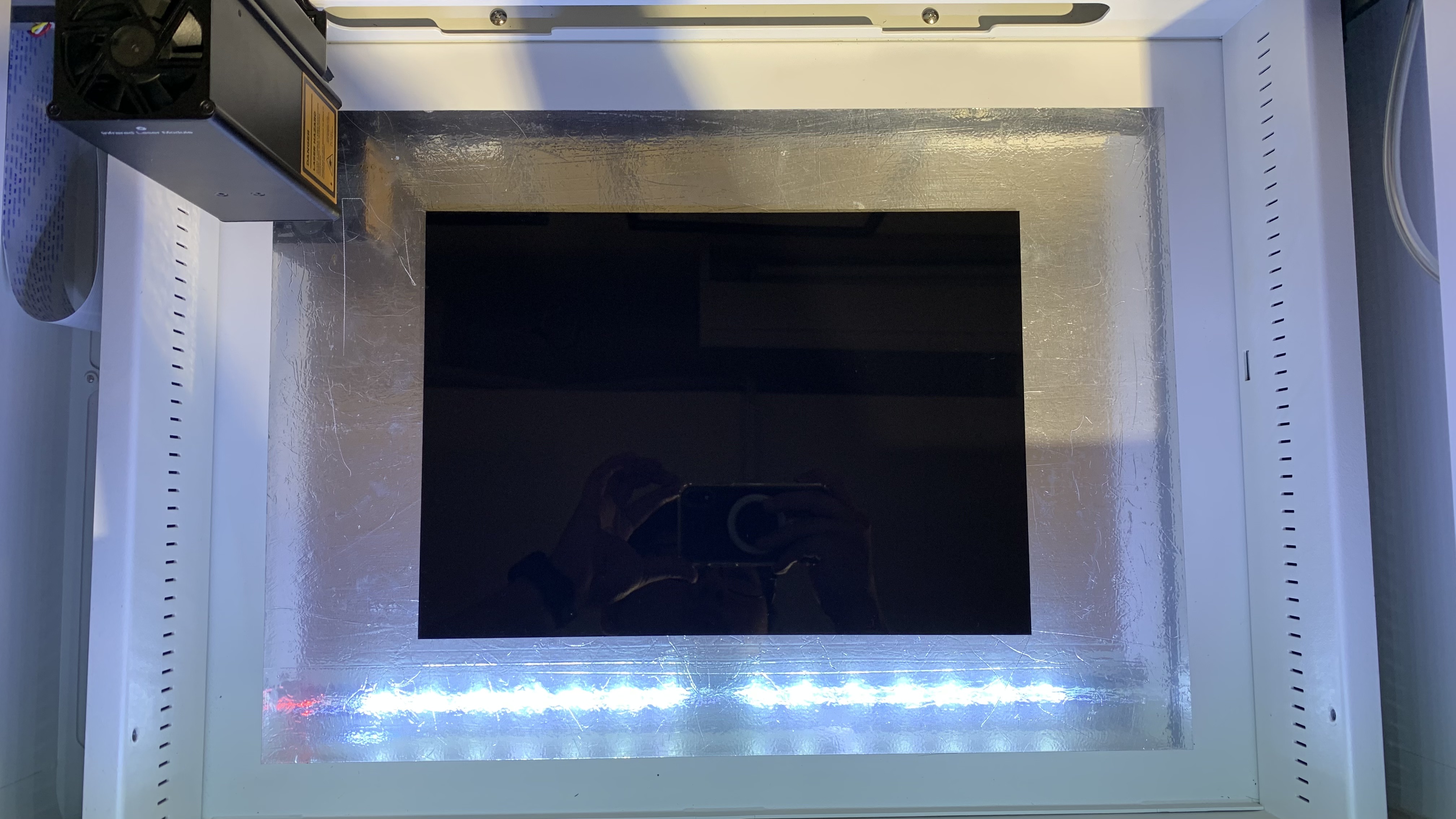

Step 1 - Place an A4 black paper or black acrylic at the center of the work area.

Step 2 - Start Focusing

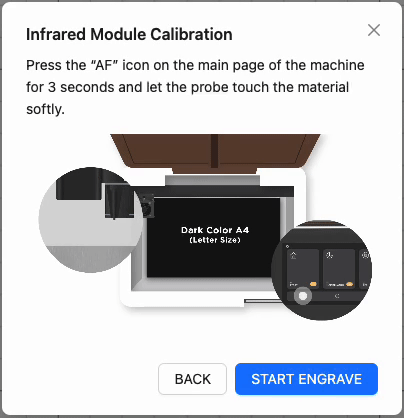

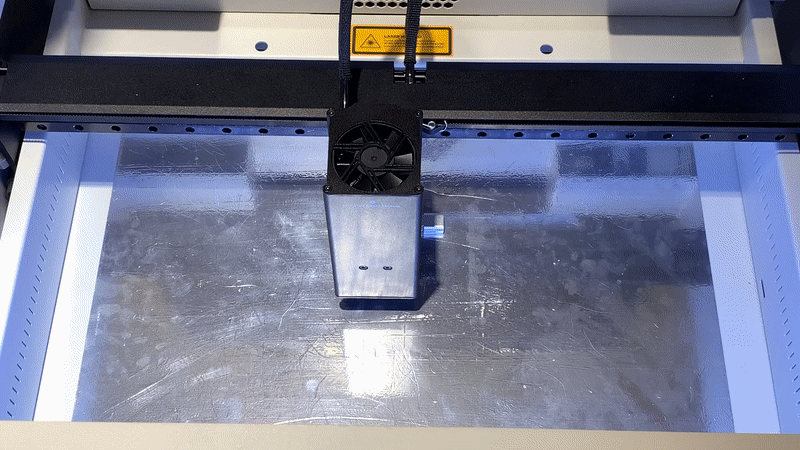

Click the focus button on the left side of the machine twice or long-press the "AF" button on the machine panel. Focusing is complete when the infrared module touches the material and moves upward.
ezgif.com-video-to-gif (6).gif

Step 3 - Close the Door

Step 4 - Start Calibration

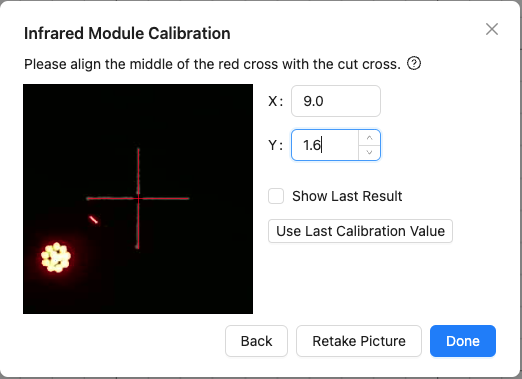

Click on "START DRAWING" to start. After drawing, keep the door closed and follow the instructions in Beam Studio. Please adjust the X/Y value to align the middle of the red cross with the printed cross.

截圖 2023-11-29 下午4.08.33.png

⚠️ If you can't see the printed cross, please exit the calibration process and increase the exposure value in the camera preview mode first.

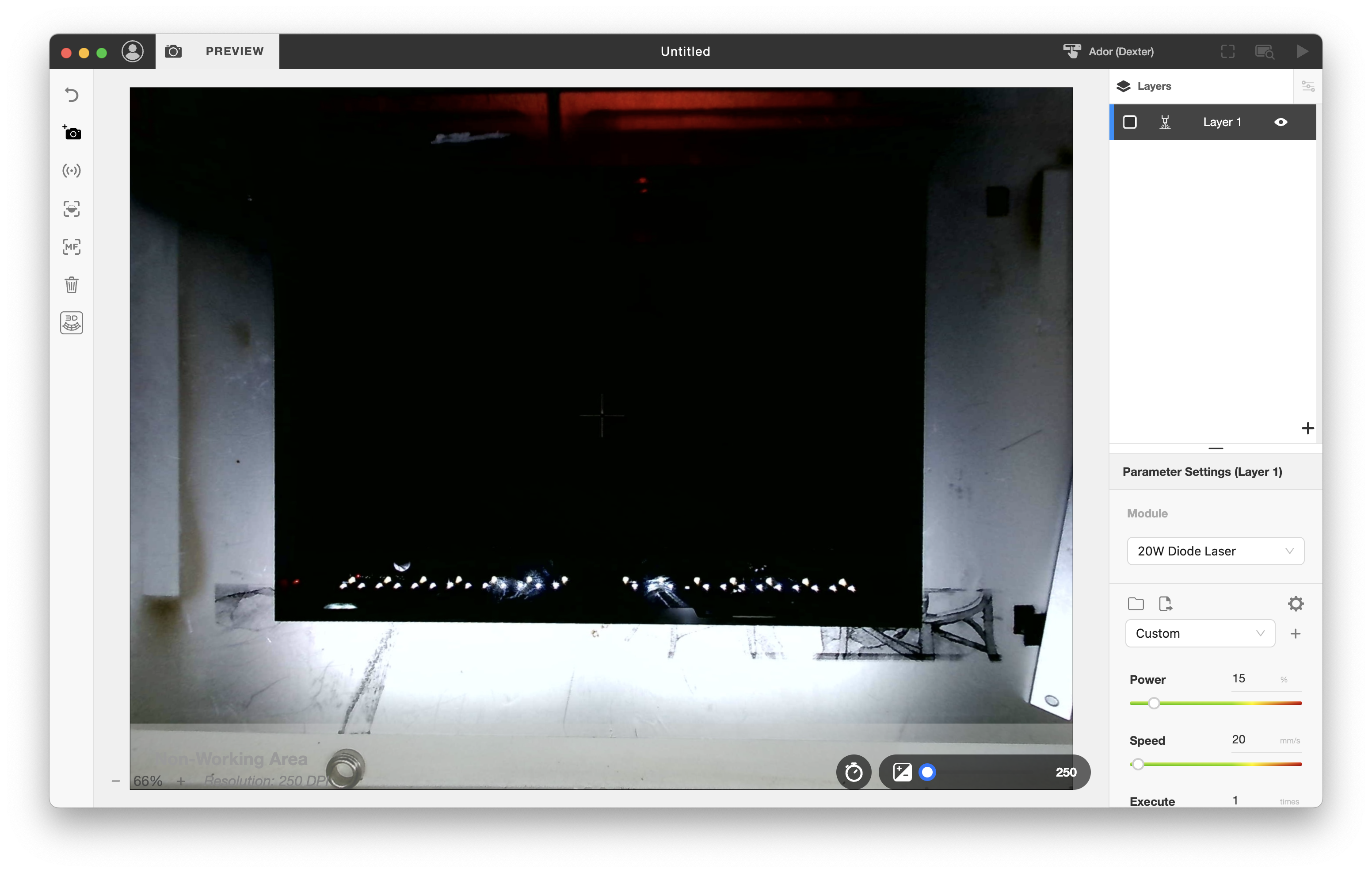

Exposure value 250

Screenshot 2024-07-02 at 10.32.42 AM.png

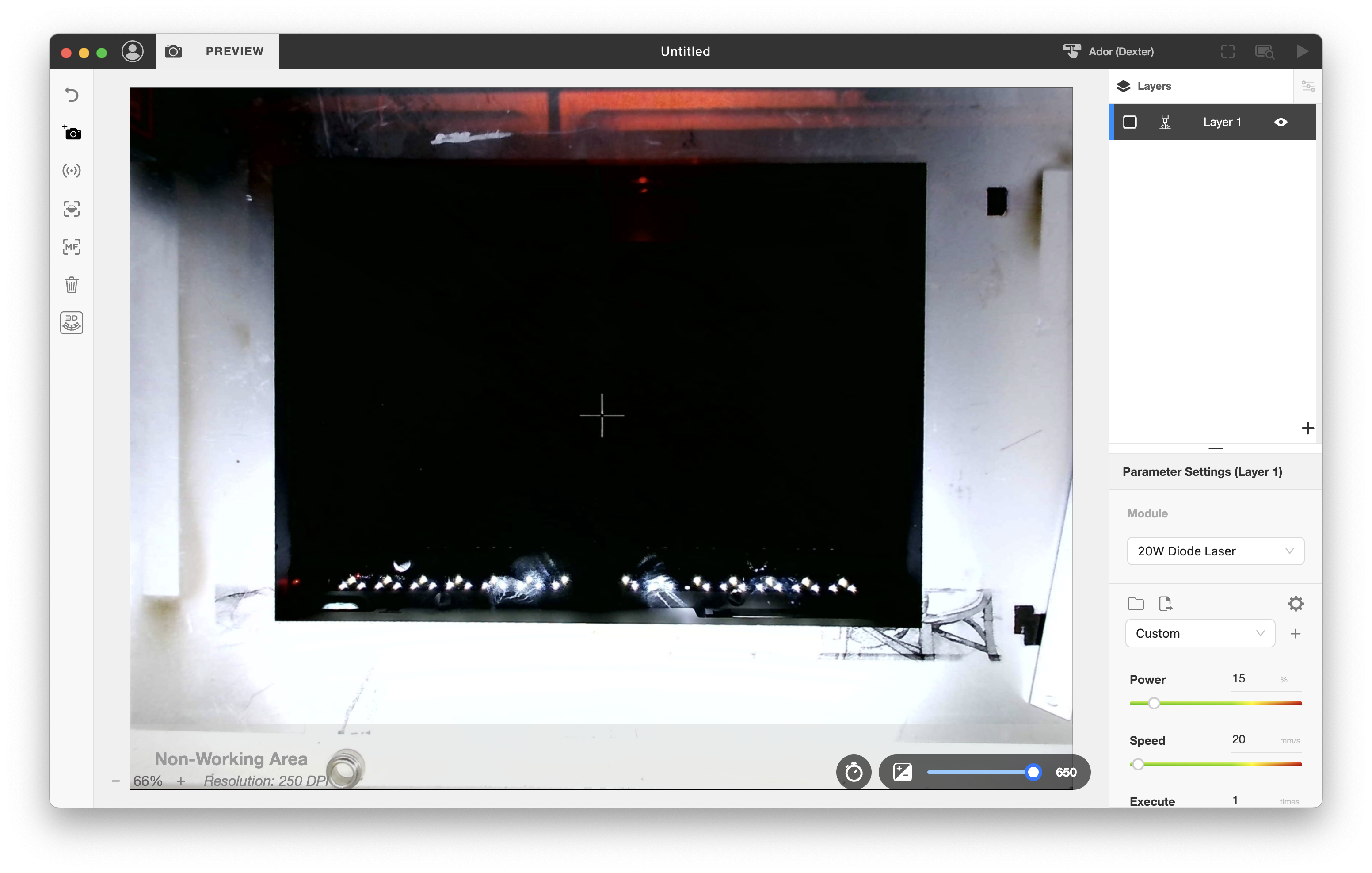

Exposure value 650

Screenshot 2024-07-02 at 10.32.51 AM.png

Step 5 - Complete Calibration

After confirming the alignment, please click "Done" in the lower right corner to complete the Infrared Laser Module Calibration.

截圖 2023-11-29 下午4.07.39.png
