Description

Ador's honeycomb will only be able to be applied when an extension base is installed.
The base will have three layers available for the honeycomb to be sitting on, which will allow users to work with different materials of different sizes.
Please make sure you have the base installed before going through this page.
Ador Extension Base - Unboxing and Installation

Top view

Bottom view

Step 1

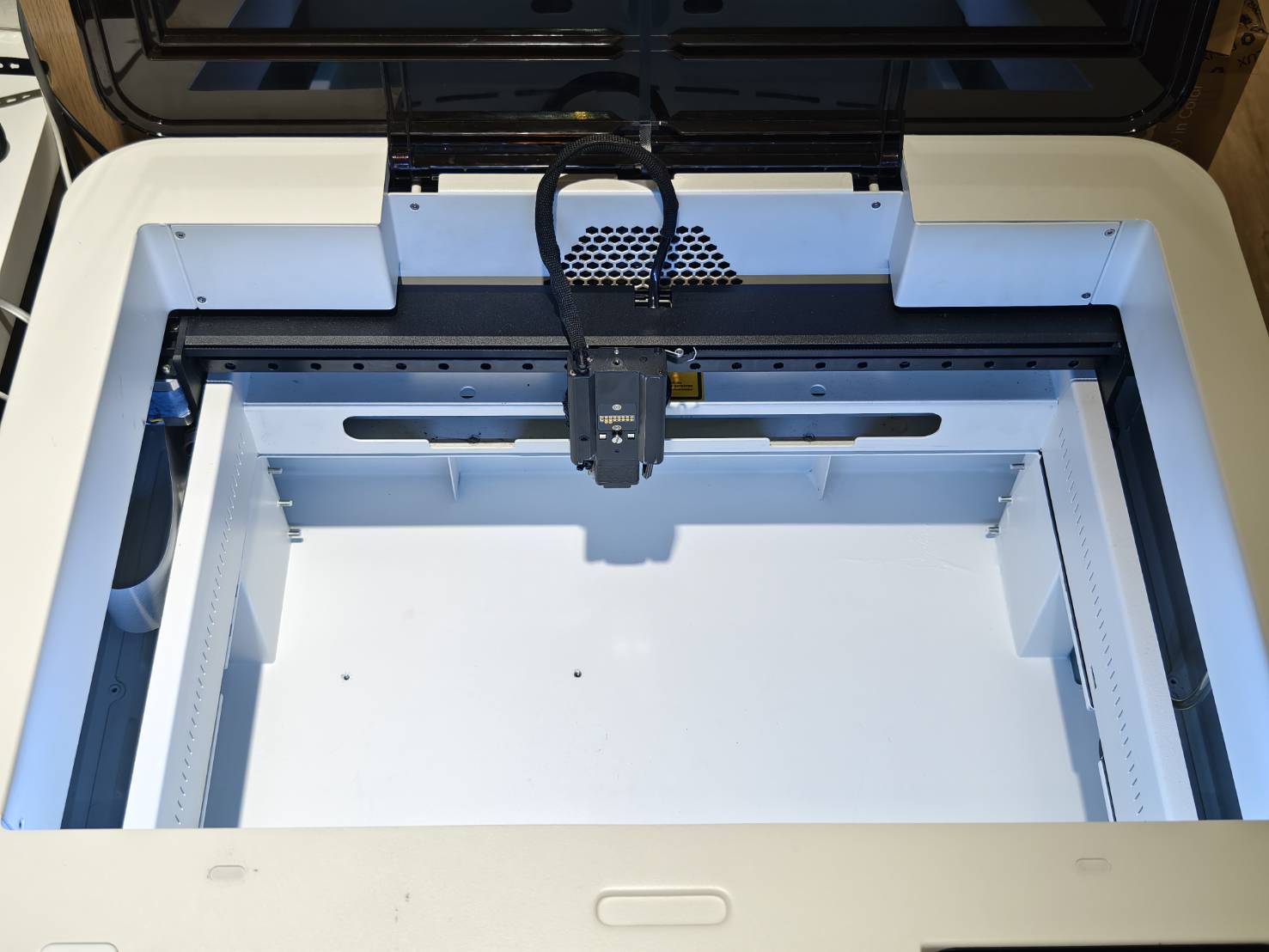

Please remove the module and the rotary and make the extension base as clean as possible.

Step 2

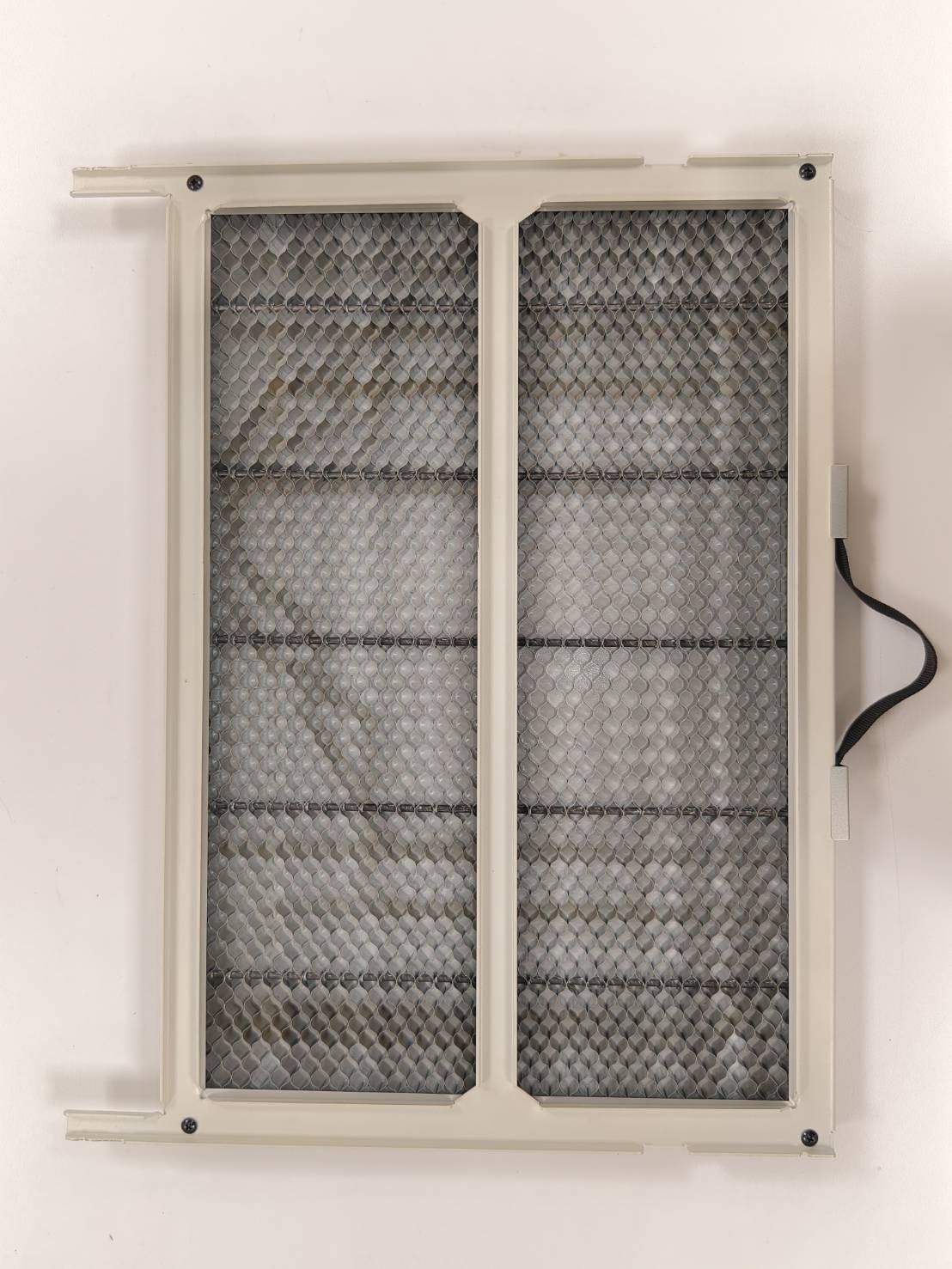

The design is to let the honeycomb sit on the extension base.
There are 4 openings on the right and left sides at the bottom of the honeycomb.

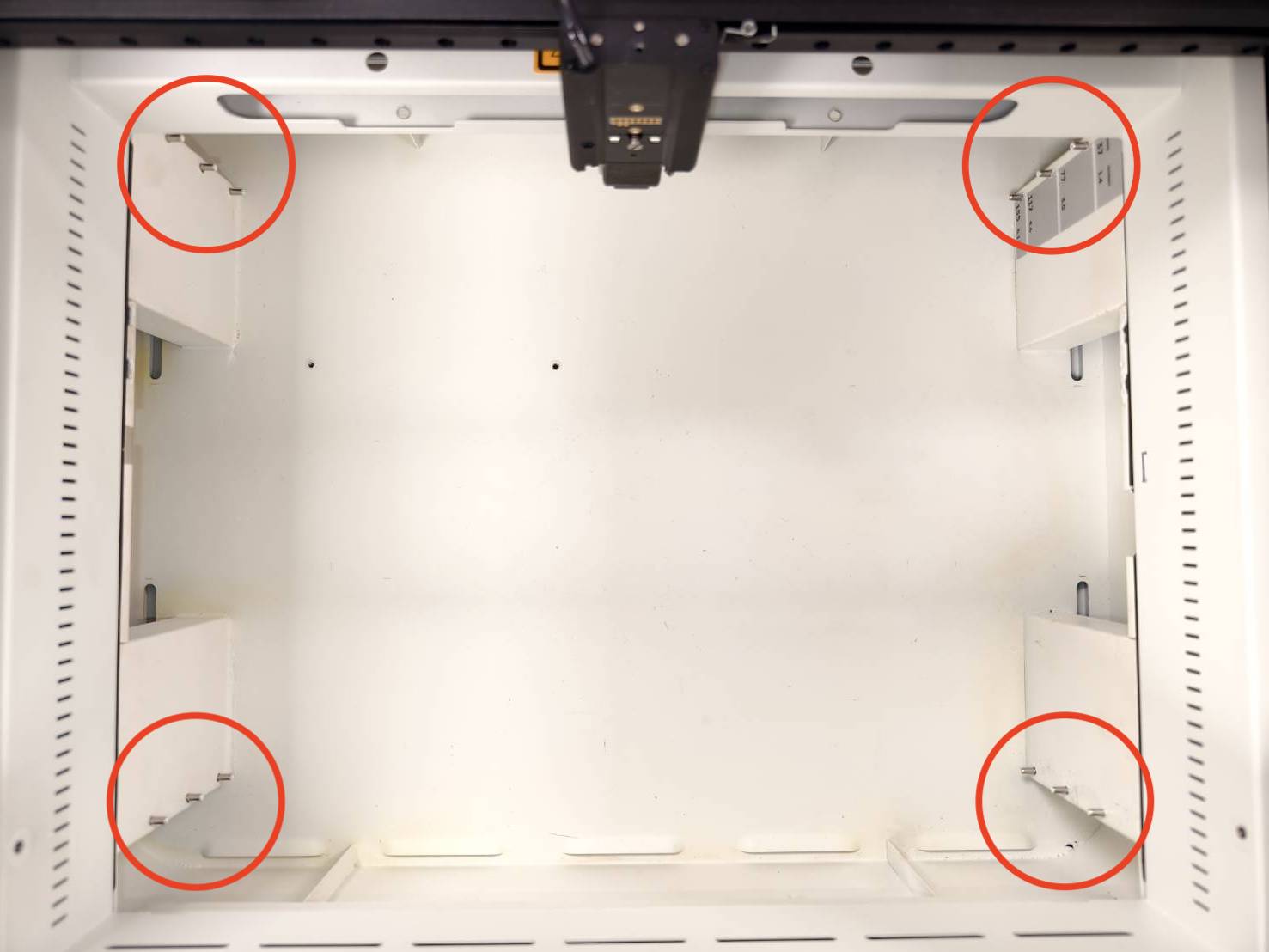

There are 12 pins in the base that the honeycomb will be sitting on them.

Pins

Step 3

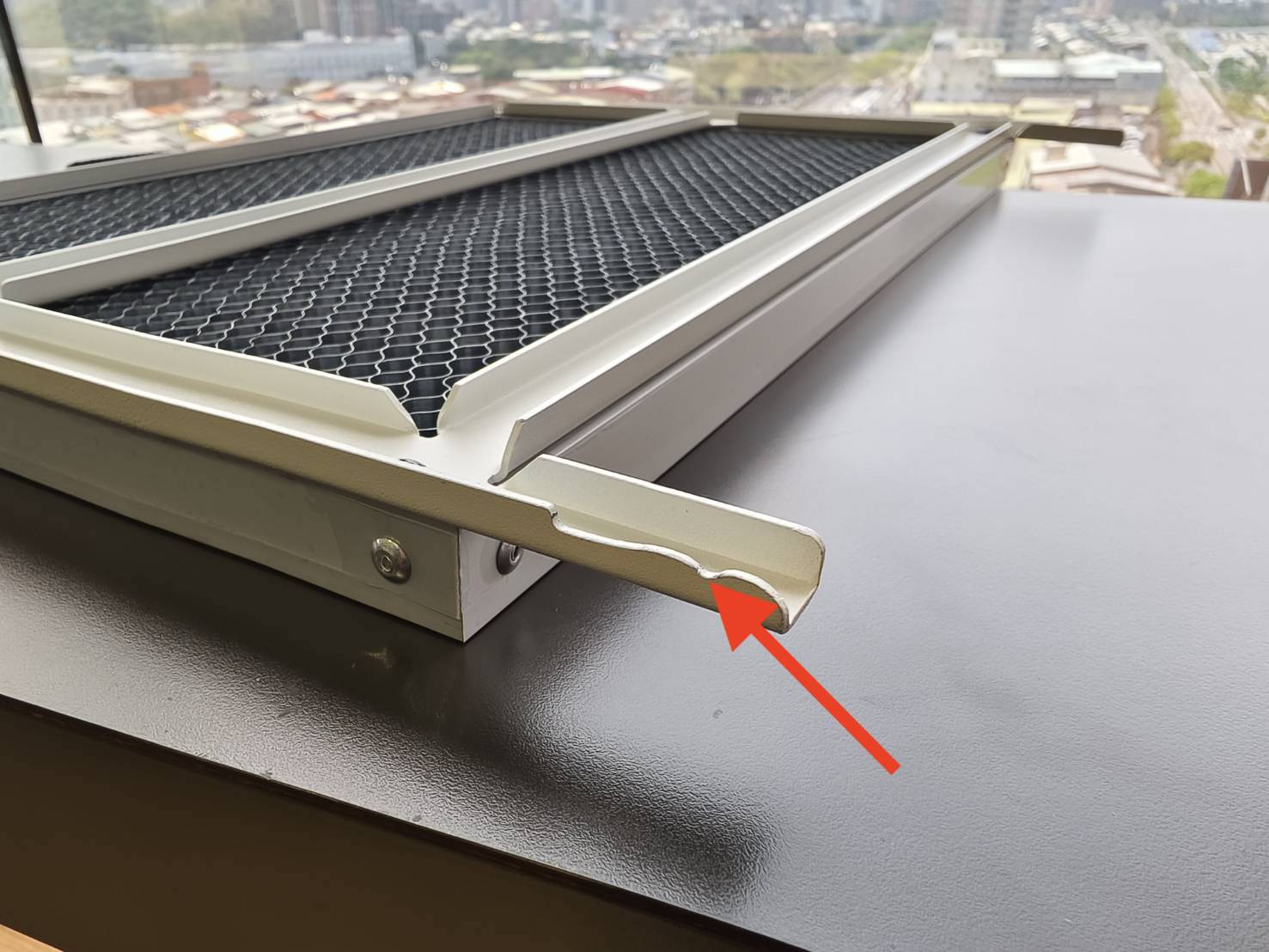

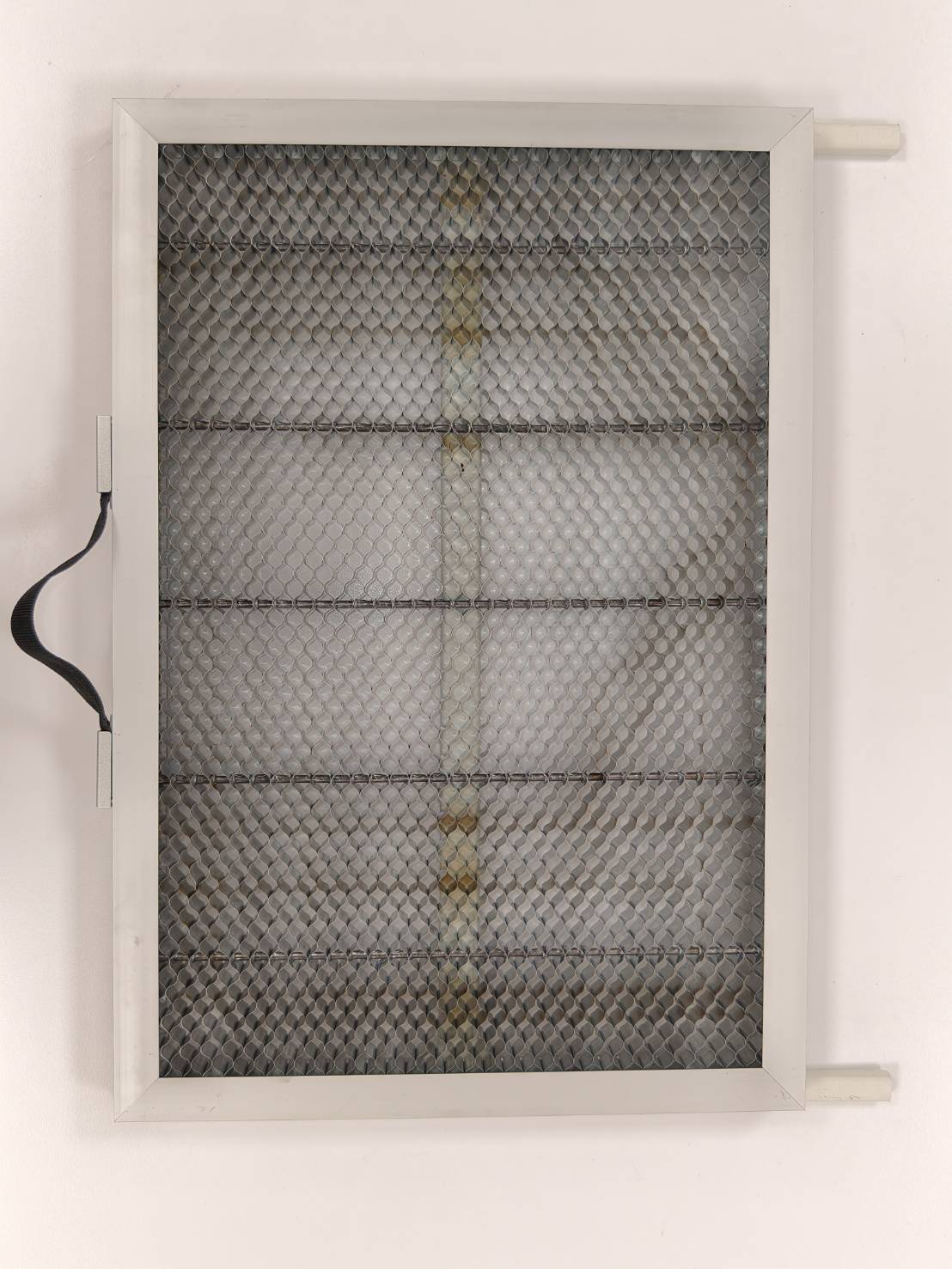

Insert the honeycomb with the longer bracket side into the machine.

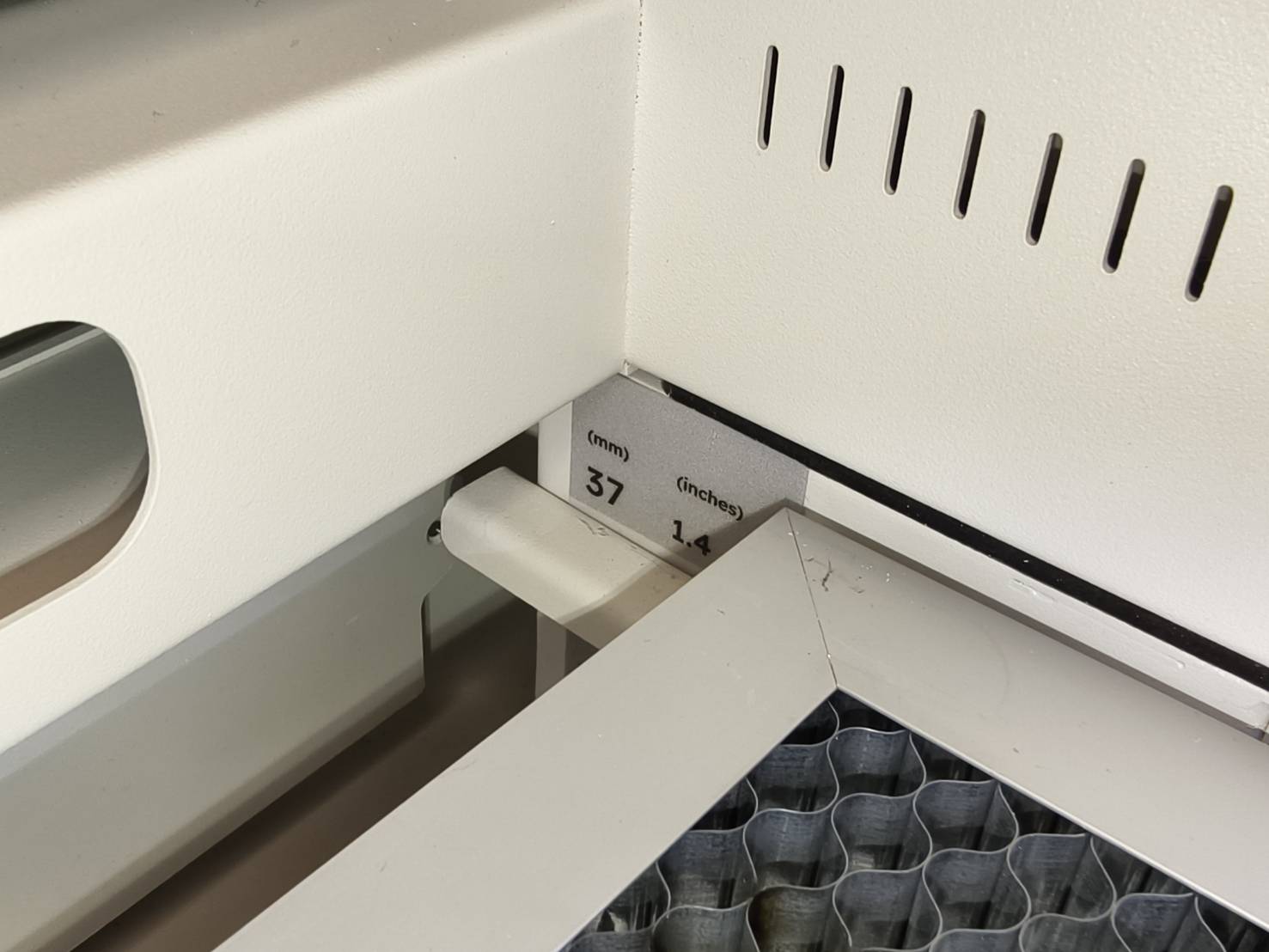

Let the longer bracket sit on the pins first, then pull it so that the rear openings will sit on the rear pins.

Step 4

To remove the honeycomb, push and lift the rear side so it can be taken out.

Step 5

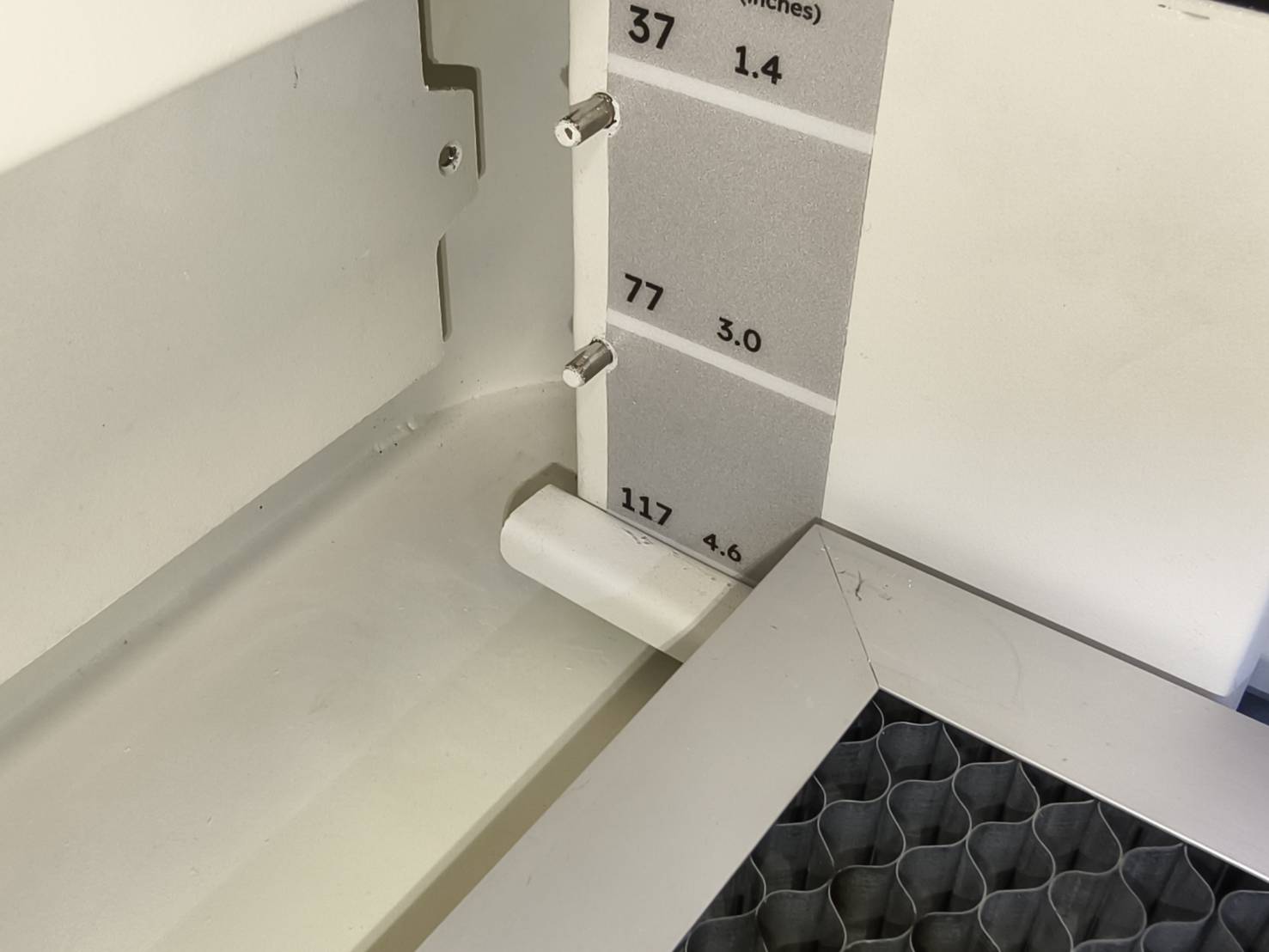

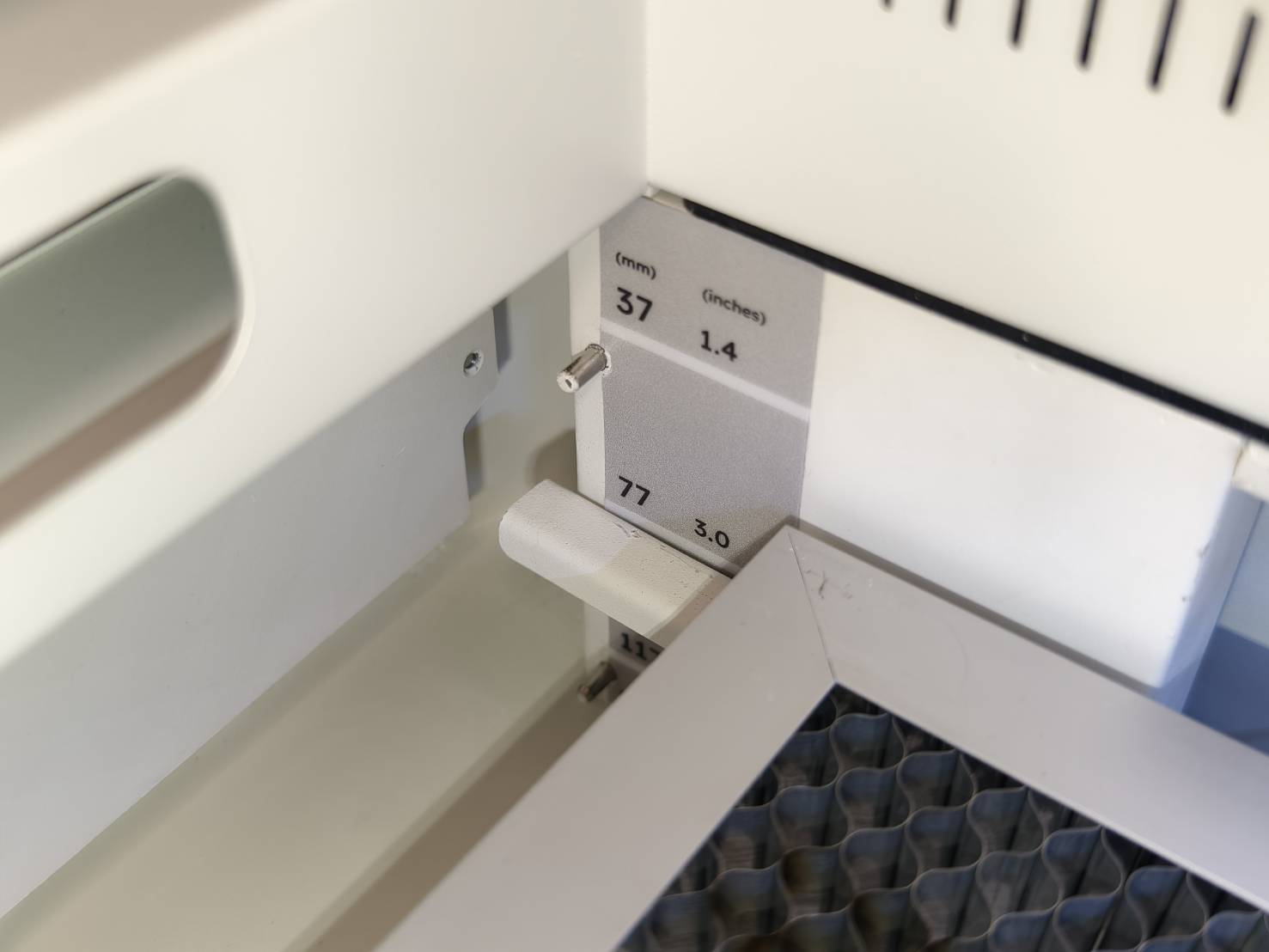

To change the level, push and lift the rear side and the front side until the honeycomb is higher than the pins so it can sit on them.

Step 6

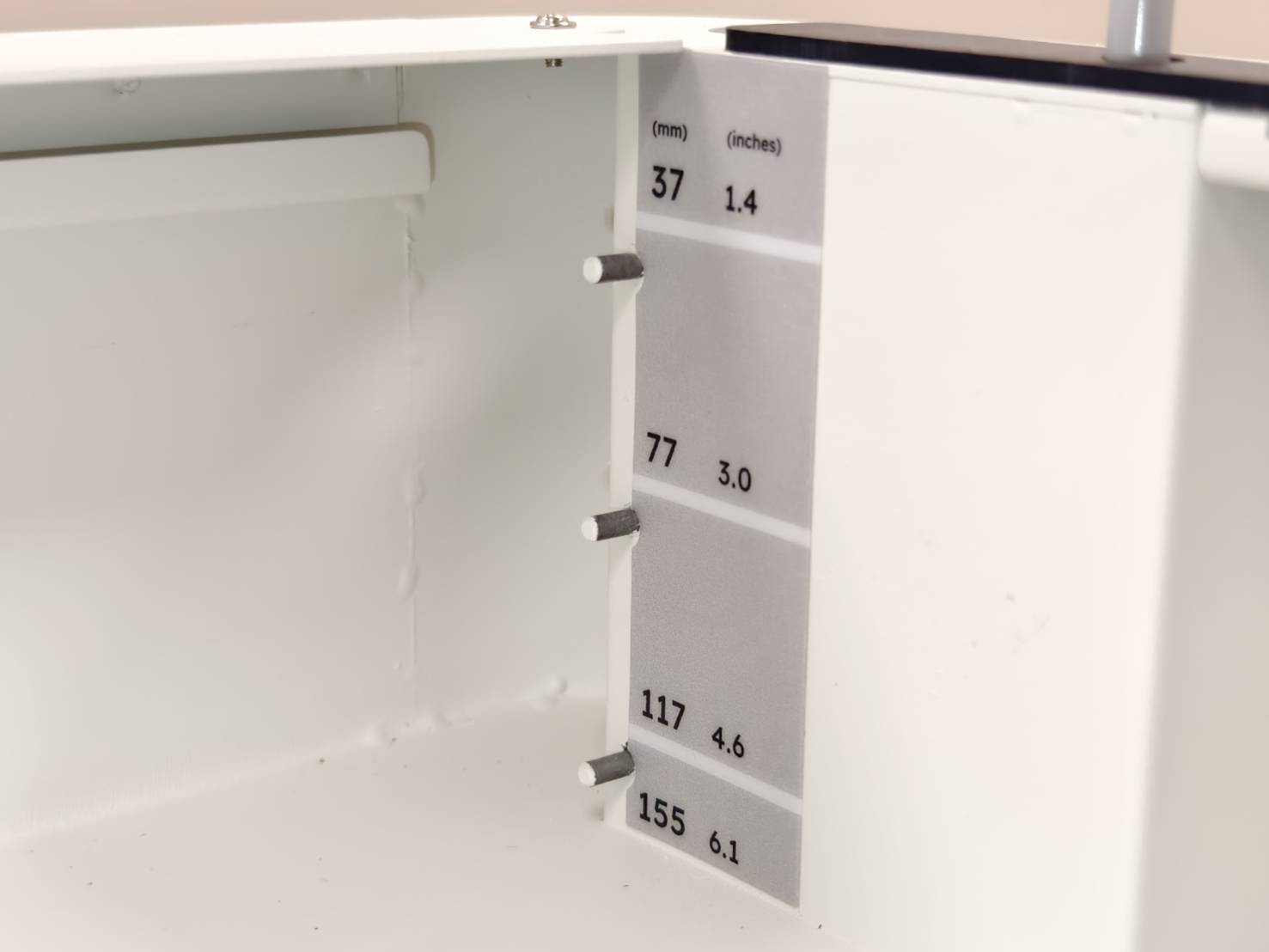

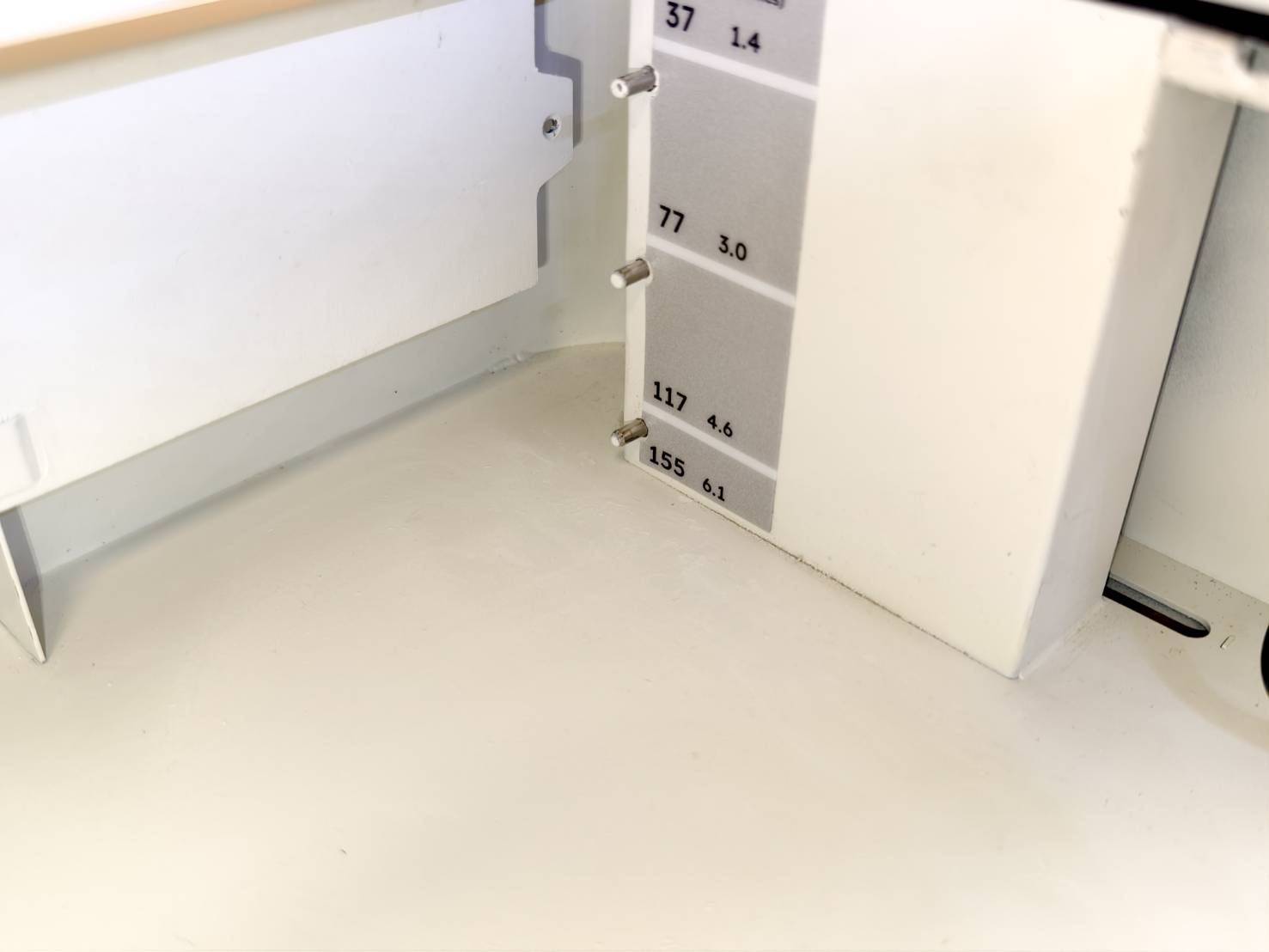

There is an object height indication at the top-right corner. This suggests the maximum height of your object in each layer or level, but please note that this indication does not apply to using a rotary.

Explanation

Layer	Photo	Height Range (Object)
37mm / 1.4 inches		0 mm - 37 mm
77mm / 3.0 inches		37 mm - 77 mm
117mm / 4.6 inches		77 mm - 117 mm
155 mm / 6.1 inches		117 mm - 155 mm (Without honeycomb)
