Ador Extension Base - Unboxing and Installation

Description

This article provides a comprehensive, step-by-step guide to installing the Ador Extension Base.
Please follow the instructions below for the installation process.

Unboxing:

#	Item	Q'ty	Photo

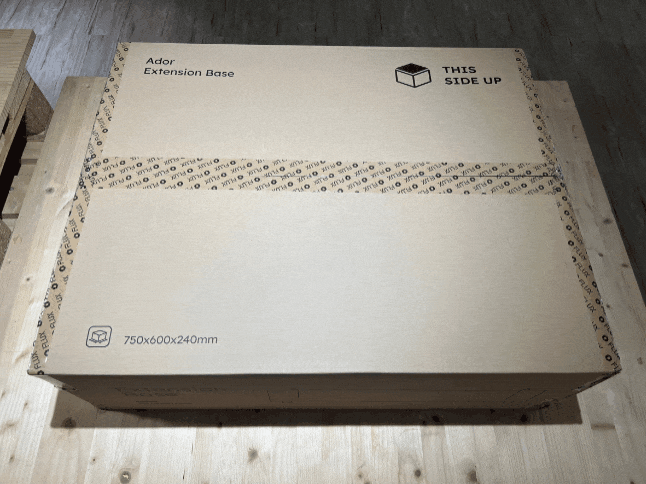

1	Extension Base	1pc

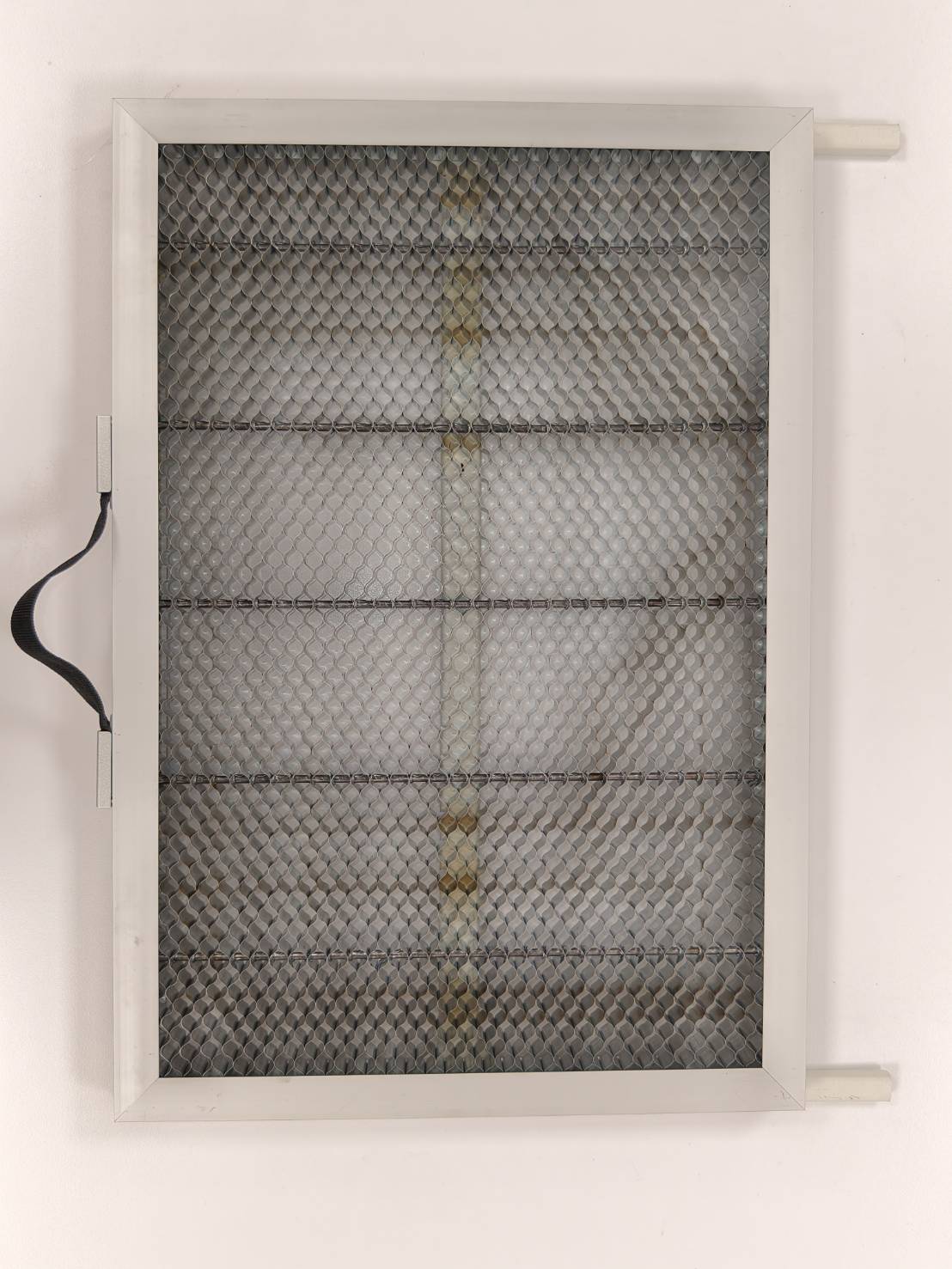

2	Honeycomb (Guide)	1pc

Step 1

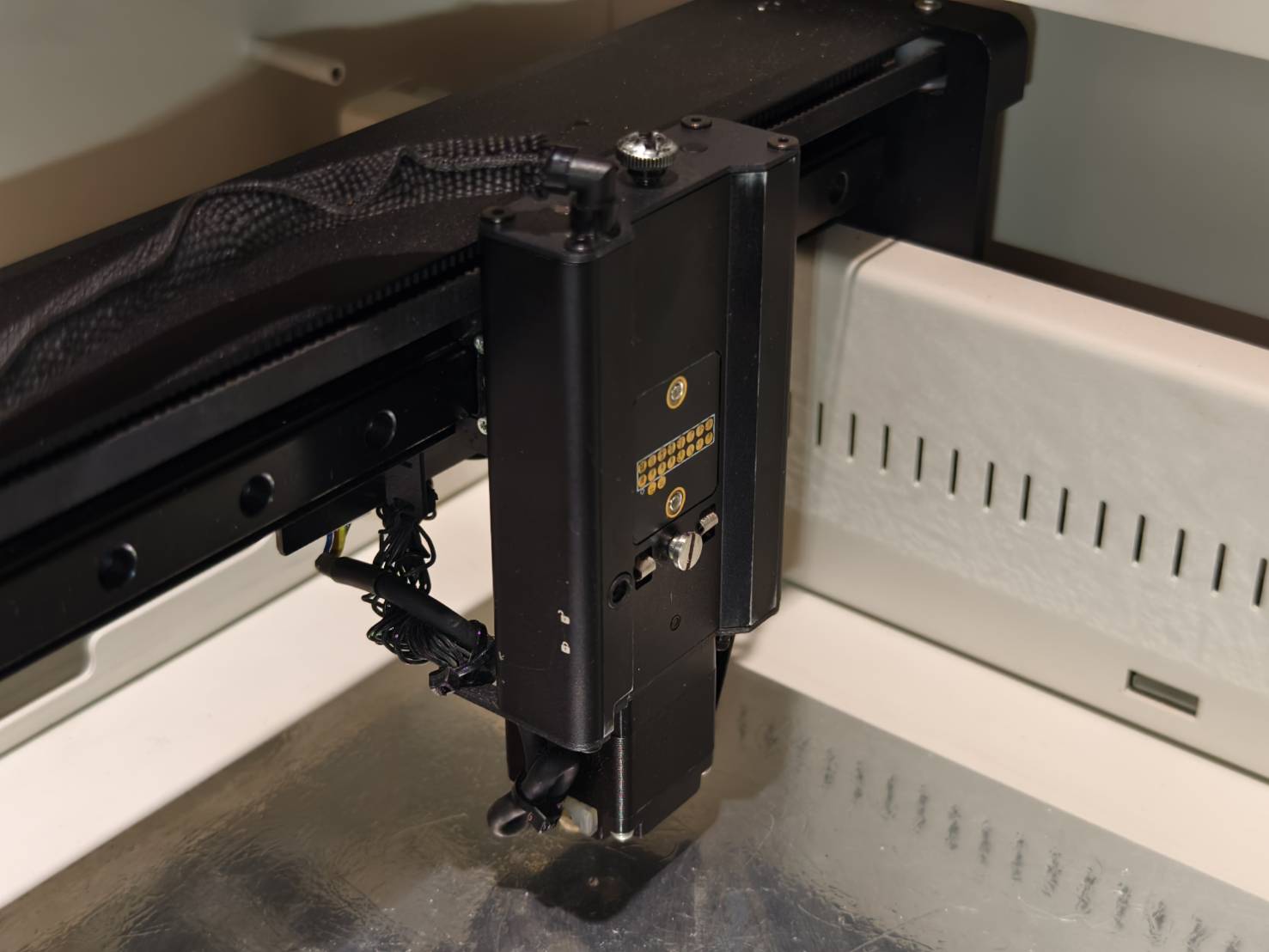

Remove the laser or printing module if you have installed any.

Step 2

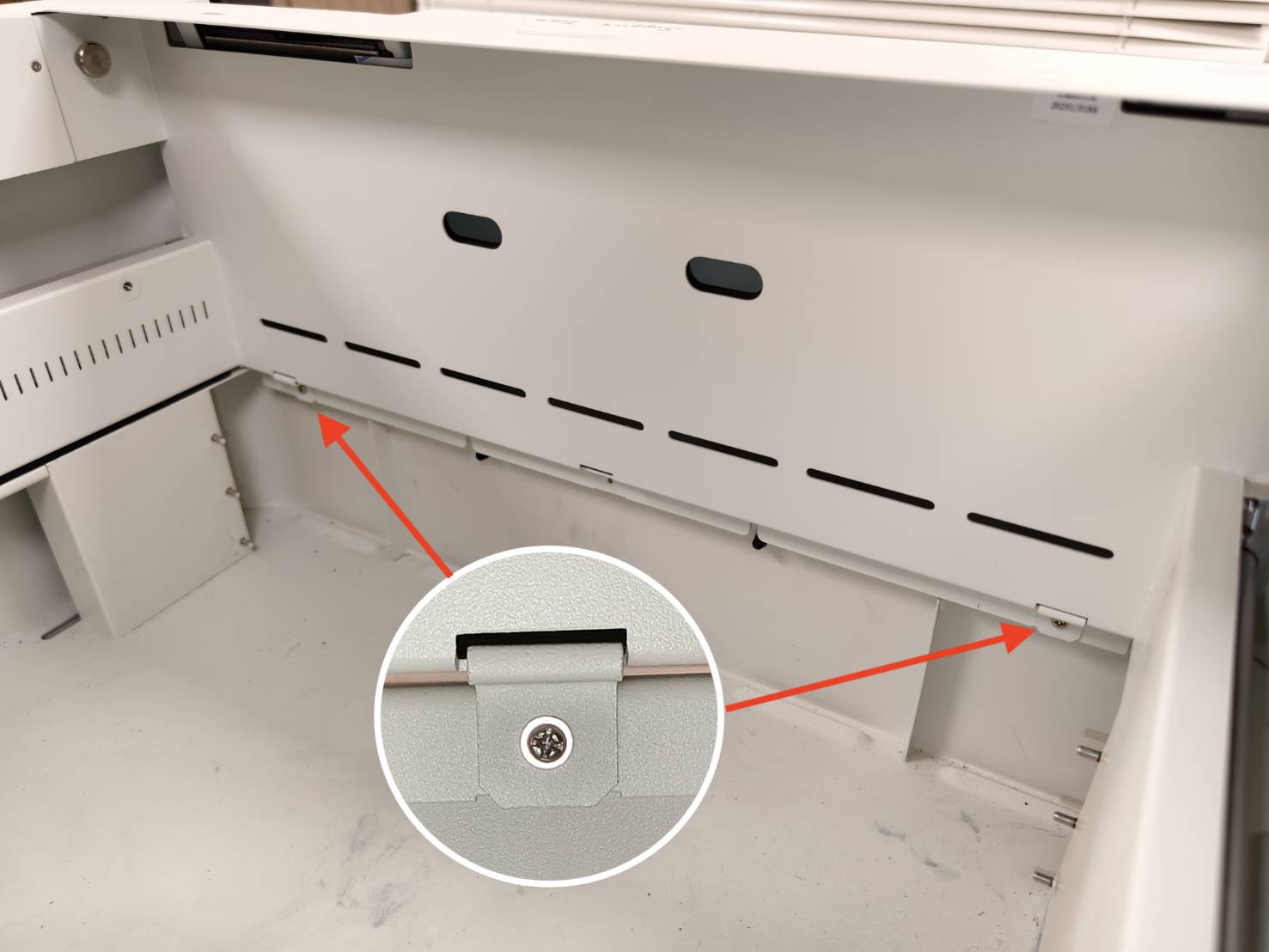

Remove the metal base of Ador.

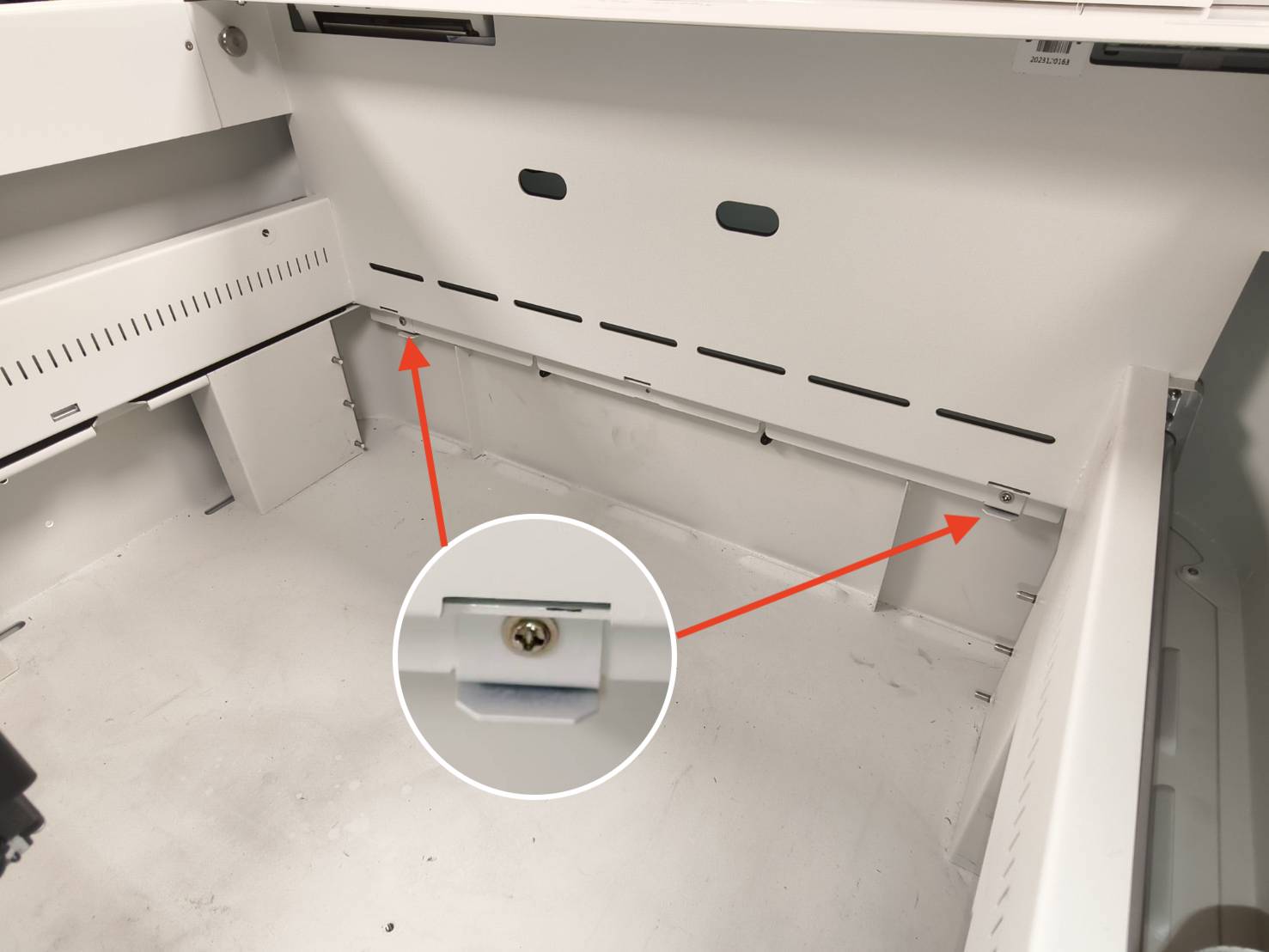

Unscrew these two screws to remove the metal base.

Remove the metal base by lifting the machine a little and taking out the base directly.

Step 3

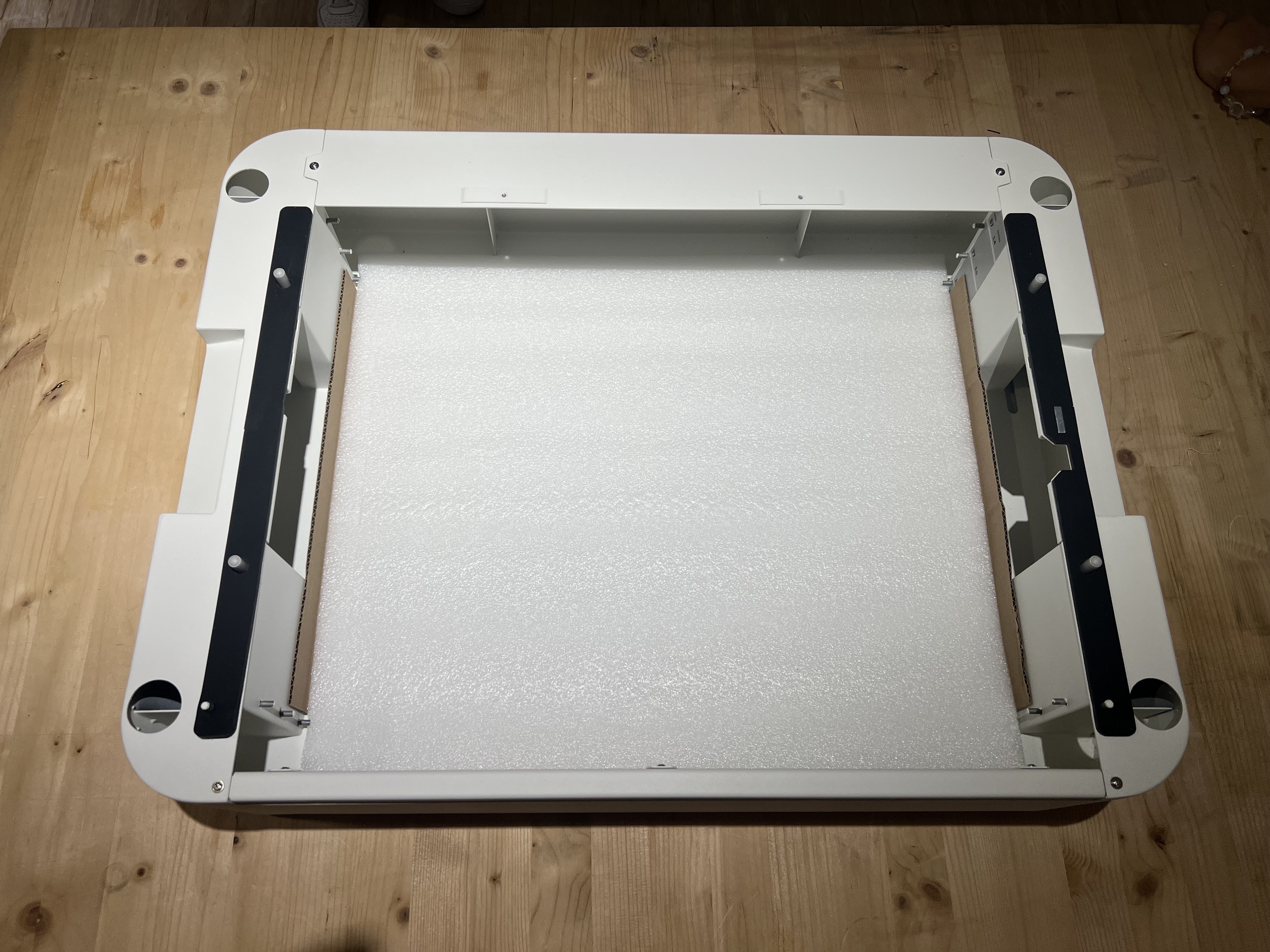

Unbox the extension base and remove the honeycomb.

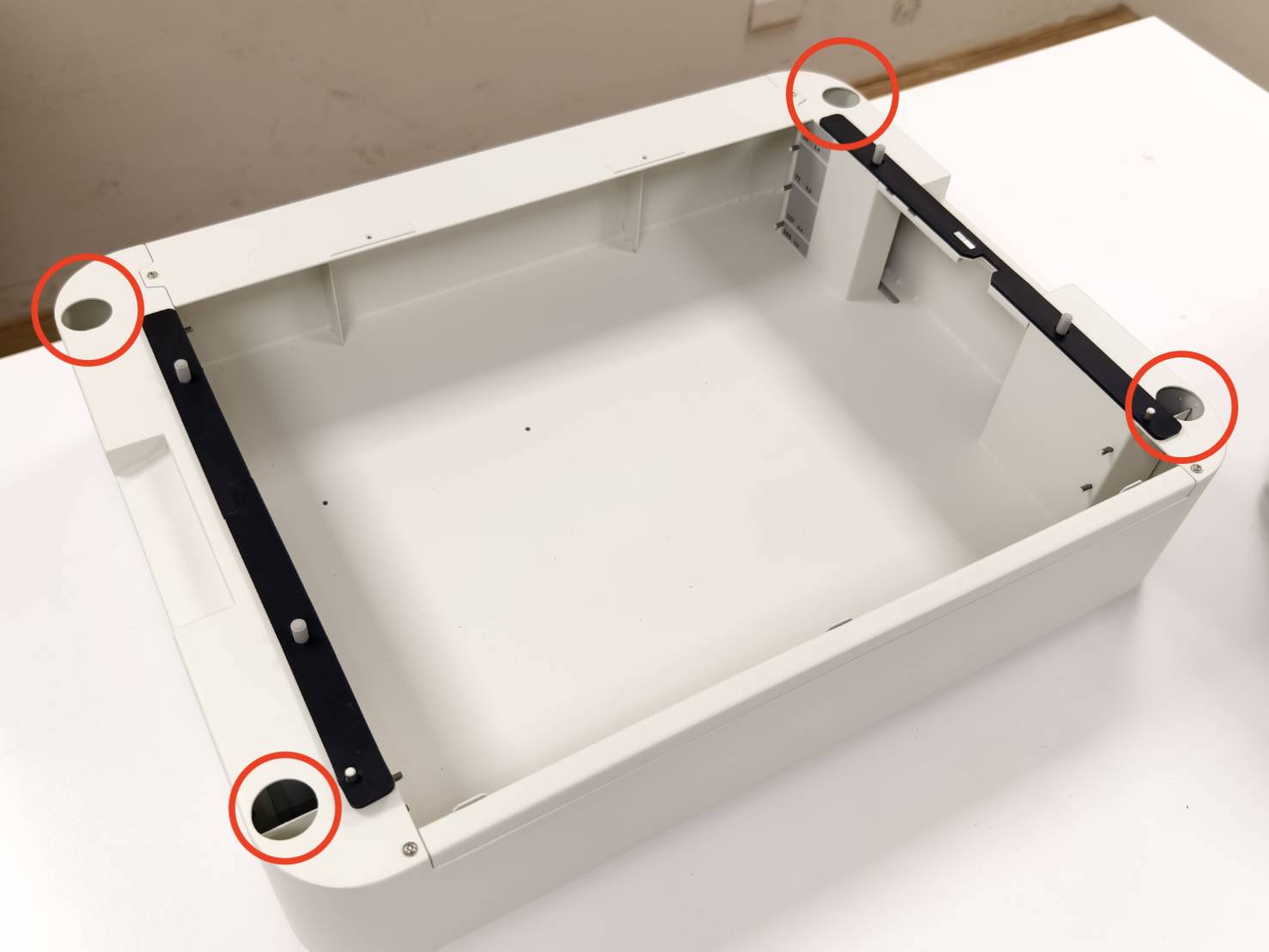

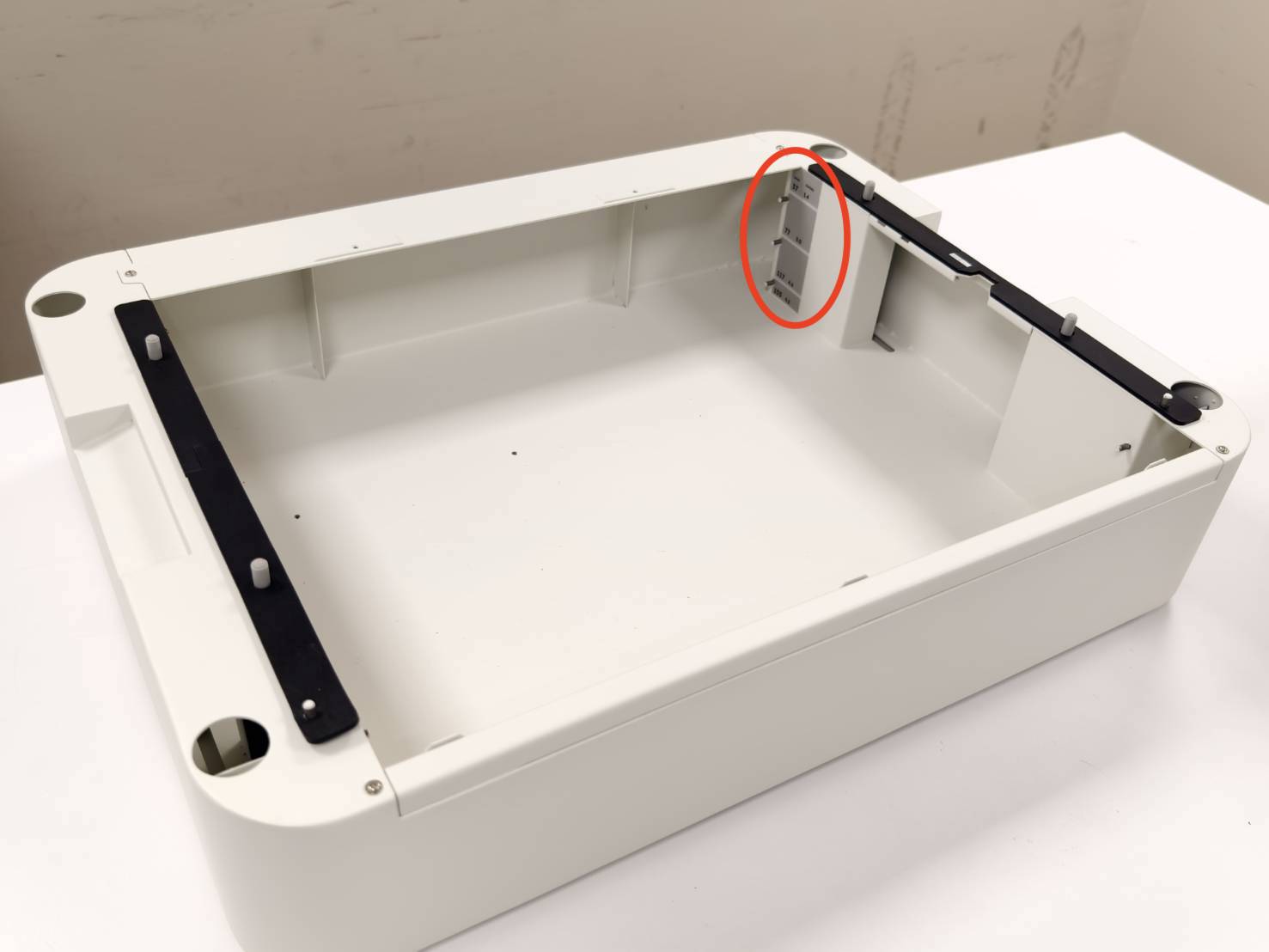

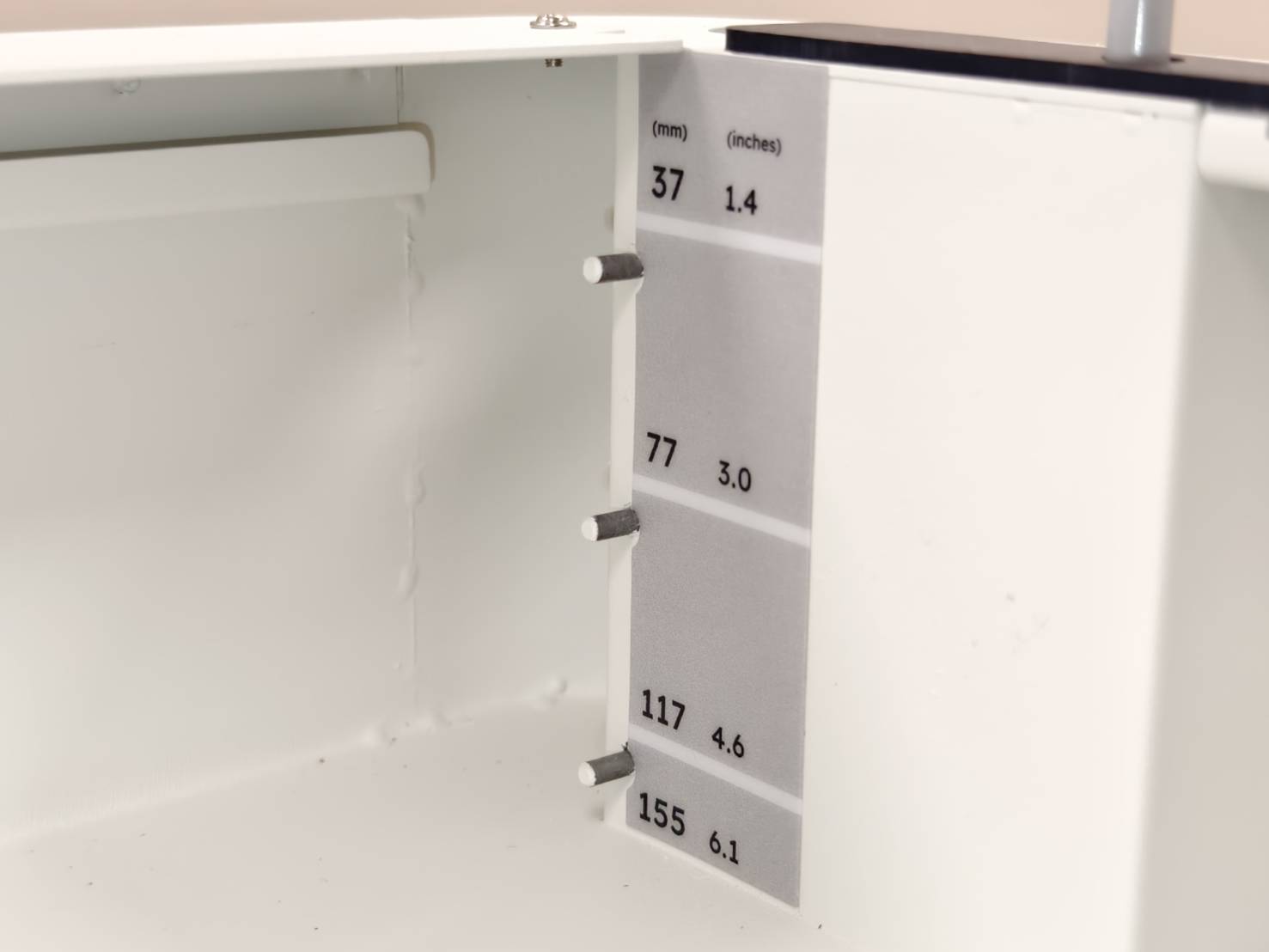

Find the object height indication as circled in red. Place the whole extension base on a flat surface in a direction that when you face the base, the object height indication is on the right side.

Step 4

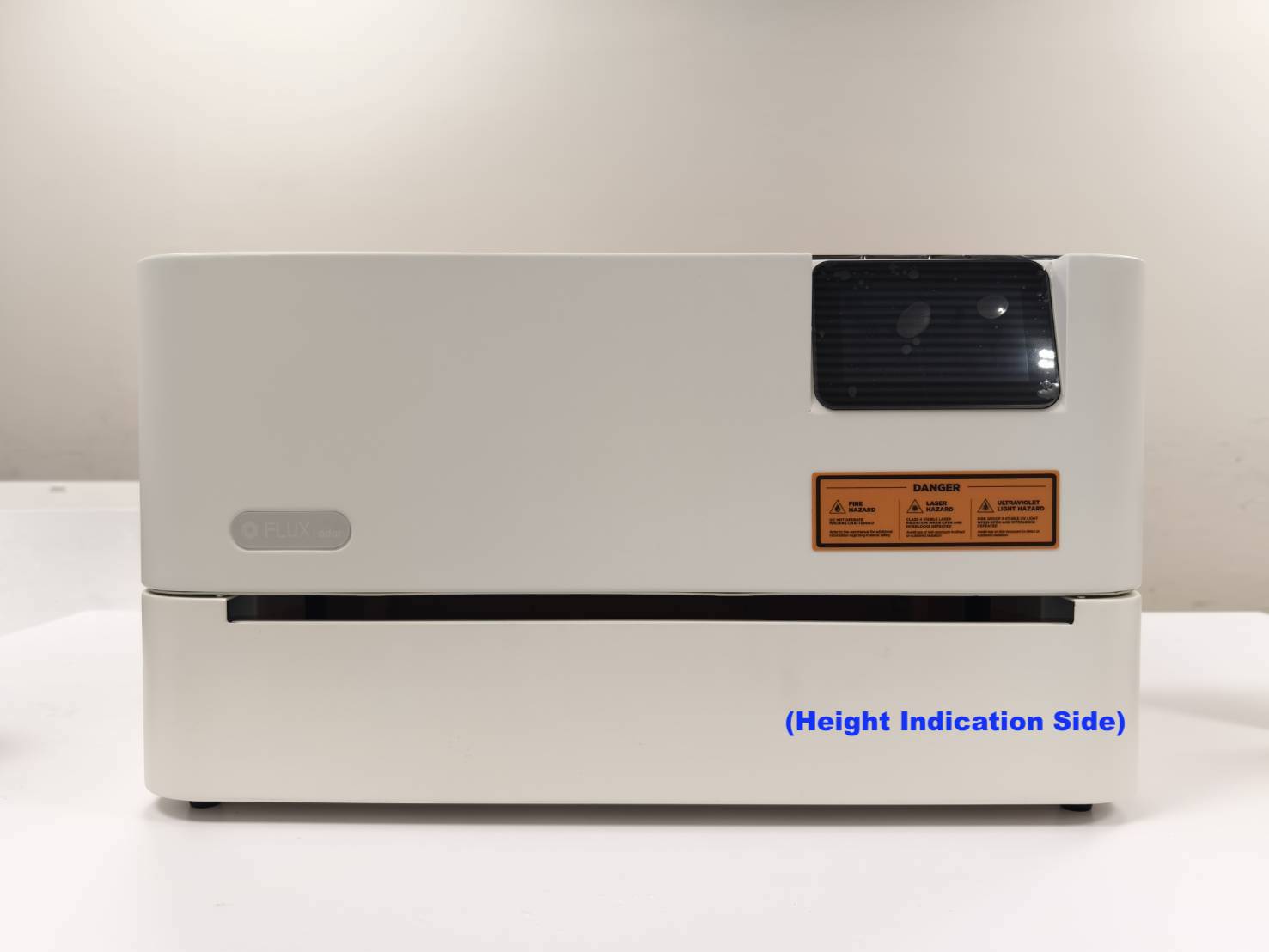

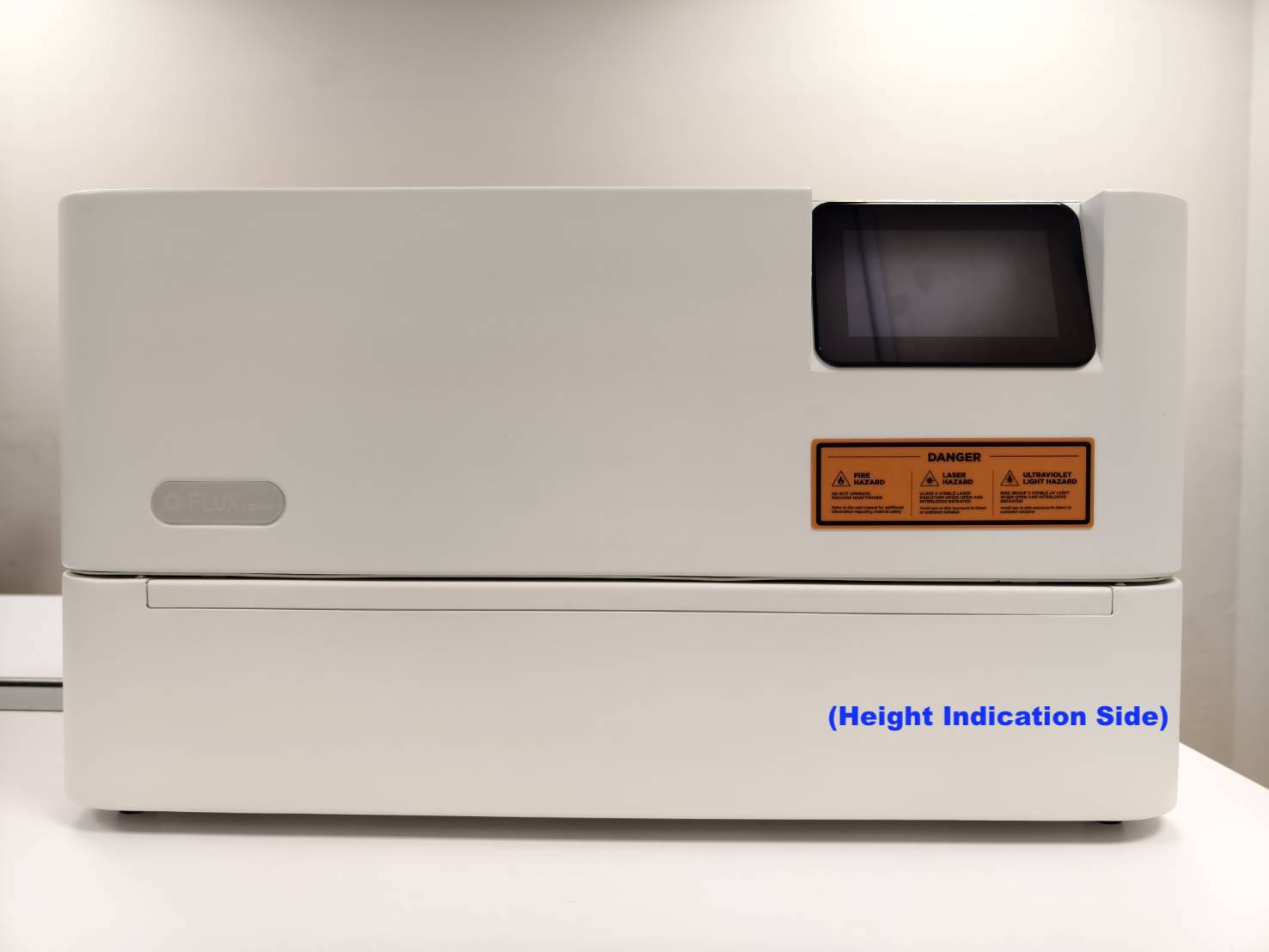

Lift the machine and try to put Ador's rubber feet into the four openings to assemble the machine and the extension base. The height indication must be on the same side as the touch screen, which will be on the right.

Passthrough Version (Not available in EU )	Non-Passthrough Version

Optional Step

Depending on the base you have, two or three clips are attached to the front frame. These clips hold the machine and the base in place. Applying the clips or not will not affect the base's function.
Therefore, this is an optional step.

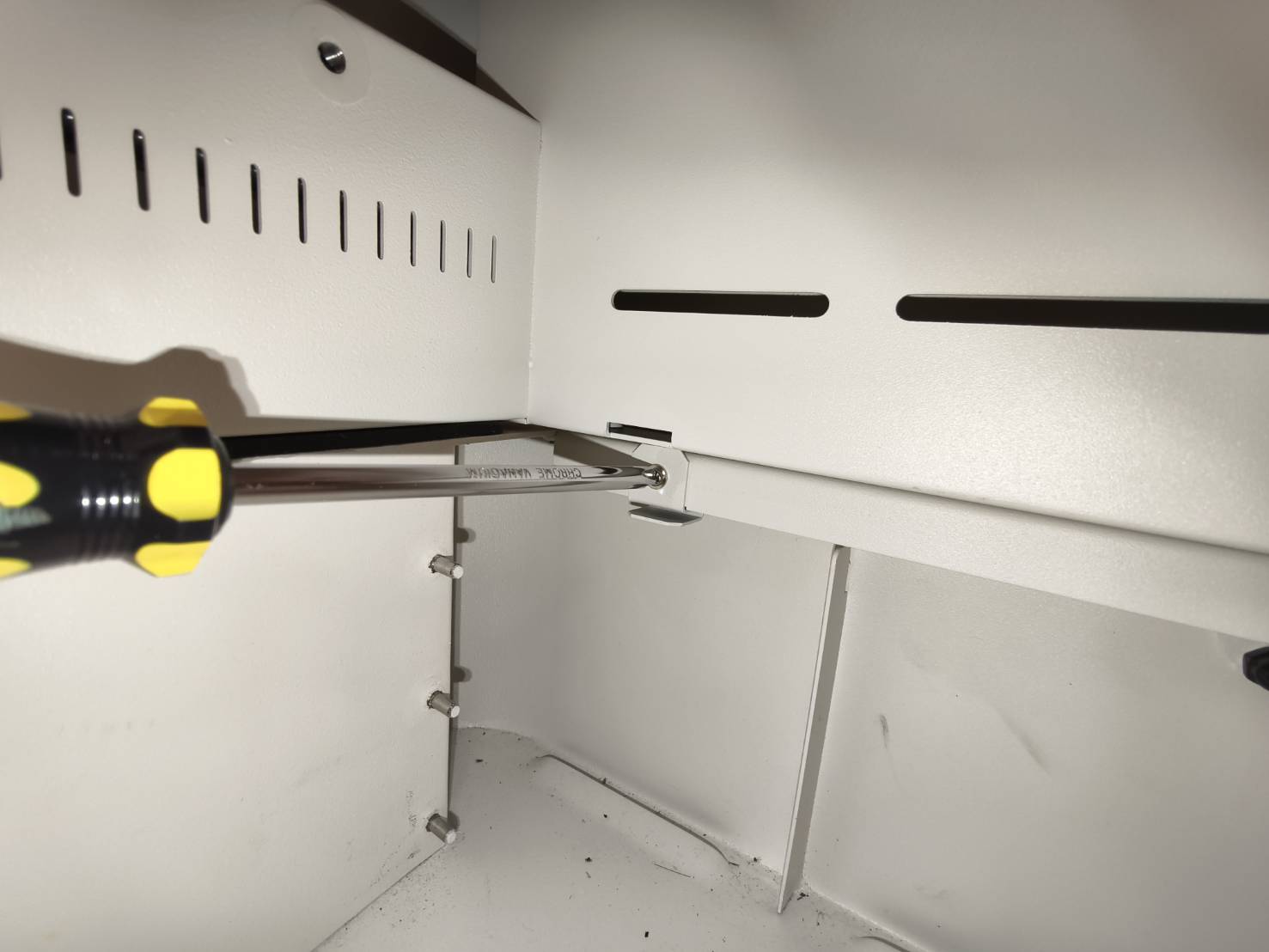

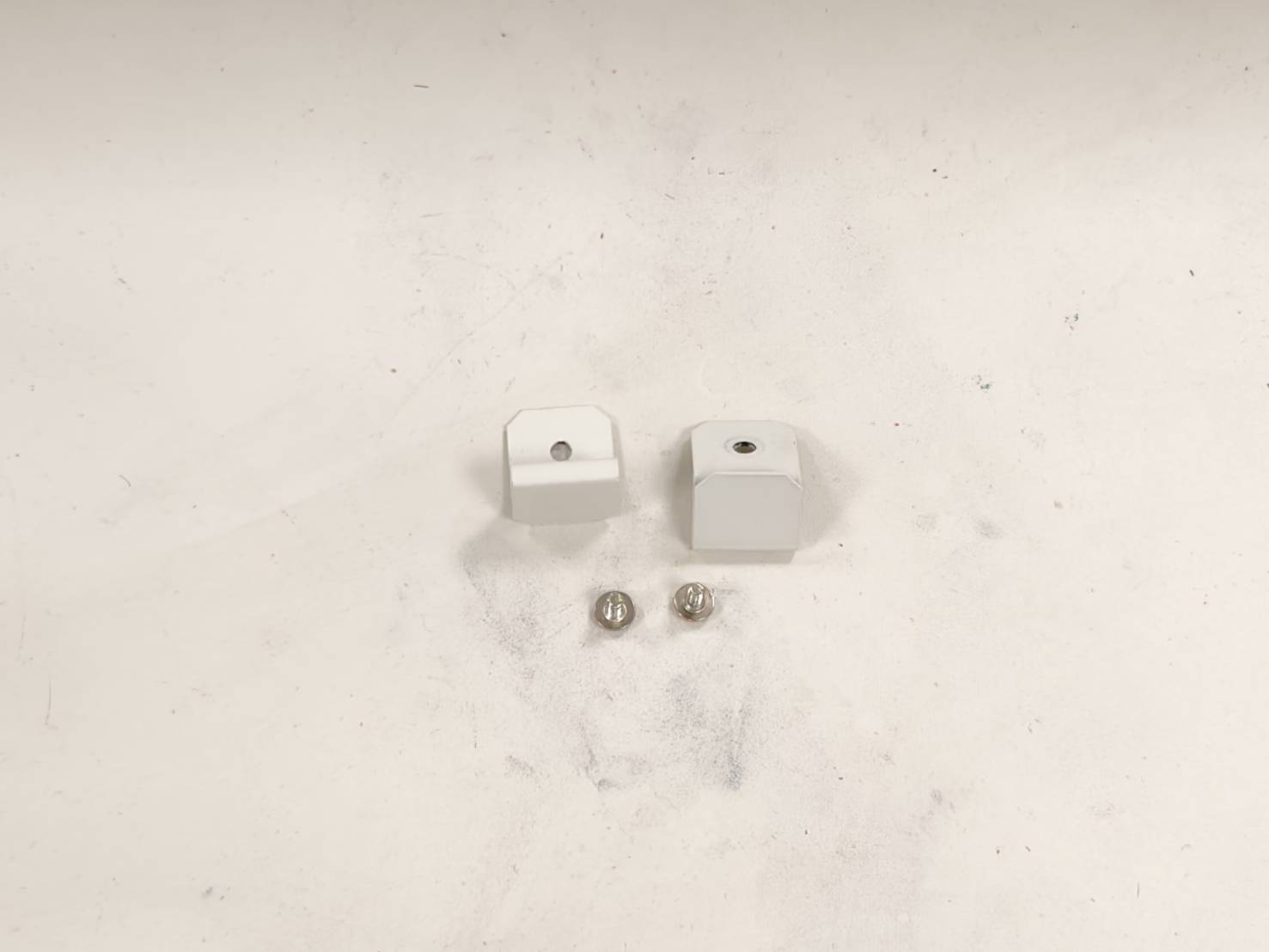

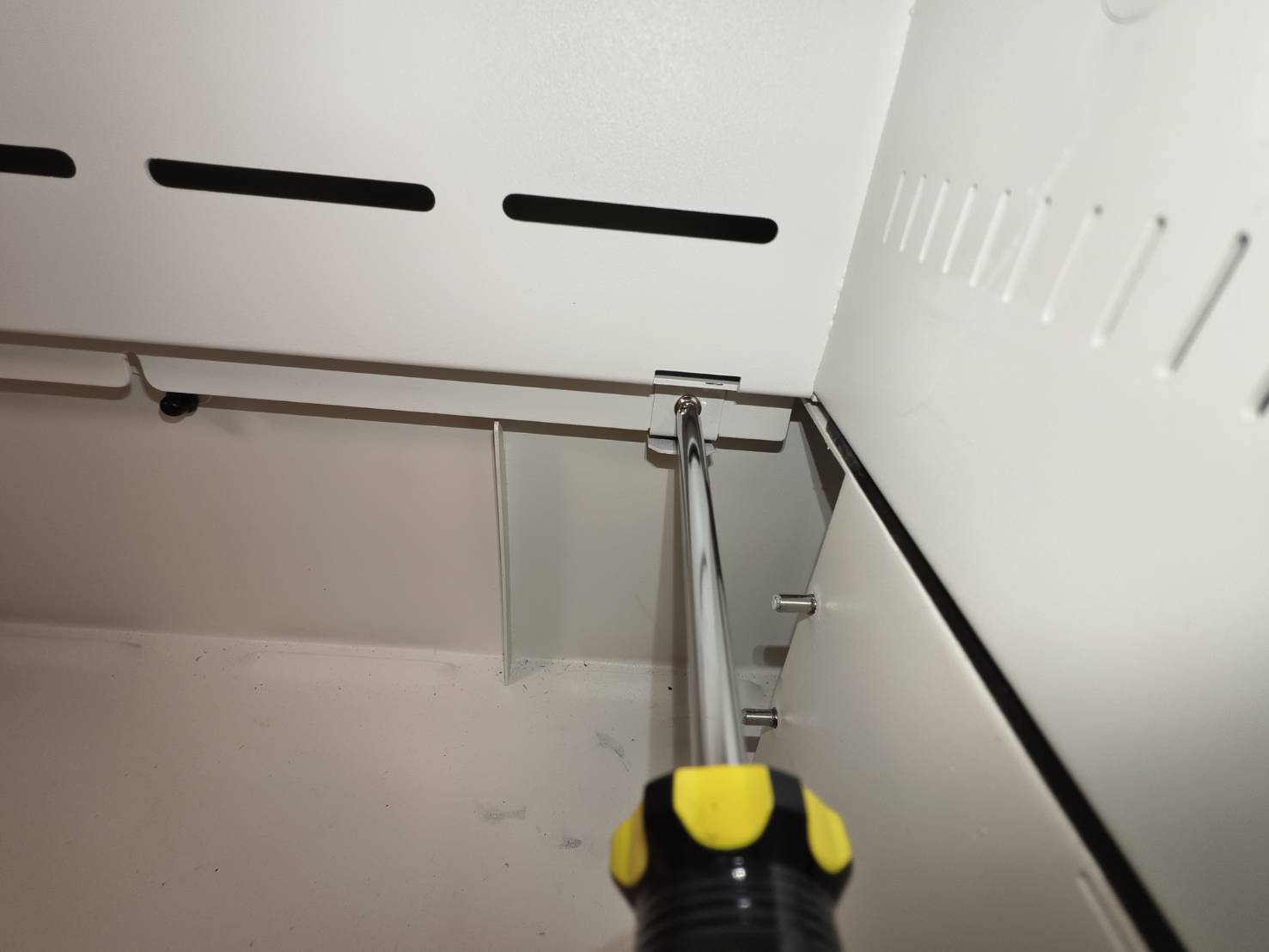

1. Detach the clips with a Philips screwdriver.

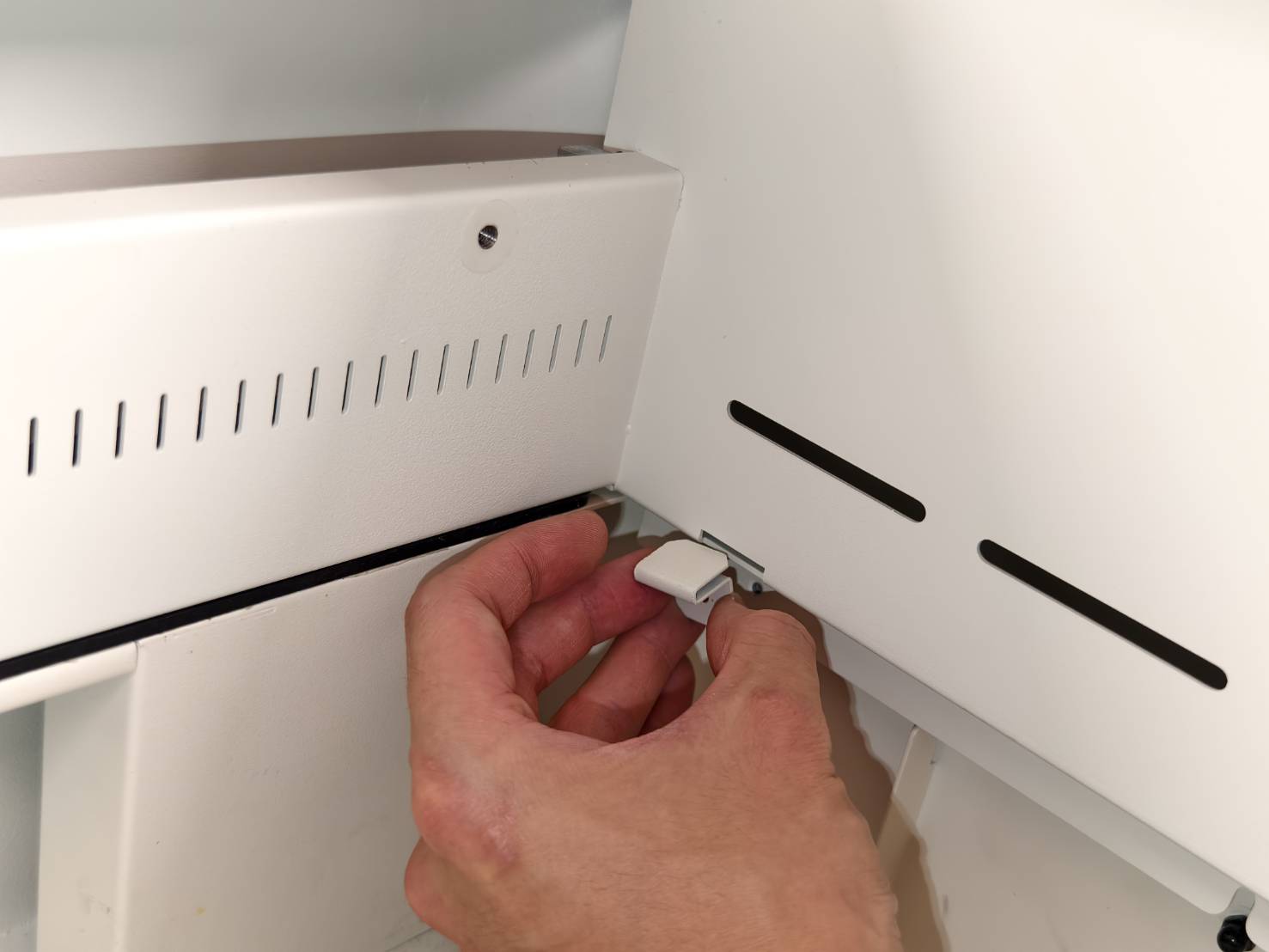

2. Insert the clips into the designed opening between the machine and the base.

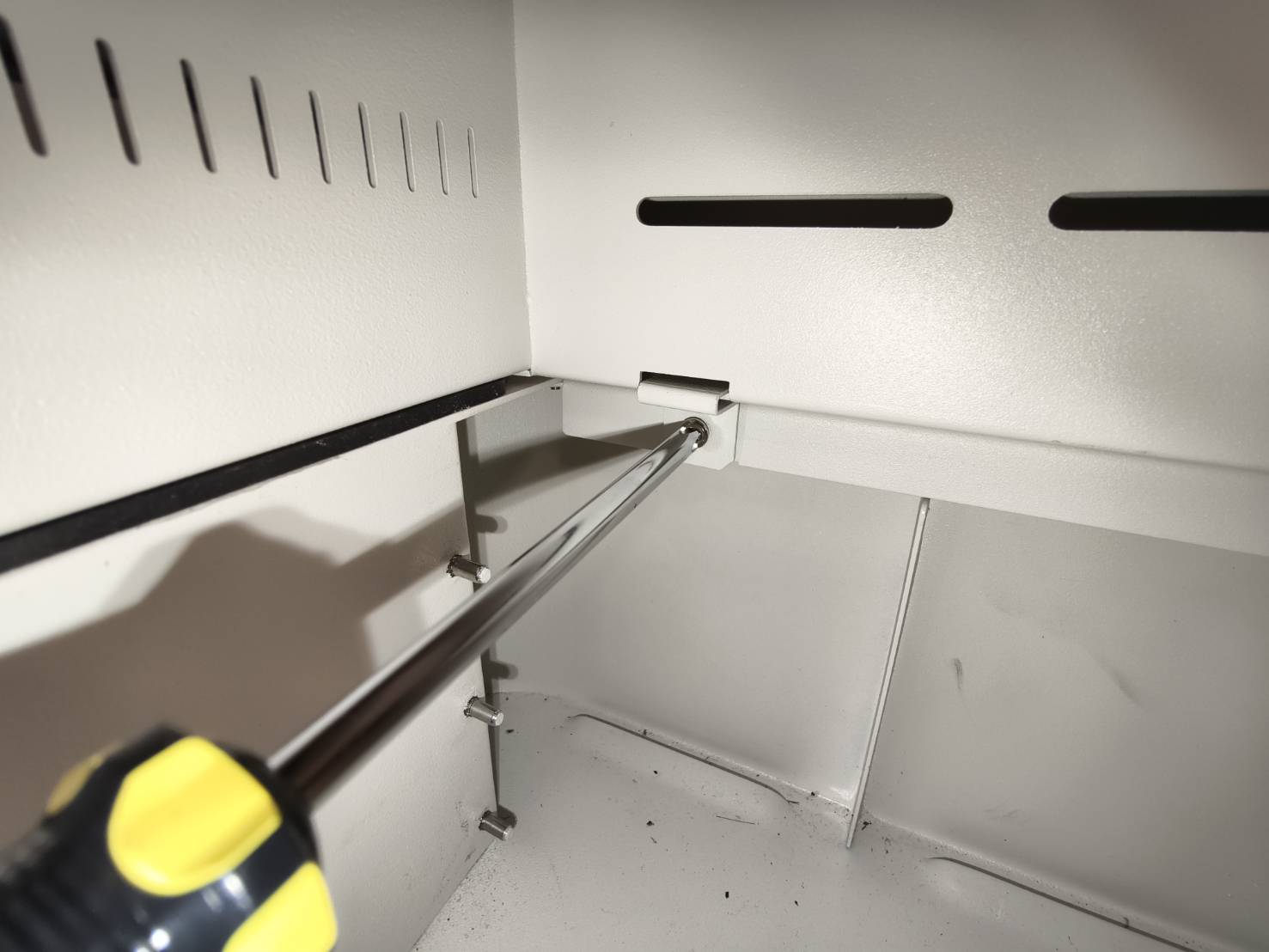

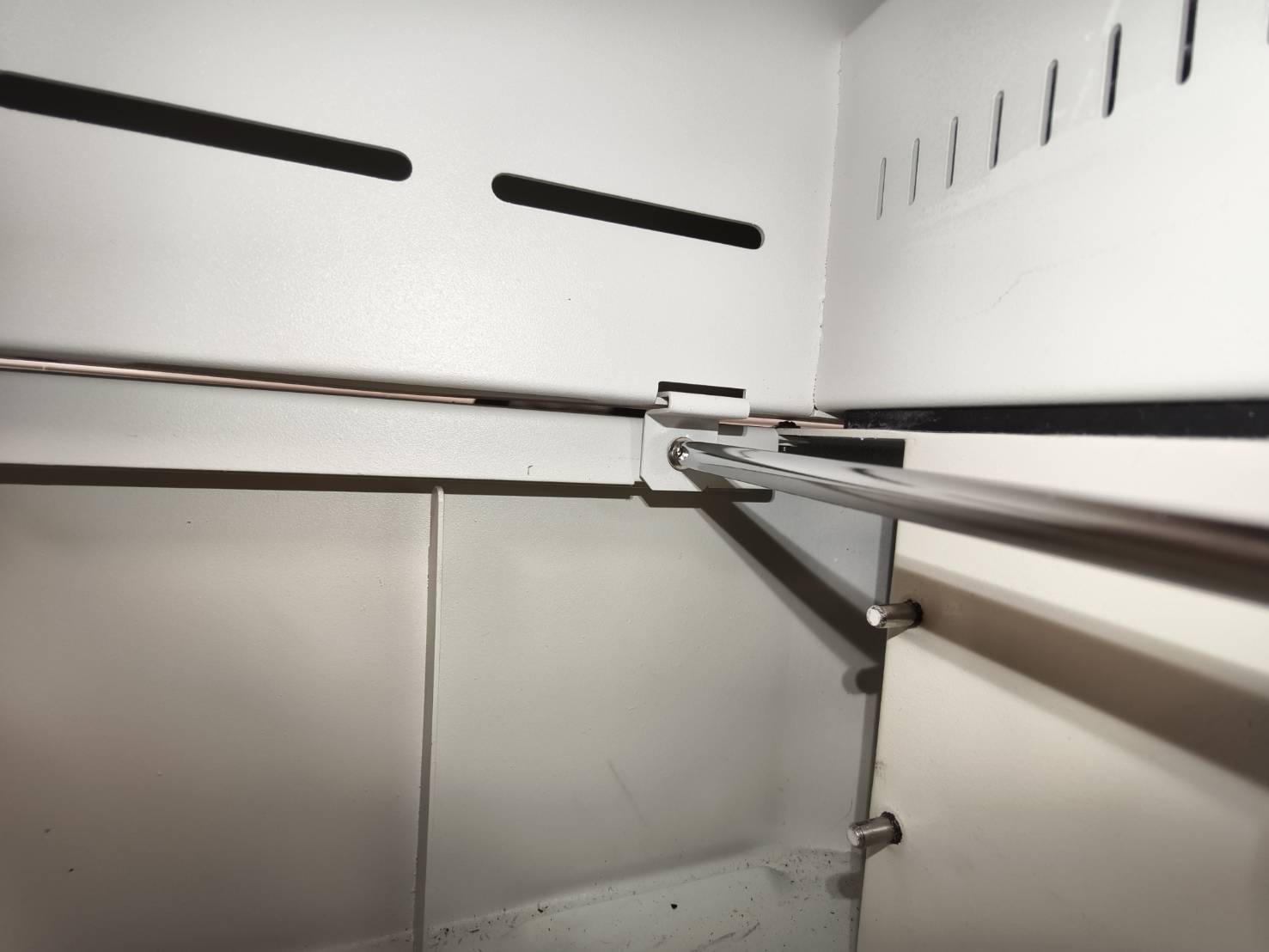

3. Screw the clips.

4. Done

Continue Reading
