LightBurn Bridge Cable - Ador

Disclaimer

To use LightBurn to control Ador, you should download the official release of the LightBurn software. As LightBurn is third-party software, FLUX cannot be held responsible for any loss caused by its operation.

The firmware of Ador has undergone various tests, but it is still possible that some functions of the LightBurn software may not be compatible with the machine. If errors happen because of incompatibility, please follow the instructions in the link below to properly report an issue to your local reseller or FLUX support. [Contact Customer Service]



Before start

1. Please update Firmware to v5.2.0 or above.

- Select the "MACHINE → Update to the latest Firmware" on the Ador's panel.
- You can also update the firmware through Beam Studio
Download the firmware from the official website. Then click "Machine→ Update Firmware". Following this, update the machine firmware to the selected version by selecting the firmware file on the computer.



2. Download this configuration file: Ador_Preset

Note: The configuration file we provided contains the GCode and Baud rate settings. If you are not using the configuration file, please set it up separately in the "Device settings". (Please refer to this article for details)



LightBurn settings

To download LightBurn, click here.

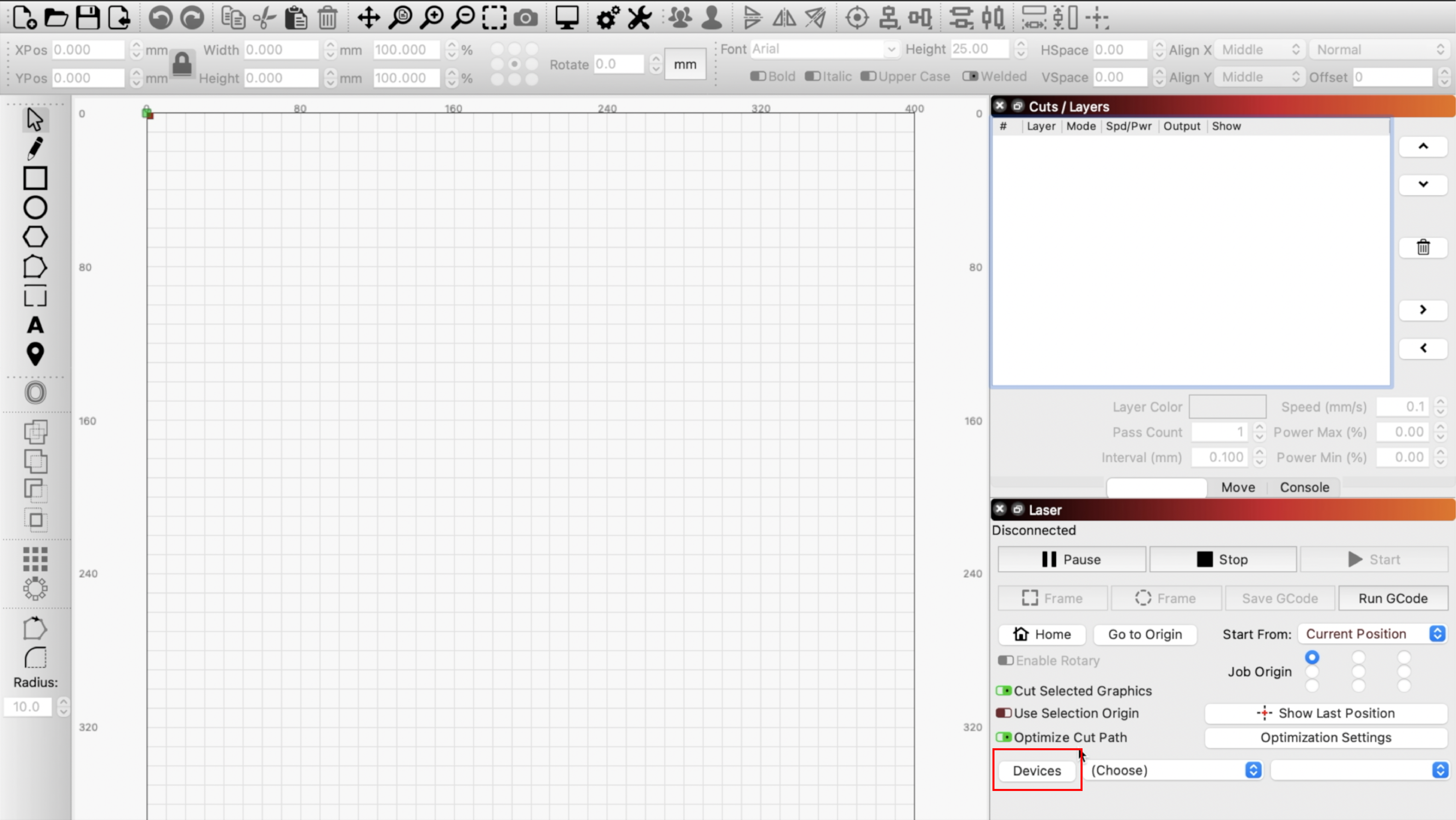

1. Open LightBurn and click "Devices" on the Laser tab.



2. Click "Import" to import the file Ador_Preset you downloaded.

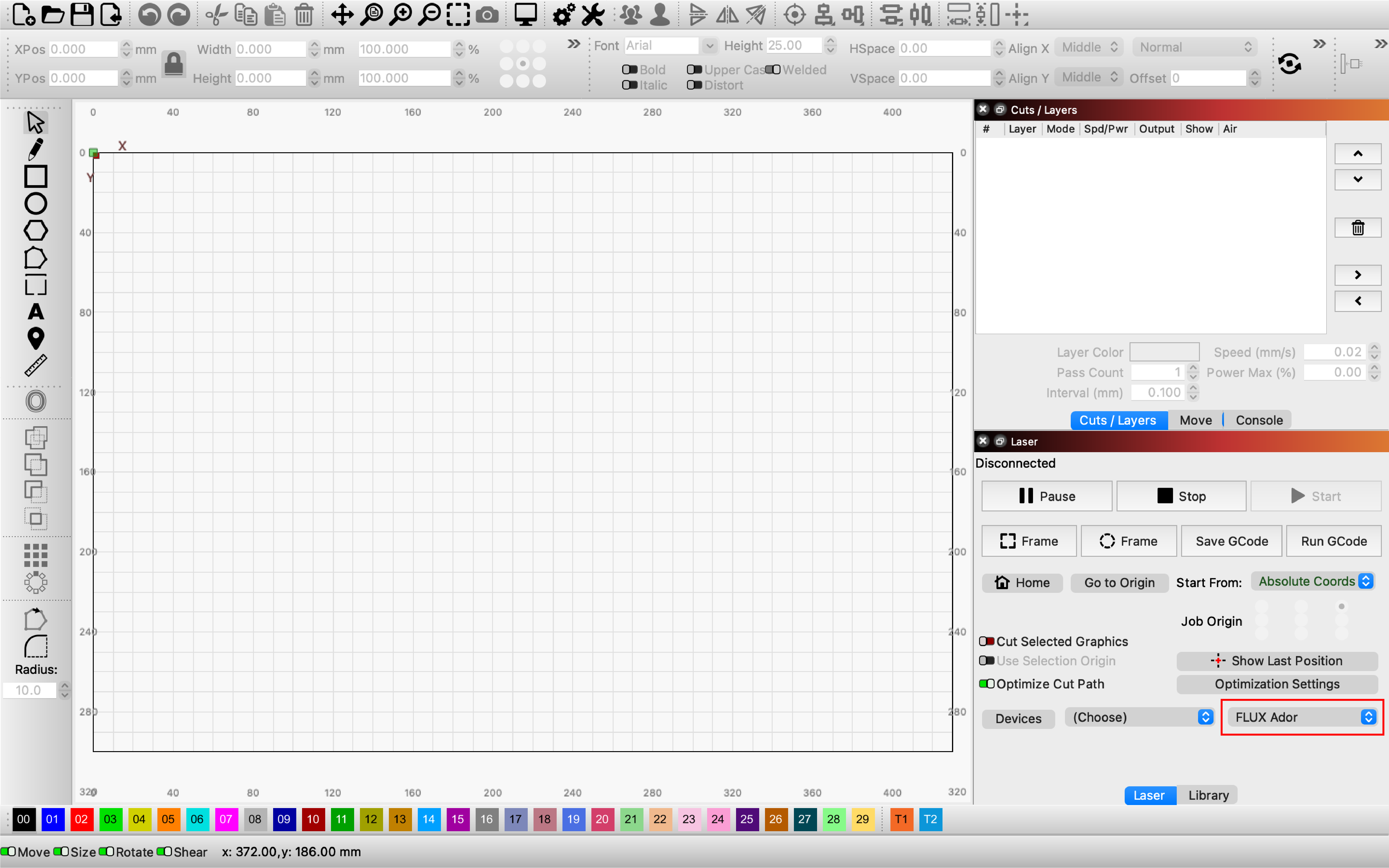

3. The following device information will be displayed once the file has been successfully imported.



Connect your computer to the machine with the LightBurn Bridge Cable.

1. Plug the LightBurn cable into the USB port on the side of the machine.

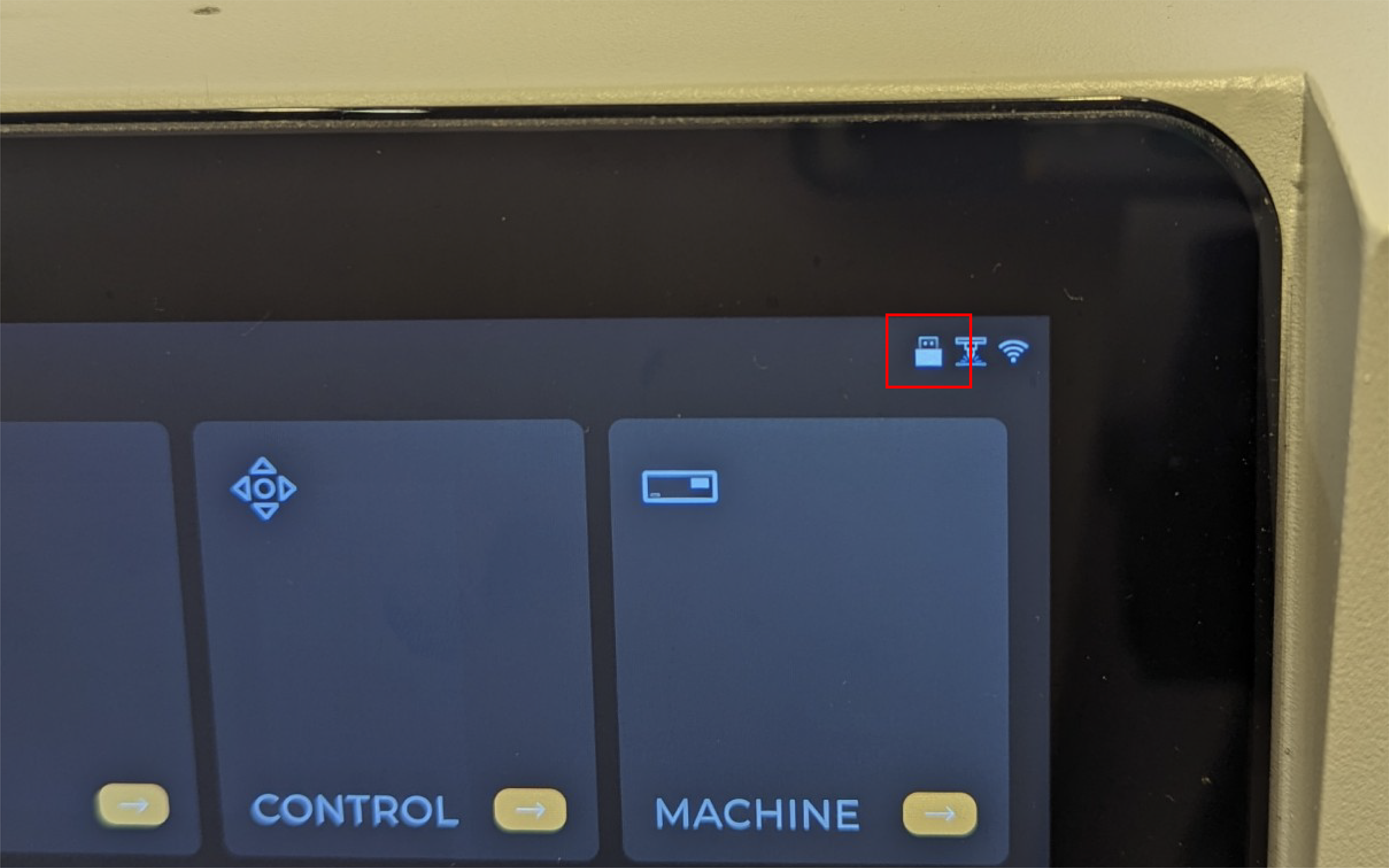

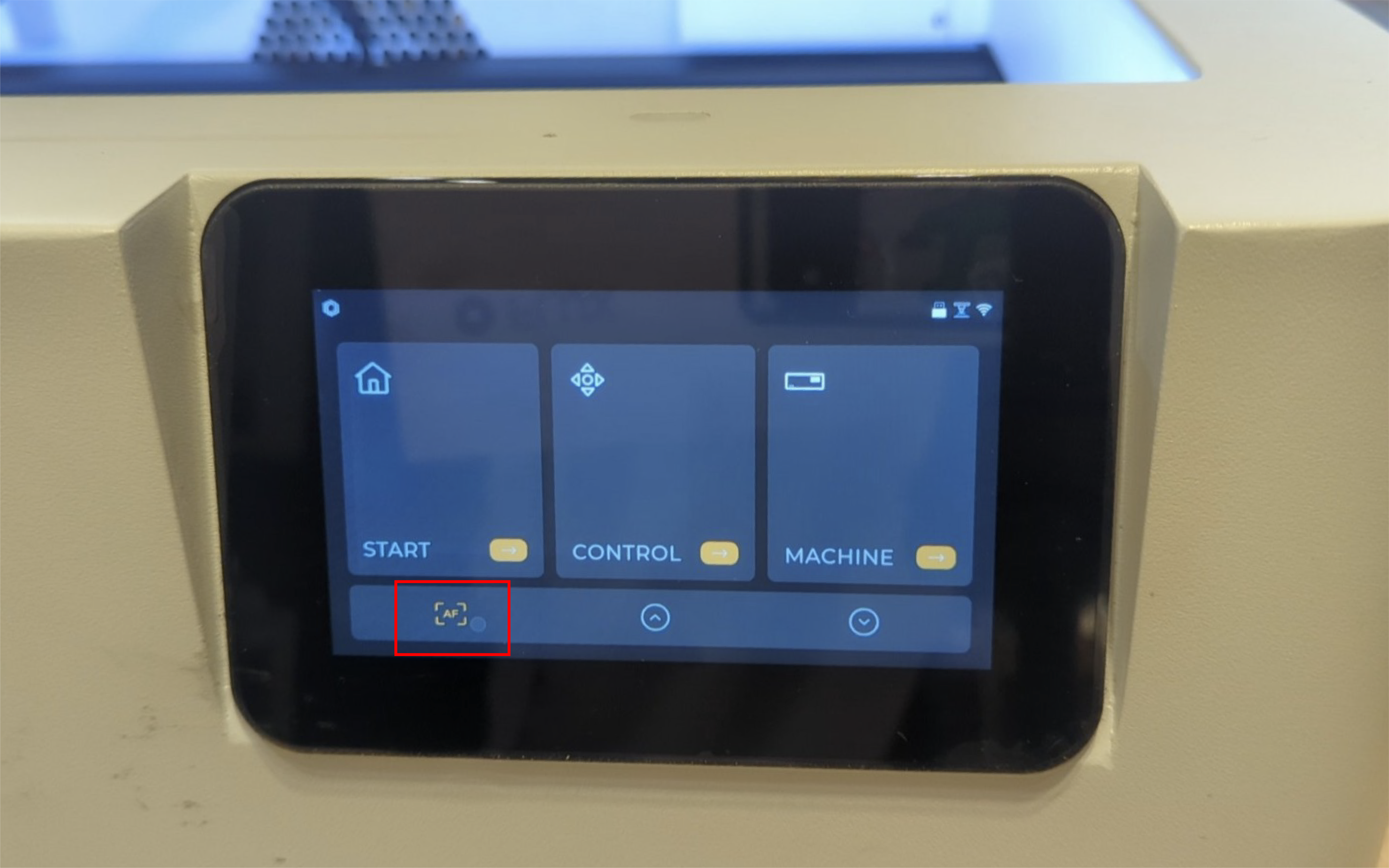

（The USB icon will appear in the top right corner of the machine panel to indicate that a successful connection has been made.）



2. Insert the other end of the LightBurn Bridge Cable into the computer.

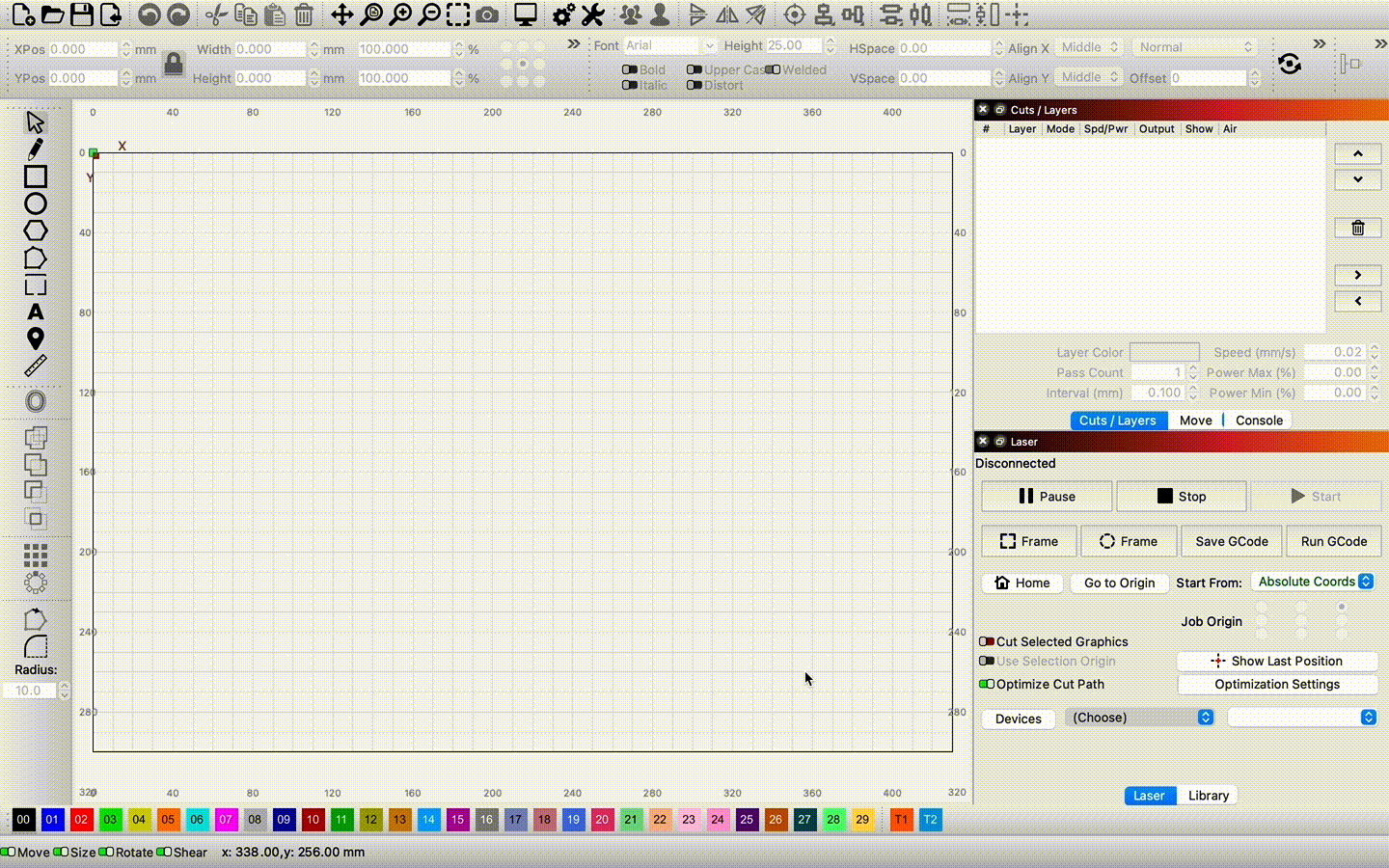

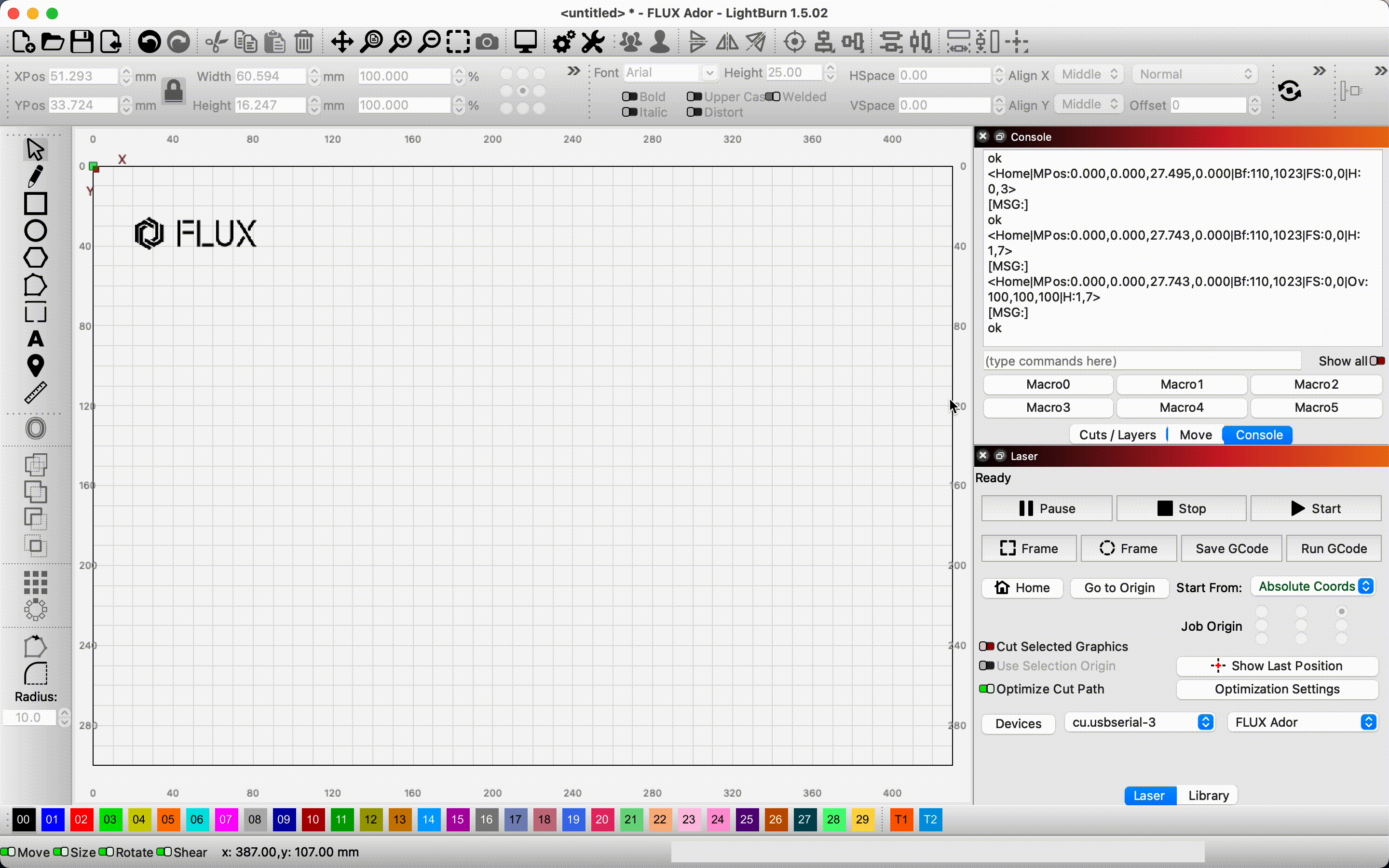

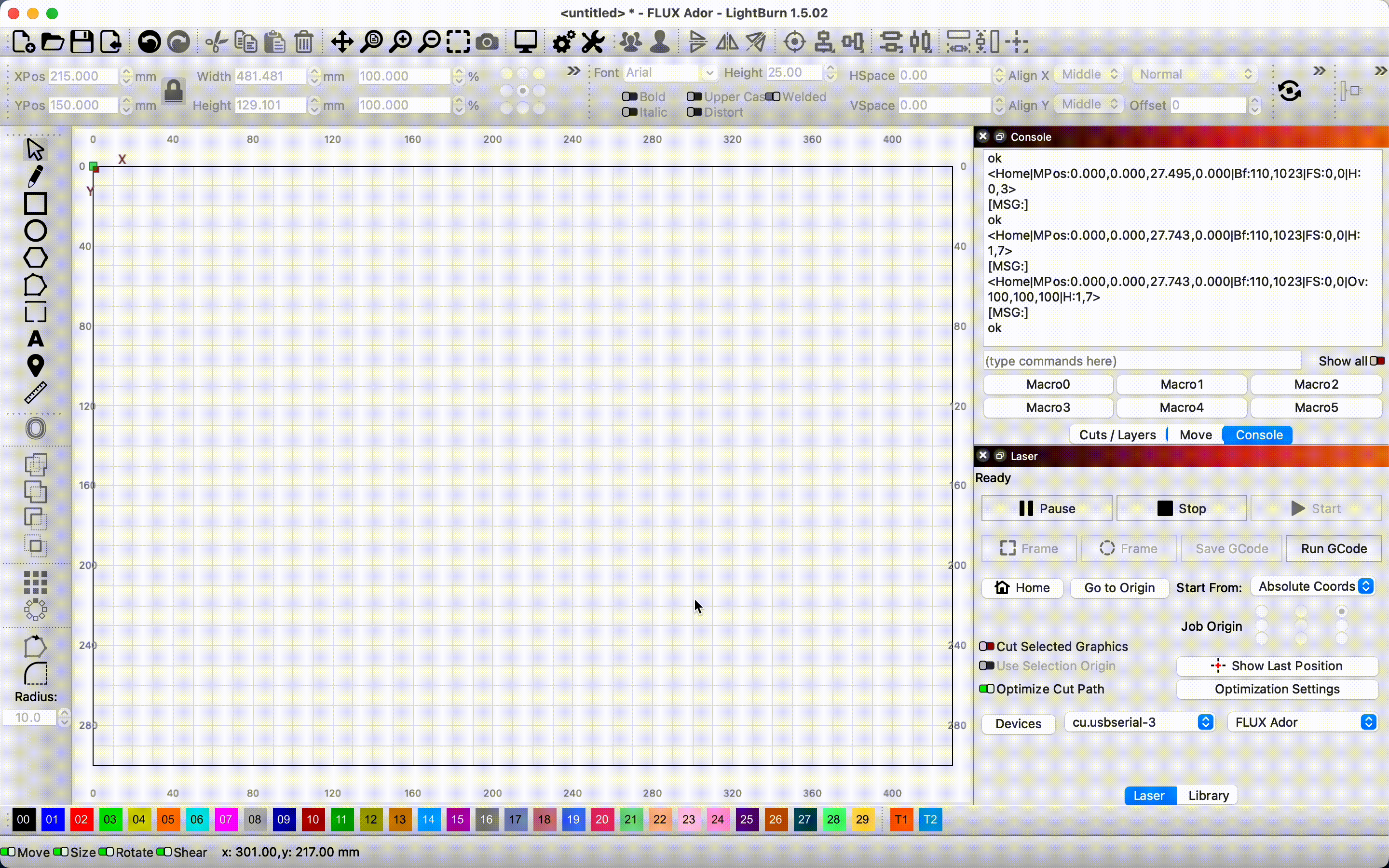

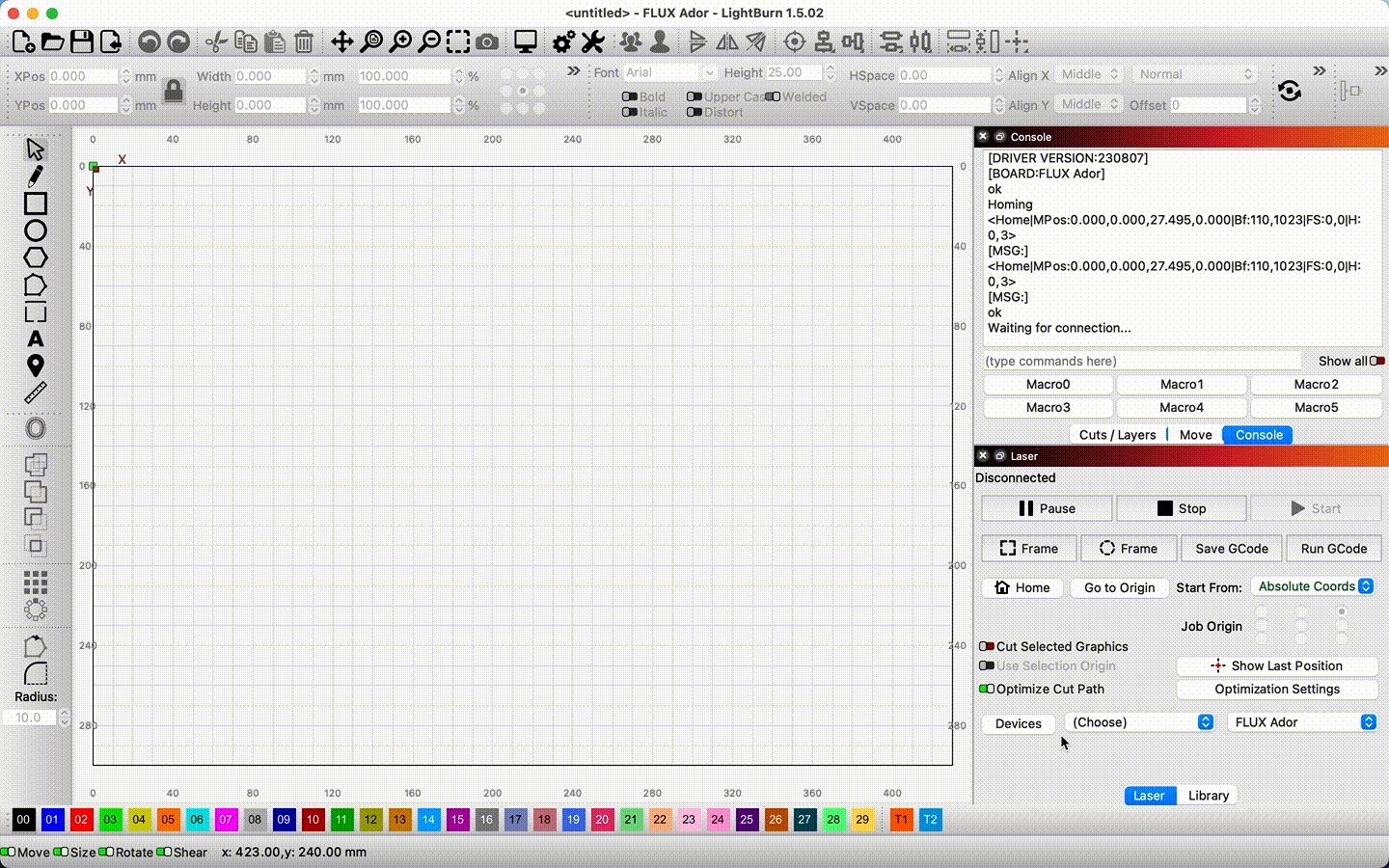

3. Select the correct USB Port name. Choosing the wrong port will result in a failed connection. You may need to try different ports. If the connection is successful, the following information will appear in the Console tab.



Homing test

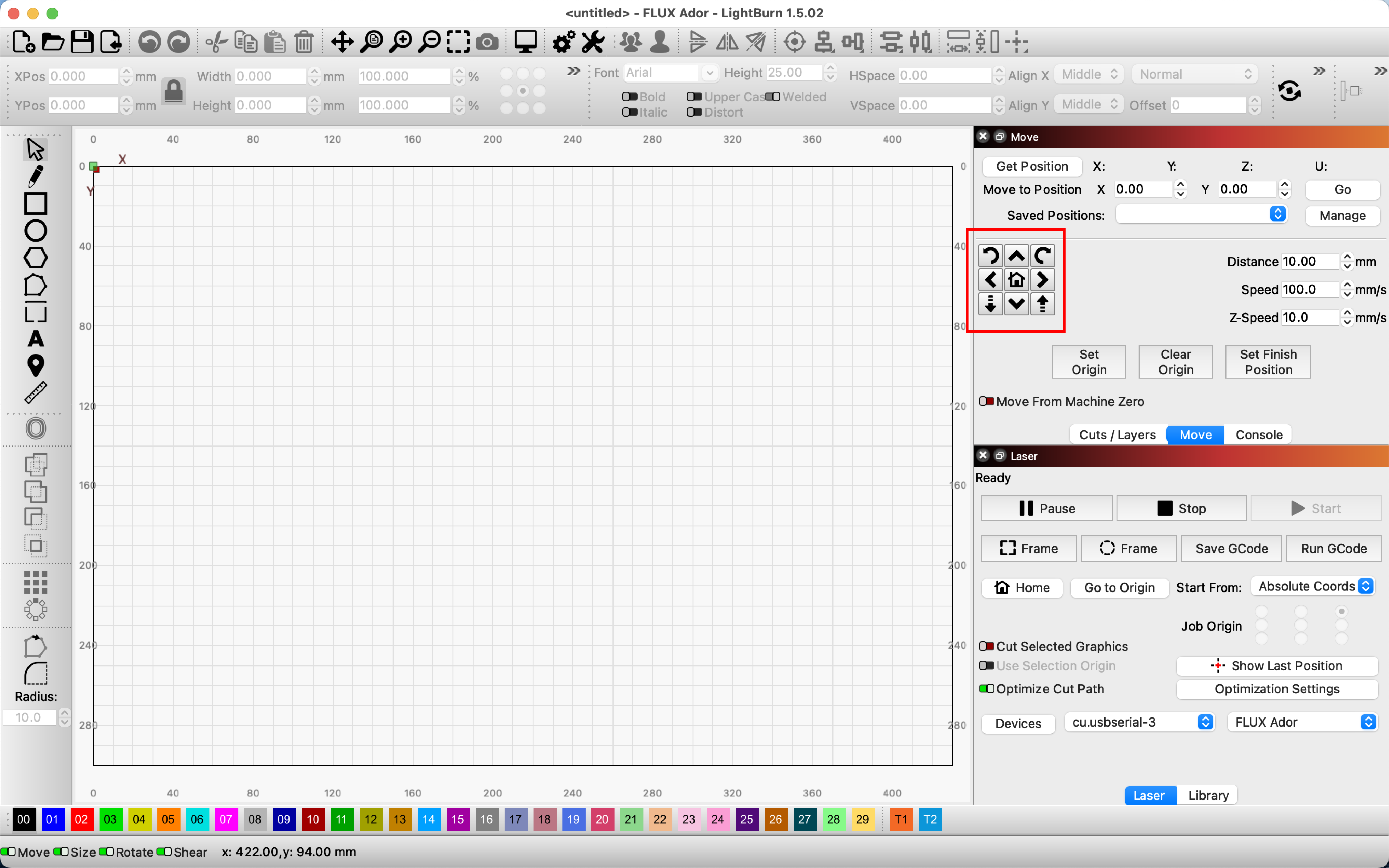

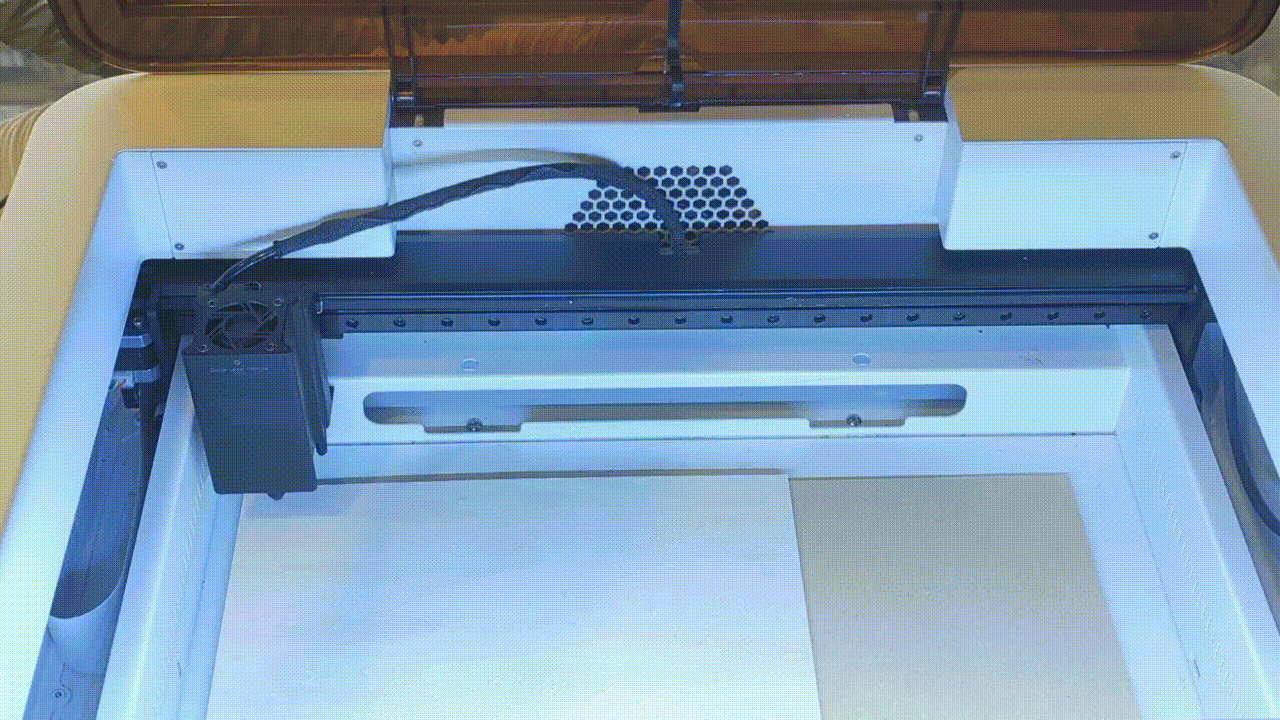

If the computer is successfully connected to the machine, the machine will start homing automatically. If not, please click the home button to determine whether the homing function works.

Start operation

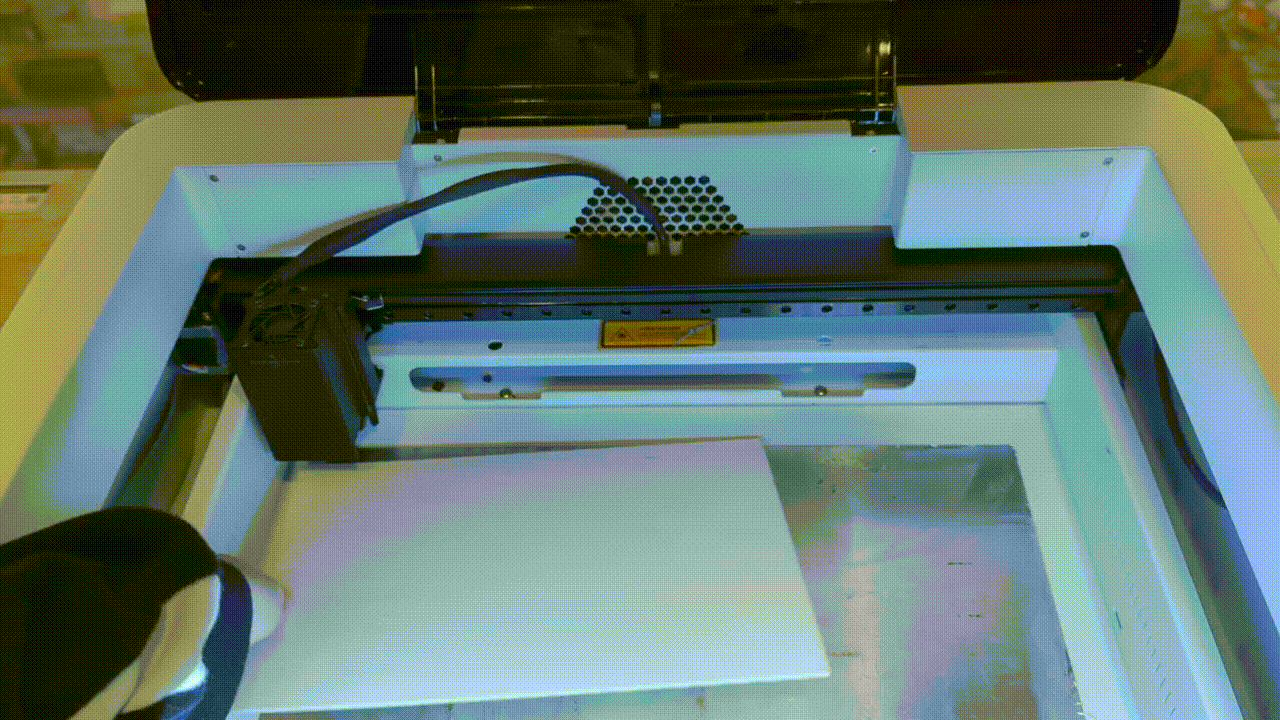

1. Place the material inside the machine.



2. Focusing

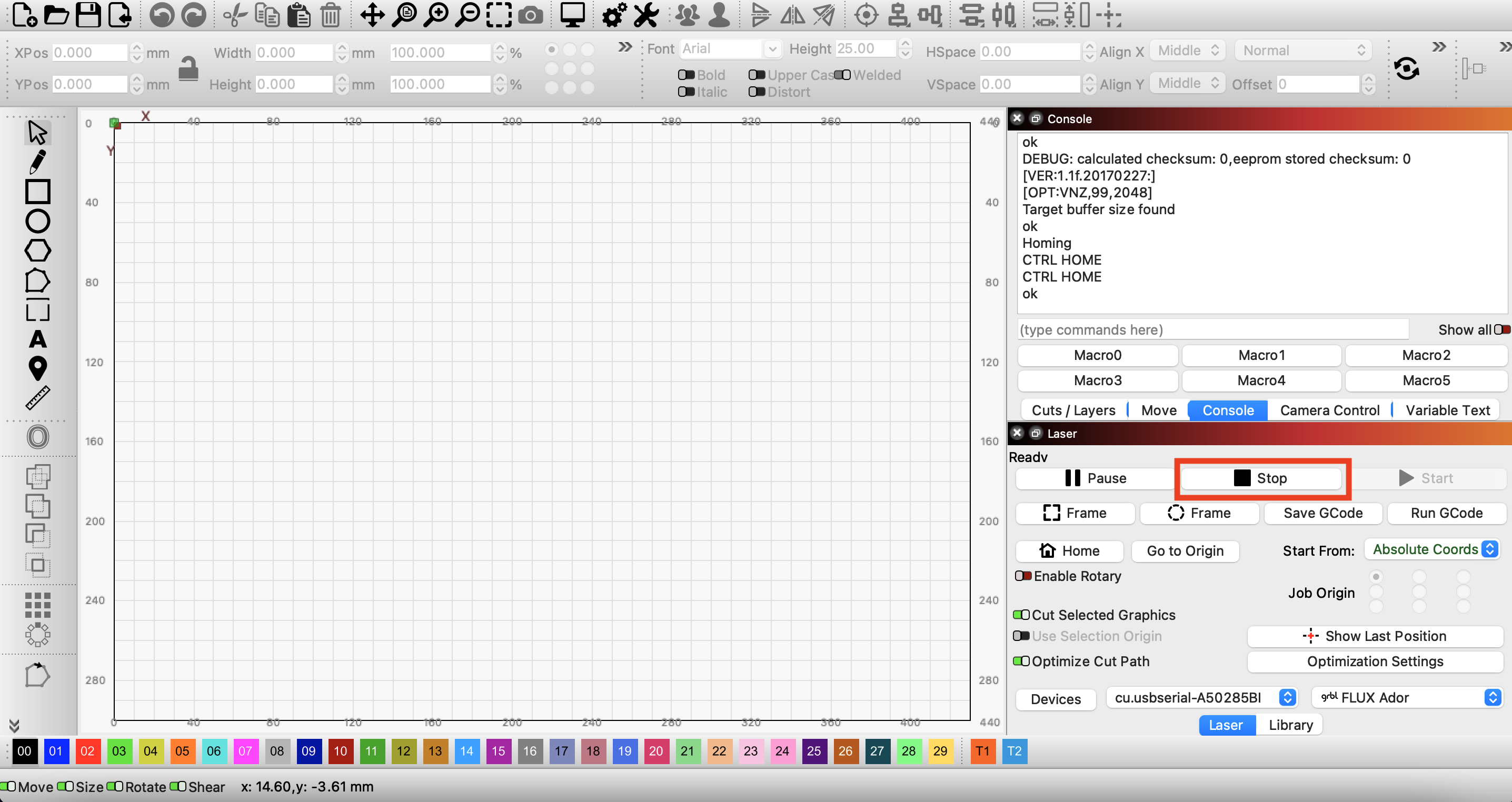

- Click the "Stop" button in the "Laser" panel to lose the motor.

- Move the laser head above the material.

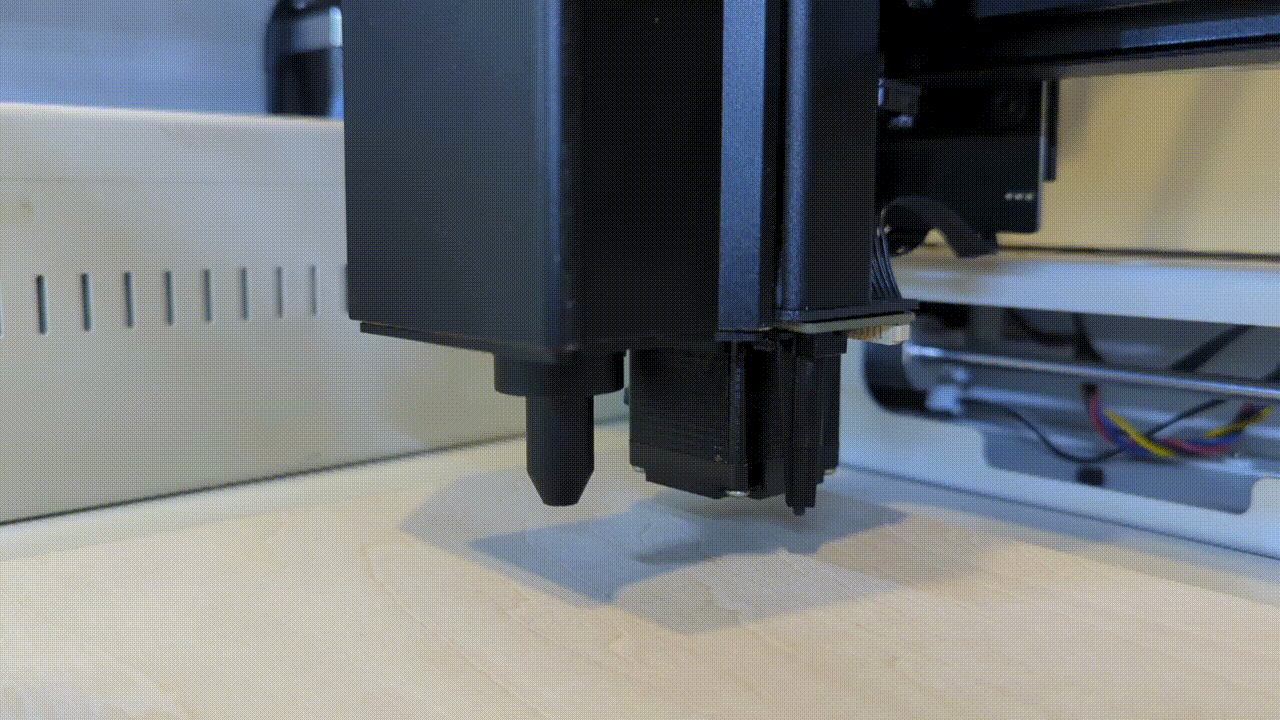

- Long press the "AF" button to start autofocus.

(Please make sure the focus distance is correctly set before each engraving / cutting operation.)

Notice:

• Please make sure the machine automatically releases the motor within 3 minutes of LightBurn control. If the motor is locked for a long time, it could damage the machine. (Click the "Stop" button in the "Laser" panel to lose the motor)
• After losing the motor, if you have made any movements to the laser head, please remember to press "Home" to reset the position before sending out the job. Otherwise, there is a risk of collision.



3. Import a file to LightBurn

Click on the icon above to import the file, or drag and drop the file directly into the work area.



4. Set the parameters

Click a pattern or layer and set the parameters in the lower-right corner of the Cuts/Layers tab.



5. Turn on the "Overscanning" effect

- If the layer is set to "Fill, Fill + line, Image or Offset Fill" mode, we suggest to open the "Overscanning" function.

- Double-click on a layer to access the "Cut Settings Editor". Turn on the Overscanning effect and enter the percentage.

Note: Parameter settings are different for each speed and material. Please refer to the "Recommended settings for material parameters" at the bottom of this article.



6. Set the start position

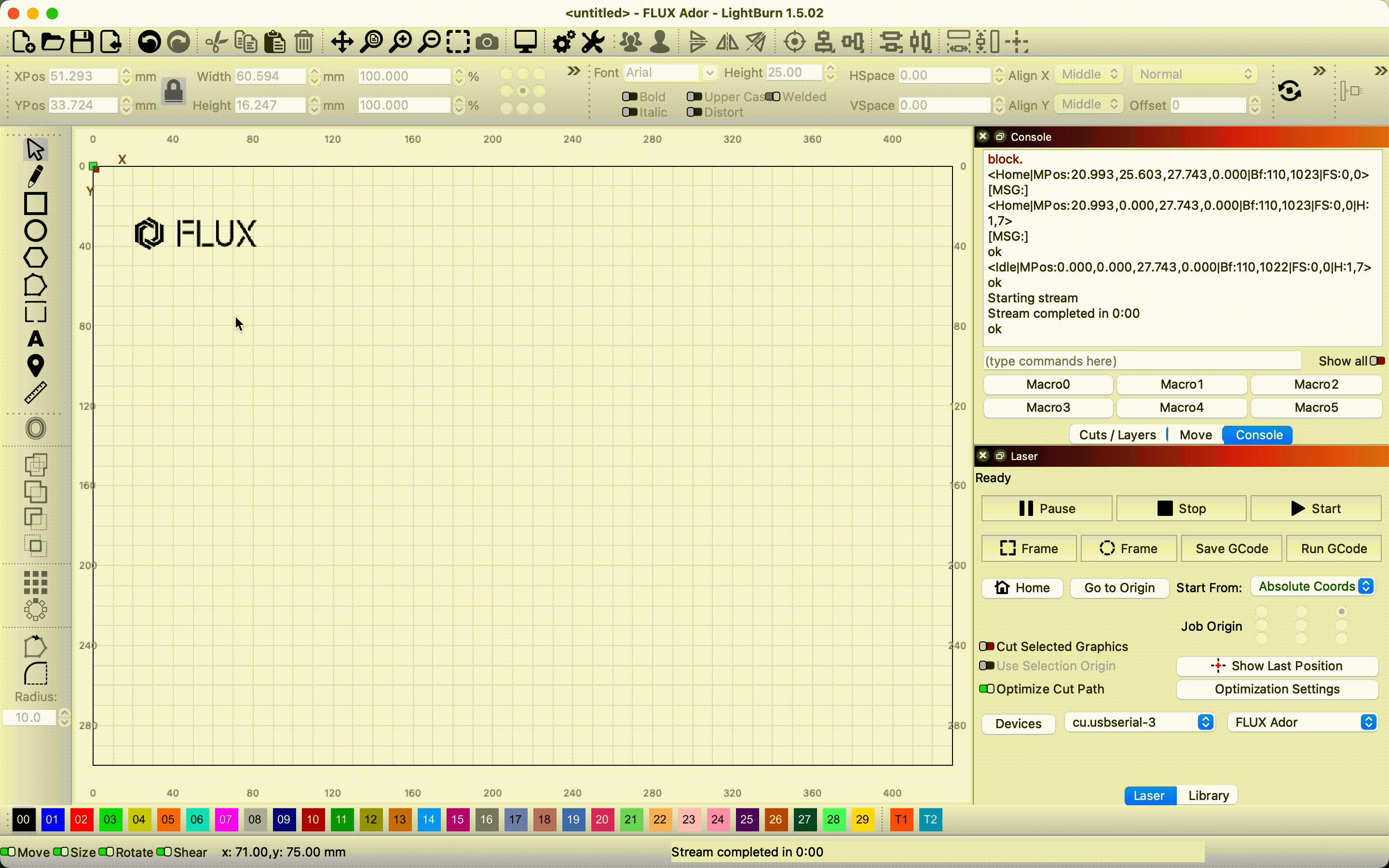

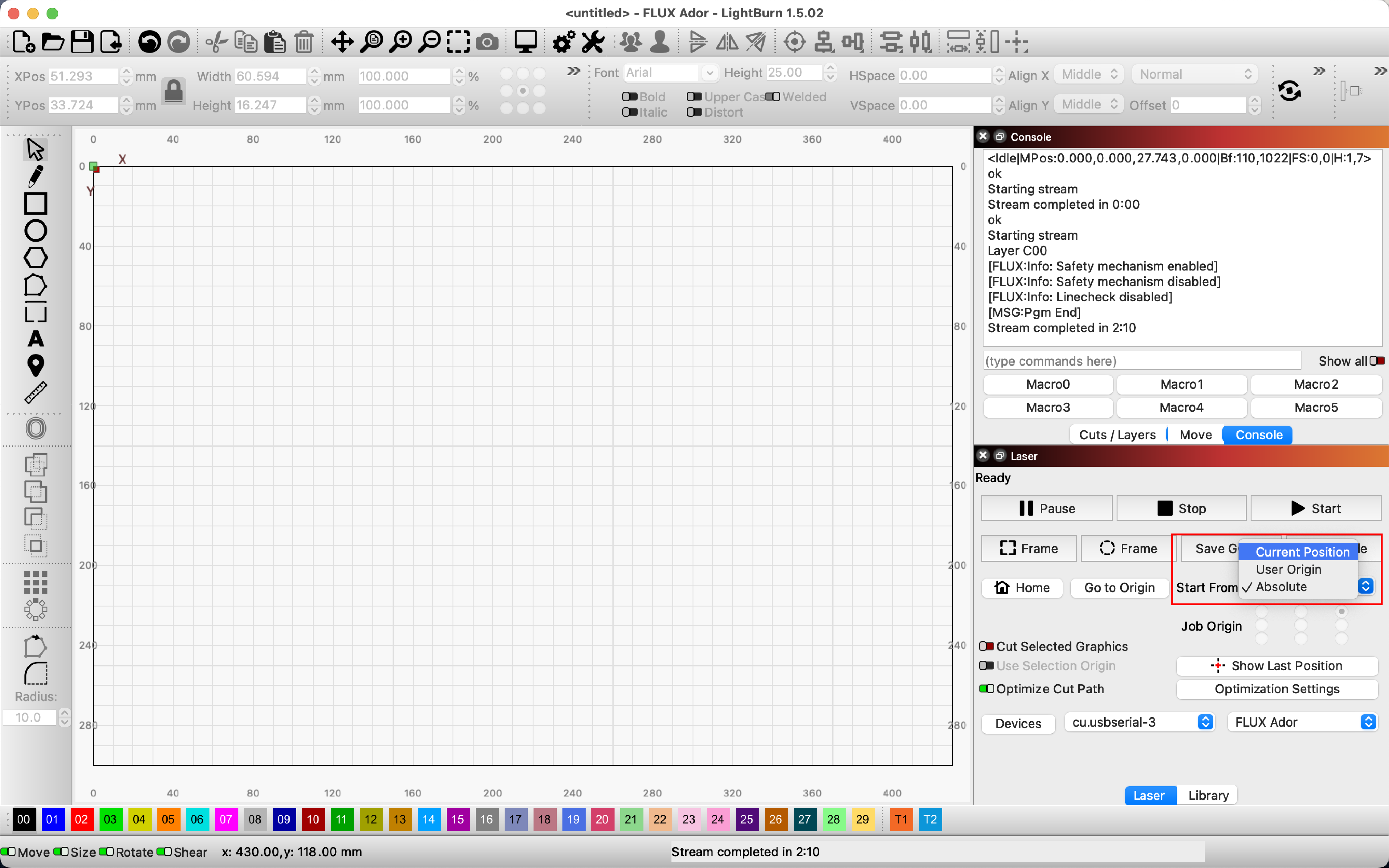

Select "Absolute Coordinates" in the drop-down list "Start From" on the Laser tab.

Note: The operation of "Absolute Coordinates" is very similar to Beam Studio, so we strongly recommend it to users with experience with Beam Studio.

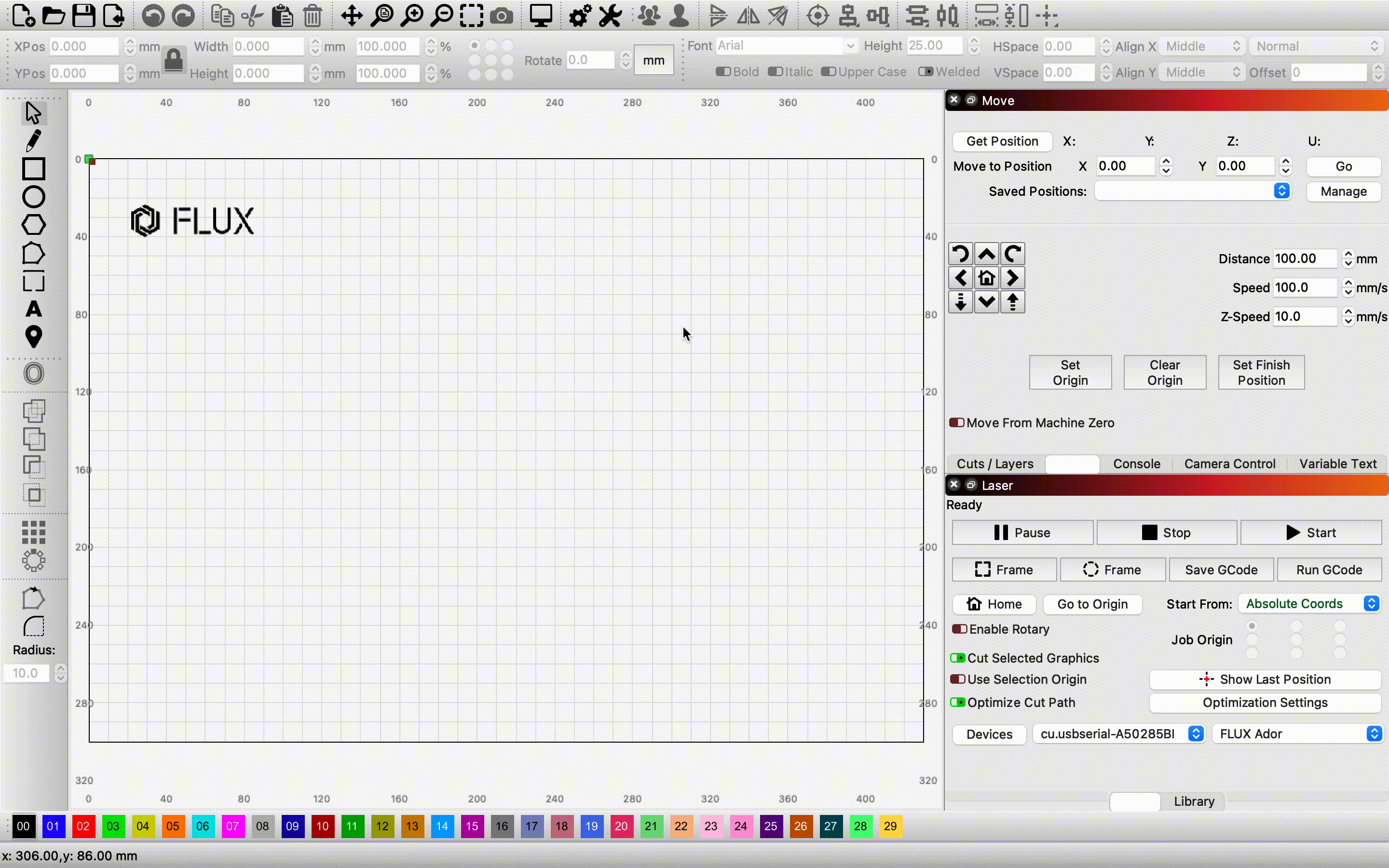

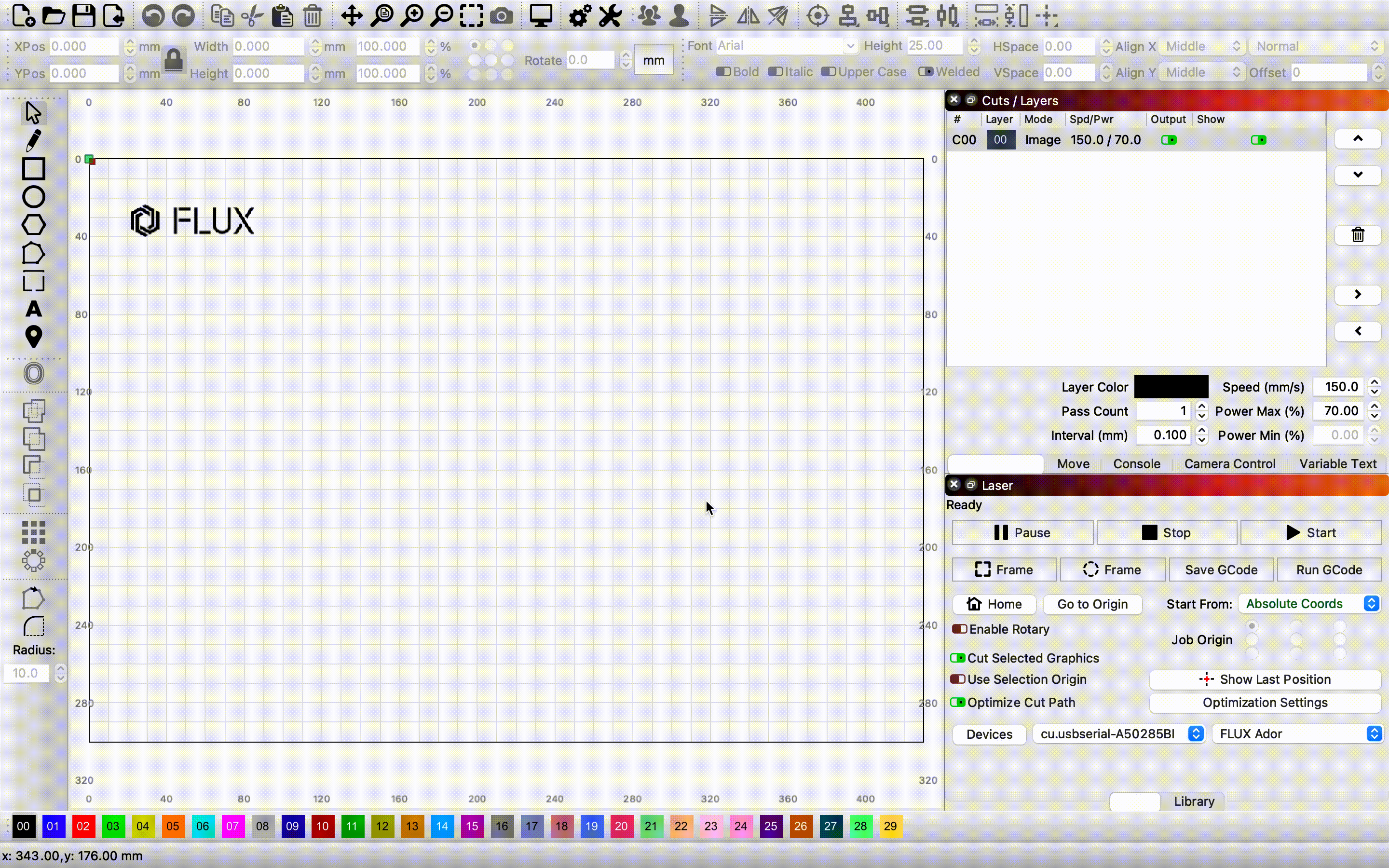

Absolute Coordinates

The main editing window you see represents your machine's work area. Anything you place in that area will be cut in the corresponding place on your machine.

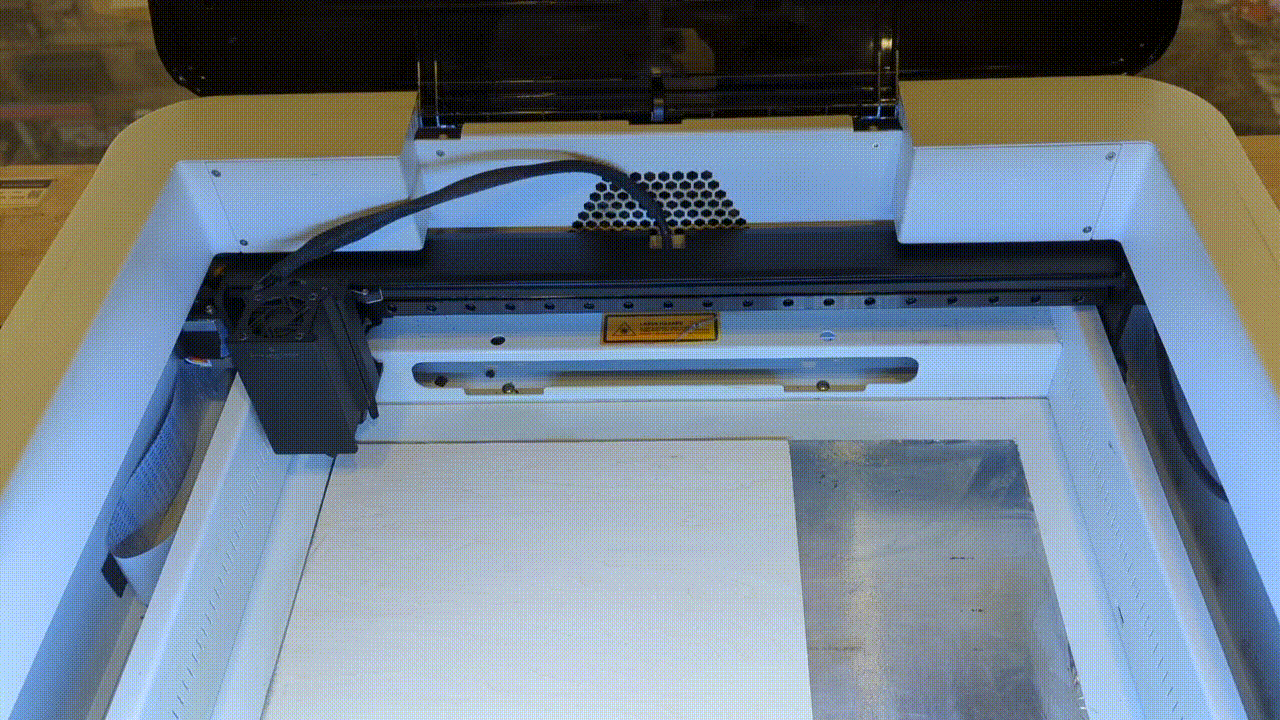

7. Click "Home" in the Laser panel.

After losing the motor, if you have made any movements to the laser head, please remember to press "Home" to reset the position before sending out the job. Otherwise, there is a risk of collision.



8. Preview the engraving position

- Open the "Enable laser fire button" in "Device settings".

- Click "OK" and restart LightBurn ( make sure to save the current file first before restart).

- Enter "m136p173" in the "Console" window on the right side to turn on the laser module. (Will not emit light.)

- Set the Fire Power parameter in the "Move" window on the right side.

- Close the door.

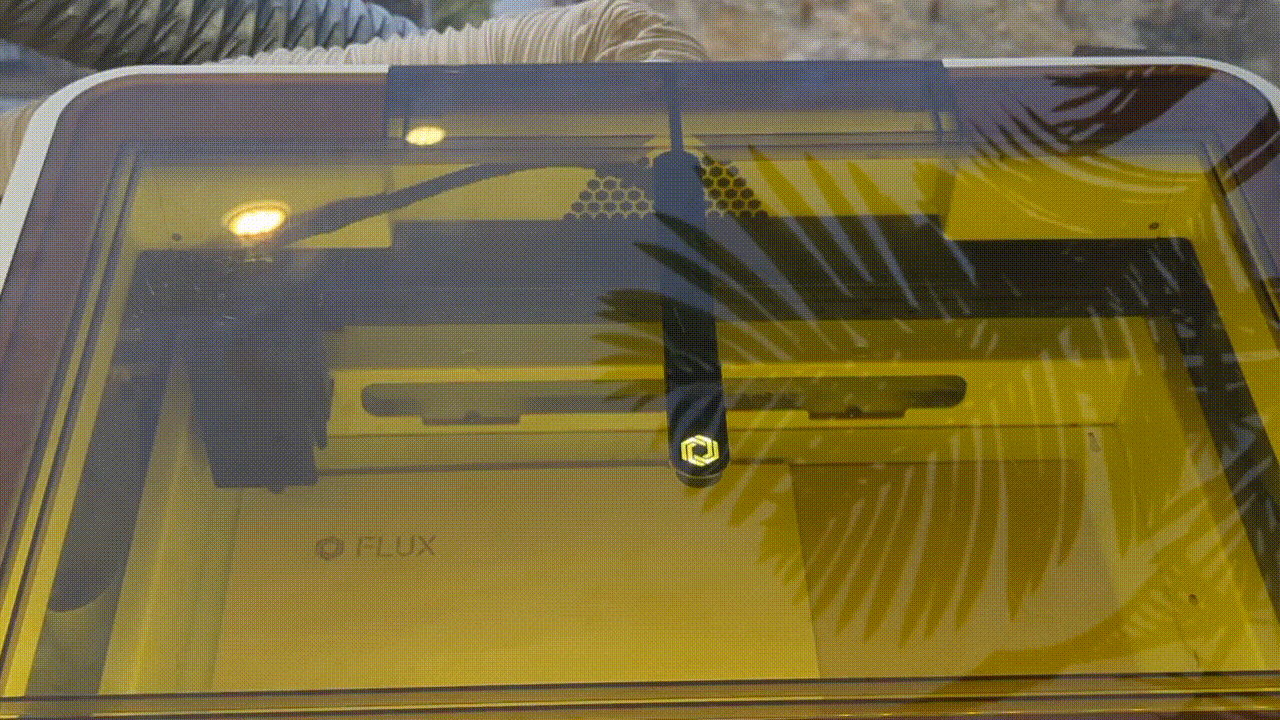

- Click "Fire" in the "Move" window and check if the machine is emitting laser light (click "Fire" again to turn off the laser light after checking).

- After confirming the laser light is available, select the pattern and click " Frame" while holding "Shift" to see whether the pattern is to be engraved in the expected position.



9. Click Home and send the job

Select the image and click "Start" on the Laser tab to send the job.

Notice: Removing the cable while the project is running will stop the operation. Ensure the cable is securely connected during job execution.



10. Engraving results

Note: If the engraving result is blurry, unclear, or light in color, please check if the laser head is focused accurately.



____________________________________________________________________________________

Apart from Absolute Coordinates, there are other options to tell LightBurn how to place the pattern within your machine's work area.

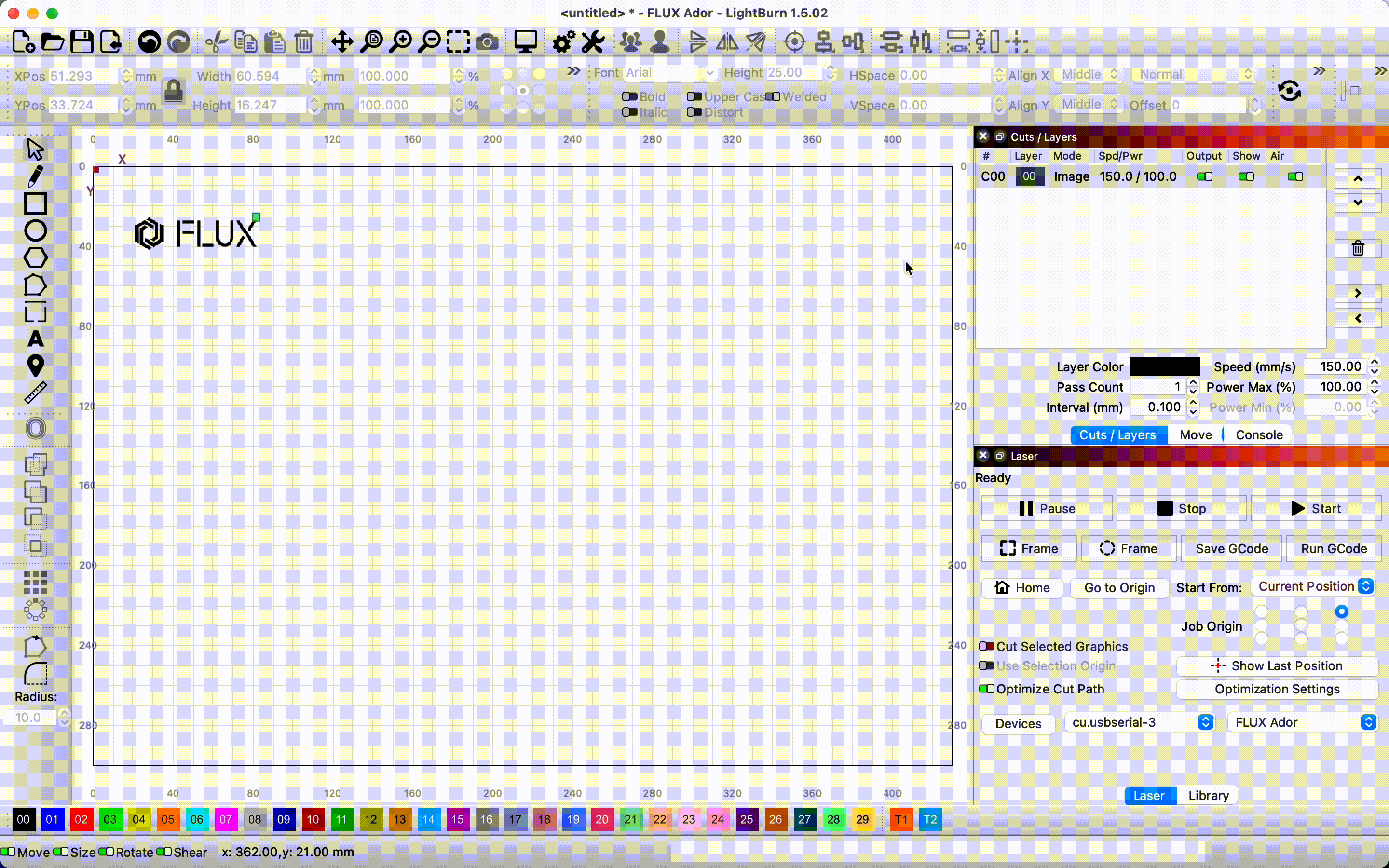

Current Position

The job Cuts / Engraves based on the current position of the laser head.



Job Origin

Setting "Job Origin" will tell LightBurn how to position the job relative to the laser.

(The green "Job Origin" indicator displayed in the main editing window will move when you change your settings.)

____________________________________________________________________________________

Recommended settings for material parameters

10W Diode Laser

material		Power	Speed	Execute	Overscanning
Wood	3mm Cutting	100.0 %	6.0 mm/s	1 time	-
Wood	5mm Cutting	100.0 %	3.0 mm/s	1 time	-
Wood	Engraving	100.0 %	150.0 mm/s	1 time	9.4%
Acrylic	3mm Cutting	100.0 %	2.0 mm/s	1 time	-
Acrylic	5mm Cutting	100.0 %	2.0 mm/s	2 times	-
Acrylic	Engraving	75.0 %	150.0 mm/s	1 time	9.4%



20W Diode Laser

material		Power	Speed	Execute	Overscanning
Wood	3mm Cutting	100.0 %	8.0 mm/s	1 time	-
Wood	5mm Cutting	100.0 %	4.0 mm/s	1 time	-
Wood	Engraving	60.0 %	150.0 mm/s	1 time	9.4%
Acrylic	3mm Cutting	100.0 %	4.0 mm/s	1 time	-
Acrylic	5mm Cutting	100.0 %	2.0 mm/s	1 time	-
Acrylic	Engraving	50.0 %	150.0 mm/s	1 time	9.4%
