#927 Remote Interlock Triggered

FLUX Support Team
  • Updated

Description

#927 indicates that a Remote Interlock detection error has occurred.
This article will help you identify and resolve possible causes of this Problem.
If following this guide does not immediately resolve the problem, completing the steps below will help you gather useful information so the FLUX support team can diagnose the Problem more efficiently.





Possible Causes:

  1. The 3-pin Remote Interlock on the extension base is not installed.
  2. Class 4 mode is enabled, but the extension base is not installed.
  3. Class 4 mode is enabled and the extension base is installed, but the Ethernet cable of the base is not connected.





Step 1 - Check the Safety Key Settings

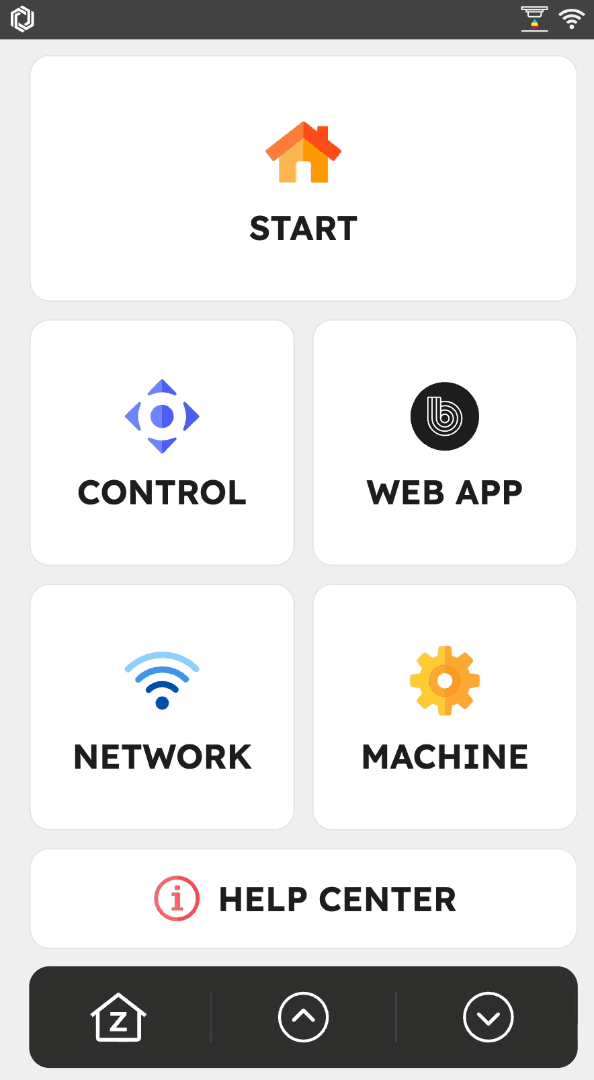

On the machine panel, go to Machine → Hardware Settings → Safety Key Settings and verify whether it is set to Class 4 mode.安全鑰匙EN.gif



Confirm your result and follow the next step:

  • Yes, but the extension base is not installed >> Switch to Class 1 mode >> Problem resolved
  • No, it is set to Class 1 mode but the error still appears >> Record a video of the screen >> Contact Customer Support and send the video for further assistance.





Step 2 - Check the Remote Interlock Port on the Extension Base

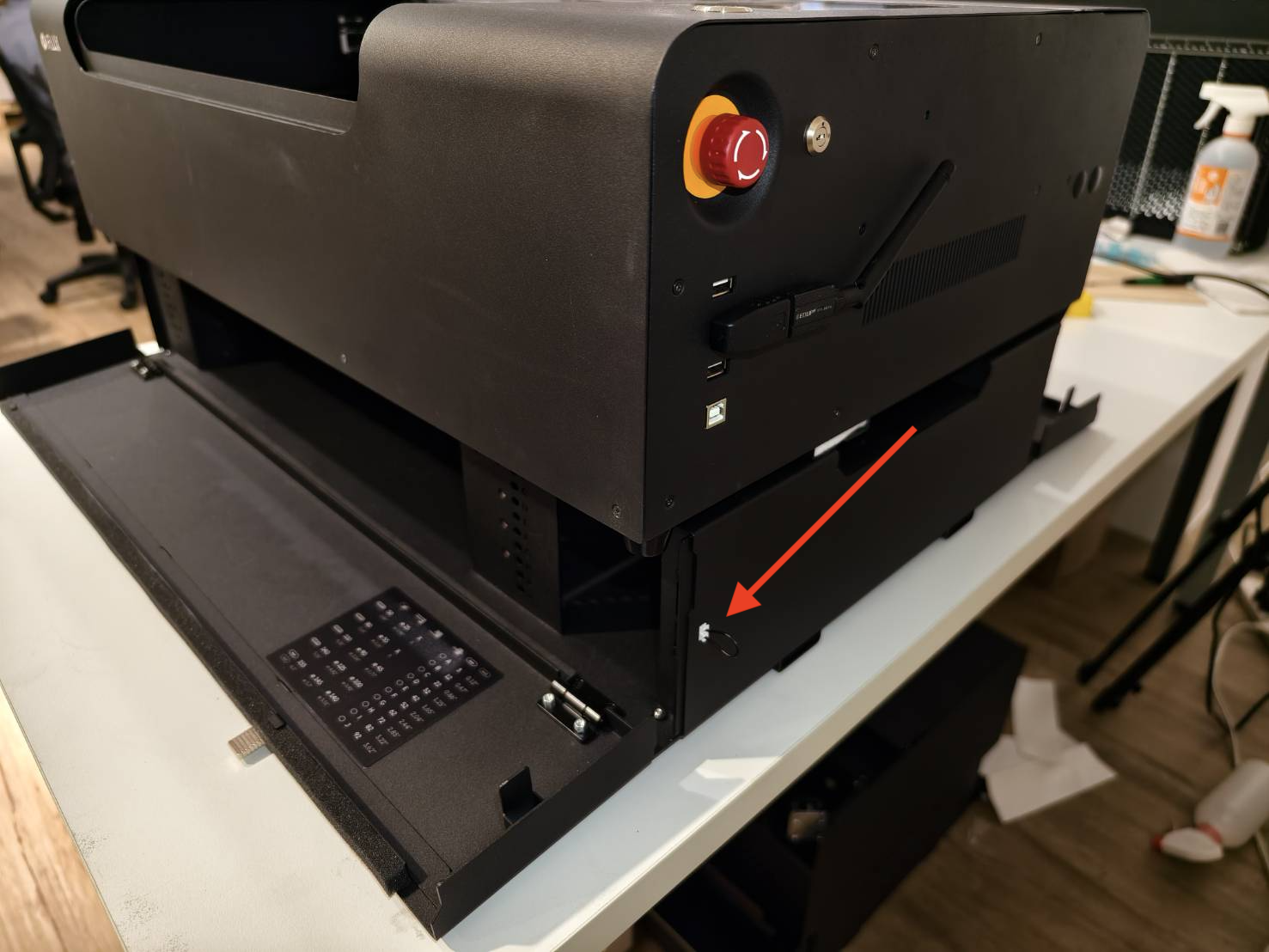

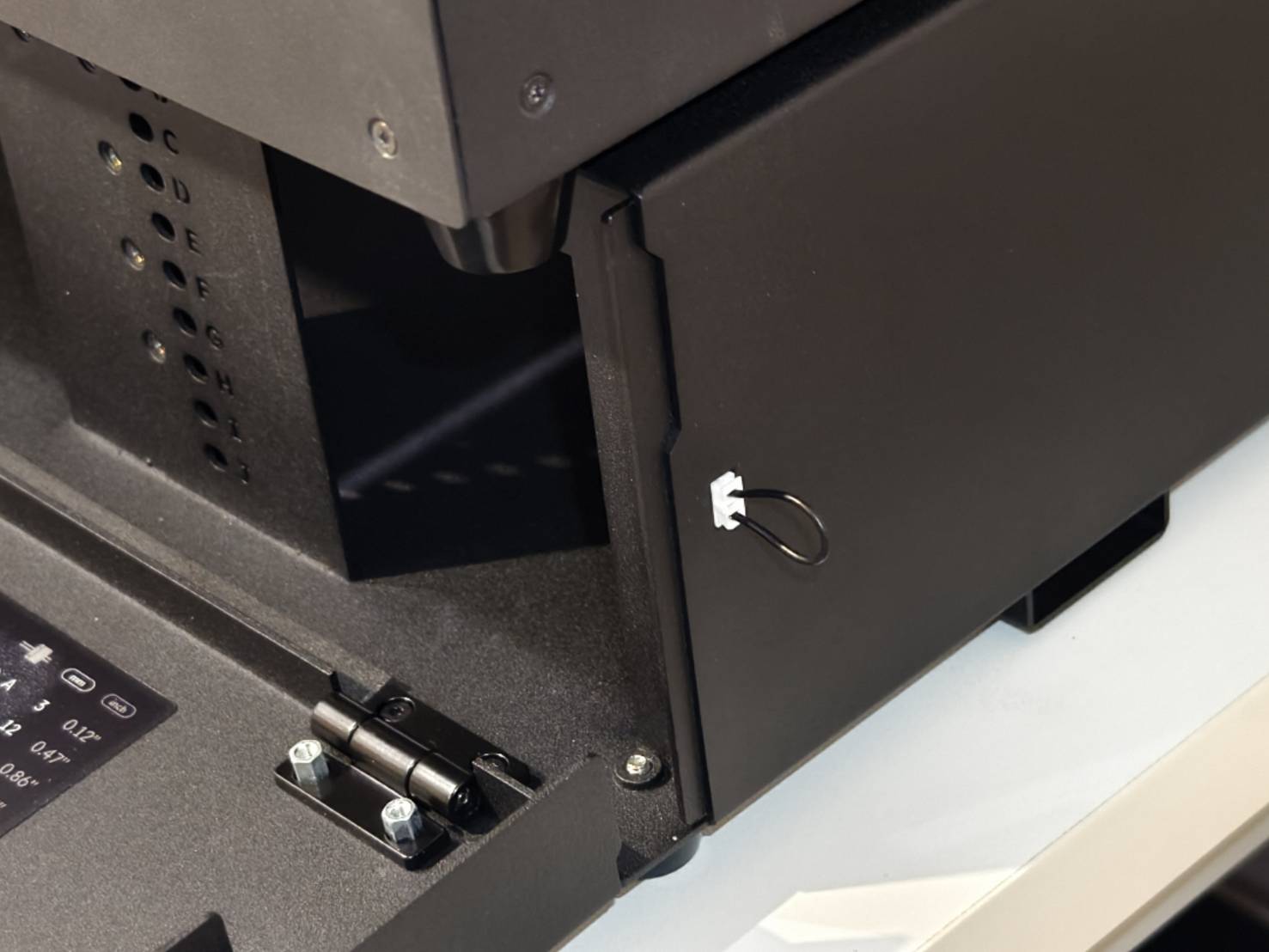

Please check whether the 3-pin Remote Interlock port on the lower-right corner of the extension base is connected with a jumper or another interlock device.



Confirm your result and follow the next step:

  • Yes >> Unplug and reconnect the jumper to ensure proper installation >> Error disappears >> Problem resolved
  • No >> Plug in the jumper or interlock device >> Error disappears >> Problem resolved





Step 3 - Check the Ethernet Cable Connection

Ensure that the Ethernet cable of the extension base is properly connected.



Confirm your result and follow the next step:

  • Yes >> Unplug and reconnect the Ethernet cable to ensure proper installation >> Error disappears >> Problem resolved
  • Yes >> Unplug and reconnect the Ethernet cable to ensure proper installation >> Error persists >> Contact Customer Support
  • No >> Connect the Ethernet cable >> Error disappears >> Problem resolved
  • No >> Connect the Ethernet cable >> Error persists >> Contact Customer Support



#END
