#901 Door Opened/Door Issue/Door cover can’t be closed

FLUX Support Team
  • Updated

Description:

The #901 Door Opened error pops up during a task when the system detects the door being opened.
The symptom is usually that the system is unable to detect a door close signal, meaning the door icon cannot be changed to 'closed'. Another symptom is that the error appears randomly during tasks, even when the door is closed securely.

Regardless of the symptom you experience with your machine, please follow the steps below in order.

Possible Causes

  1. The system fails (Re-update the firmware or reflash RK board.)
  2. The sensing object (metal piece) for the door sensor is off the position.
  3. The mainboard/MB/motherboard is malfunctioning and fails to capture the signal.
  4. The door sensor itself is malfunctioning.
  5. The door sensor cable/wire is malfunctioning.

Step 1

Re-update the firmware to a stable version to first rule out the possibility of a firmware issue.
beamo 2 - Firmware Update Guide

Determine your result and the next action to take:

  • The #901 error does not appear again >> Prolem Solved
  • The #901 error still appears >> Stpe 2

Step 2

For safety purposes, please set the power rate to 0% to ensure no pulses during your testing.


Determine your result and the next action to take:

  • After setting to 0% go to Step 3

Step 3

  • Open the back cover.

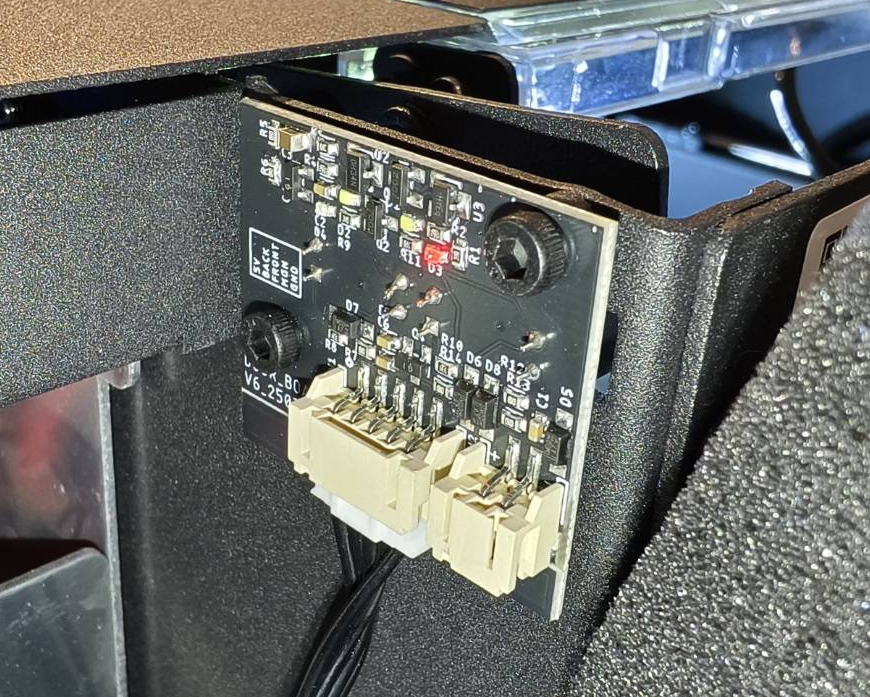

  • Check if the red light on the door sensor board is on.

Determine your result and the next action to take:

  • Yes, the red light is on >> Step 4
  • No, the red light is not on >> Step 3.1

Step 3.1

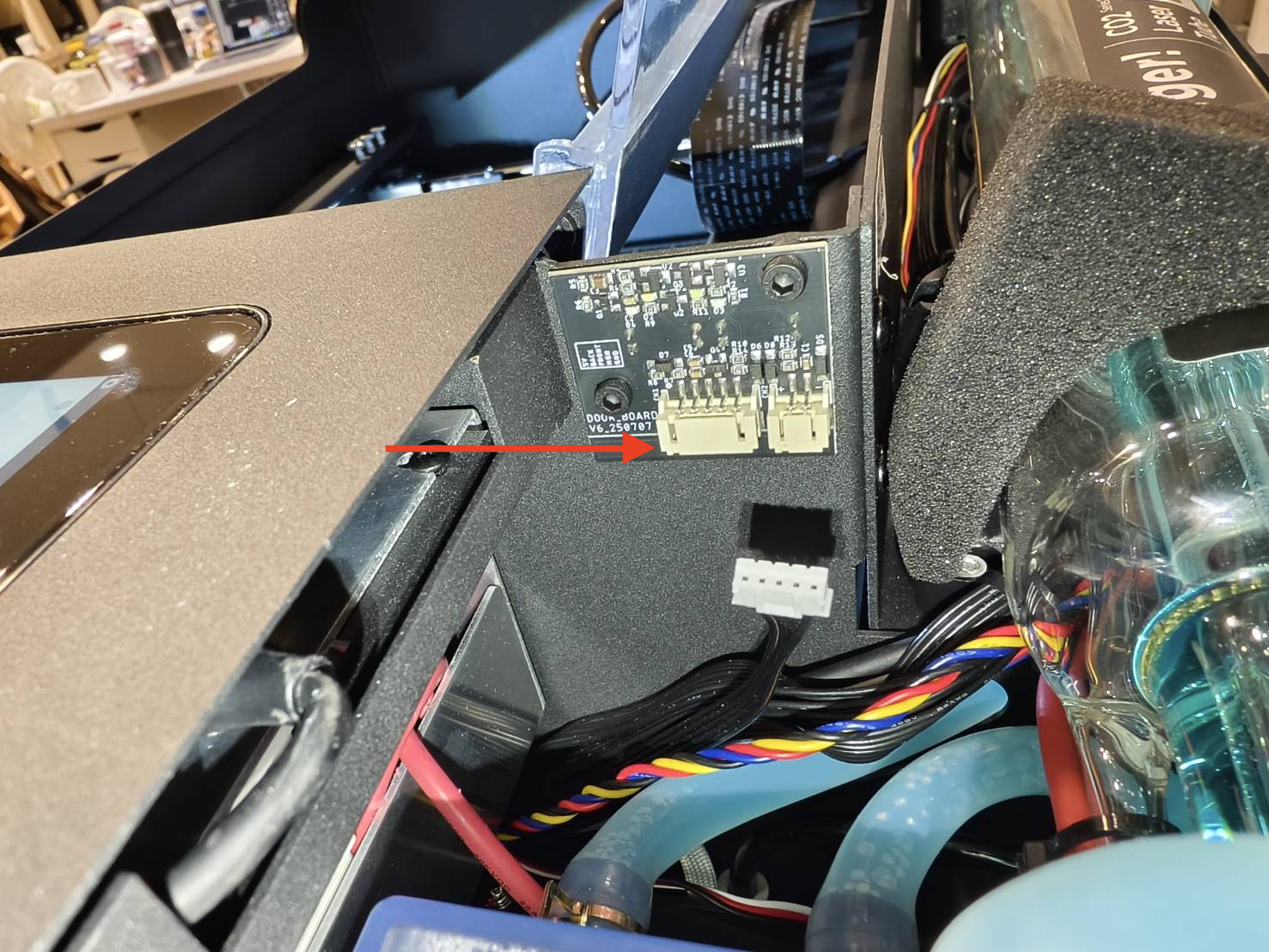

  • Turn off the machine and unplug the cable.
  • Replug the same cable.
  • Turn on the machine and see if the red light is on.

Determine your result and the next action to take:

  • Yes, the red light is on >> Step 4
  • No, the red light is not on >> Record a video showing the issue >> Report to us
    • Possible cause:
      • Door sensor board needs to be replaced.
      • Mainboard needs to be replaced.
      • Door sensor cable needs to be replaced.

Step 4

Test if the door icon can be changed using two pieces of paper or tape.



Determine your result and the next action to take:

  • Yes, the icon changes as in the video >> Step 5
  • No, the icon cannot be changed >> Step 4.1

Step 4.1

  • Turn off the machine and unplug the cable.
  • Replug the same cable.

  • Test if the door icon can be changed using two pieces of paper or tape.



Determine your result and the next action to take:

  • Yes, the red light is on >> Step 5
  • No, the icon cannot be changed  >> Record a video showing the issue >> Report to us
    • Possible cause:
      • Door sensor board needs to be replaced.
      • Mainboard needs to be replaced.
      • Door sensor cable needs to be replaced.

Step 5

  • Check the position of the sensor; the sensor may be mispositioned or have fallen off, which may cause the detection of magnets to fail.  Please check if the screws are firmly screwed and the sensor is positioned straight.

Determine your result and the next action to take:

  • The sensor is NOT in the correct position >> Step 5.1
  • The sensor is in the correct position >> Step 6

Step 5.1

Reposition the sensor by screwing the two screws and nuts firmly.

  • After checking or re-screwing, Go to Step 6

Step 6

Test if the icon can be changed using the door cover.

Determine your result and the next action to take:

  • Yes, the icon changes as in the video >> Problem Solved
  • No, the icon cannot be changed >> Step 7

Step 7

Adjust the seat of the shafts that is used for the door sensor.
[This step requires a Ball-end Allen key(2.5mm)]



Determine your result and the next action to take:

  • Yes, the icon changes as in the video >> Problem Solved
  • No, the icon cannot be changed >>  Record a video showing the issue >> Report to us
    • Possible cause:
      • Door sensor board needs to be replaced.
      • Door cover set needs to be replaced.

Report to the local reseller or FLUX Support

*The collected information such as photos or videos that show the problem of your machine in this article will be necessary to be shared with the reseller or FLUX Support.



#END
